DPD0901C230 datasheet, PDF - EEWORLD Datasheet

DPD0901C230: DescriptionD Type Connector, 9+9 Contact(s), Male/Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug/receptacle; CategoryThe connector The connector; File Size333KB，3 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

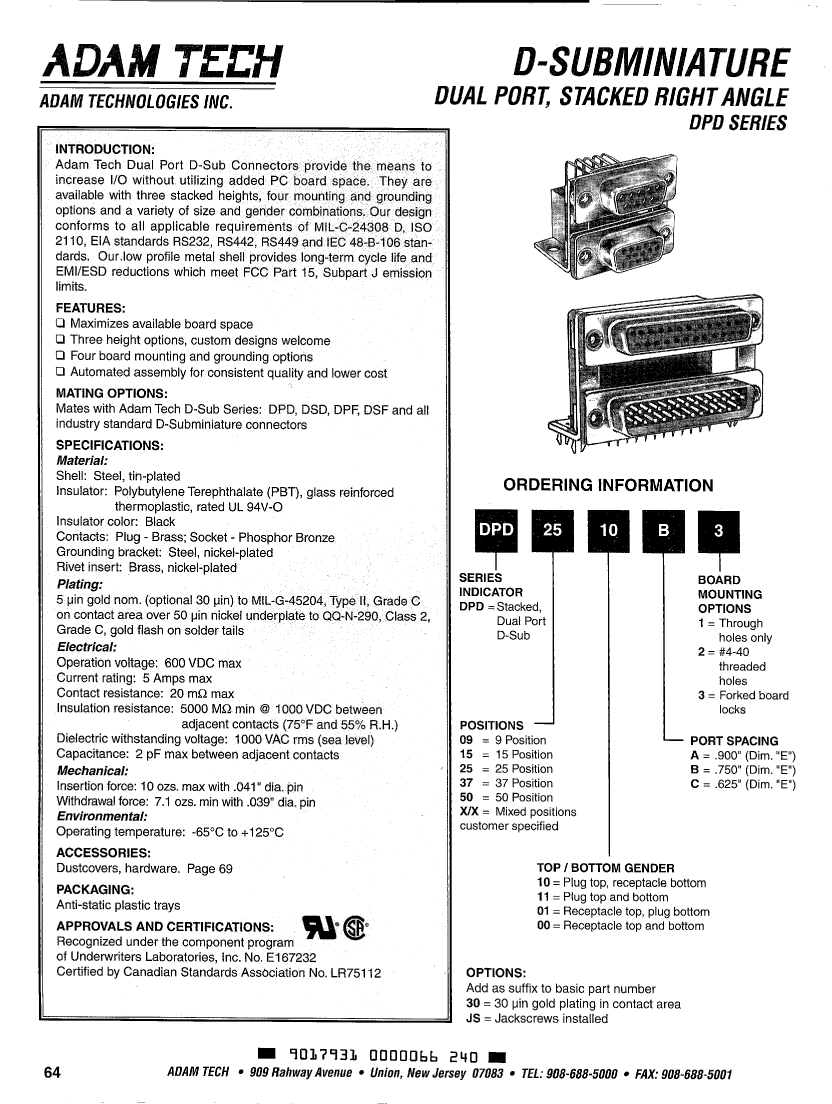

DPD0901C230 Overview

D Type Connector, 9+9 Contact(s), Male/Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug/receptacle

Parameter Name	Attribute value
Objectid	1166235825
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2

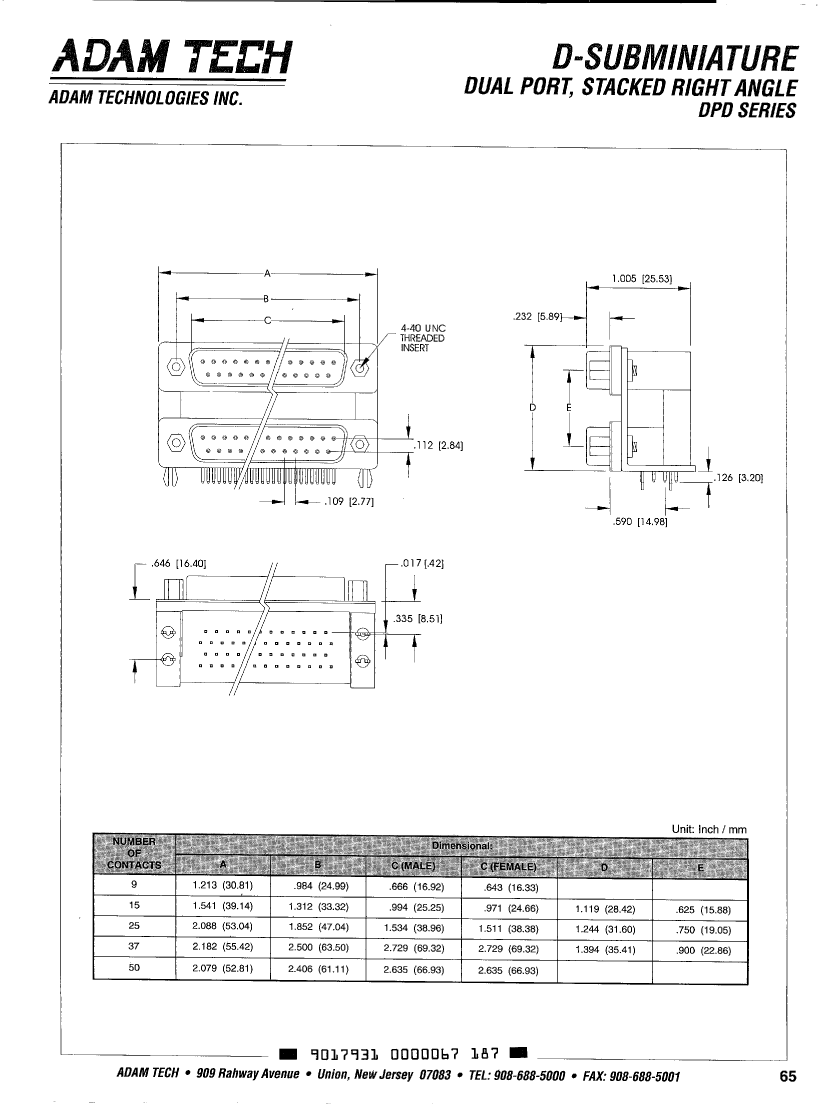

body width	1.119 inch
subject depth	0.773 inch
body length	1.213 inch
Body/casing type	PLUG-RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE/FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE

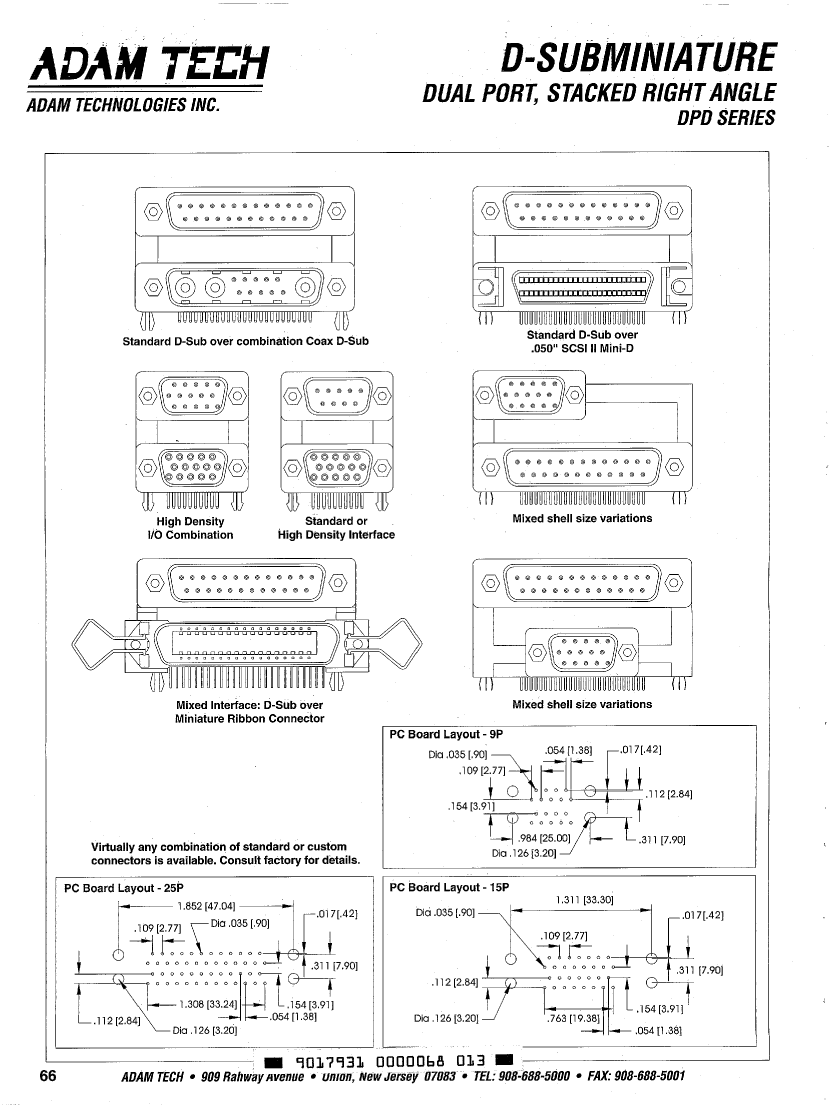

PCB contact pattern	STAGGERED
PCB contact row spacing	3.9116 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	18
Evacuation force-minimum value	1.946 N
