7-534206-1

Description
42 MODII VRT DR CE 100/115
CategoryThe connector    The connector
File Size273KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

7-534206-1 Online Shopping

Suppliers Part Number Price MOQ In stock
7-534206-1 - - View Buy Now

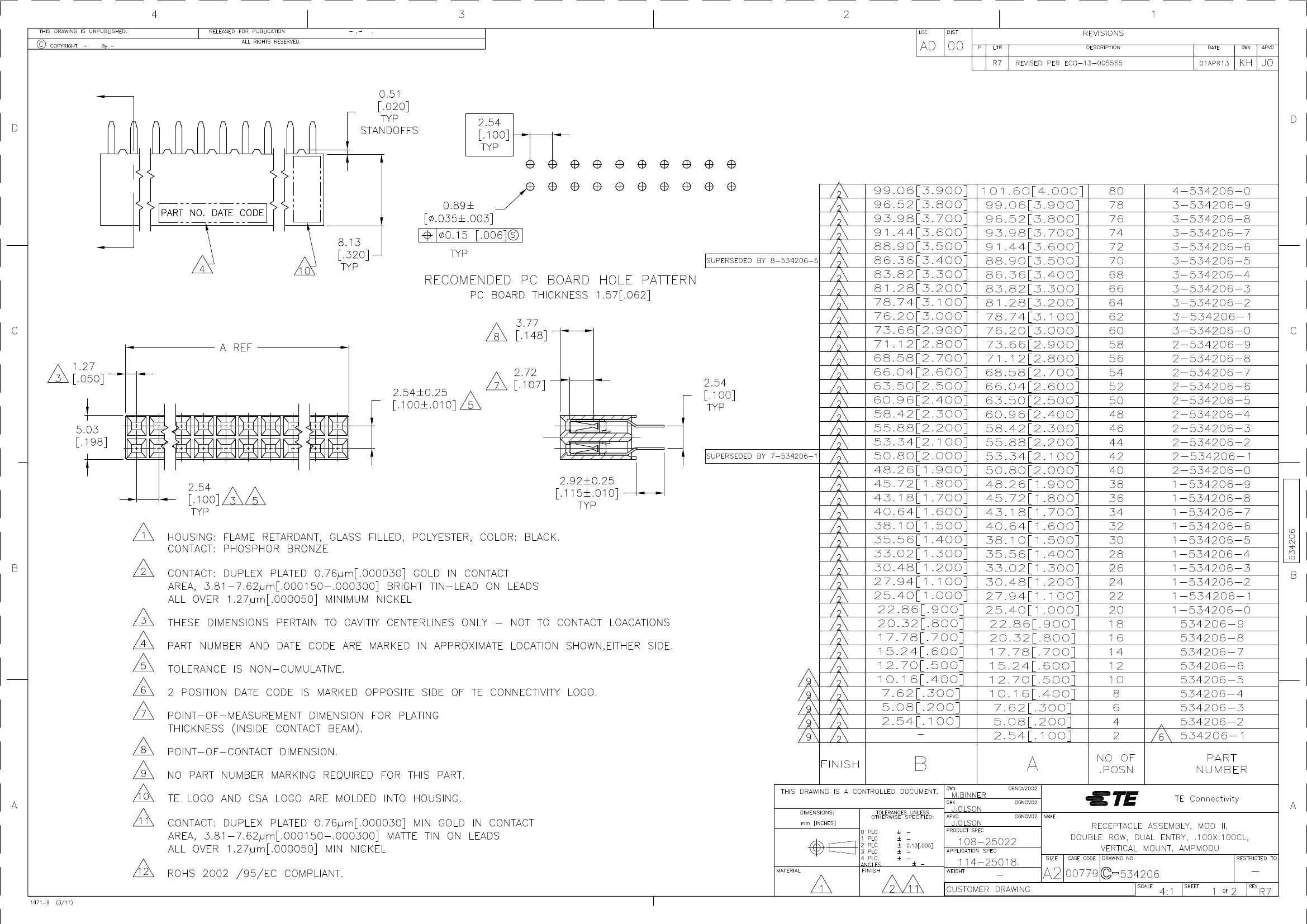

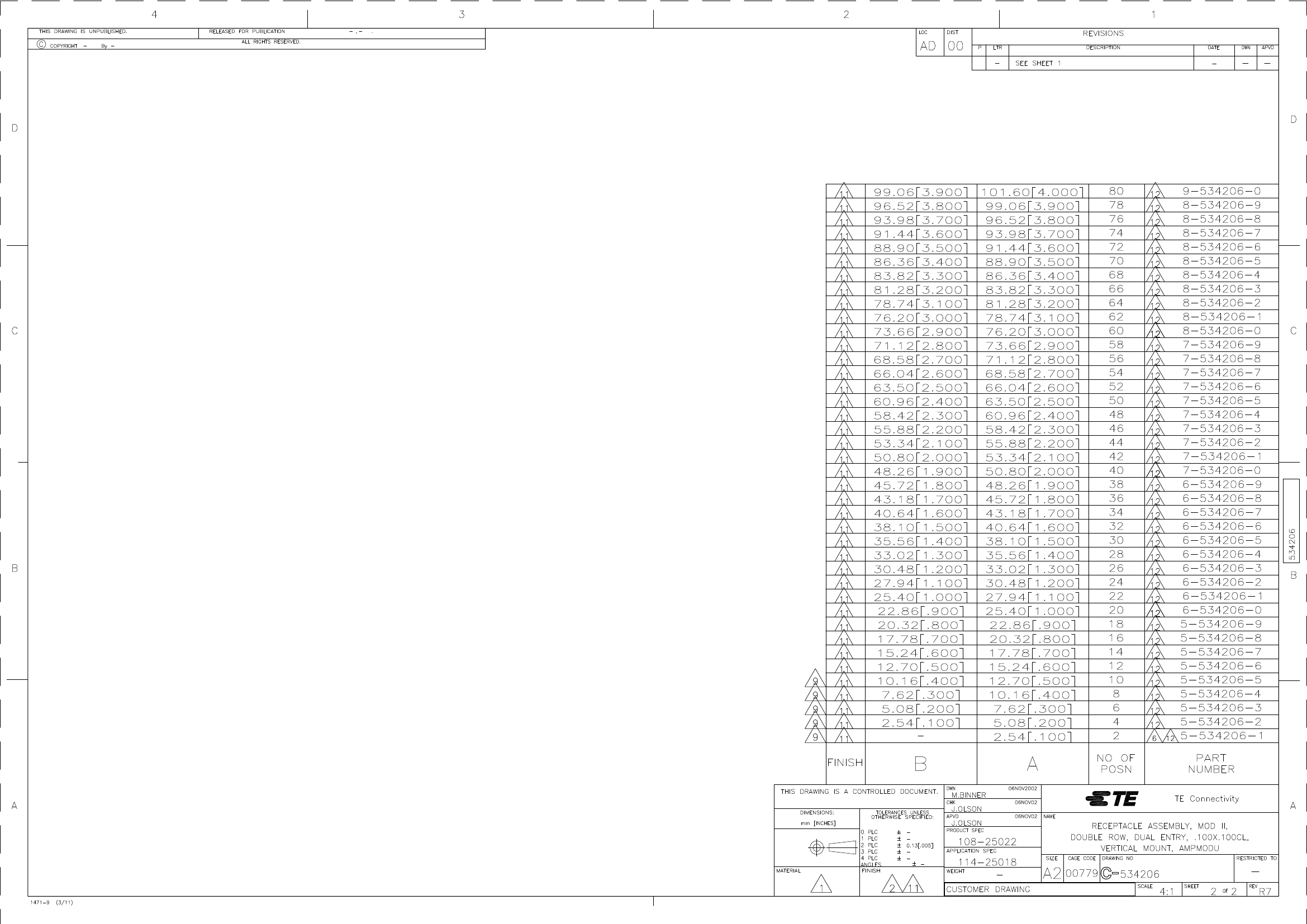

7-534206-1 Overview

42 MODII VRT DR CE 100/115

7-534206-1 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time11 weeks 2 days
Is SamacsysN
Other featuresAMPMODU
body width0.198 inch
subject depth0.34 inch
body length2.1 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage750VAC V
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.115 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts42
Base Number Matches1

7-534206-1 Related Products

7-534206-1 8-534206-5 7-534206-6 7-534206-9 6-534206-9 PTN0502K2290DGTF 5-534206-6
Description 42 MODII VRT DR CE 100/115 70 MODII VRT DR CE 100/115 52 MODII VRT DR CE 100/115 58 MODII VRT DR CE 100/115 38 MODII VRT DR CE 100/115 RESISTOR, THIN FILM, 0.1 W, 0.5 %, 100 ppm, 229 ohm, SURFACE MOUNT, 0502, CHIP, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT SMT, 0502 ROHS COMPLIANT
Reach Compliance Code compliant compliant compli compliant compliant compliant compliant
Other features AMPMODU AMPMODU AMPMODU AMPMODU AMPMODU ANTI-SULFUR; LASER TRIMMABLE; NON-INDUCTIVE AMPMODU
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C 155 °C 105 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -55 °C -65 °C
Brand Name AMP AMP AMP AMP AMP - AMP
Maker TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity - TE Connectivity
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 -
Factory Lead Time 11 weeks 2 days 11 weeks 2 days 11 weeks 2 days 11 weeks 2 days 11 weeks 2 days - 11 weeks 2 days
body width 0.198 inch 0.198 inch 0.198 inch 0.198 inch 0.198 inch - 0.198 inch
subject depth 0.34 inch 0.34 inch 0.34 inch 0.34 inch 0.34 inch - 0.34 inch
body length 2.1 inch 3.5 inch 2.6 inch 2.9 inch 1.9 inch - 0.6 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE - RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR - BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrie Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier - Tin (Sn) - with Nickel (Ni) barrier
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE - FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE - PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR
Contact resistance 12 mΩ 12 mΩ 12 mΩ 12 mΩ 12 mΩ - 12 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT - SQ PIN-SKT
DIN compliance NO NO NO NO NO - NO
Dielectric withstand voltage 750VAC V 750VAC V 750VAC V 750VAC V 750VAC V - 750VAC V
Filter function NO NO NO NO NO - NO
IEC compliance NO NO NO NO NO - NO
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω - 5000000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK - BLACK
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER - GLASS FILLED POLYESTER
JESD-609 code e3 e3 e3 e3 e3 - e3
MIL compliance NO NO NO NO NO - NO
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch - 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch - 0.1 inch
Mixed contacts NO NO NO NO NO - NO
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING - LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT - STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD - BOARD
Number of connectors ONE ONE ONE ONE ONE - ONE
PCB row number 2 2 2 2 2 - 2
Number of rows loaded 2 2 2 2 2 - 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE - GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm - 2.54 mm
Plating thickness 30u inch 30u inch 30u inch 30u inch 30u inch - 30u inch
Rated current (signal) 2 A 2 A 2 A 2 A 2 A - 2 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA - UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL - COMMERCIAL
Terminal length 0.115 inch 0.115 inch 0.115 inch 0.115 inch 0.115 inch - 0.115 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm - 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER - SOLDER
Total number of contacts 42 70 52 58 38 - 12
Base Number Matches 1 1 1 1 1 - 1
