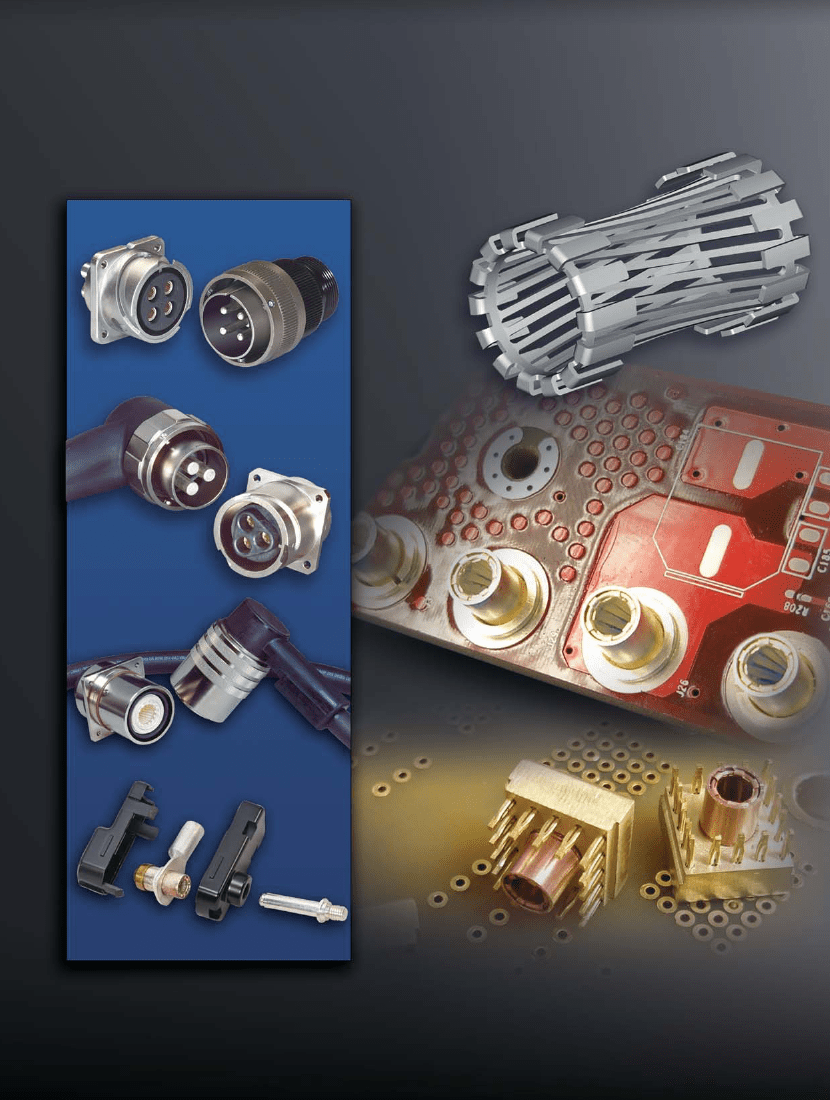

Amphe-Power Connectors
®
with RADSOK Technology
SL-391-4
®
Amphenol
RADSOK
®
Technology
Advantages
• HIGH RELIABILITY
Unique RADSOK
®
design and construction technology create
an electrical contact interface that exceeds typical intercon-
nect requirements. Applications in aerospace, medical,
industrial, automotive, mining, offshore, and other harsh
environments depend on high reliability of the Amphenol
RADSOK
®
technology.
TABLE OF CONTENTS
Page Number
RADSOK
®
Technology Advantages/
Interconnect Solutions for the
Power Bus Market ........................ Inside Covers
The Amphe-Power
®
Family of Connectors
For High Power Applications ........................... 1
Amphe-Power
®
P-Lok Connector Styles .......... 2
Amphe-Power
®
5015 Connector Styles ........... 3
Amphe-Power
®
GT Connector Styles ........ 4 - 5
RADSOK
®
Layouts ................................... 6 - 10
Amphe-Power
®
P-Lok Part Numbering .......... 11
Amphe-Power
®
5015 Part Numbering ........... 11
Amphe-Power
®
GT Part Numbering .............. 12
Amphe-Power
®
Composite Amphe
®
-GTR
Connectors ..................................................... 13
Amphe-Power
®
GT Connectors with
TUV Finger Proof ........................................... 14
Amphe-Power
®
P-Lok Connectors
14mm RADSOK
®
Sockets, 500 Amps Rating ....
15
• LOW CONTACT ENGAGEMENT/SEPARATION
FORCES
The hyperbolic lamella socket contact construction distrib-
utes normal forces over a high percentage of the mating pin
surface. This creates a smooth, even engagement effort.
This force distribution also contributes to excellent perfor-
mance in vibration applications with resistance to typical
fretting corrosion.
• LOW CONTACT RESISTANCE
The large interface area between the socket lamella and pin
surface result in very low contact resistance, enabling the
RADSOK
®
contacts’ high current ratings compared to tradi-
tional power contact designs.
• HIGH MATING CYCLE DURABILITY
RADSOK
®
contacts with typical silver plating finishes have
demonstrated survival of 20,000 mating cycles. Specialized
plating and contact lubricants can extend cycle life to
200,000 matings or higher. Even with continuous exposure to
harsh environmental abuse (salt, sand, and high humidity),
RADSOK
®
contacts have been tested to maintain low contact
resistance beyond 10,000 mating cycles.
Amphe-Power
®
Last Mate - First Mate
P-Lok Connectors .......................................... 16
Amphe-Power
®
Amph-BU
TM
Connectors ....... 17
Power to Board Interconnects ....................... 18
RADSOK
®
PowerBus Products:
Amphe-PD
TM
Connectors .......................... 19
Amphe-PD
TM
Bridge,
RADLOK
TM
Connectors ............................. 20
PowerBlok
TM
, RADSERT
TM
Connectors .... 21
PGY
TM
, Busbars, RADSOK
®
with Flex ...... 22
SurLok
TM
Compression Lugs with
Plastic Housings Utilizing RADSOK
®
Technology ............................................... 23
Amphe-Base
TM
, Amphe-Com
TM
, HiLok
TM
Connectors ............................................... 24
Amphe-Y
TM
, Amphe-Armor
TM
,
Tru-Loc
TM
Connectors ............................... 25
More Amphenol
®
RADSOK
®
PowerBus
Products: ........................................................ 26
RADSOK
®

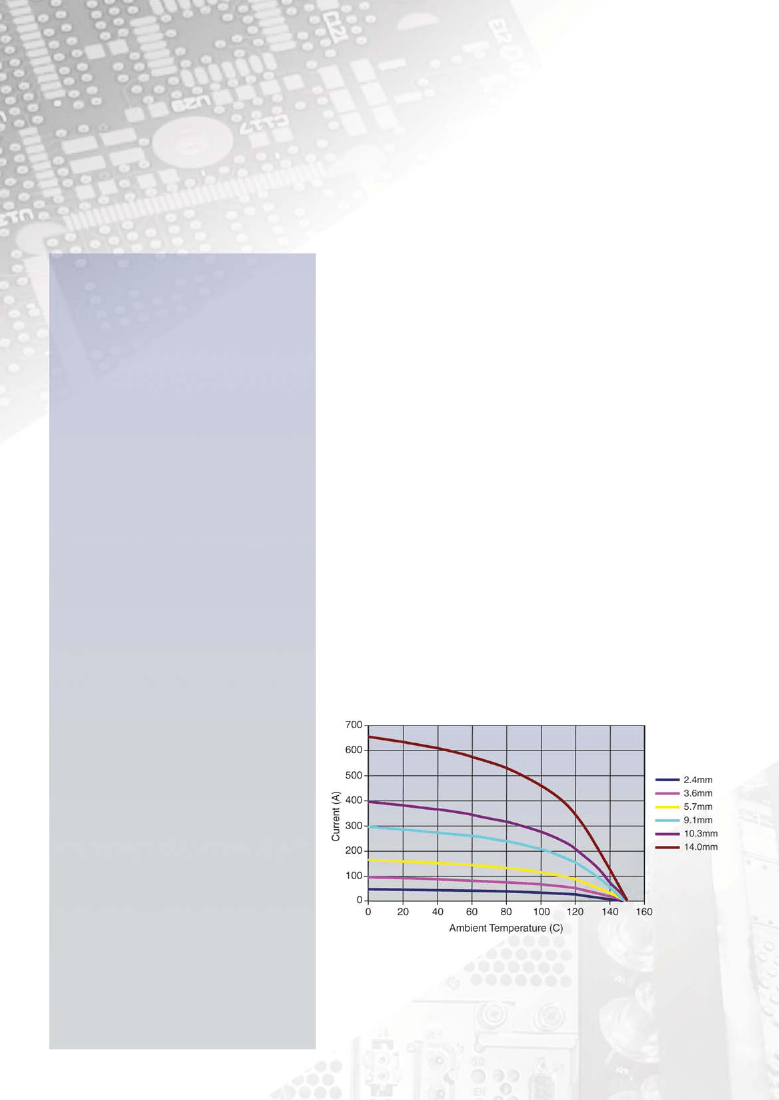

Derating Chart – Temperature vs.
Current
Based on single conductors in free air. Wire cross-section
same size as pin contact cross-sectional area.
For more information on RADSOK
®
products from Amphenol:
www.amphenol-industrial.com and www.radsok.com
Contact Amphenol Industrial Operations, Sidney, NY
(Phone: 607-563-5011) or Amphenol Power Solutions, Fraser, MI
(Phone: 586-294-7400)
RADSOK
®
Interconnect Solutions
for the Power Bus Market
The Wide Variety of RADSOK
®
Applications include:
• Replacement of ring terminals (lugs) on threaded studs
• High current PCBs
• Communication towers
• Backplane power
• Uninterrupted power supplies
• Fuel cell connectors
• Hybrid electric vehicles (example right is the Tesla Hybrid Car;
photograph shown by permission of Tesla)
• AC inductive drive motors
• Power distribution modules
• Busbar terminations (plug-in hardware/modules
• “Pluggable” breakers
• Battery terminals
• Existing Amphenol products: 5015, GT, ACA-B, P-Lok or replace
other manufacturers’ connectors
• contacts with RADSOK
®
technology give 50% more ampacity.
• RADSOK
®
contacts can be designed to fit any housing
• Developing Military applications of RADSOK
®
technology
• combinations of RADSOK
®
and high speed copper contacts in
the same interconnect package
Standard and Custom-Developed Solutions
• In addition to the various standard sizes of RADSOK components, custom-
developed solutions are also available. See the new RADSOK
®
products
that have been developed on the special pages at the end of this brochure.
Amphenol has the global design, engineering and manufacturing resources
to provide RADSOK
®
sockets pressed into busbars, crimped to cables,
assembled into connectors, assembled into customer or Amphenol de-
signed specialized electrical devices, or as stand-alone components.
Amphenol also manufactures a full compliment of mating pin contacts for
any application.
• Steady-state current capacities for standard RADSOK products range from
50 amps to over 1000 amps.
• Standard contact plating is typically Silver (Ag) although many other plating
specifications may be used for your application.
• Amphenol connectors with RADSOK
®
contacts are offered with a variety of
positive-locking features (HiLok
TM
and SurLok
TM
) that insure and maintain
fully-mated connections.
• Sealing (Sealtac
TM
) and high voltage hot break options are available within
the RADSOK
®
itself or within a very wide range of IP rated connector
housings to provide environmental protection to the contact area.
Amphenol Industrial operates a Quality System that is third-party certified to
ISO9001:2000 and AS9100.
The Amphe-Power
®
Family of Connectors
For High Power Applications

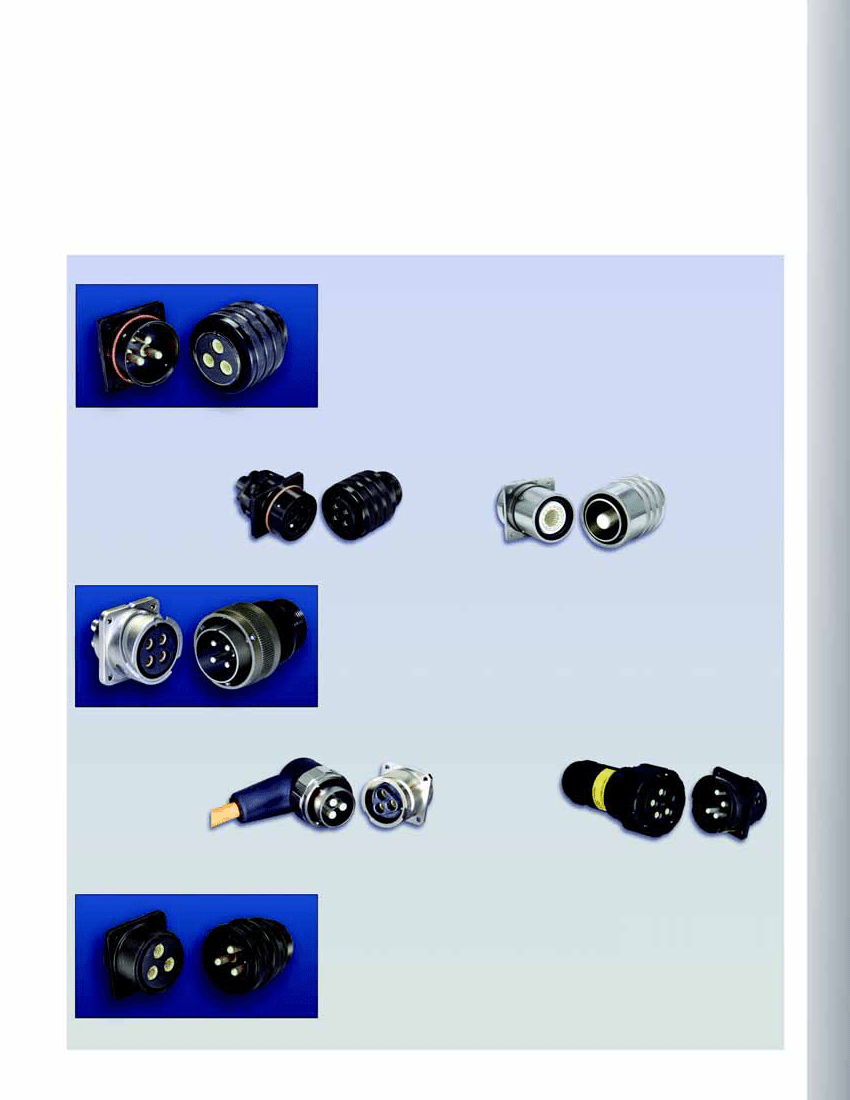

The Amphe-Power
®
Series consists of three of the time-tested and reliable families of
Amphenol Industrial Connectors, all of which are MIL-5015 styles, medium to heavy
duty cylindricals. These series, enhanced with RADSOK
®
sockets, can now handle up
to 50% higher amperages. Current Amphe-Power
®
product lines support from 50A to
1000A continuous duty.
AMPHE-POWER
®
P-LOK
• Rapid mating with a push-pull, spring loaded coupling system -
audible & tactile confirmation of full mating.
• Environmental sealing to IP67 specification levels - front and rear
O-ring seals and gaskets as well as compression grommets
designed to seal on the cable jacket.
• Neoprene inserts are bonded to the connector shell for ease of
assembly.
• One piece keyed aluminum shell, finished in black hard-coat
plating - provides a strong industrial grade connector, engineered
for a long service life.
AMPHE-POWER
®
SPECIAL
P-LOK DESIGNS
First Mate,
Last Break
P-Lok Style
Power P-Lok
14mm Style for
Higher Amperage
AMPHE-POWER
®
GT
• Reverse bayonet coupling connector with an audible, tactile and
visual full mating feature.
• Heavy duty, rugged shells with a wide variety of backshell options.
• Inserts available in Neoprene or Viton.
• Waterproof construction and available with over-molded coupling
nut for added damage protection and increased gripping surface.
• Variety of plating options including non-cadmium zinc cobalt (black
or green), non-conductive colorized anodic plating.
AMPHE-POWER
®
SPECIAL
GT DESIGNS
Amphe-Power
GT with
TUV “Finger-Proof”
Feature
Amphe-Power
Composite GTR
AMPHE-POWER
®
5015
• Durable, field proven cylindrical connector derived from MIL-5015
family.
• Threaded coupling connector with resilient Neoprene inserts,
single key/keyway polarization.
• Styles include: solid shell for general, non-environmental applica-
tions; pressurized style for use on pressurized bulkheads or
pressure barriers; environmental resisting style with strain relief;
lighter weight and shorter environmental resisting style.
1 1
AMPHE-POWER
®
P-LOK CONNECTOR STYLES
The P-Lok Heavy Duty Series offers a wide range of shell styles which can be enhanced
with RADSOK high amperage contacts

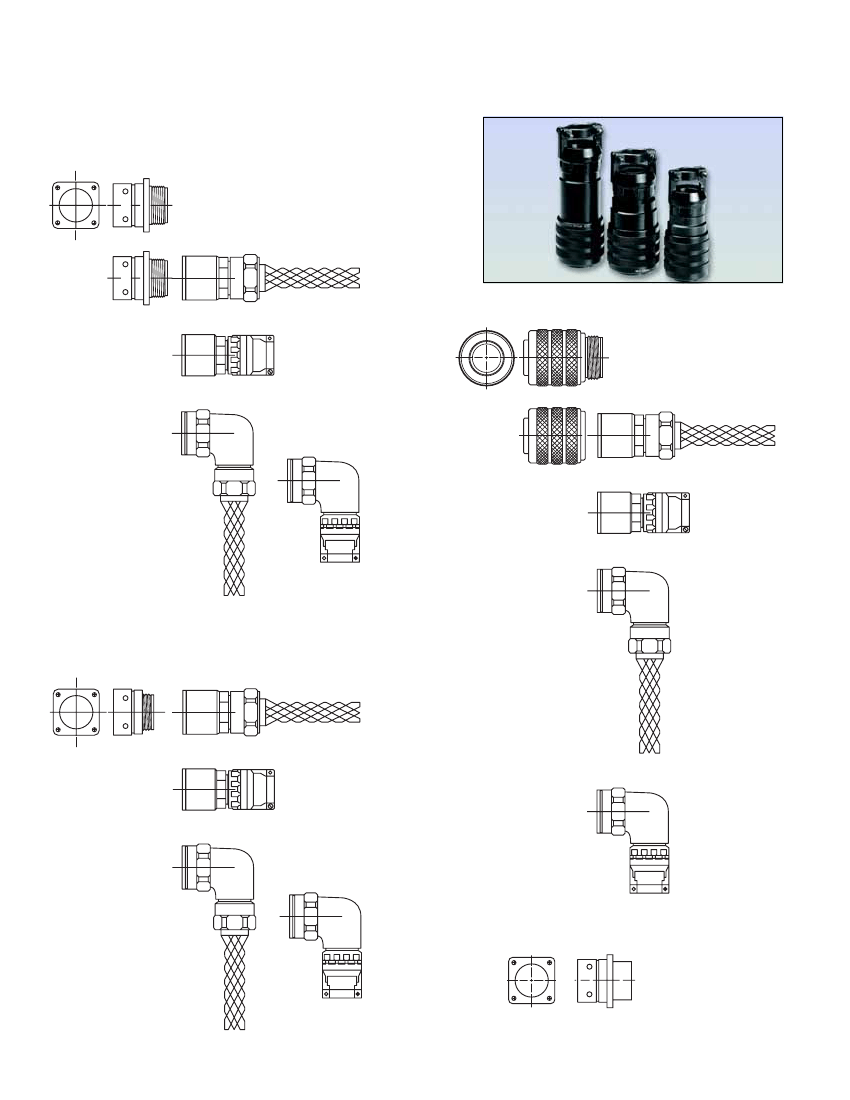

WALL MOUNT OR FLANGE MOUNT RECEPTACLES
P3100B
P3100D or P3100K
w/wo Basketweave
PLUGS
P3100M
with Mechanical Clamp
P3106A
P3100X or P3100Y
90
˚
w/wo Basketweave
P3100Z
90
˚
with
Mechanical Clamp
P3106D or P3106K
w/wo Basketweave
P3106M
with Mechanical Clamp
P3106X or P3106Y
90
˚
w/wo Basketweave
INLINE RECEPTACLES
P3101D or P3101K
w/wo Basketweave
P3101M
with Mechanical Clamp
P3106Z
90
˚
with
Mechanical Clamp
P3101X or P3101Y
90
˚
w/wo Basketweave
P3106Z
90
˚
with
Mechanical Clamp
BOX MOUNT RECEPTACLES
P3102B
2
For complete dimensional information on P-Lok Series connector
styles, consult Amphenol/Pyle P-Lok Catalog.
