PCC03SAAN: Descriptionconn header .100" 3pos; CategoryThe connector; File Size314KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet View All

PCC03SAAN Overview

conn header .100" 3pos

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

572

1144

2078

DESCRIPTION

INITIAL RELEASE

DATE

3/21/05

2442

ADD ALL TERMINATION TYPES

9/14/2006

UPDATE TEMPERATURE TO 150 C FOR 'G'

MTL, CORRECT NOTE 6 & 7, ADD NEW

TERMINATION TYPES AI, AJ, AK, FF, FG, FH, 11/12/2009

FI, FJ, ZB, ZI, ZJ, ZO, ZQ, ZR, COMBINED 'P'

MTL IN P/N CODING (DWG 10640

OBSOLETED)

UPDATE PROCESSING TIME FOR 'G' MTL,

VOLTAGE RATING, REMOVE OPERATING TEMP 3/12/2012

FOR 'P' MTL & MOISTURE NOTE, ADD 'A' & 'R'

MATERIAL OPTION

.100 2.54

.050 1.27

HEAD DIMENSION

.100 2.54

TAIL DIMENSION

.100 2.54 , TYP.

.025 0.64

.040 MIN. HOLE

FITS

G_C__S__N

P_C__S__N

R_C__S__N

A_C__S__N

STRAIGHT

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING

2. CONTACT MATERIAL: SEE PART NUMBER CODING

3. PLATING: SEE PART NUMBER CODING

4. UL FLAMMABILITY RATING: 94V-0

5. VOLTAGE RATING: 750 VAC MINIMUM AT SEA LEVEL.

6. CURRENT RATING: 3 AMPS

7. CONTACT RESISTANCE: 30 MILLIOHMS MAX.

8. INSULATION RESISTANCE: 5000 MEGOHMS MIN.

SECTION A-A

CUSTOMER COPY

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME

DIMENSIONS ARE IN INCHES [MM]

9/9/2011 JH

TOLERANCES:

ANGULAR:

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

TITLE

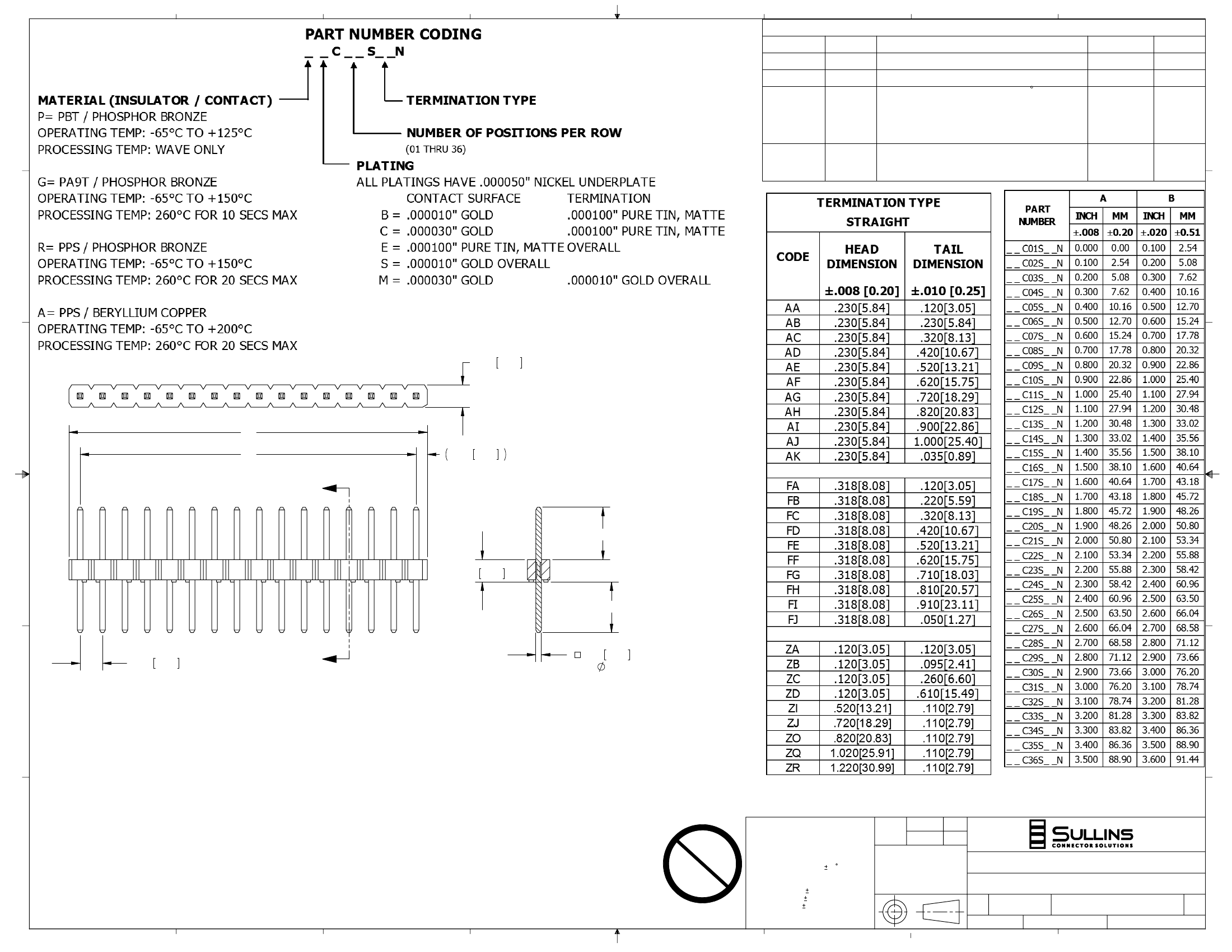

.100" CC, HEADER, STRAIGHT

G (P, R, A) _C_ _S_ _N

DWG. NO.

CAGE CODE

DECIMALS

.XX= .02 [.5]

.XXX= .005 [.13]

.XXXX= .0005 [.013]

PART NUMBER

SIZE

SCALE: 4:1

54453

C10436

REV

SHEET 1 OF 1

FILE NAME: C10436, G_C_ _S_ _N, P_C_ _S_ _N, A_C_ _S_ _N, R_C_ _S_ _N, STRAIGHT
