355609K00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 355609K00

355609K00: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle; CategoryThe connector The connector; File Size141KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/; Environmental Compliance

Download Datasheet Parametric Compare View All

355609K00 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle

355609K00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.362 inch
subject depth	0.719 inch
body length	1.839 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3556
Plug contact pitch	0.197 inch
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.7592 mm
Plating thickness	197u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	10.0076 mm
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

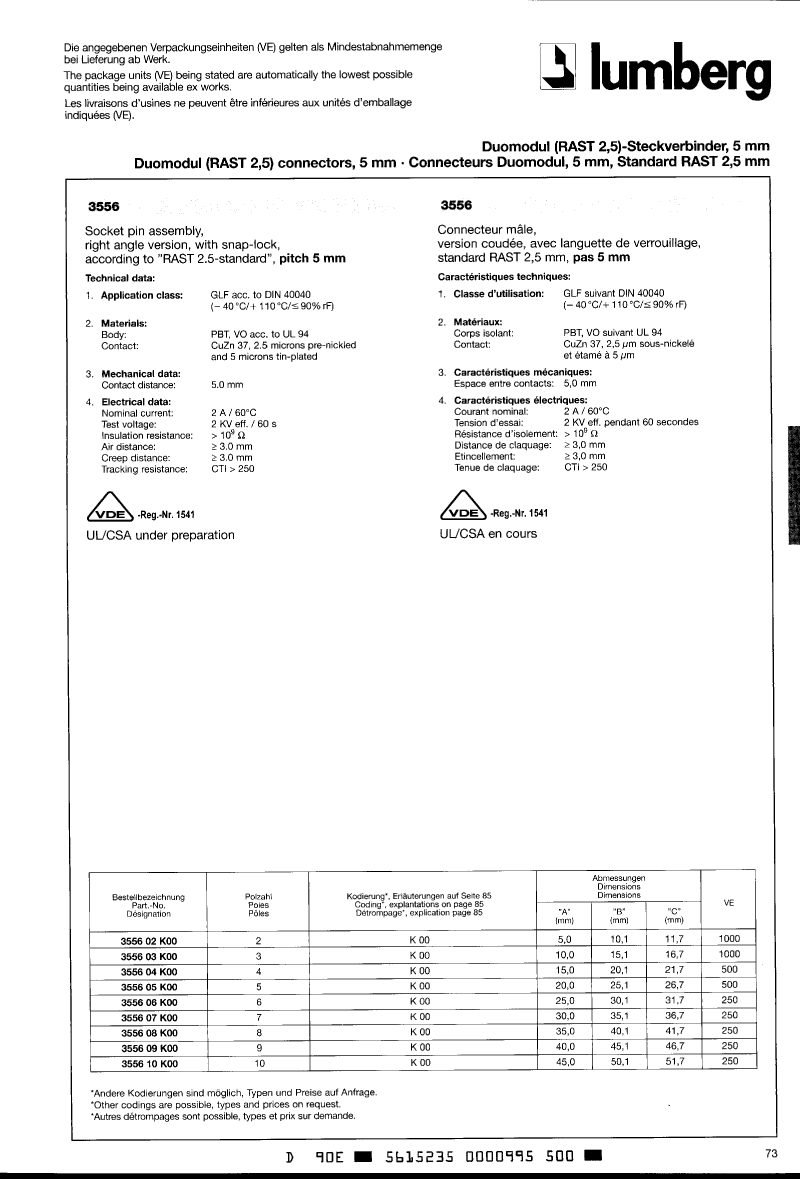

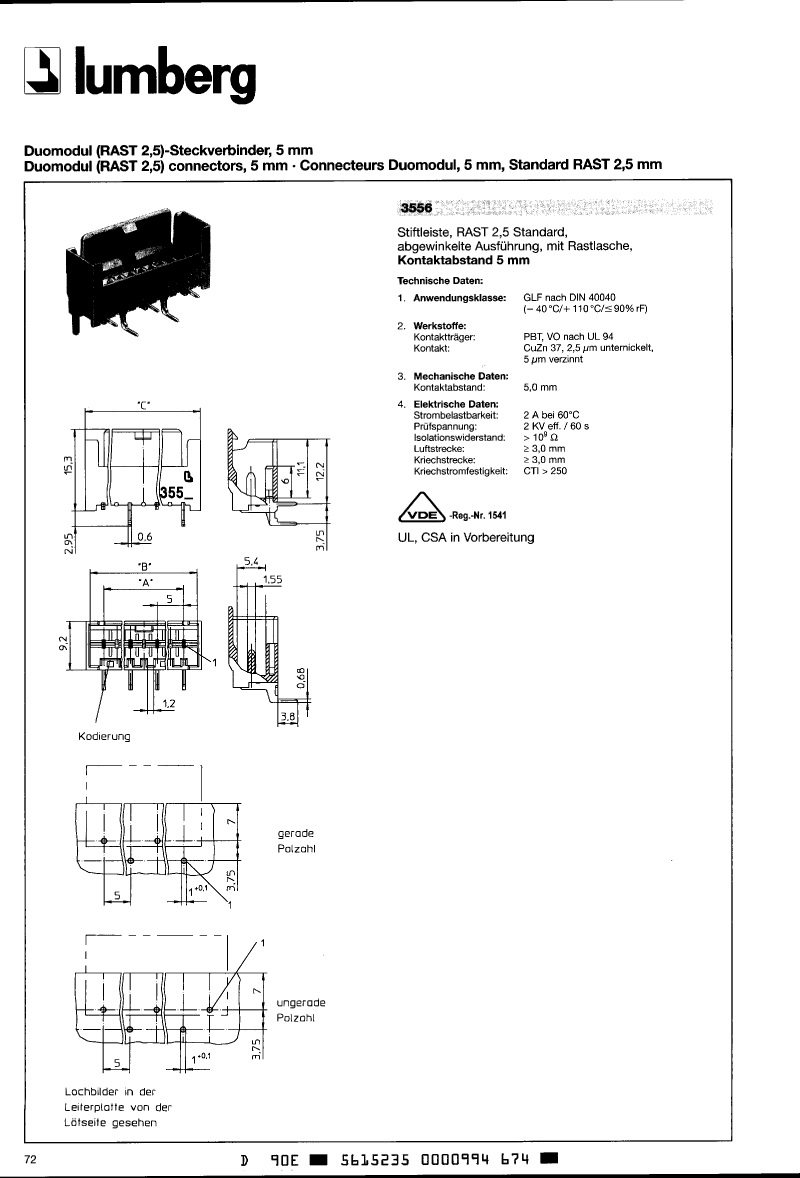

Preview

Download Datasheet

View All

355609K00 Related Products

	355609K00	355607K00	355608K00
Description	Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
body width	0.362 inch	0.362 inch	0.362 inch
subject depth	0.719 inch	0.719 inch	0.719 inch
body length	1.839 inch	1.445 inch	1.642 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	2000VAC V	2000VAC V	2000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3556	3556	3556
Plug contact pitch	0.197 inch	0.197 inch	0.197 inch
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	1	1	1
Maximum operating temperature	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	3.7592 mm	3.7592 mm	3.7592 mm
Plating thickness	197u inch	197u inch	197u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.15 inch	0.15 inch	0.15 inch
Terminal pitch	10.0076 mm	10.0076 mm	10.0076 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	9	7	8
Base Number Matches	1	1	1
