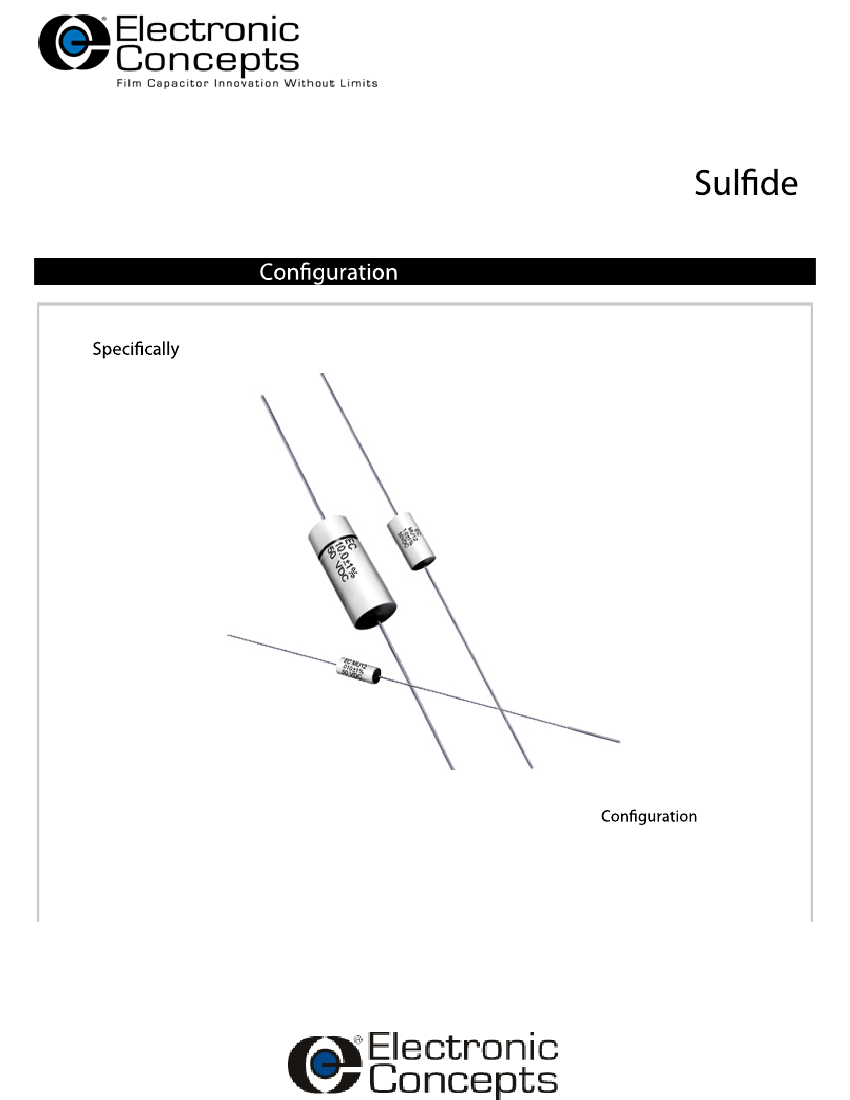

Summary
Capacitance Range
Capacitance shall be measured at 25° and at, or referred to, a
frequency of 1 kHz.
Capacitance Tolerance
Standard tolerance is: ±1%, ±2%, ±5%, ±10%.
Operating Temperature Range
-55°C to +125°C.
Enclosure/ Construction
Extended metallized PPS
(non-inductive).
Quality Control
Capacitors are tested 100% for:
o Capacitance
o Tolerance
o Dissipation Factor
o Dielectric withstanding Voltage
o Insulation resistance
Capacitors can meet or exceed all requirements of
MIL-PRF-55514.
Process and inspection data are maintained and available on
special request.
Environmental
Parameter
Vibration
Shock
Humidity
Thermal Shock
Life
Method
204
213
106
107
108
Condition
D
I
-
A
F
Voltage Rating
DC working voltage ratings at +125° C, are 50VDC, 100VDC,
200VDC and 400VDC.
Reference MIL-STD-202

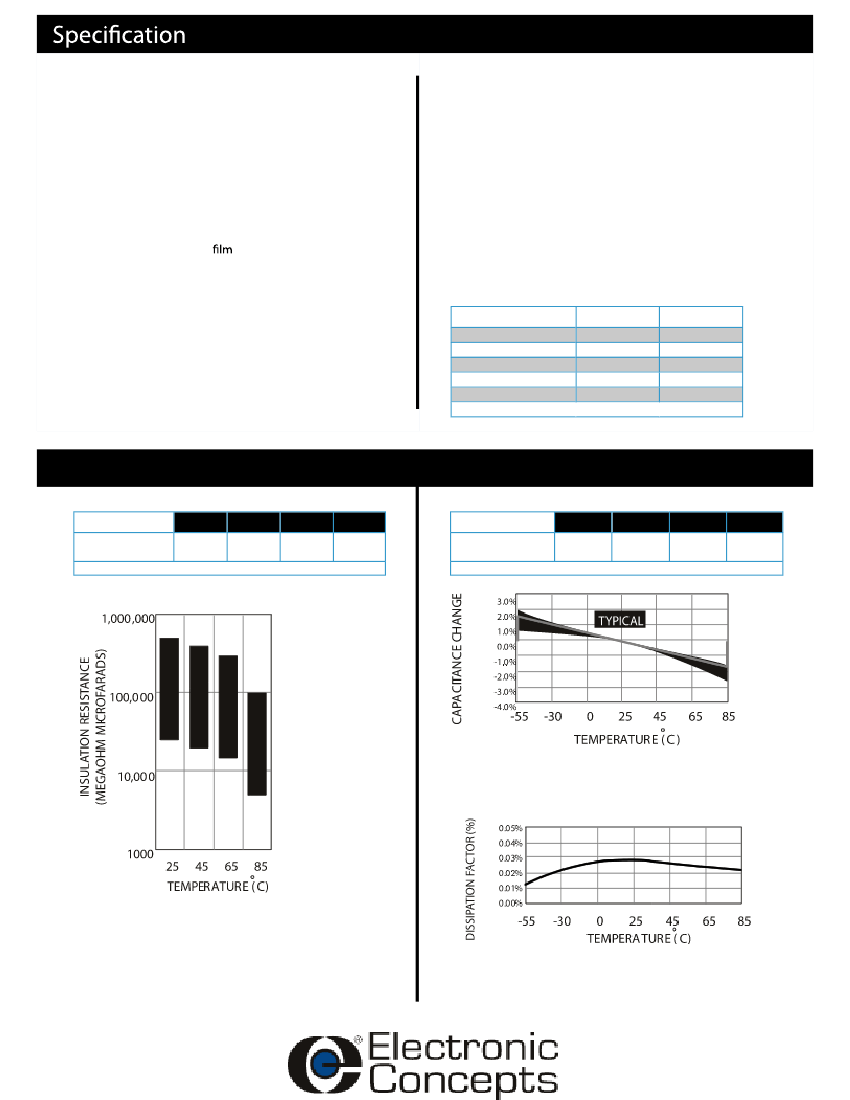

Characteristics
Insulation Resistance
Temperature(°C)
25
Megaohmsx
50,000
Microfarads
85
5,000
125
500
Capacitance Change
Temperature(°C)
-55
PercentageChange
+2.0
(typical)
25
0
85
±1.0
125
±2.0
Insulation Resistance
CapacitanceChange
Dissipation Factor
When measured at 1 kHz, the dissipation factor shall not exceed
0.3% from +25° C to +125° C.
Dielectric Strength
Capacitors shall withstand a DC potential of 200% rated
voltage for two (2) minutes without damage or
breakdown. Test voltage must be applied and
discharged through a resistance of 1 OHM per volt,
minimum and at 25° C.
Rev. 3
ADDITIONAL
INFORMATION
The MU12 SERIES is a new, versatile, PPS
capacitor, developed by Electronic Concepts as a direct
replacement for polycarbonate capacitors — to meet the ever changing, more demanding requirements
of circuit designers. Although not required, it is built to MIL-PRF-55514 for reliability. The MU12 SERIES
is
designed for low-drift, tight tolerance applications. This includes analog and timing circuits,
networks. There is capacitance tolerance as low as 1% for applications
high frequency uses and
that require an exact capacitance match.Performance characteristics encompass low temperature
high insulation resistance, an operating temperature range of -55°C to +125°C, dissipation
factor less than 0.3%, voltages from 50- 400VDC and excellent retrace.
With the introduction of the MU12 SERIES, the designer can now build in more performance with
greater reliability and operating protection. In addition, overall system cost savings can very often
be realized.

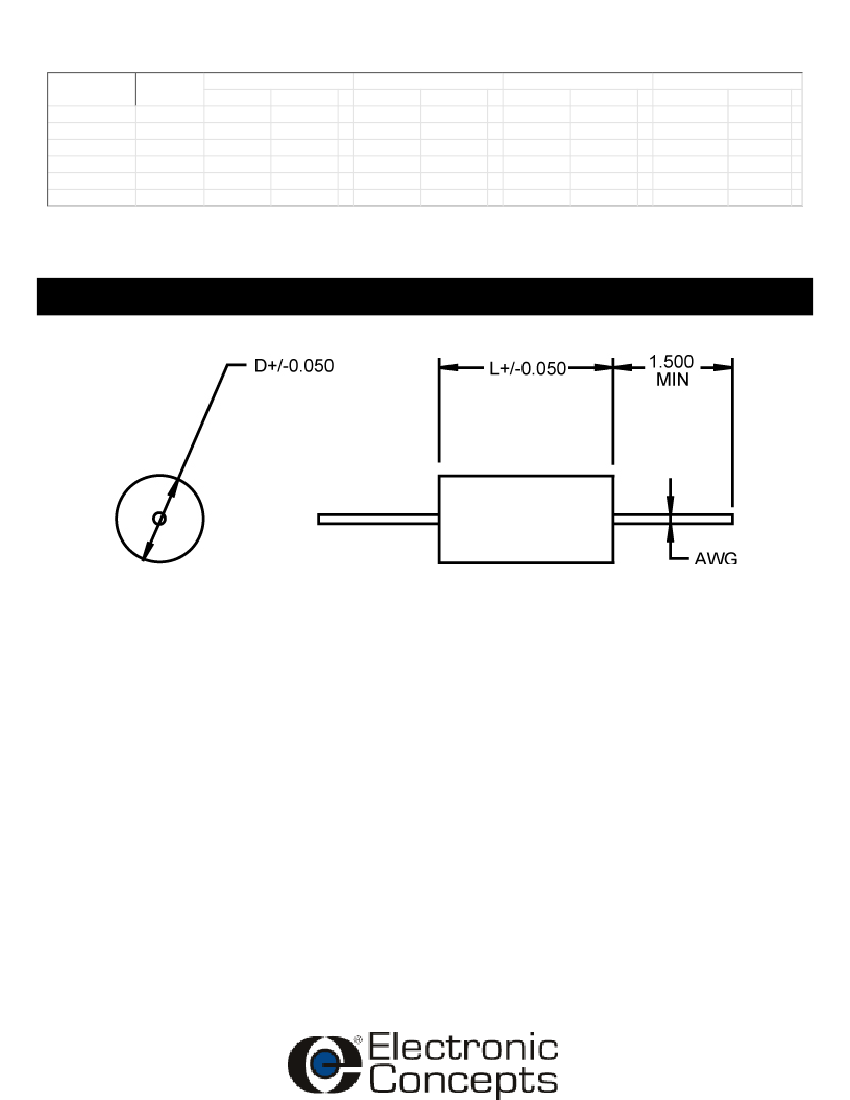

HOW TO ORDER
TYPE
Extended metallized PPS
(non-inductive)
MU12
B
106
K
STYLE
B=50VDC, D=100VDC, F=200VDC, J=400VDC
The
two digits are
the third represents the number of zeros
(e.g. 106 = 100,000 pfd = .1mfd)
/ VOLTAGE
CAPACITANCE
TOLERANCE
IN PICOFARADS
K=±10% G=±2% J=±5% F=±1%
Marking And Date Code
All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type MU12, capacitance,
two digits of the date code represent the year, the second two digits the
tolerance, rated DC working voltage and date code. The
week, i.e., 0952 is the 52nd week of 2009, 0902 is the second week of 2009.
Quality Asurance
Major emphasis is placed on quality assurance. EC is an ISO 9001-2000 and AS9100:2004
Company. Raw material
inspection and the use of SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the
EC Quality Control Manual. Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology,
compact capacitor designs and establishing reliability procedures.
