5962-8956301HXX datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-8956301HXX

5962-8956301HXX: DescriptionADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, 0.810 X 1.730 INCH, 0.172 INCH HEIGHT, DIP-32; CategoryAnalog mixed-signal IC converter; File Size496KB，8 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

5962-8956301HXX Overview

ADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, 0.810 X 1.730 INCH, 0.172 INCH HEIGHT, DIP-32

5962-8956301HXX Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP,
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	40 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-XDIP-T32
Maximum linear error (EL)	0.0015%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Filter level	MIL-PRF-38534 Class H
Maximum seat height	5.84 mm
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

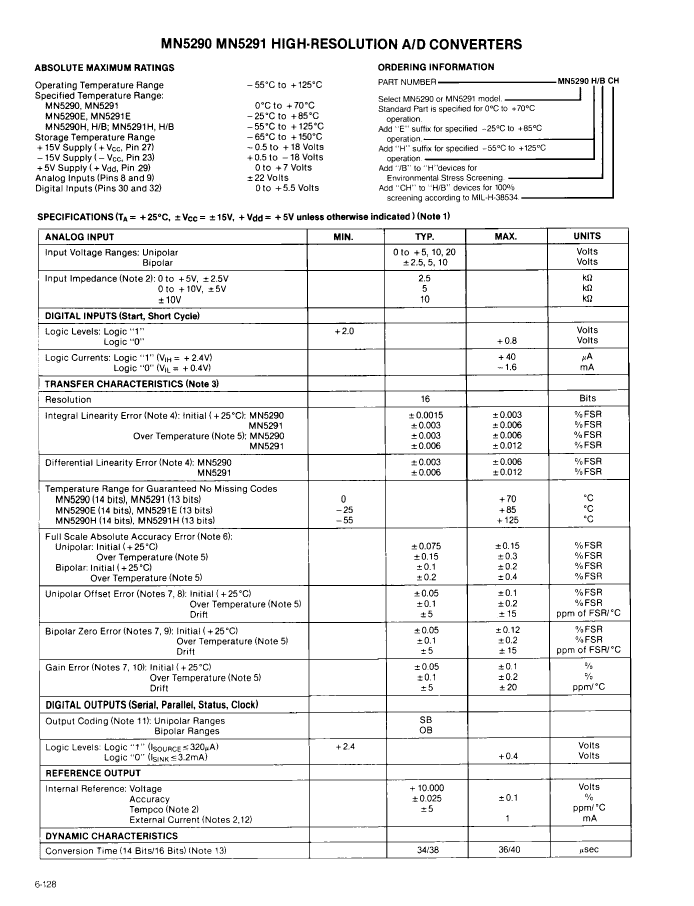

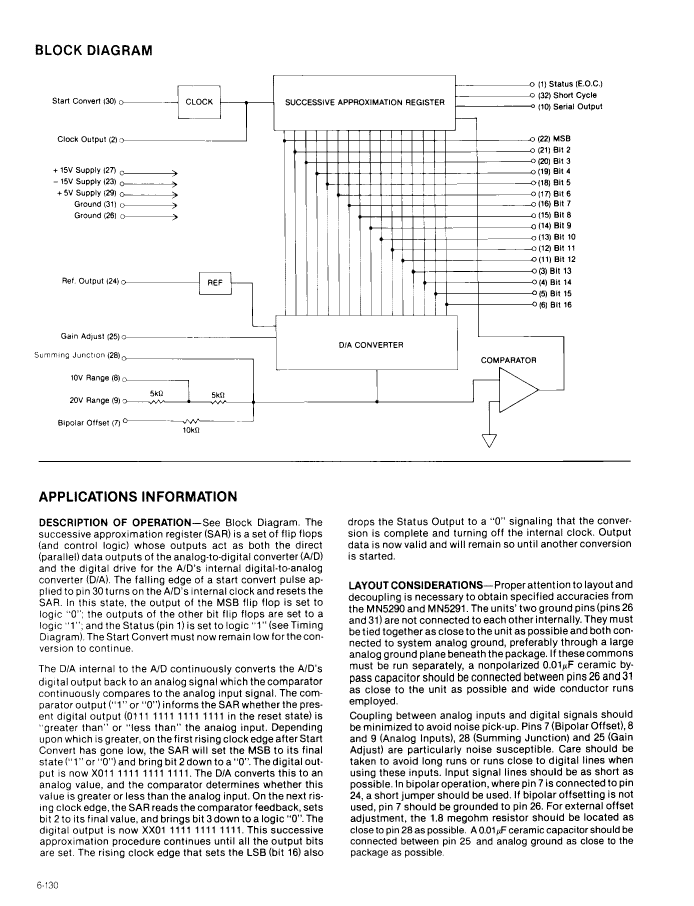

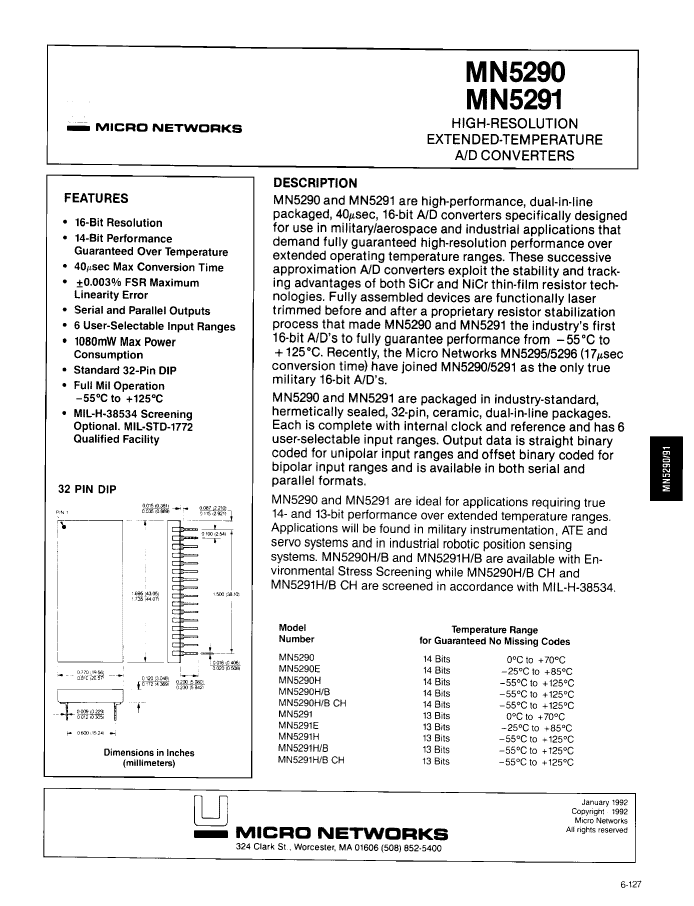

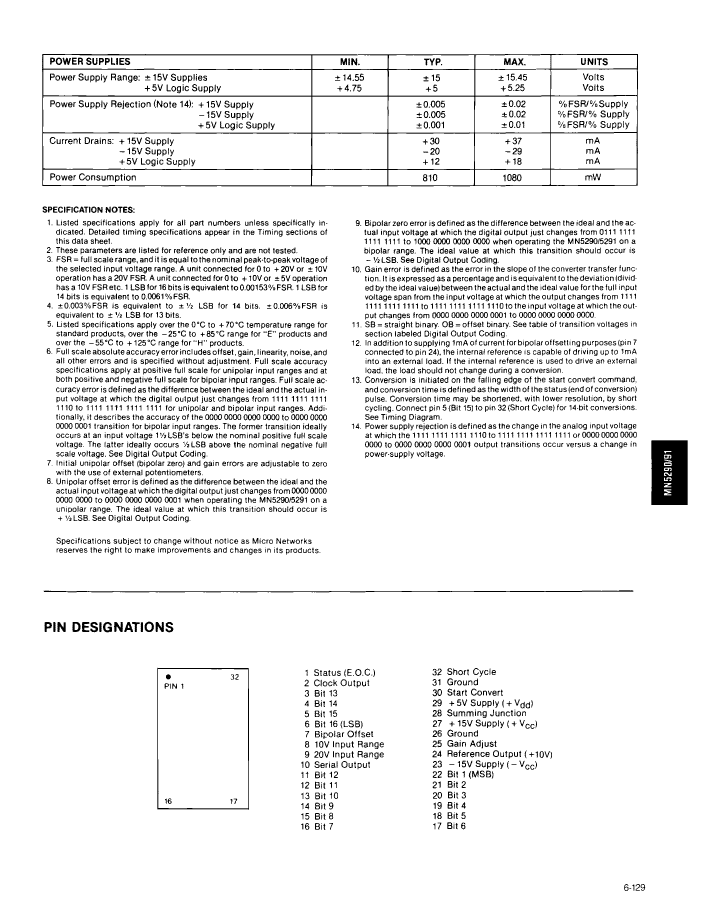

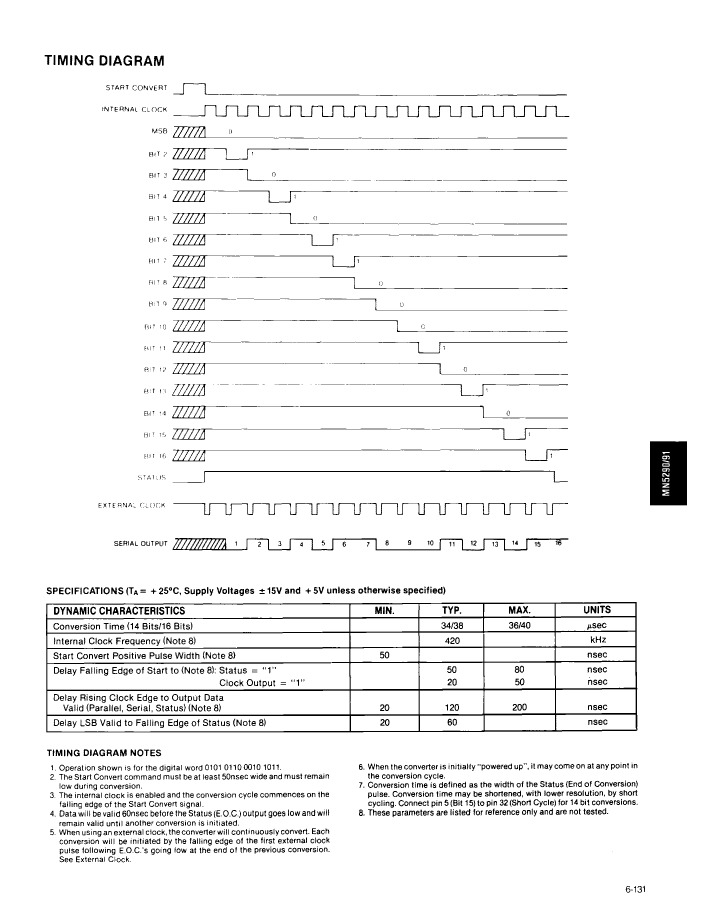

Preview

Download Datasheet

View All

5962-8956301HXX Related Products

	5962-8956301HXX	5962-8956301HXA	5962-8956301HXC
Description	ADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, 0.810 X 1.730 INCH, 0.172 INCH HEIGHT, DIP-32	ADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, 0.810 X 1.730 INCH, 0.172 INCH HEIGHT, DIP-32	ADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial, Parallel, Word Access, Hybrid, 0.810 X 1.730 INCH, 0.172 INCH HEIGHT, DIP-32
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Parts packaging code	DIP	DIP	DIP
package instruction	DIP,	DIP, DIP32,.6	DIP, DIP32,.6
Contacts	32	32	32
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	10 V	10 V	10 V
Minimum analog input voltage	-10 V	-10 V	-10 V
Maximum conversion time	40 µs	40 µs	40 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-XDIP-T32	R-XDIP-T32	R-XDIP-T32
Maximum linear error (EL)	0.0015%	0.0015%	0.0015%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of analog input channels	1	1	1
Number of digits	16	16	16
Number of functions	1	1	1
Number of terminals	32	32	32
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Output format	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, WORD
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Sample and hold/Track and hold	TRACK	TRACK	TRACK
Filter level	MIL-PRF-38534 Class H	MIL-PRF-38534 Class H	MIL-PRF-38534 Class H
Maximum seat height	5.84 mm	5.84 mm	5.84 mm
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1
JESD-609 code	-	e0	e4
Encapsulate equivalent code	-	DIP32,.6	DIP32,.6
power supply	-	5,+-15 V	5,+-15 V
Terminal surface	-	TIN LEAD	GOLD
