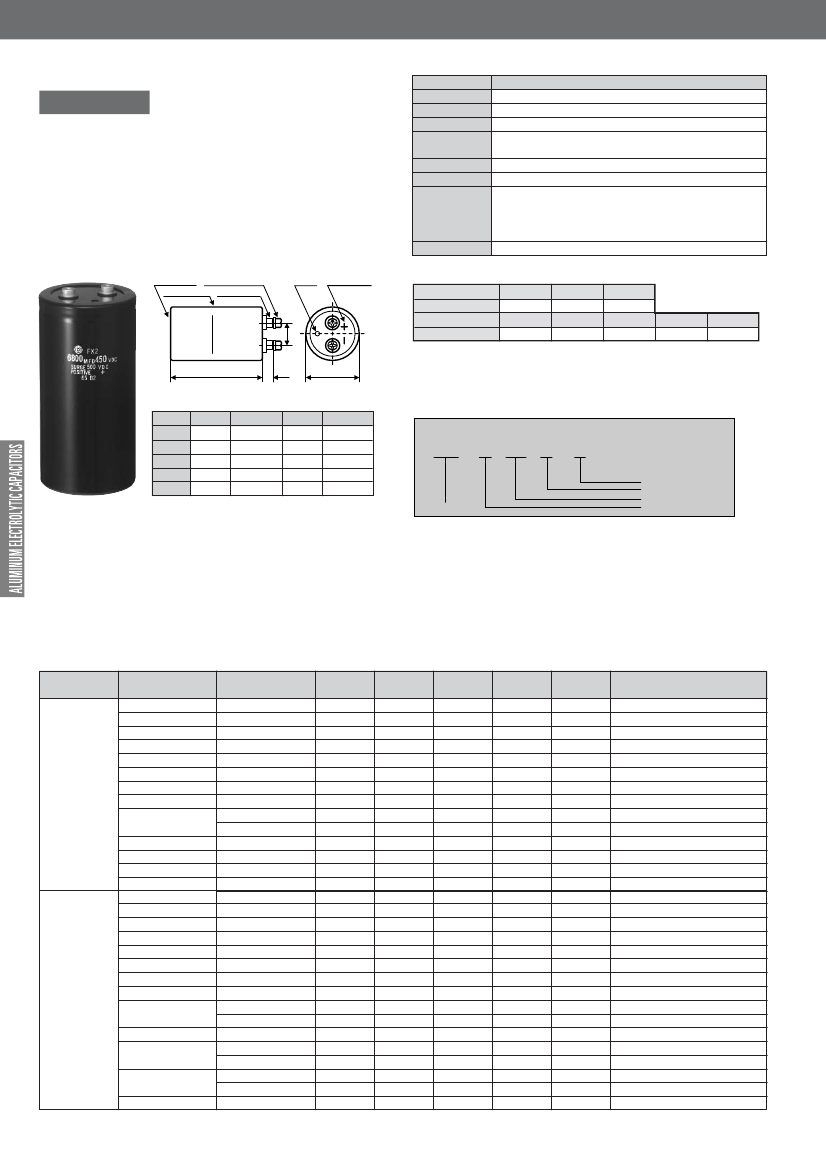

SCREW TERMINAL TYPE ALUMINUM ELECTROLYTIC CAPACITORS
Product Specifications
Items
Specifications
Temperature range –40°C ~ +85°C
Rated voltage 400 ~ 550V.DC
Capacitance tolerance ±20% (20°C,120Hz)
0.01CV (µA) or 5mA, whichever is smaller or less
Leakage current
[C = nominal capacitance (µF), V = rated voltage (V)]
Dissipation factor Less than the value specified in the standard products table. (20˚C,120Hz)
Permissible ripple current As specified in the standard products table. (85˚C,120Hz)
After the rated voltage with specified ripple current is applied at 85°C for 5000 hours:
Capacitance tolerance: ±15% or less of the initial value
High-temperature load
Dissipation factor: 175% or less of the specified initial value
Leakage current: Specified initial value or less
Others
JIS C 5101-4.
FX2 Series
• Conform RoHS
Useful of 8,000 hours at 85°C
(Warranty of 5,000 hours at 85°C)
Features
• Developed specially for the demand of higher voltage with compact
size.
• The size is reduced by around 14% of conventional FXA type
through development of electrolyte liquid.
• 500V and 550V added in the series.
Insulation plate
S-Hexagon-head bolt
Screw terminal
Vent
Anode marking
Ripple current correction coefficient
Temperature (°C)
40
60
85
Correction coefficient
1.89
1.67
1.00
Frequency (Hz)
50/60
120
300
1K
≧10K
Correction coefficient
0.7
1.0
1.1
1.3
1.4
In accordance with the premissible current, ripple current should be under
60Arms at M5 terminal (cade code A~F) under 120 Arms
at M8 terminal (cace code G).
For case code G (ø100) items, M6 terminal is also available, and ripple
current should be under 100Arms.
Insulation sleeve
L
±2
Marking
Ｔ
±1
P
±1
φD
±1
(unit：mm)
φD
51
64
77
90
101
P
22.0
28.6
32.0
32.0
41.5
S
M5×10
M5×10
M5×10
M5×10
M8×16
T
5.5
5.5
5.0
5.0
11.0
Cap material
Phenol
Phenol
Phenol
Phenol
Phenol
Product code : (Example) FX2 type 400V 10,000µF±20%
FX2
2G 103
Y
(
E
)
E case (øD : 77mm) product
Type of series
Case code (∗)
Type of bracket code
Capacitance code
Rated voltage code
∗(
) Case code in parentheses : If two types of shape exist for the same rating,
enter the case code.
Bracket
• See page 51 for shapes and dimensions.
• Product names in the Standard Products Table correspond to the
bracket for Type Y, but Type
Ι
bracket may be used (Type of bracket
Code =
Ι
).
• If bracket are not necessary, enter "N" for the type of bracket code.
• Bracket will be delivered separately.
Standard Products Table
Rated Voltage
Code
(Surge Voltage)
(V. DC)
Capacitance
(µF)
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
Case size
øDXL(mm)
51×115
51×130
64×96
64×115
64×130
77×115
77×130
77×155
77×195
90×131
90×157
90×196
90×236
101×237
51×115
51×130
64×96
64×115
64×130
77×115
77×130
77×155
77×195
90×131
90×171
90×196
101×175
90×236
101×195
101×237
Ripple current
tanδ
20°C,120Hz
85°C,120Hz
(Arms)
ESR(typ.)
20°C,100Hz
(m
Ω
)
Z max
20°C,10kHz
(m
Ω
)
ESL(typ.)
(nH)
21
21
22
22
22
24
24
24
24
24
24
24
24
33
21
21
22
22
22
24
24
24
24
24
24
24
33
24
33
33
Product name
FX22G222Y
FX22G272Y
FX22G332Y
FX22G392Y
FX22G472Y
FX22G562Y
FX22G682Y
FX22G822Y
FX22G103YE
FX22G103YF
FX22G123Y
FX22G153Y
FX22G183Y
FX22G223Y
FX22W182Y
FX22W222Y
FX22W272Y
FX22W332Y
FX22W392Y
FX22W472Y
FX22W562Y
FX22W682Y
FX22W822YE
FX22W822YF
FX22W103Y
FX22W123YF
FX22W123YG
FX22W153YF
FX22W153YG
FX22W183Y
400
2G
(450)
450
2W
(500)
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
8.8
10.2
11.0
12.8
14.8
16.2
18.7
22.0
26.7
24.2
28.5
34.8
41.2
47.0
7.6
8.8
9.5
11.2
12.8
14.1
16.2
19.1
23.0
21.0
25.7
29.7
29.3
35.9
34.2
40.5
46
38
30
26
21
18
15
12
10
10
8
8
6
6
56
46
38
30
27
21
20
15
14
14
10
9
9
7
7
6
48
40
32
28
22
19
15
15
15
15
13
10
9
8
58
48
40
35
32
21
20
18
16
17
15
12
12
10
10
10
