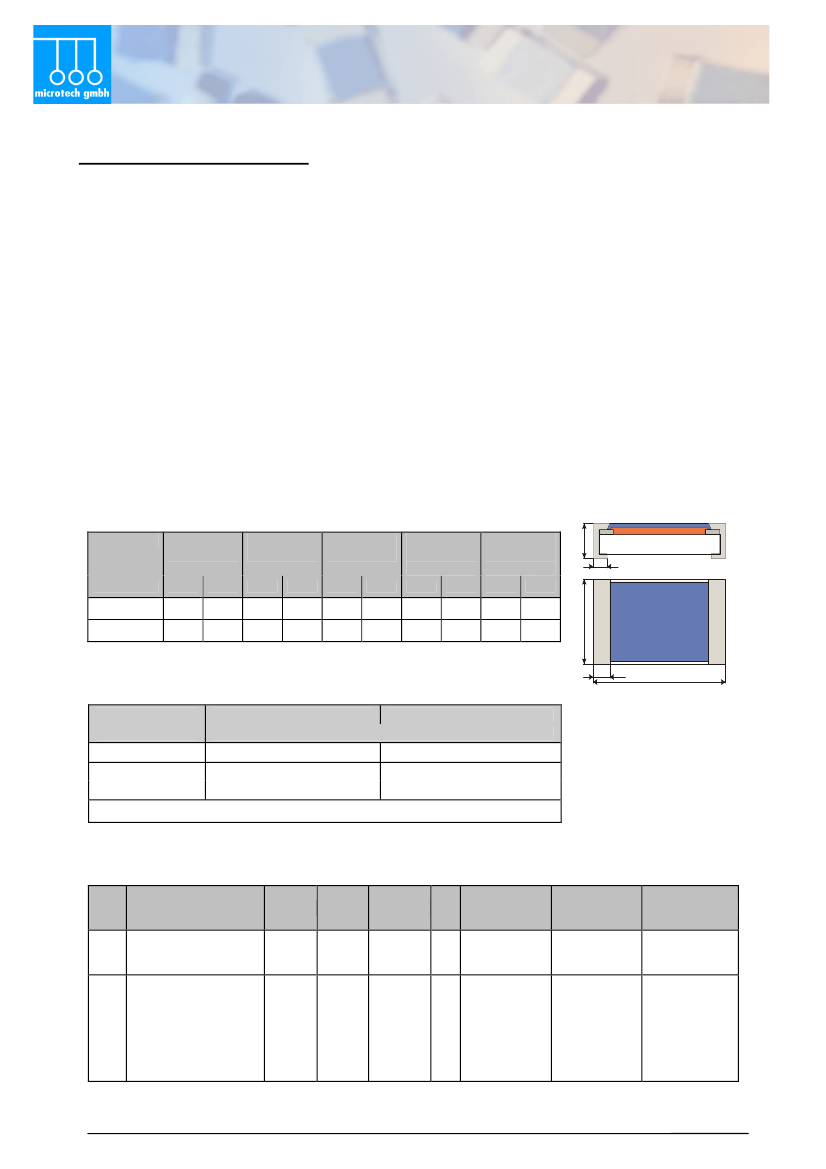

microtech GmbH electronic Teltow
Chip resistors - Made in Germany
ISO/TS 16949:2009
Voltage proof thin film series
Type: CMV
Sizes: 1206, 2512
Characteristics:
•
•
•
•
•
•
•
•
•
•
Chip resistors in thin film technology with higher voltage resistance
High-precision resistor layers
Resistance area coated with surface passivation
Highest stability and reliability
Very tight tolerances (≥0,05%) - low temperature coefficient (≥10ppm/K)
Low current noise, good pulse strength
RoHS-conform
Order quantities from 1000 pieces for <1% and <TC50 available by extra charge
Customer specific barcodes available - also in 2D
All sizes can be manufactured with the following contact variants
⇒
Electroplated alloy resistant tinned
⇒
Contact with low rest permeability -N
⇒
Epoxy bondable contact -K
Dimensions (in mm):
Size
L
Length
Min
Max
W
Width
Min
Max
H
Depth
Min
Max
t
Contact
back
Min
Max
T
Contact
Front
Min
Max
H
t
2512
6,10
6,50
3,00
3,30
0,50
0,75
0,35
0,85
0,25
0,85
T
W
1206
2,90
3,35
1,45
1,75
0,35
0,65
0,25
0,75
0,15
0,75
L
Packaging units:
Reel
Ø
180 mm
330 mm
Card tape
acc. EN 60286-3
5 T pcs.
10 T pcs.
20 T pcs.
4 T pcs.
8 T pcs.
16 T pcs.
Blister tape
Samples by bulk into plastic bags up to 50 pcs./value
Ordering information:
CMV
Type
-N
Contact
1206
Size
1206
2512
500k
0,5
25
N
Marking
P
Packaging
10
Pcs. / Reel
(T Pcs.)
R-Value Tolerance TC
100k
.
to
.
4M7
0,05
0,1
0,25
0,5
1
CMV Standard (without add.)
-N (non magnetic)
-K (epoxy bondable)
10 N- without
25 K- with
50
P- Card tape Depends on size
B- Blister tape and packaging
unit
S- Bulk
Stand: November 2012
Catalog microtech GmbH electronic
microtech GmbH electronic Teltow
ISO/TS 16949:2009
Chip resistors - Made in Germany
Voltage proof thin film series
Type: CMV
Sizes: 1206, 2512
Technical data – depending on size:
Size
U
max
(V)
P
70
1)
R-Range
R-Tolerance
(%)
(W)
from TC
(ppm/K)
Packaging
P
B
S
x
x
x
x
x
x
x
x
x
100K – 1M00
1206
300
0,25
1M00– 2M00
100K – 4M70
100K – 1M00
2512
1000
1
1M00 – 2M00
100K – 4M70
1)
0,05 / 0,1 / 0,25 / 0,5 / 1
0,05 / 0,1 / 0,25 / 0,5 / 1
0,05 / 0,1 / 0,25 / 0,5 / 1
0,05 / 0,1 / 0,25 / 0,5 / 1
0,05 / 0,1 / 0,25 / 0,5 / 1
0,05 / 0,1 / 0,25 / 0,5 / 1
10
25
50
10
25
50
x
x
x
For continuous operation a sufficient heat dissipation must be ensured.
Technical data - general:
Technical data
Operating temperature range
Climatic category acc. EN 60068
Solderability acc. EN 60068-2-58
Soldering heat resistance acc. EN 60068-2-58
Long time stability
Storage 155°C / 1000h
Endurance P
70
/ 70°C / 1000h
Damp heat, steady state (56d / 40°C / 96%)
-55°C … +155°C
55 / 155 / 56
245°C 3s
± (0,05% +0,01R) at 260°C 10s
± (0,25% +0,05R)
± (0,25% +0,05R)
± (0,25% +0,05R)
Data, unless specified, acc. EN 140401-801.
Catalog microtech GmbH electronic
Stand: November 2012
