EQRD33 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) LVPECL (PECL) 3.3Vdc 6 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision C 06/11/2014
Electrical Specifications
Nominal Frequency
62.500MHz to 164.000MHz
Some frequencies within this range may not be available.
Frequency Tolerance/Stability
Inclusive of all conditions: Calibration Tolerance (at 25°C), Frequency
Stability over the Operating Temperature Range, Supply Voltage
Change, Output Load Change, First Year Aging at 25°C, Shock, and
Vibration
±100ppm Maximum
±50ppm Maximum
±25ppm Maximum
±20ppm Maximum
0°C to +70°C
-20°C to +70°C
-40°C to +85°C
±3ppm Maximum First Year
3.3V
DC
±5%
50mA Maximum
V
DD
-1.025V
DC
Minimum, 2.35V
DC
Typical, V
DD
-0.88V
DC
Maximum
V
DD
-1.81V
DC
Minimum, 1.60V
DC
Typical, V
DD
-1.62V
DC
Maximum
Measured at 50% of waveform
50 ±10(%)
50 ±5(%)
Measured at 20% to 80% of Waveform
400pSec Maximum
50 Ohms into V
DD
-2.0V
DC
LVPECL
Click to Open Phase Noise Table
Standby (on Pad 1)
Standby (on Pad 2)
70% of V
DD
Minimum or No Connect to Enable Output and
Complementary Output
30% of V
DD
Maximum to Disable Output and Complementary Output
(High Impedance)
10mSec Maximum
200nSec Maximum
Operating Temperature Range
Aging at 25°C
Supply Voltage
Input Current
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Phase Noise
Output Control Function
Output Control Input Voltage Logic High
(Vih)
Output Control Input Voltage Logic Low
(Vil)
Standby Output Enable Time
Standby Output Disable Time
1 of 12
28-Jan-2016 2:20 PM
Ecliptek | EQRD33 Series Oscillator
http://www.ecliptek.com/oscillators/EQRD33/
Standby Current
Without Load
10 A Maximum
Click to Open RMS Phase Jitter Table
0.2pSec Typical
1.0pSec Typical
1.5pSec Typical
40pSec Maximum
-55°C to +125°C
10mSec Maximum
RMS Phase Jitter
Period Jitter (Deterministic)
Period Jitter (Random)
Period Jitter (One Sigma)
Period Jitter (tp-p)
Storage Temperature Range
Start Up Time
2 of 12
28-Jan-2016 2:20 PM
Ecliptek | EQRD33 Series Oscillator
http://www.ecliptek.com/oscillators/EQRD33/

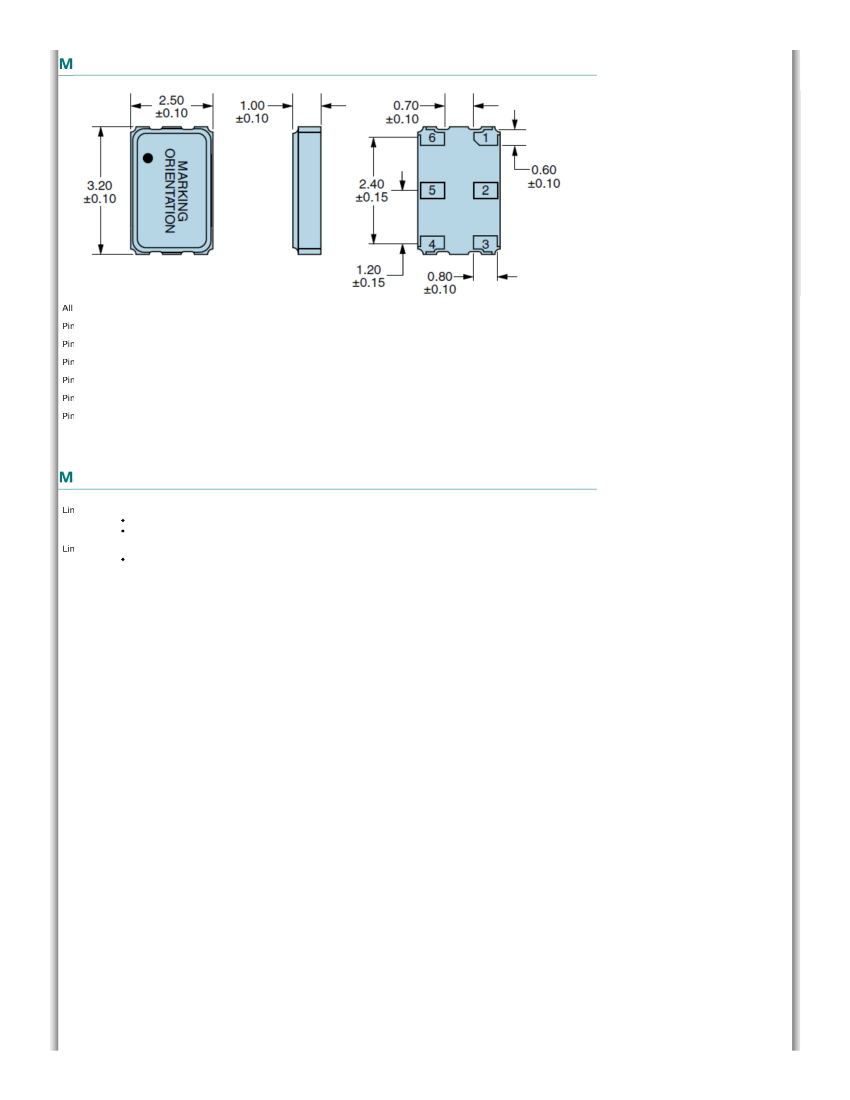

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: No Connect Or Standby
Pin 2: No Connect Or Standby
Pin 3: Case/Ground
Pin 4: Output
Pin 5: Complementary Output
Pin 6: Supply Voltage
Marking Specifications
Line 1:
E XXXXXX
E = Ecliptek Designator
XXXXXX = Nominal Frequency in MHz (5 digits + Decimal)
XXXXX
XXXXX = Ecliptek Manufacturing Identifier
