5-147382-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-147382-3

5-147382-3: Description30 50/50 HDR SMT.320 W/HD SN; CategoryThe connector; File Size255KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-147382-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-147382-3	-	-	View	Buy Now

5-147382-3 Overview

30 50/50 HDR SMT.320 W/HD SN

5-147382-3 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connectors and terminals terminate to	A printed circuit board
Connector type	with hood
Line spacing	1.27 mm [ .05 in ]
sealing ring	Without
stabilizing device	Without
plate support	Without
stress relief	Without
Connector terminal load status	selective loading
PCB mounting direction	vertical
Number of Positions	30
Rows	2
keying	no
Medium pressure resistance	300 V
Voltage (VAC)	30
Cylinder size (in)	.006
Vacuum cover	with
cover material	aluminum
Pressure cylinder plating thickness	Tin: 150 - Nickel: 50
PCB retention properties plating materials	Nickel base tin plating
PCB retaining properties material	copper alloy
Terminal base material	Phosphor bronze
PCB terminal termination area plating materials	tin lead
Terminal base material	nickel
Terminal protection	with
Terminal shape	round, round
Terminal type	Pin
Contact Current Rating (Max) (A)	.5
Terminal Contact Plating Thickness (µin)	30
Terminal contact plating material	gold
PCB Termination Methods	surface mount
Termination Post Length (in)	.03
Terminal Plating Thickness (µin)	150
Terminal plating materials	tin
PCB mounting fixation type	Pressure cylinder
PCB installation and fixation	with
Panel mount features	Without
Engage connector latch	Without
PCB installation method	surface mount
Joint alignment type	keying
joint alignment	with
Centerline (Pitch)	1.27 mm [ .05 in ]
Shell material	LCP (Liquid Crystal Polymer)
Shell color	black
Shrouded end dimensions (in)	.036
stacking height	8.13 mm [ .32 in ]
Joint Post Length (in)	.12
Working group temperature range (°C)	-65 – 105
approved standards	CSA LR7189, UL E28476
UL flammability rating	UL 94V-0
Package quantity	400
Encapsulation method	Tape and reel packaging
Comment	Other sizes available.

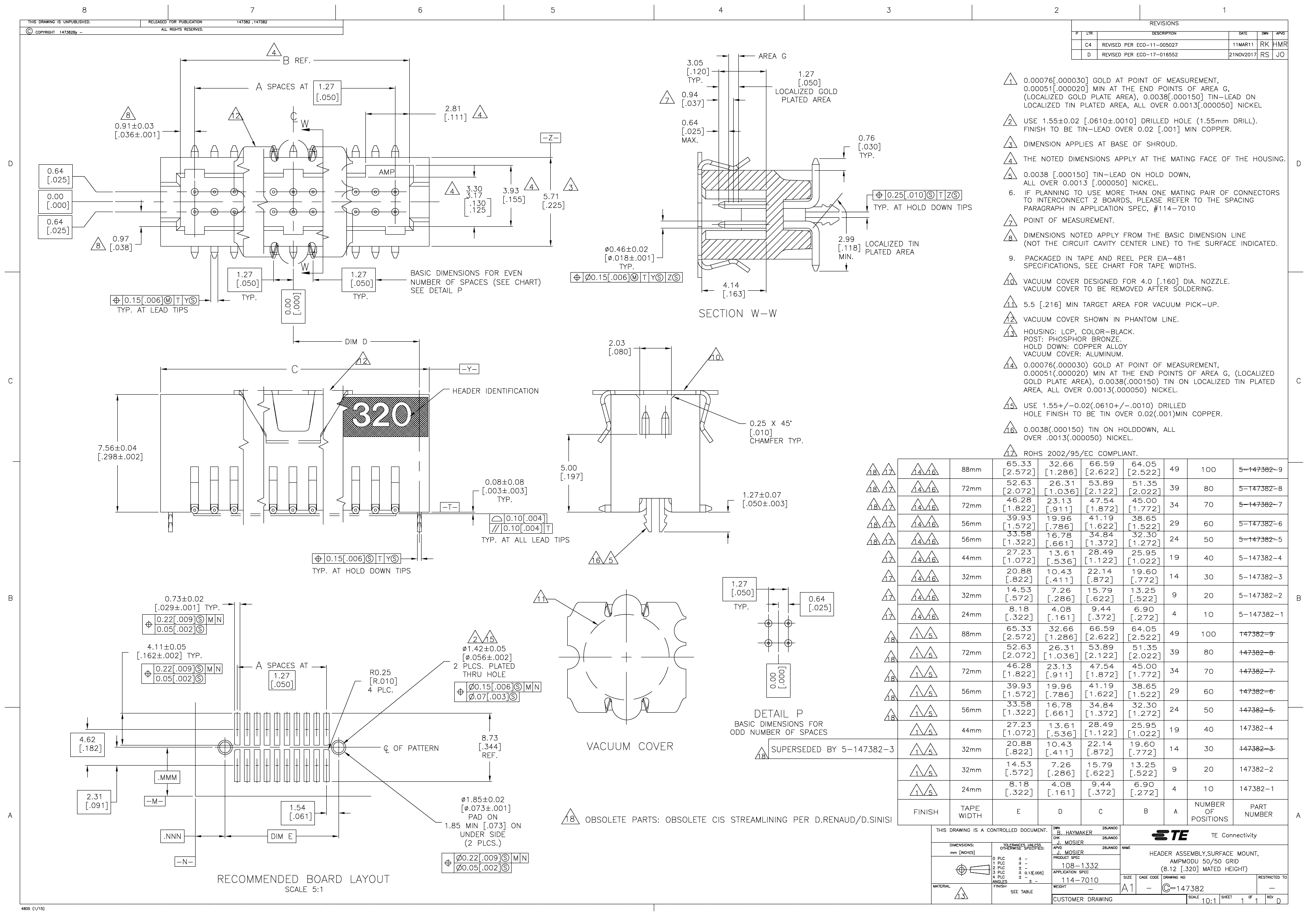

Preview
