Datasheet> All Categories > The connector> The connector> 85839-6

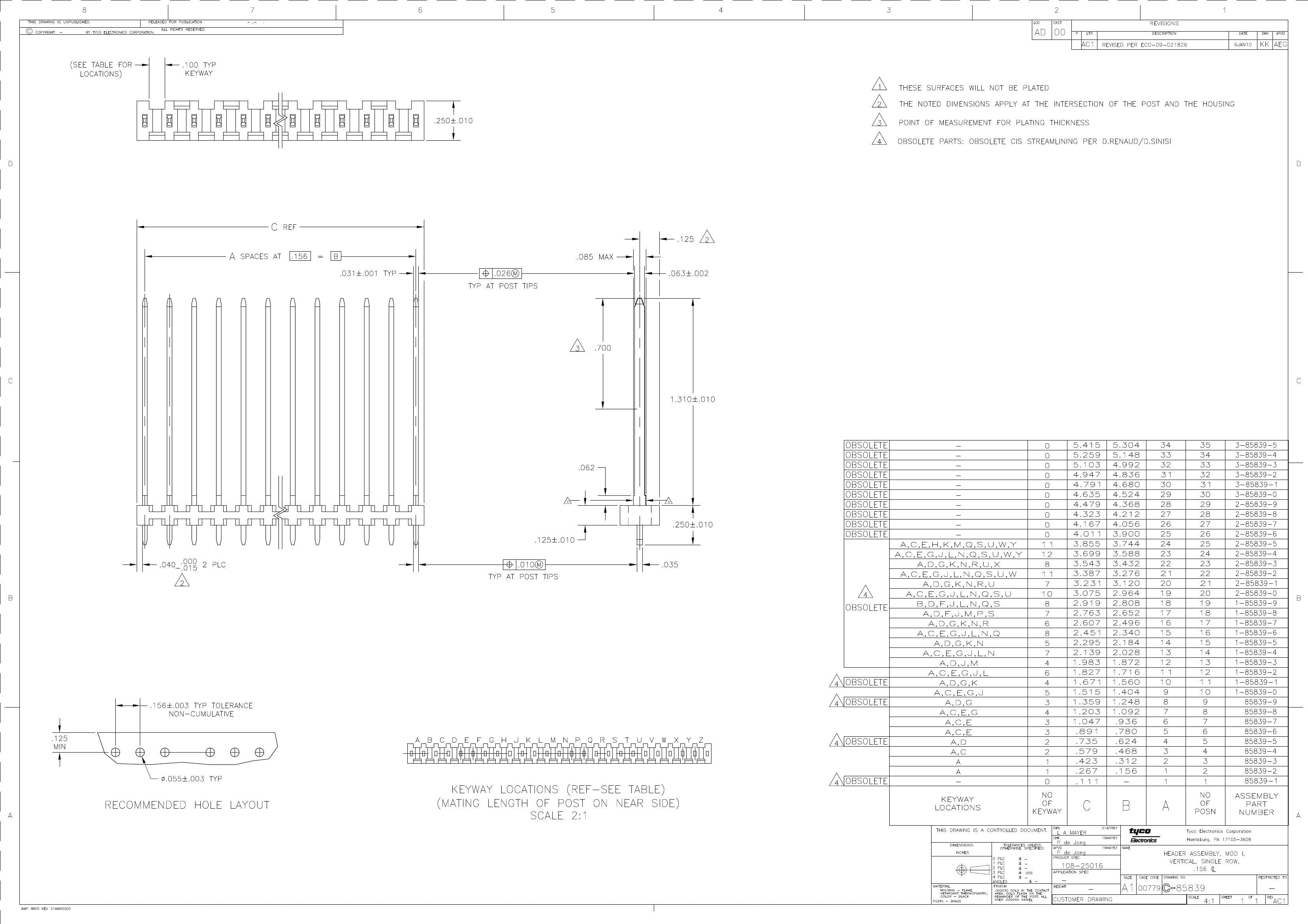

Preview

85839-6: Description06 MODI HDR SRST .156CL; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

85839-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85839-6	-	-	View	Buy Now

85839-6 Overview

06 MODI HDR SRST .156CL

85839-6 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	21 weeks
Other features	POLARIZED
body width	0.25 inch
subject depth	0.125 inch
body length	0.891 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1200VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

85839-6 Related Products

	85839-6	85839-8	VS-4020-EEX-205X-2457M600000-2104M658326	85839-2	85839-4
Description	06 MODI HDR SRST .156CL	08 MODI HDR SRST .156CL	SAW Oscillator	02 MODI HDR SRST .156CL	04 MODI HDR SRST .156CL
Reach Compliance Code	compliant	compliant	compliant	compli	compli
Brand Name	AMP	AMP	-	AMP	AMP
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to
ECCN code	EAR99	EAR99	-	EAR99	EAR99
Factory Lead Time	21 weeks	-	-	18 weeks	18 weeks
Other features	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED
body width	0.25 inch	0.25 inch	-	0.25 inch	0.25 inch
subject depth	0.125 inch	0.125 inch	-	0.125 inch	0.125 inch
body length	0.891 inch	1.203 inch	-	0.267 inch	0.579 inch
Body/casing type	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	NOT APPLICABLE	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	-	MALE	MALE
Contact material	BRASS	NOT APPLICABLE	-	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact resistance	12 mΩ	12 mΩ	-	12 mΩ	12 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	-	NO	NO
Dielectric withstand voltage	1200VAC V	1696.8VAC V	-	1200VAC V	1200VAC V
Durability	200 Cycles	200 Cycles	-	200 Cycles	200 Cycles
Filter function	NO	NO	-	NO	NO
IEC compliance	NO	NO	-	NO	NO
maximum insertion force	4.448 N	4.448 N	-	4.448 N	4.448 N
Insulation resistance	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK
insulator material	THERMOPLASTIC	POLYETHYLENE	-	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO	-	NO	NO
Plug contact pitch	0.156 inch	0.156 inch	-	0.156 inch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	-	NO	NO
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE
PCB row number	1	1	-	1	1
Number of rows loaded	1	1	-	1	1
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	-	30u inch	30u inch
Rated current (signal)	5 A	5 A	-	5 A	5 A
Guideline	UL, CSA	CSA, LR, U	-	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Terminal length	0.125 inch	0.125 inch	-	0.125 inch	0.125 inch
Terminal pitch	3.96 mm	3.96 mm	-	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	6	8	-	2	4
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0
Evacuation force-minimum value	.278 N	.278 N	-	.278 N	.278 N
Base Number Matches	1	-	-	1	1
