87984-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87984-4

87984-4: Description04 MODI BDMNT RCPT SR .156CL; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

87984-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87984-4	-	-	View	Buy Now

87984-4 Overview

04 MODI BDMNT RCPT SR .156CL

87984-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	23 weeks
Other features	COMPATIBLE CONTACT: 86480-2
body width	0.175 inch
subject depth	0.3 inch
body length	0.624 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1200VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

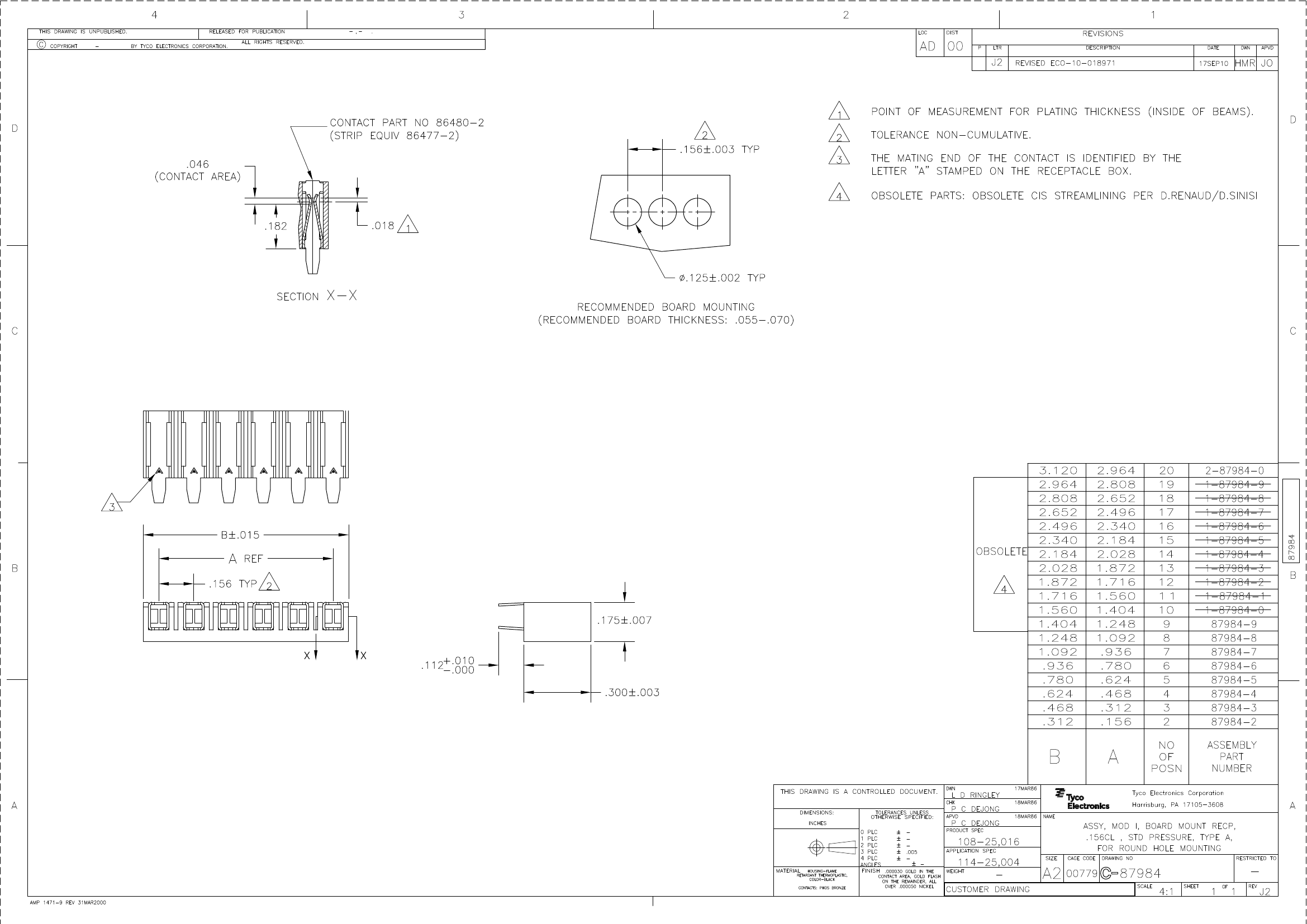

Preview

Download Datasheet

View All

87984-4 Related Products

	87984-4	87984-5	87984-7	87984-8	2-87984-0	87984-3
Description	04 MODI BDMNT RCPT SR .156CL	05 MODI BDMNT RCPT SR .156CL	07 MODI BDMNT RCPT SR .156CL	08 MODI BDMNT RCPT SR .156CL	20 MODI BDMNT RCPT SR .156CL	Number of pins: 3 Connector type: Socket series: - Pitch: 0.156" (3.96mm) Contact type: No male or female
Brand Name	AMP	AMP	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	not_compliant	not_compliant	compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	23 weeks	23 weeks	23 weeks	23 weeks	26 weeks	23 weeks
Other features	COMPATIBLE CONTACT: 86480-2	COMPATIBLE CONTACT: 86480-2	COMPATIBLE CONTACT: 86480-2	COMPATIBLE CONTACT: 86480-2	COMPATIBLE CONTACT: 86480-2	COMPATIBLE CONTACT: 86480-2
body width	0.175 inch	0.175 inch	0.175 inch	0.175 inch	0.175 inch	0.175 inch
subject depth	0.3 inch	0.3 inch	0.3 inch	0.3 inch	0.3 inch	0.3 inch
body length	0.624 inch	0.78 inch	1.092 inch	1.248 inch	3.12 inch	0.468 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	5	7	8	20	3
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N
Base Number Matches	1	1	1	1	1	1
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-	-
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier	-	Gold Flash (Au) - with Nickel (Ni) barrier
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	94V-0
