NRSZC822M10V16X31.5TBF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRSZC822M10V16X31.5TBF

NRSZC822M10V16X31.5TBF: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 8200uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size313KB，4 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NRSZC822M10V16X31.5TBF Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 8200uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

NRSZC822M10V16X31.5TBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2031752510
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan, Mainland China, Taiwan
ECCN code	EAR99
YTEOL	3
capacitance	8200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.82 mA
length	31.5 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	2257.5 mA
surface mount	NO
Delta tangent	0.33
Terminal surface	Matte Tin (Sn)
Terminal pitch	7.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

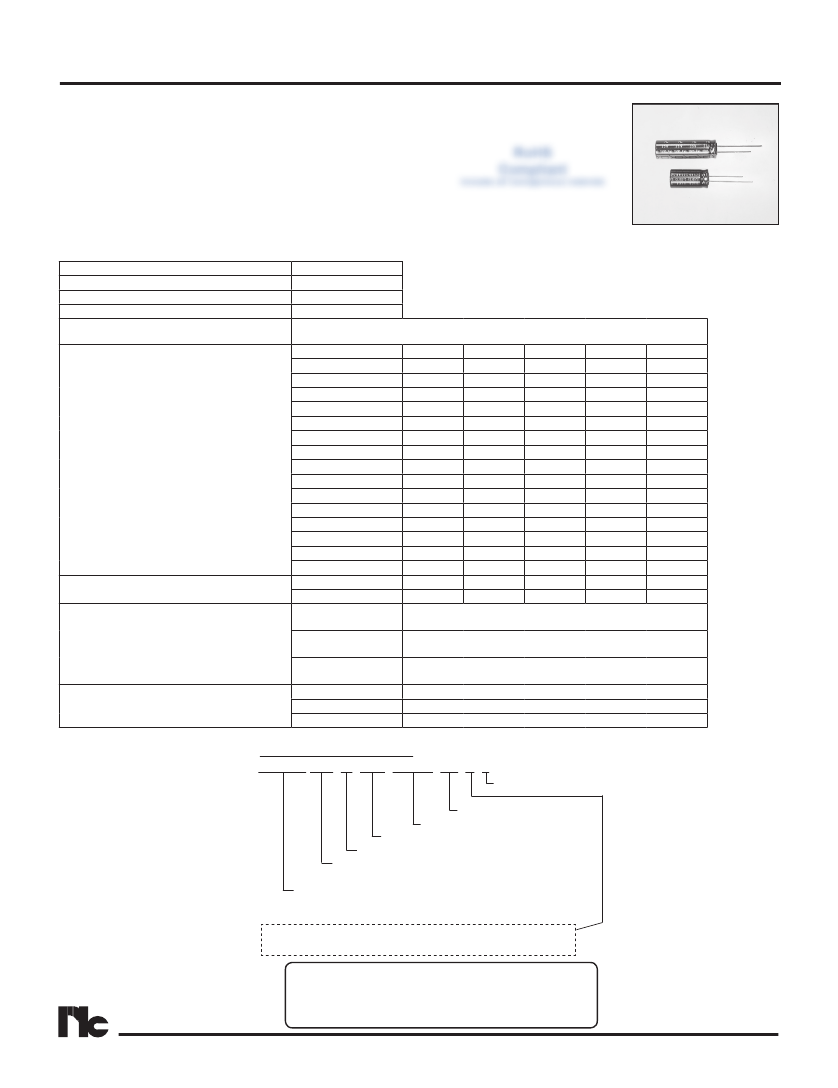

Miniature Aluminum Electrolytic Capacitors

VERY LOW IMPEDANCE(LOWER THAN NRSZ) AT HIGH FREQUENCY

RADIAL LEADS, POLARIZED ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

RoHS

• VERY LOW IMPEDANCE

Compliant

• LONG LIFE AT 105°C (2000 ~ 7000 hrs.)

includes all homogeneous materials

• HIGH STABILITY AT LOW TEMPERATURE

*See Part Number System for Details

• IDEALLY FOR SWITCHING POWER SUPPLIES

• MEETS THE REQUIREMENTS OF AEC-Q200*

*Contact NIC for supporting test data

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Max. Leakage Current @ 20°C

after 2 min.

6.3 ~ 35VDC

47 ~ 18,000µF

-55 ~ +105°C

±20% (M)

0.01CV

W.V. (VDC)

S.V. (VDC)

C < 1,000µF

C = 1,800µF

C = 2,200µF

C = 2,700µF

C = 3,300µF

C = 3,900µF

C = 4,700µF

C = 5,600µF

C = 6,800µF

C = 8,200µF

C = 10,000µF

C = 12,000µF

C = 15,000µF

C = 18,000µF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Tanδ

Leakage Current

Capacitance Change

Tanδ

Leakage Current

6.3

0.22

0.24

0.26

0.28

0.30

0.32

0.36

0.40

0.44

0.50

0.56

0.19

0.21

0.23

0.26

0.27

0.29

0.33

0.37

0.41

0.47

0.16

0.18

0.20

0.22

0.24

0.26

0.30

0.34

0.14

0.16

0.18

0.22

0.24

NRSZC Series

Max. Tanδ ~ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V. & 105°C

7,000 Hours: 16 ~ 18φ

5,000 hours: 12.5φ

4,000 hours: 10φ

3,000 hours: 8φ

2,000 hours: 5 ~ 6.3φ

Shelf Life Test

105°C for 1,000 hours

No Load

0.12

0.14

0.16

0.18

Within ±25% of initial measured value

Less than 200% of specified maximum value

Less than specified maximum value

Within ±20% of initial measured value

Less than 200% of specified maximum value

Less than specified maximum value

NRSZC 102 M 16V 10X16 TB Y F...

RoHS Compliant

TB = Tape & Box*

Case Size (Dφ x L)

Working Voltage (Vdc)

Tolerance Code (M=20%)

Capacitance Code: First 2 characters

significant, third character is multiplier

PART NUMBER SYSTEM

Series

*see taping specifications for details

Optional: For automotive equipment, sourced to special

production and inspection at TS-16949 certified production site

PRECAUTIONS

Please review the notes on correct use, safety and precautions found at

https://

www.niccomp.com/resource/files/aluminum/AlumApplInfoCautions.pdf

If in doubt or uncertainty, please review your specific application - process details

with NIC’s technical support personnel:

tpmg@niccomp.com

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
