5406544-1 datasheet, PDF - EEWORLD Datasheet

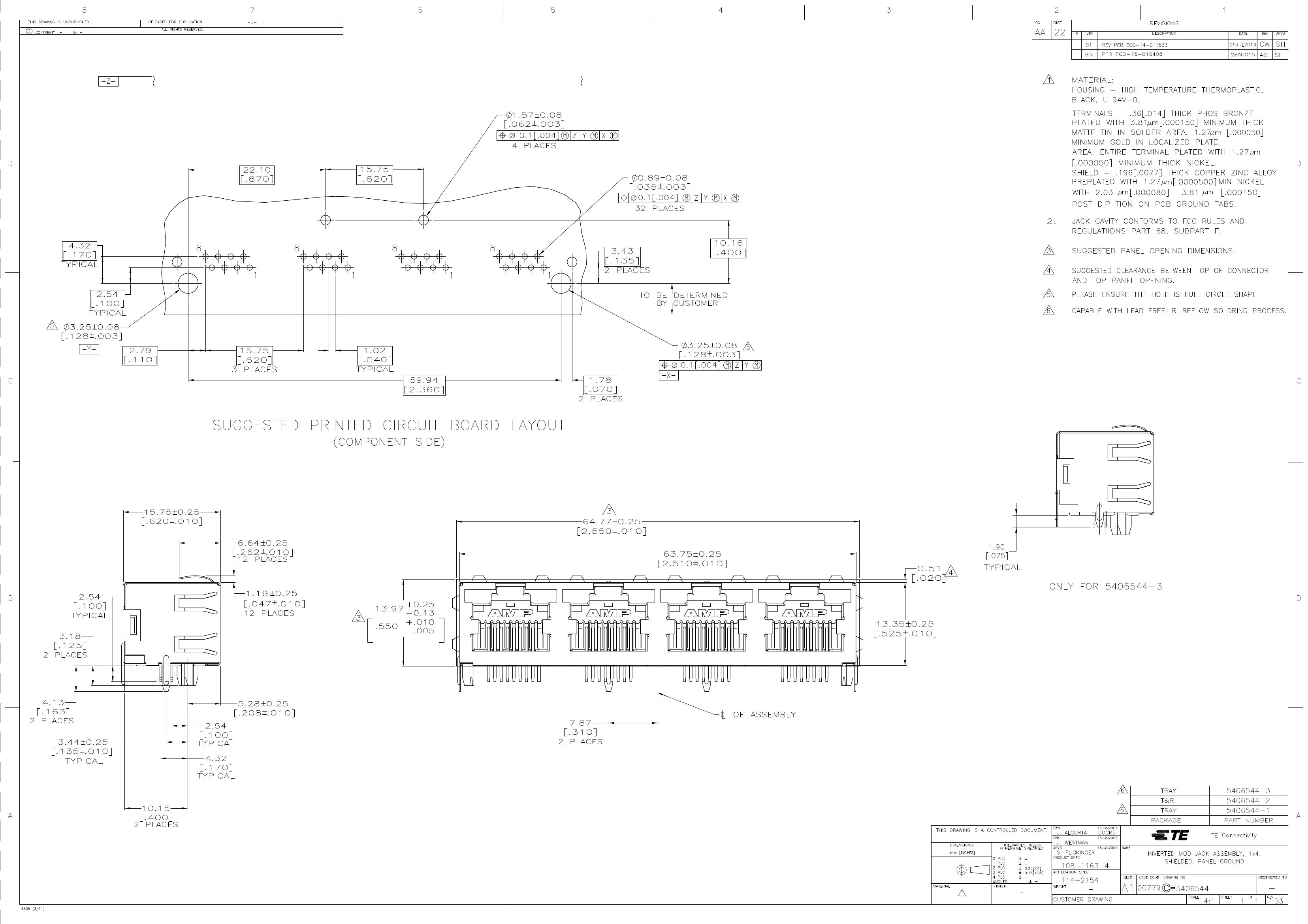

5406544-1: DescriptionINV MJ,1X4,PNL GRD; CategoryThe connector The connector; File Size139KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5406544-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5406544-1	-	-	View	Buy Now

INV MJ,1X4,PNL GRD

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	14 weeks
Other features	SHILEDED
Board mount options	SPLIT BOARD LOCK
body width	0.55 inch
subject depth	0.62 inch
body length	2.55 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	COPPER-ZINC ALLOY
Terminal length	0.1 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

	5406544-1	5406544-2
Description	INV MJ,1X4,PNL GRD	INV MJ,1X4,PNL GRD
Connector type	TELECOM AND DATACOM CONNECTOR	socket
Shell material	COPPER-ZINC ALLOY	high temperature thermoplastic
