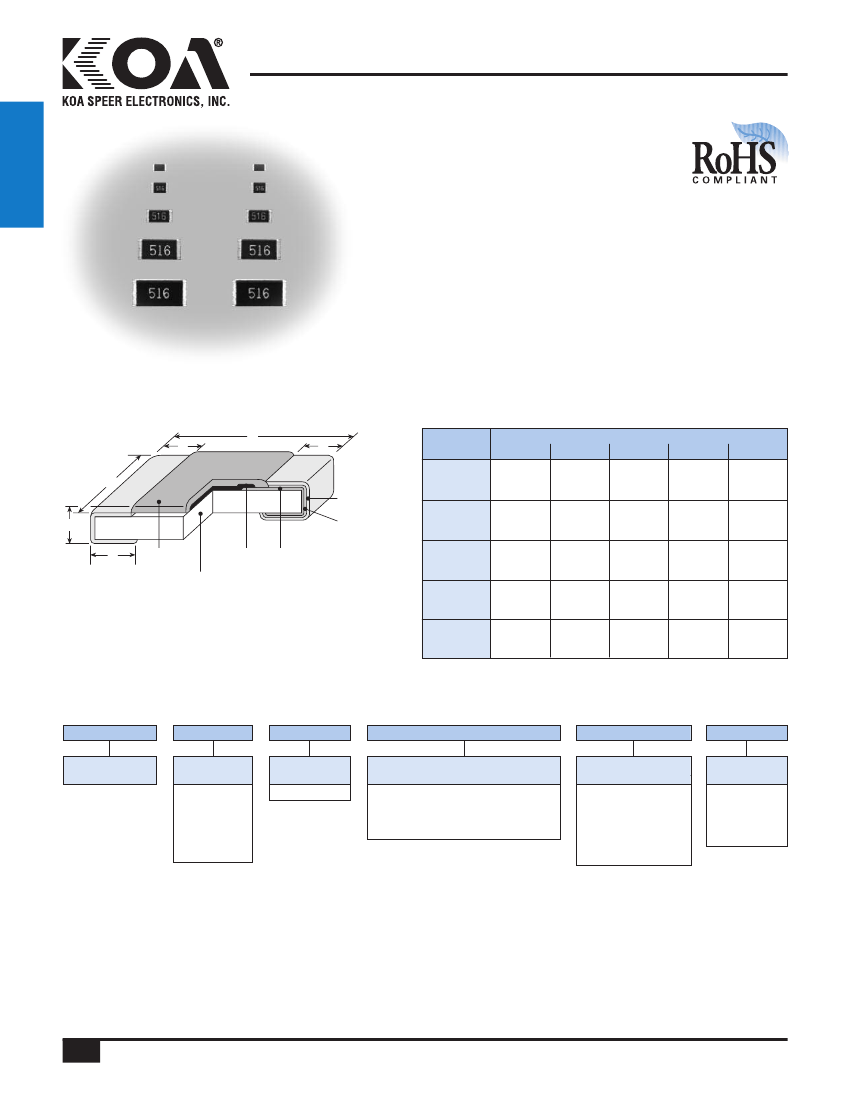

HV73-RT
flat chip resistors for high voltage
(anti-sulfuration)
EU
features
•
Superior to RK73 series in maximum
working voltage
•
Suitable for flow and reflow solderings
•
Products meet EU RoHS requirements. EU RoHS
regulation is not intended for Pb-glass contained in
electrode, resistor element and glass.
•
Excellent anti-sulfuration characteristics due to using
high sulfuration-proof inner top electrode material
resistors
dimensions and construction
c
L
c
Type
(Inch Size Code)
L
Dimensions
inches
(mm)
W
c
d
t
W
Solder
Plating
t
d
Protective
Coating
Resistive Inner
Film
Electrode
Ni
Plating
1J
(0603)
2A
(0805)
2B
(1206)
2H
(2010)
3A
(2512)
.063±.008 .031±.004 .012±.004 .012±.004 .018±.004
(1.6±0.2)
(0.8±0.1)
(0.3±0.1)
(0.3±0.1) (0.45±0.1)
.079±.008 .049±.004 .016±.008
(2.0±0.2) (1.25±0.1) (0.4±0.2)
.126±.008 .063±.008
(1.6±0.2)
(3.2±0.2)
.197±.008 .098±.008
(2.5±0.2)
(5.0±0.2)
.248±.008 .122±.008
(3.1±0.2)
(6.3±0.2)
.02±.012
(0.5±0.3)
.02±.012
(0.5±0.3)
.02±.012
(0.5±0.3)
.012
(0.3
.016
(0.4
.016
+.008
-.004
+0.2
-0.1
)
+.008
-.004
+0.2
-0.1
)
.02±.004
(0.5±0.1)
.024±.004
(0.6±0.1)
.024±.004
(0.6±0.1)
.024±.004
(0.6±0.1)
Ceramic
Substrate
+.008
-.004
+0.2
)
(0.4
-0.1
.016
+.008
-.004
(0.4
+0.2
)
-0.1
ordering information
HV73
Type
2B
Size
1J: 0.1W
2A: 0.25W
2B: 0.25W
2H: 0.5W
3A: 1W
RT
Termination
Material
RT: Sn
TD
Packaging
TD: 7" 4mm pitch punched paper
TE: 7" 4mm pitch embossed plastic
For further information on packaging,
please refer to Appendix A
1004
Nominal
Resistance
±0.5%, ±1%:
3 significant figures
+1 multiplier
±2%, ±5%:
2 significant figures
+ 1 multiplier
F
Resistance
Tolerance
D: ±0.5%
F: ±1%
G: ±2%
J: ±5%
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/06/17
44
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
HV73-RT
flat chip resistors for high voltage
(anti-sulfuration)
applications and ratings
Part
Designation
1J
2A
2B
2H
3A
Rated
Power
T.C.R.
Rated
Terminal
Rating Ambient
(ppm/°C)
E-24/E-96
Part
@ 70°C Temp.
Max.
(D±0.5%)
Temp.
0.1W
0.25W
0.25W
0.5W
1W
70°C
70°C
70°C
70°C
70°C
80°C
100°C
100°C
90°C
105°C
±100**
±100
±200
±100
±200
±100
±200
±100
±200
—
100k - 1M
—
100k - 1M
—
100k - 1M
—
43k - 1M
—
Resistance Range (Ω)
E-24/E-96
(F±1%)
10k - 10M
E-24
(G±2%)
10k - 10M
E-24
(J±5%)
10k - 10M
Maximum
Working
Voltage
350V
400V
800V
2000V
(D.C.)
3000V
(D.C.)
Maximum
Operating
Overload
Temperature
Voltage
Range
(D.C.)*
500V*
800V*
1000V*
3000V*
4000V*
-55°C
to
+155°C
resistors
100k - 10M 100k - 10M 100k - 10M
11M - 51M
—
—
100k - 10M 100k - 10M 100k - 10M
—
—
11M - 51M
100k - 10M 100k - 10M 100k - 10M
—
—
11M - 51M
43k - 10M 43k - 10M
10.2M - 20M 11M - 20M
43k - 10M
11M - 51M
Rated voltage =
√Power
rating x resistance value or max. working voltage, whichever is lower
* Maximum Overload Voltage is specified by D.C. voltage
** Cold T.C.R. (-55°C ~ +25°C) of 1.02MΩ ~ 10MΩ is +200x10
-6
/K
If any questions should arise whether to use the “Rated Ambient Temperature” or the “Rated Terminal Part Temperature,” please give priority to the
“Rated Terminal Part Temperature.” Prior to use and for more details refer to “Introduction of the derating curves on the terminal part temperature”
in the beginning of the catalog.
environmental applications
Derating Curve
100
80
% Rated Power
60
40
20
0
-60 -40 -20
-55
100
80
% Rated Power
60
40
20
0
-60 -40 -20
-55
1J/0.1W (80°C)
2H/0.5W (90°C)
2A, 2B/0.25W (100°C)
3A/1W (105°C)
0
20
40
60
80 100 120 140
70
Ambient Temperature
(°C)
160
155
0
60 80 100 120 140 160
85 90 105
155
Terminal Part Temperature
(°C)
20
40
For resistors operated at an ambient temperature of 70°C or above, a
power rating shall be derated in accordance with the above derating curve.
Performance Characteristics
Parameter
Resistance
T.C.R.
Overload (Short time)
Resistance to Solder Heat
Rapid Change
of Temperature
Moisture Resistance
Endurance at 70°C
High Temperature
Exposure
Sulfuration Test
Requirement
∆
R ±(%+0.1Ω)
Limit
Typical
Within regulated
—
tolerance
Within specified T.C.R.
—
For resistors operated at a terminal part temperature of described for each
size or above, a power rating shall be derated in accordance with the above
derating curve.
Please refer to “Introduction of the derating curves based on the terminal
part temperature” in the beginning of our catalog before use.
Test Method
25°C
+25°C/-55°C and +25°C/+125°C
Rated Voltage (D.C.) x 2.5 for 5 seconds
260°C ± 5°C, 10 seconds ± 1 second
-55°C (30 minutes), +125°C (30 minutes), 100 cycles
40°C ± 2°C, 90%-95% RH, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
70°C ± 2°C, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
+155°C, 1000 hours
Soaked in industrial oil with 3.5% sulfur concentration
105°C ± 3°C, 500 hours
11/06/17
±2%
±0.5%
±1%
±0.5%
±0.5%: (10kΩ≤R≤10MΩ) ±0.3%: (10kΩ≤R≤10MΩ)
±1%: (11MΩ≤R≤51MΩ) ±0.5%: (11MΩ≤R≤51MΩ)
±2%
±2%
±2%
±5%
±0.75%
±0.75%
±0.3%
—
Additional environmental applications can also be found at www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
45
