M402VM-3-40-05NR datasheet, PDF

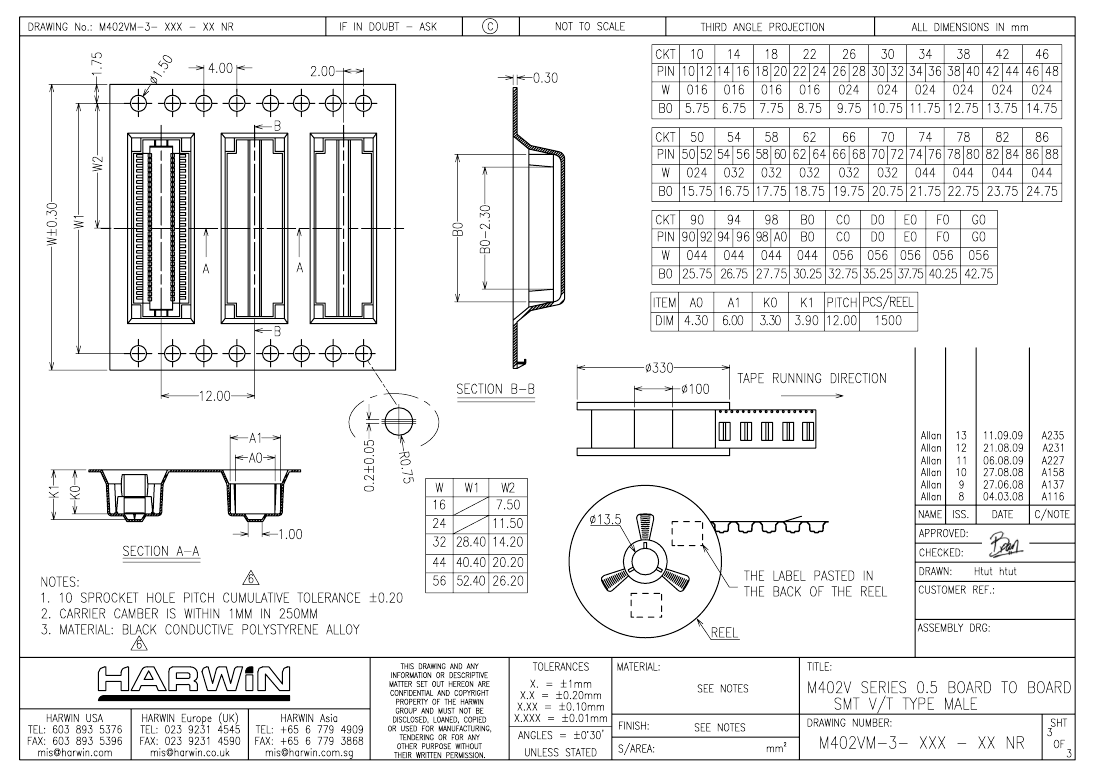

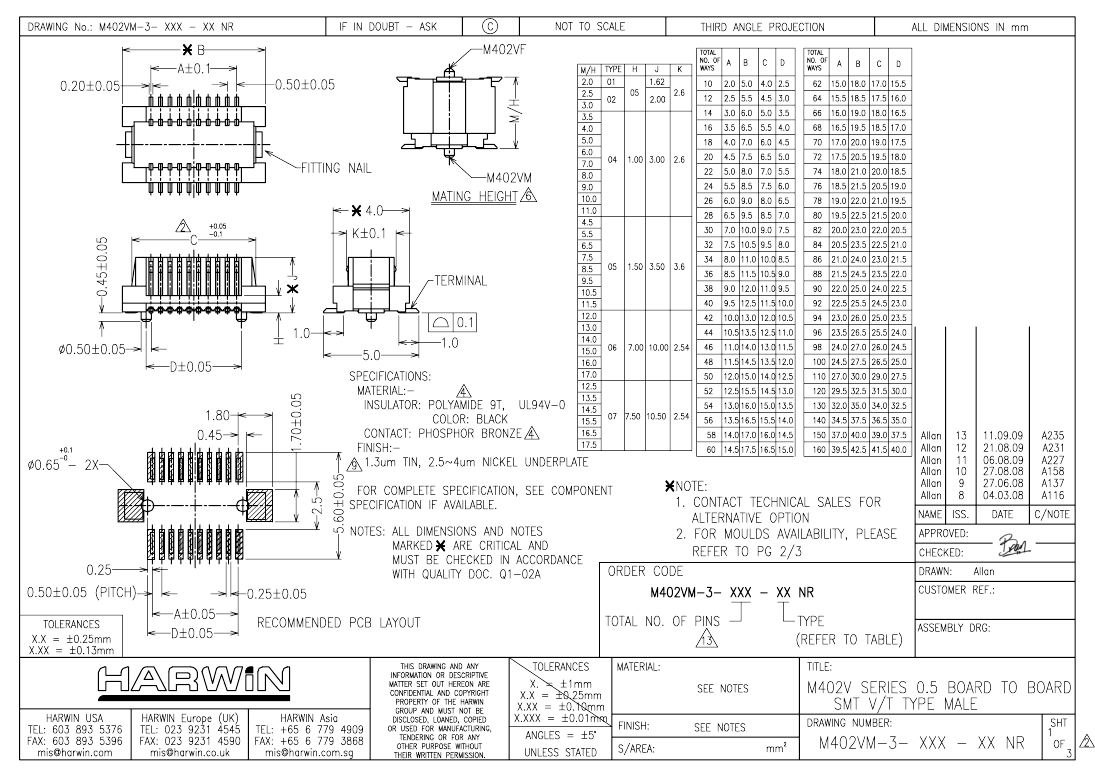

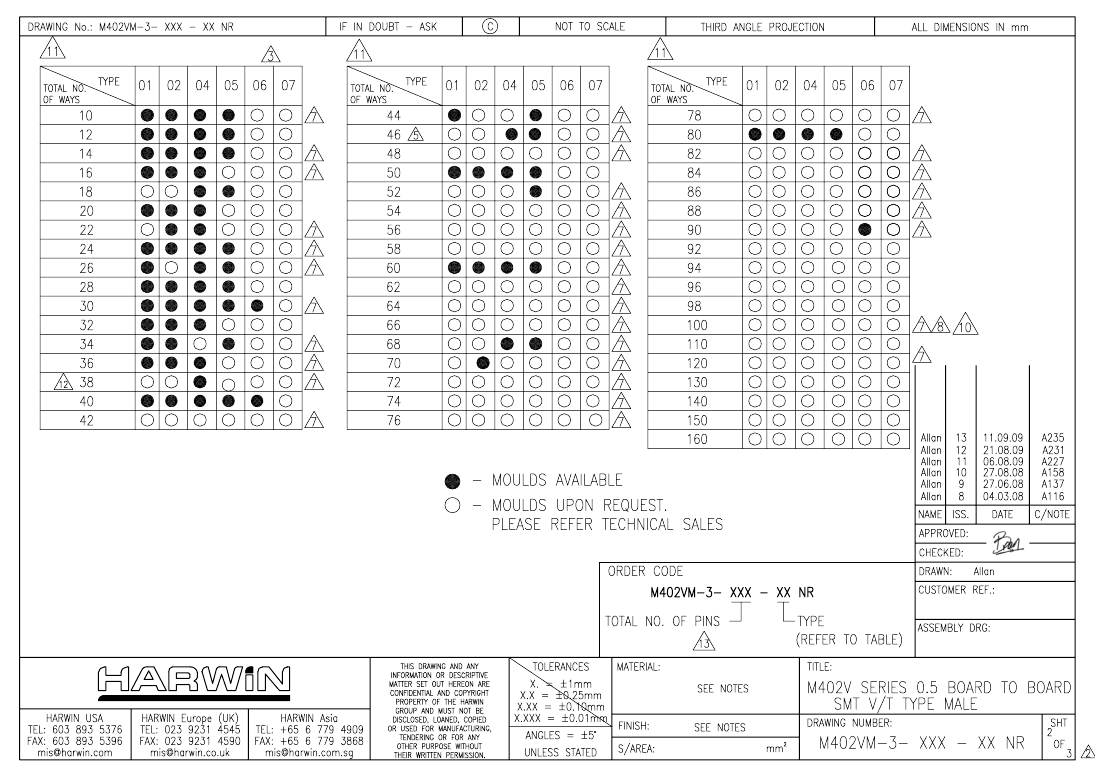

M402VM-3-40-05NR: DescriptionCONNECTOR, 40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size378KB，3 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M402VM-3-40-05NR Overview

CONNECTOR, 40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1737196552
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.157 inch
subject depth	0.138 inch
body length	0.492 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (51) OVER NICKEL (157)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M402VM
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0386 mm
Plating thickness	50u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N
