Part Number

Search

53398-1390

Description
conn header 13pos 1.25mm vrt smd
CategoryThe connector    The connector
File Size252KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

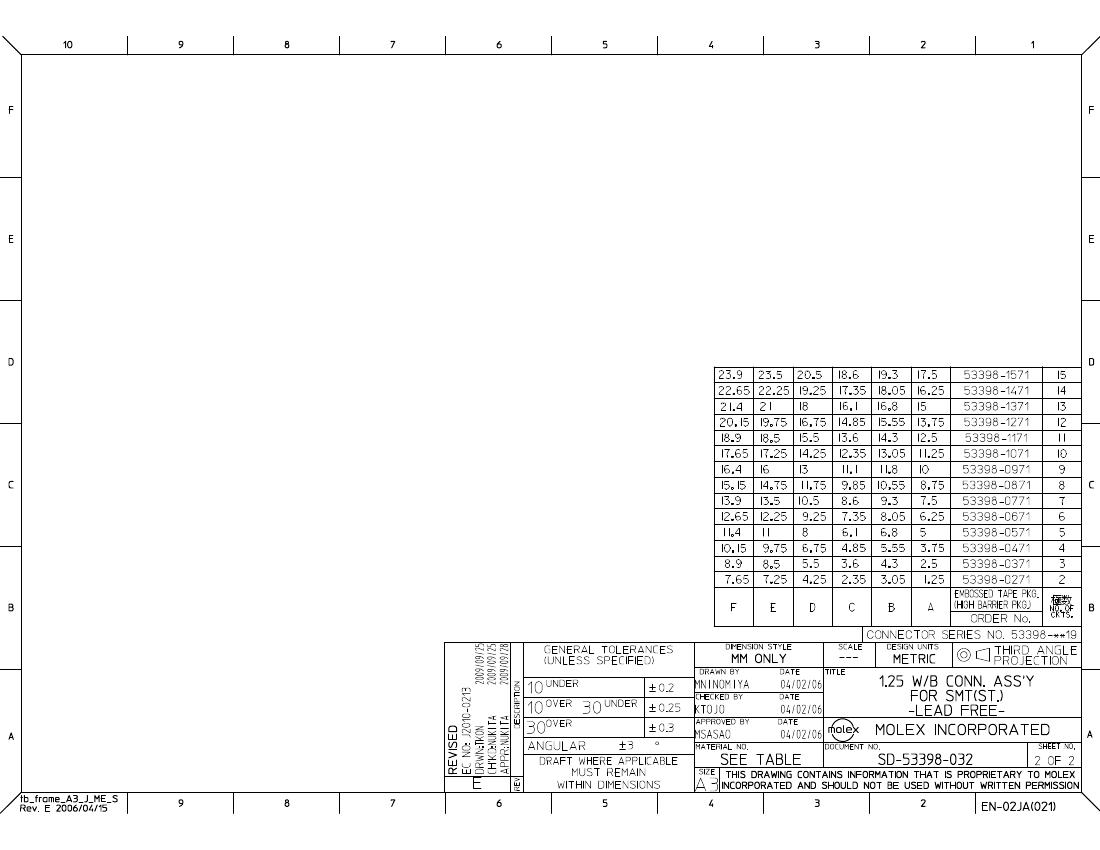

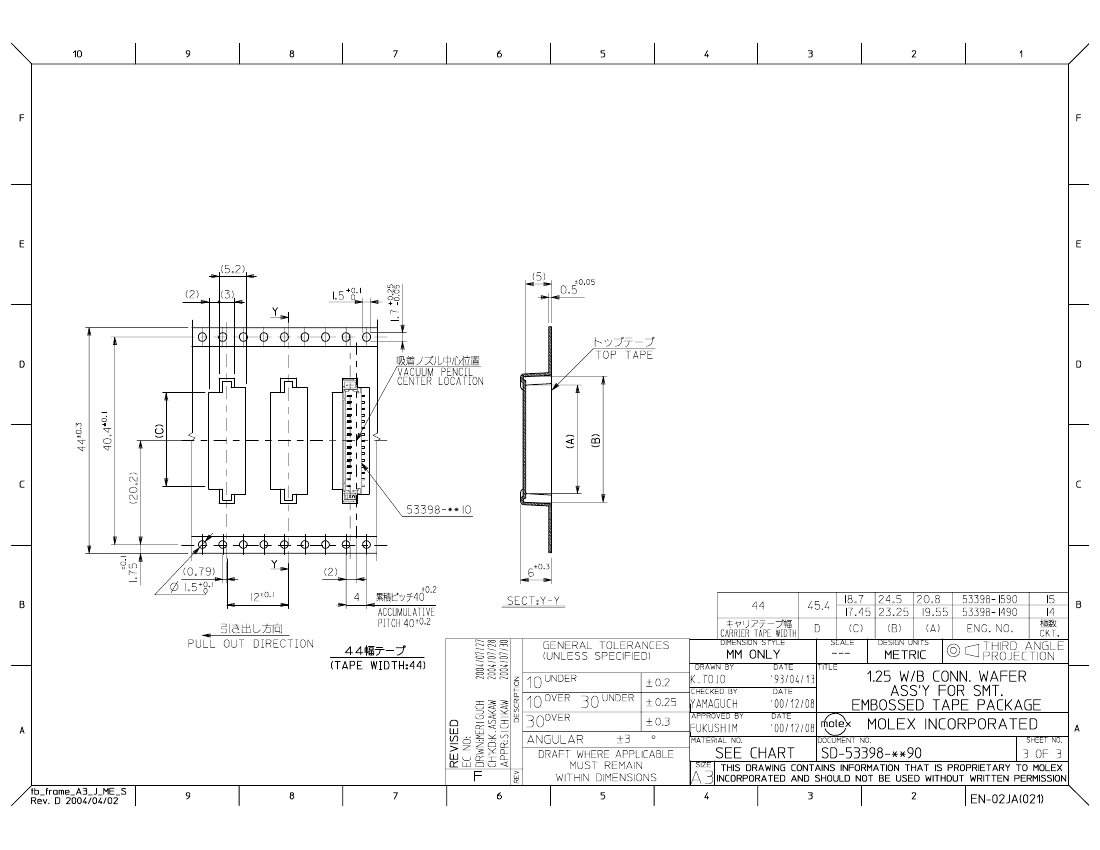

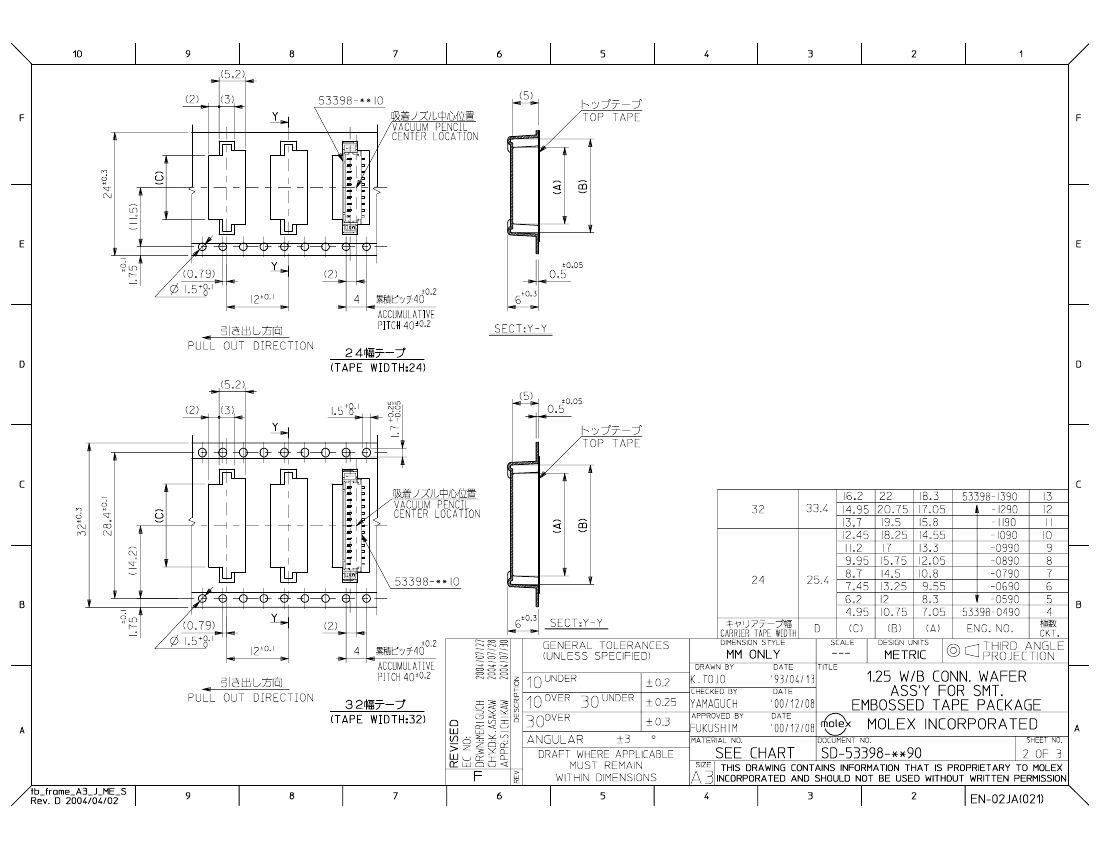

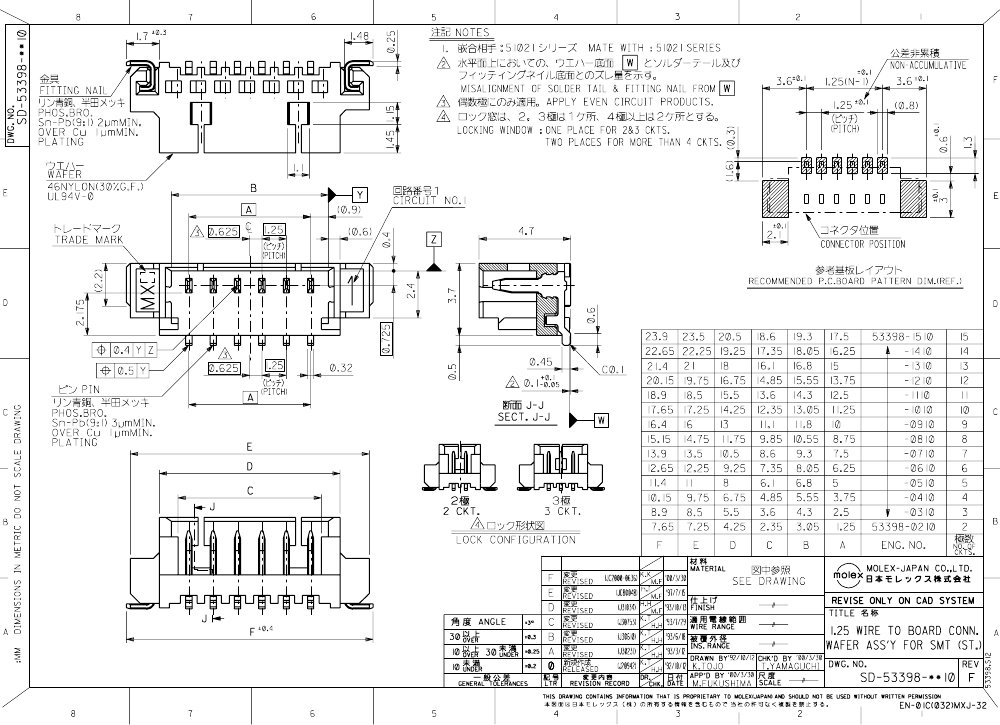

53398-1390 Overview

conn header 13pos 1.25mm vrt smd

53398-1390 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionHeaders & Wire Housings
Other featuresLOW PROFILE, SHROUDED
body width0.146 inch
subject depth0.185 inch
body length0.842 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage250VAC V
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
insulator materialGLASS FILLED NYLON
MIL complianceNO
Manufacturer's serial number53398
Plug contact pitch0.049 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.25 mm
Termination typeSURFACE MOUNT
Total number of contacts13
UL Flammability Code94V-0
Base Number Matches1
