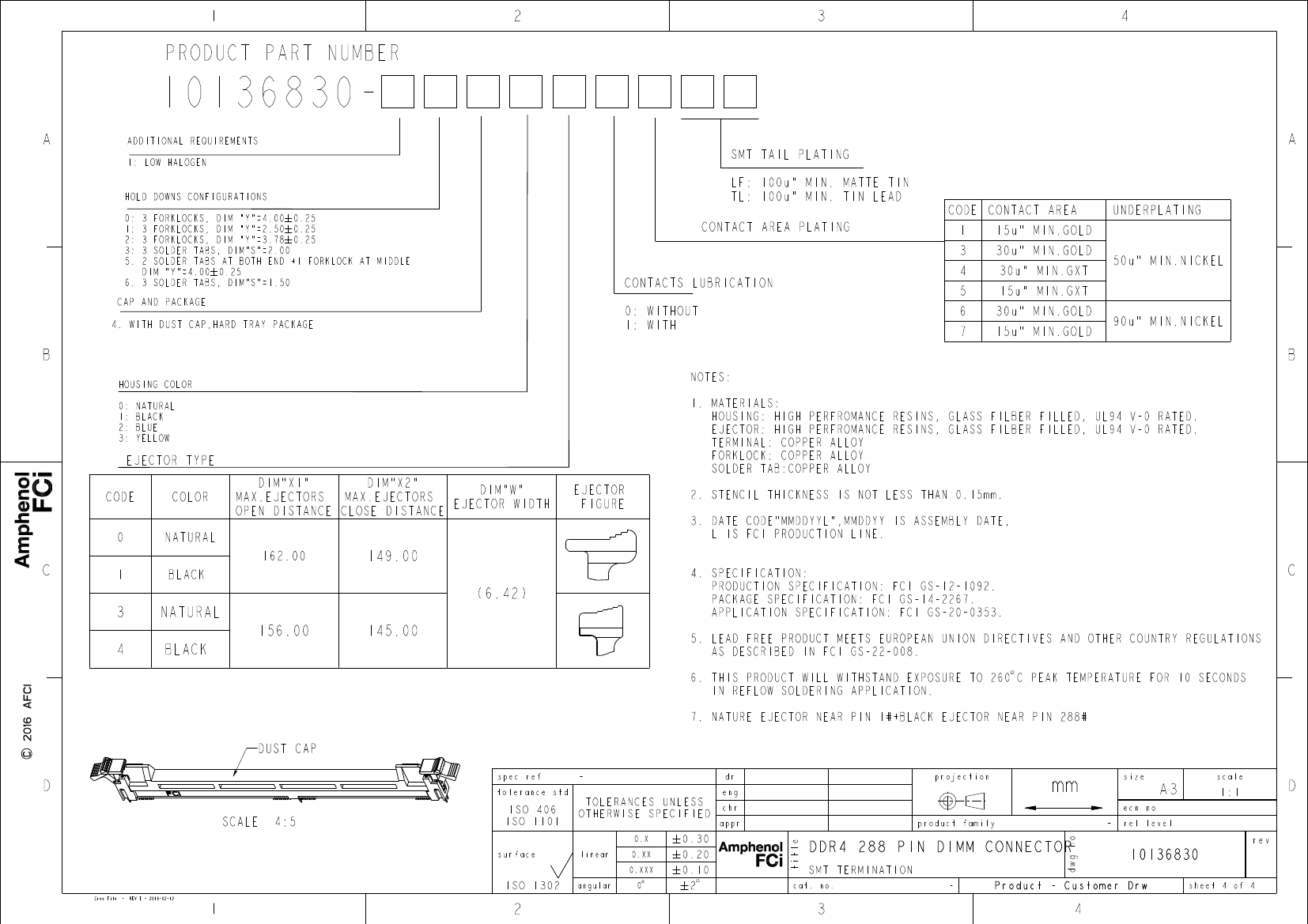

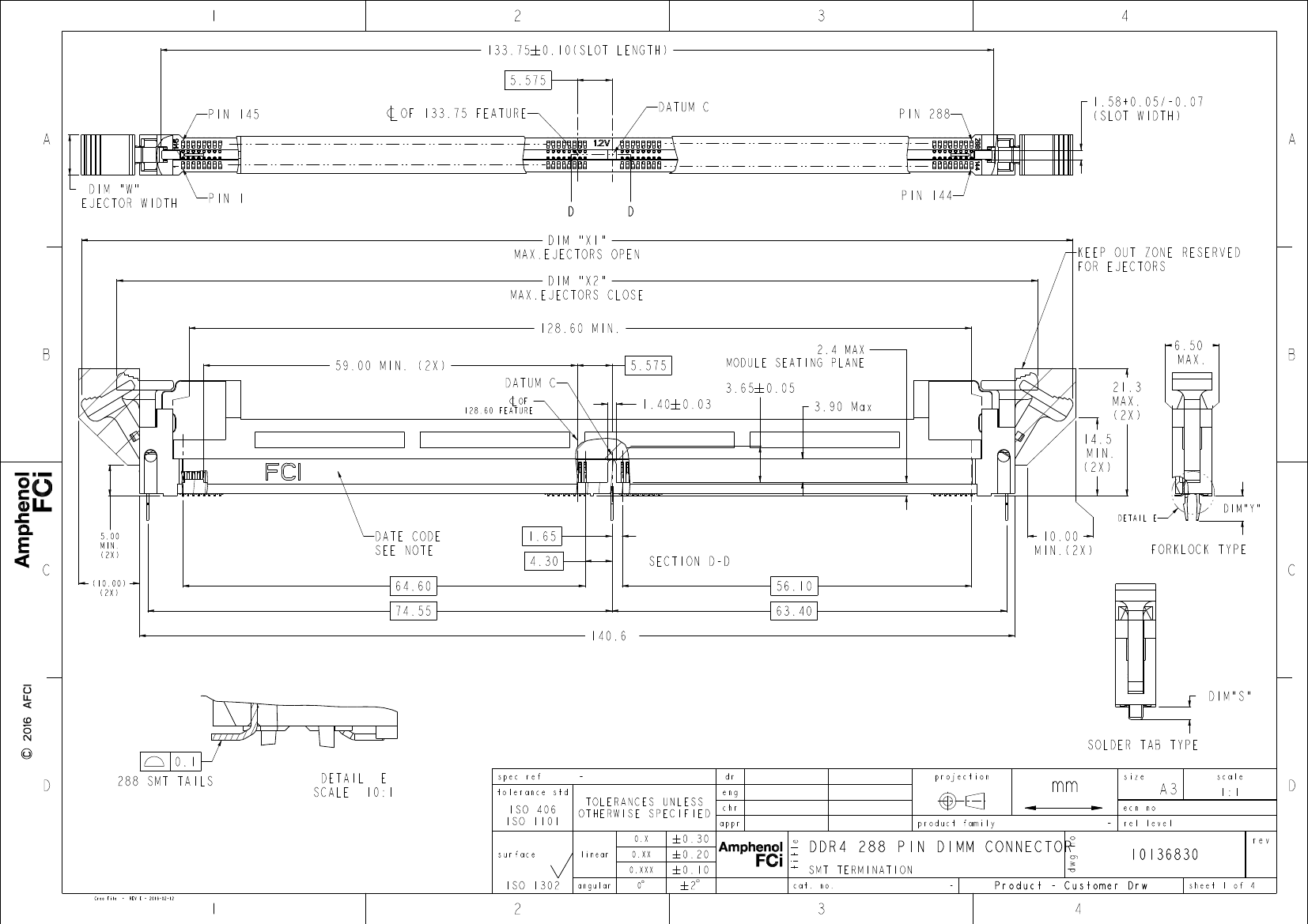

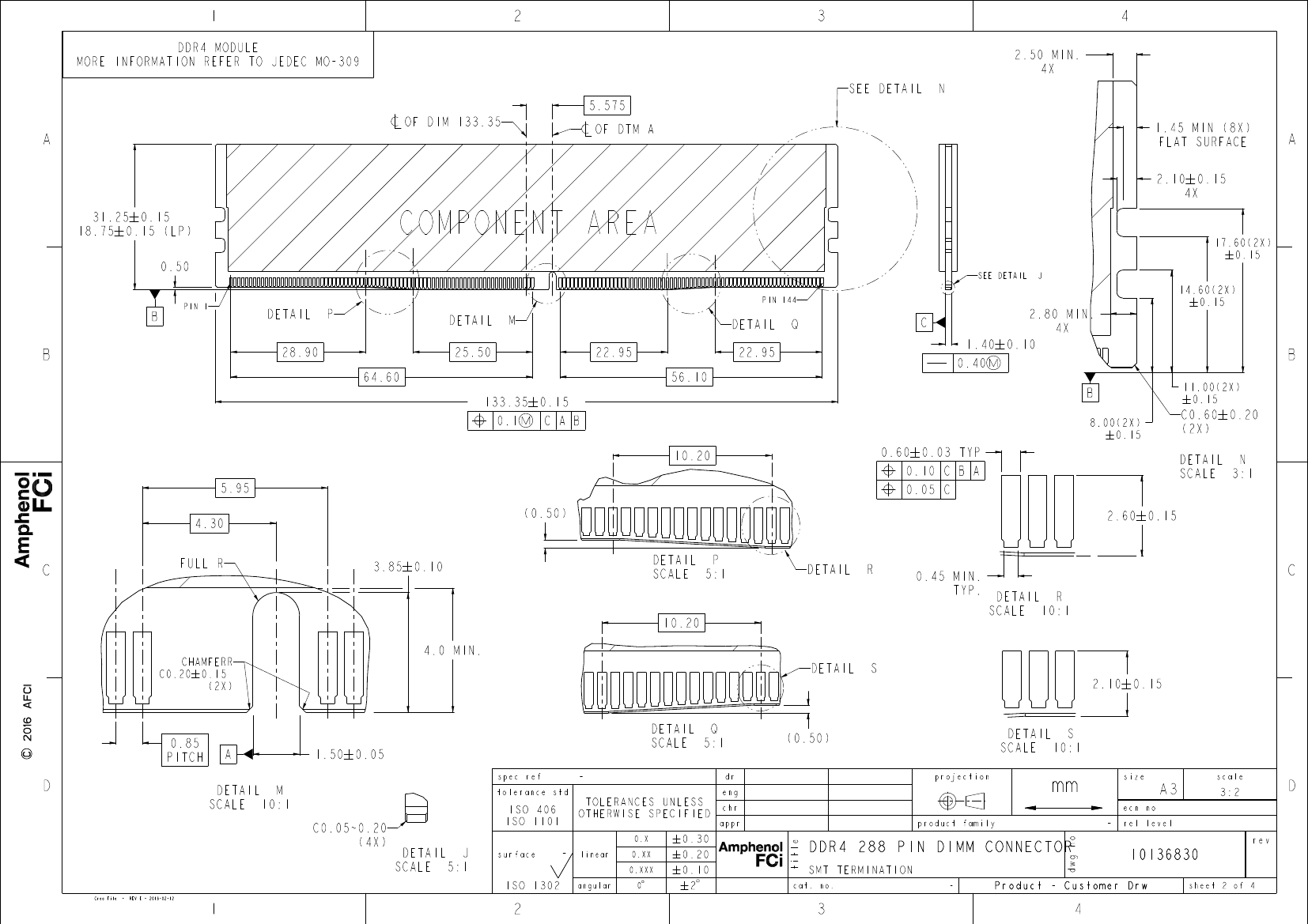

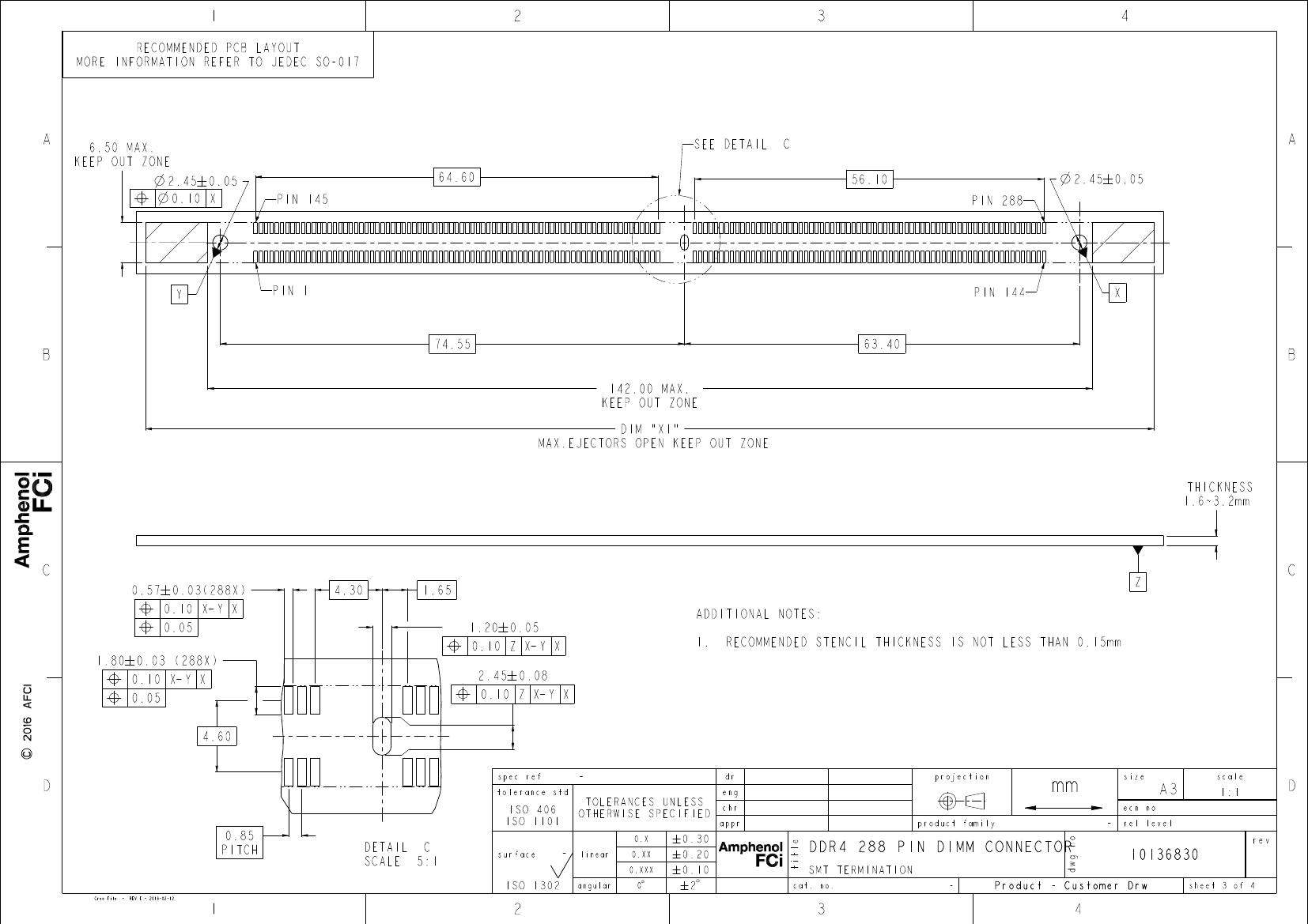

10136830-1540113LF datasheet, PDF

10136830-1540113LF: DescriptionCard Edge Connector, 288 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Latch & Eject, Natural Insulator; CategoryThe connector The connector; File Size911KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10136830-1540113LF Overview

Card Edge Connector, 288 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Latch & Eject, Natural Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7050458465
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.5
Board mount options	PEG
body width	0.256 inch
subject depth	0.839 inch
body length	5.535 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn)
Contact style	SQ PIN-SKT
Insulator color	NATURAL
JESD-609 code	e3
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8382 mm
Termination type	SURFACE MOUNT
Total number of contacts	288

Eric Jiang

Jeny Ren

Nickor Zuo

2015/09/01

2017/02/21

2017/03/02

ELX-DG-26122-1

Released

PDS: Rev :C

STATUS:Released

Printed: Mar 02, 2017
