53261-0390 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53261-0390

53261-0390: Descriptionconn header 3pos 1.25mm R/A smd; CategoryThe connector The connector; File Size421KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53261-0390 Overview

conn header 3pos 1.25mm R/A smd

53261-0390 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	3 way 90deg SMT header,1.25mm pitch
Other features	POLARIZED, SHROUDED
body width	0.134 inch
subject depth	0.205 inch
body length	0.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

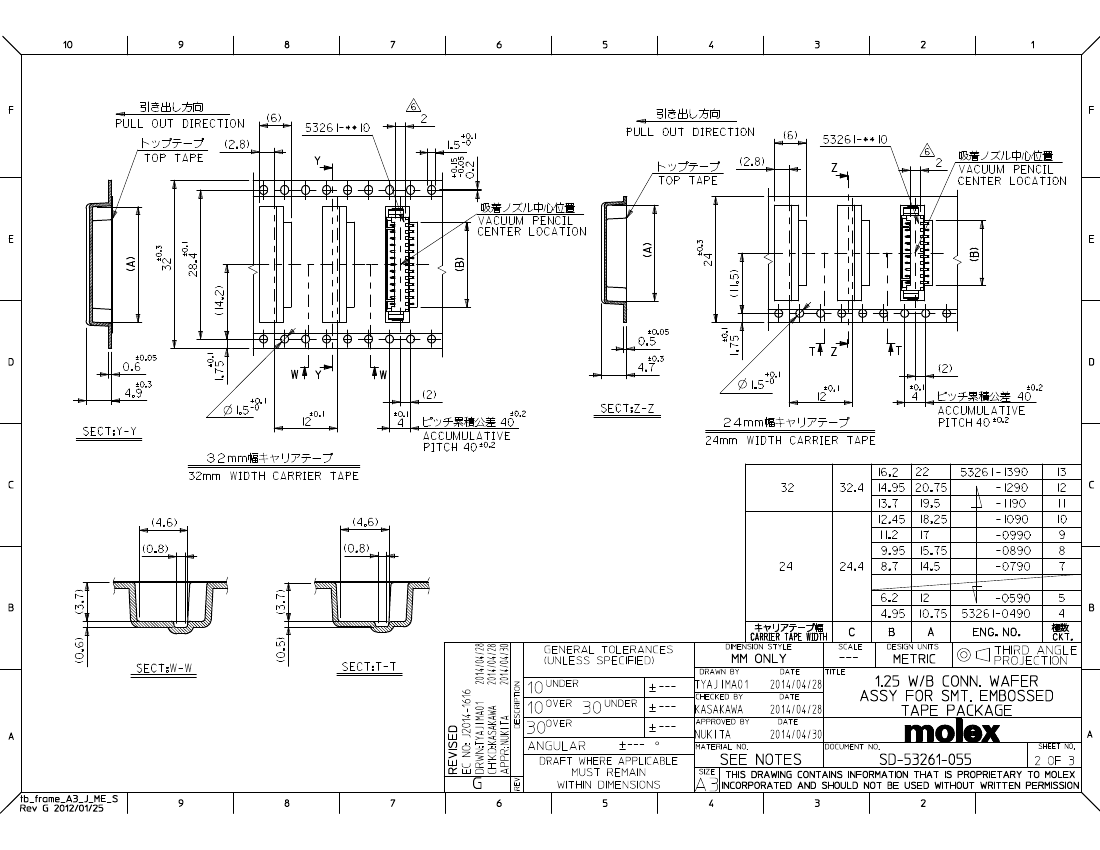

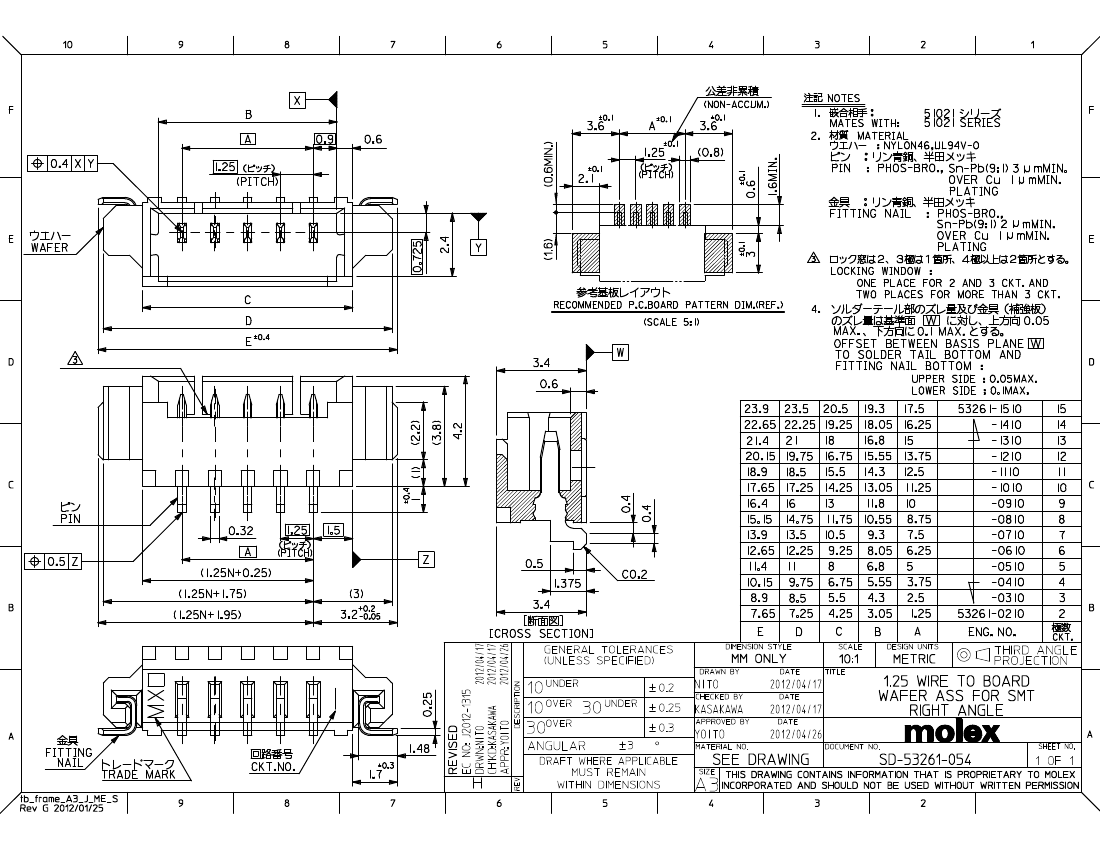

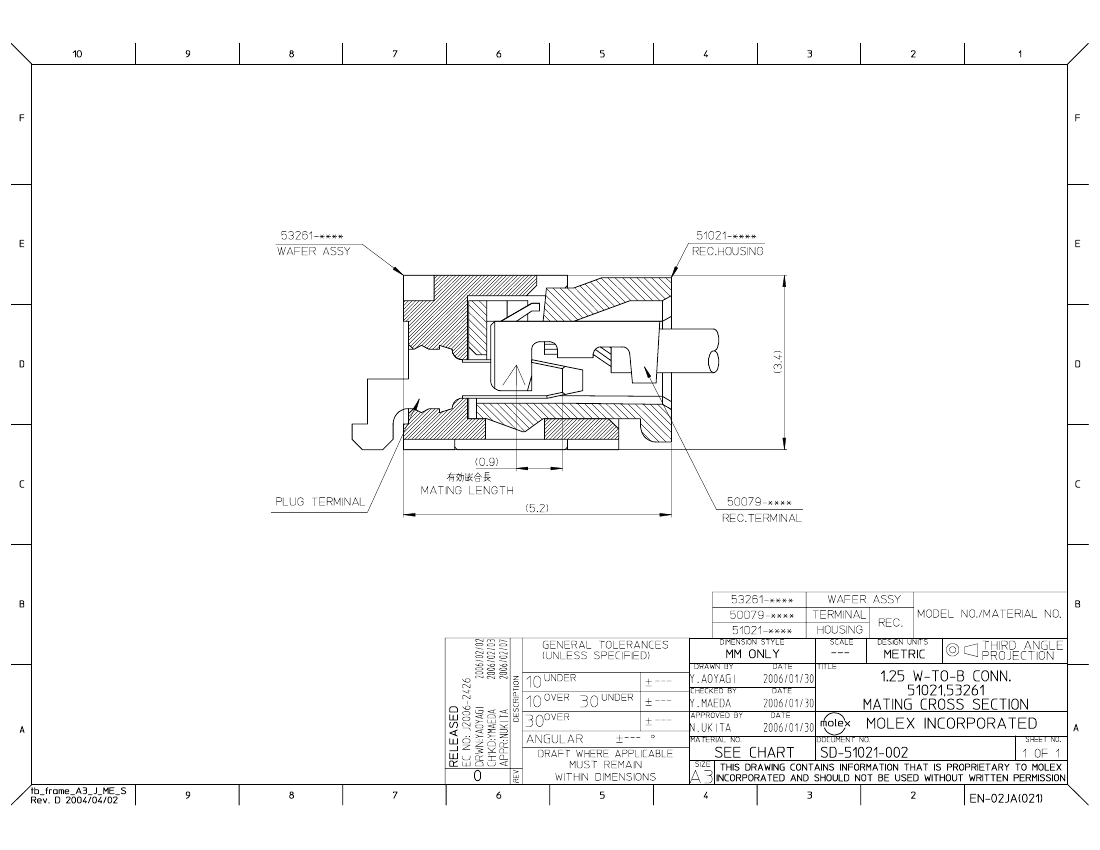

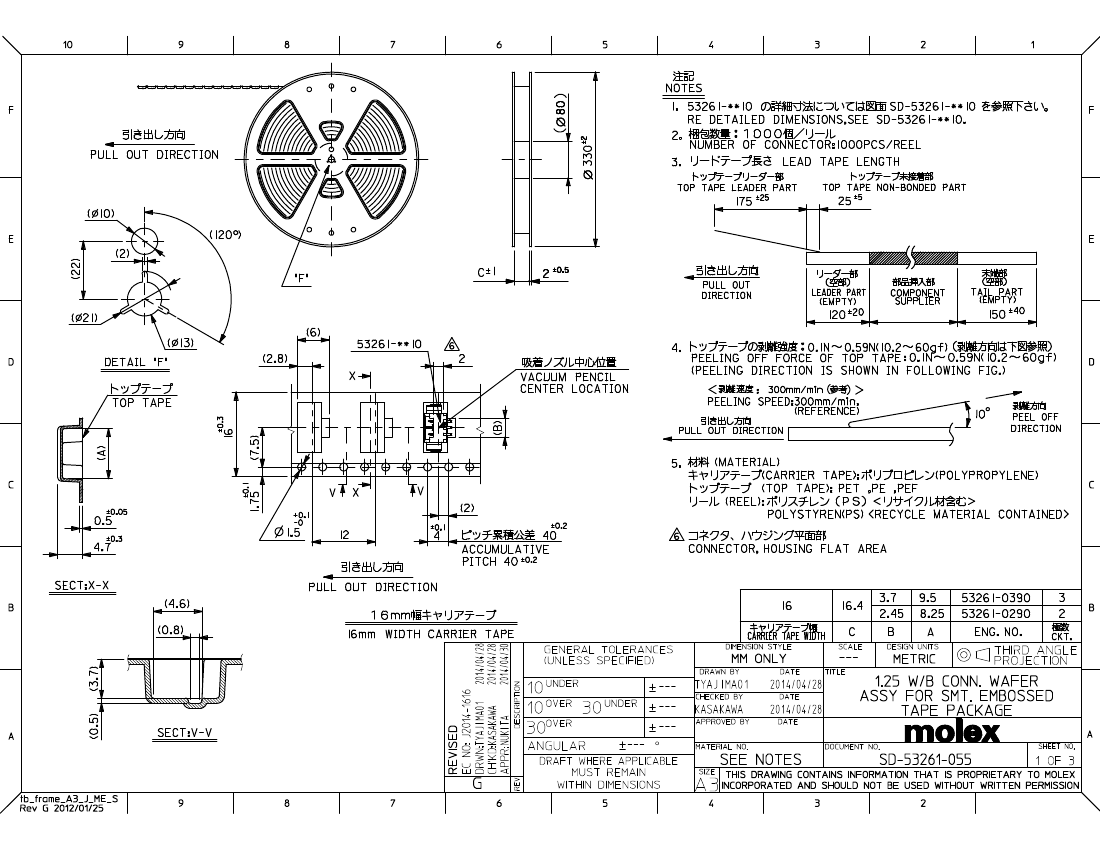

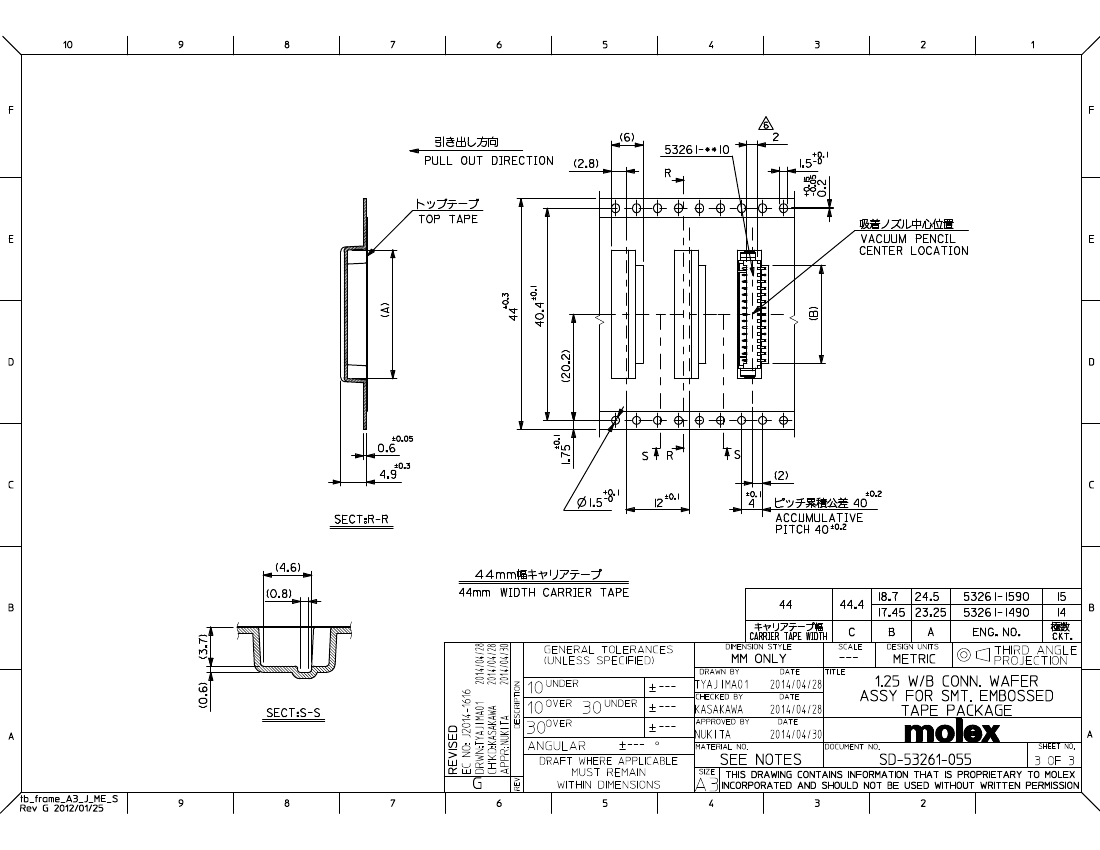

Preview

Download Datasheet

View All

53261-0390 Related Products

	53261-0390	53261-0290	53261-0490	53261-0790	53261-0890	53261-0990	53261-1090	53261-1290
Description	conn header 3pos 1.25mm R/A smd	conn header 2pos 1.25mm R/A smd	conn header 4pos 1.25mm R/A smd	conn header 7pos 1.25mm R/A smd	conn header 8pos 1.25mm R/A smd	conn header 9pos 1.25mm R/A smd	conn header 10pos 1.25mm R/A smd	conn header 12pos 1.25mm R/A smd
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED
body width	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
subject depth	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch
body length	0.35 inch	0.301 inch	0.4 inch	0.547 inch	0.596 inch	0.646 inch	0.695 inch	0.793 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	3	2	4	7	8	9	10	12
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
insulator material	NYLON	NYLON	NYLON	-	NYLON	NYLON	NYLON	NYLON
