87267-4650

Description
conn header 46pos 2mm vert smd
CategoryThe connector    The connector
File Size86KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home

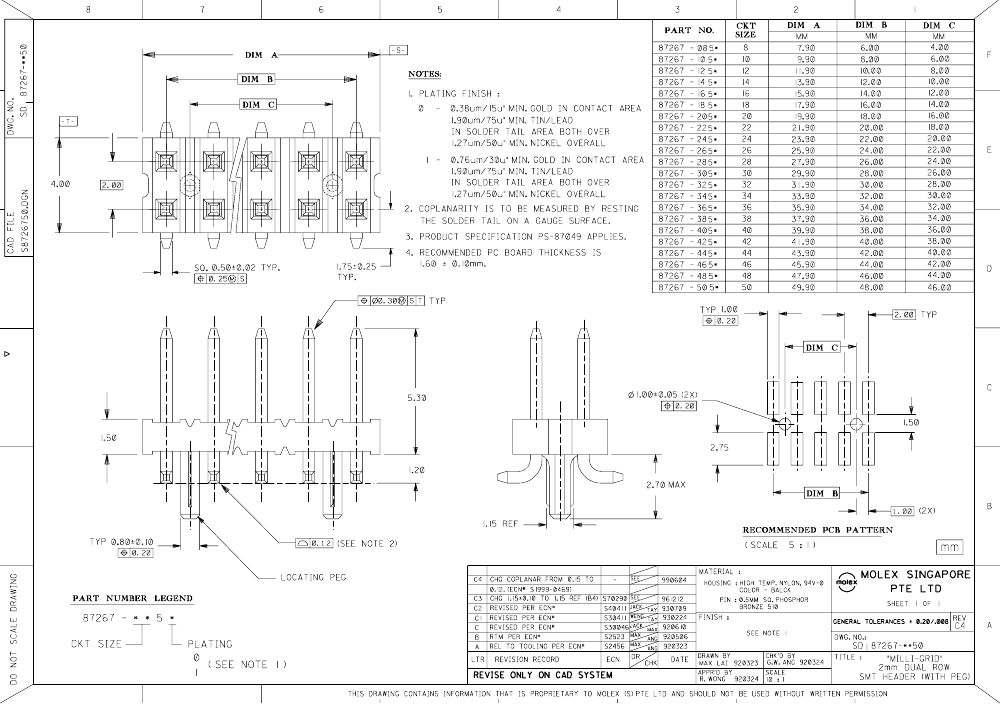

Download Datasheet Parametric Compare View All

87267-4650 Overview

conn header 46pos 2mm vert smd

87267-4650 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresMILLI-GRID
Board mount optionsLOCATING POSTS
body width0.158 inch
subject depth0.059 inch
body length1.807 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number87267
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.2418 mm
Plating thickness15u inch
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts46
UL Flammability Code94V-0
Base Number Matches1
