CL10B474KA8ANNE datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL10B474KA8ANNE

CL10B474KA8ANNE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.47uF, 0603,; CategoryPassive components capacitor; File Size214KB，14 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CL10B474KA8ANNE Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.47uF, 0603,

CL10B474KA8ANNE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	820107950
package instruction	, 0603
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Philippines, South Korea
ECCN code	EAR99
YTEOL	2
capacitance	0.47 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Tape, Plastic
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
series	CL(HIGH CAPACITANCE)
size code	0603
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	0.8 mm

Preview

Download Datasheet

View All

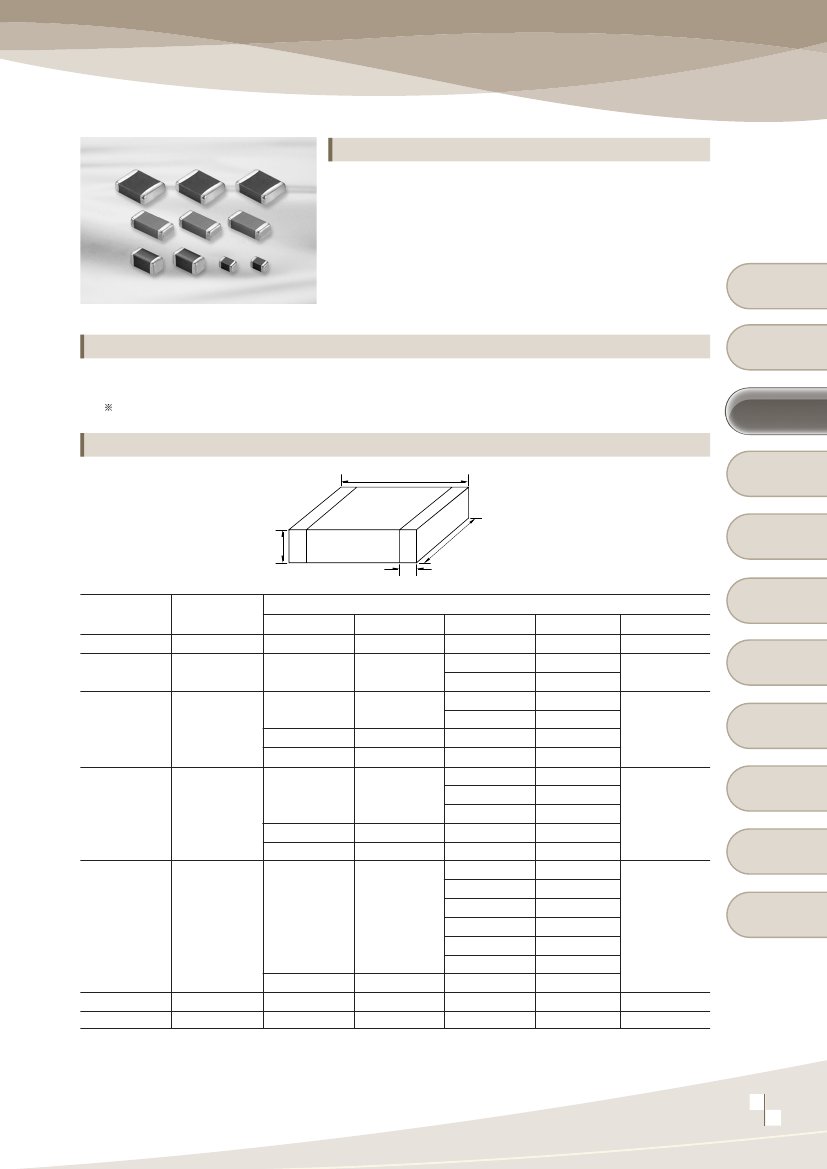

High Capacitance

Capacitors

Feature

•Wide

selection of size : from 0402 to 1812

•Highly

reliable tolerance and high speed automatic chip placement on PCBs

•Wide

capacitance range

•Highly

reliable performance

•Highly

resistant termination metal

•Tape

& reel for surface mount assembly

Part Numbering

System

Application

•Desktop

PC, Note PC, HHP, DC-DC Converter, DSC

•LCD

TV, LCD Monitor

For using special purpose like Military, Medical, Aviation, Automobile device should be following a special specification.

General

Capacitors

High Capacitance

Capacitors

Structure and Dimensions

Super Small Size

Capacitors

Medium-High

Voltage Capacitors

Size Code

EIA Code

0402

0603

Dimension(mm)

1.00±0.05

1.60±0.10

2.00±0.10

0.50±0.05

0.80±0.10

1.25±0.10

1.25±0.15

1.25±0.20

1.60±0.20

1.60±0.15

1.60±0.20

0.50±0.05

0.50±0.05*

0.80±0.10

0.85±0.10

1.25±0.10

1.25±0.15

1.25±0.20

0.60±0.10*

0.85±0.10*

1.15±0.10*

1.25±0.15

1.60±0.20

0.85±0.10*

0.90±0.10*

1.60±0.20

1.80±0.20*

2.00±0.20

2.50±0.20

2.50±0.30

2.00±0.20

3.20±0.30

Thickness Code

0.50±0.30

0.2+0.15/-0.1

0.30±0.20

Array Type

Capacitors

Low ESL

Capacitors

0805

2.00±0.15

2.00±0.20

3.20±0.20

0.5+0.2/-0.3

Reliability Test

Condition

Premium Capacitors

for Automotive

Applications

1206

3.20±0.15

3.20±0.20

Packaging

Specification

1210

3.20±0.30

2.50±0.20

0.60±0.30

Application Manual

for Surface Mounting

1808

1812

3.20±0.40

4.50±0.40

2.50±0.30

2.00±0.20

3.20±0.30

0.80±0.30

※*

Mark is only applicable to

“L”code

, 12th code in part number.
