PA
Retainer
Retainer
PAF
Receptacle
(IDC style)

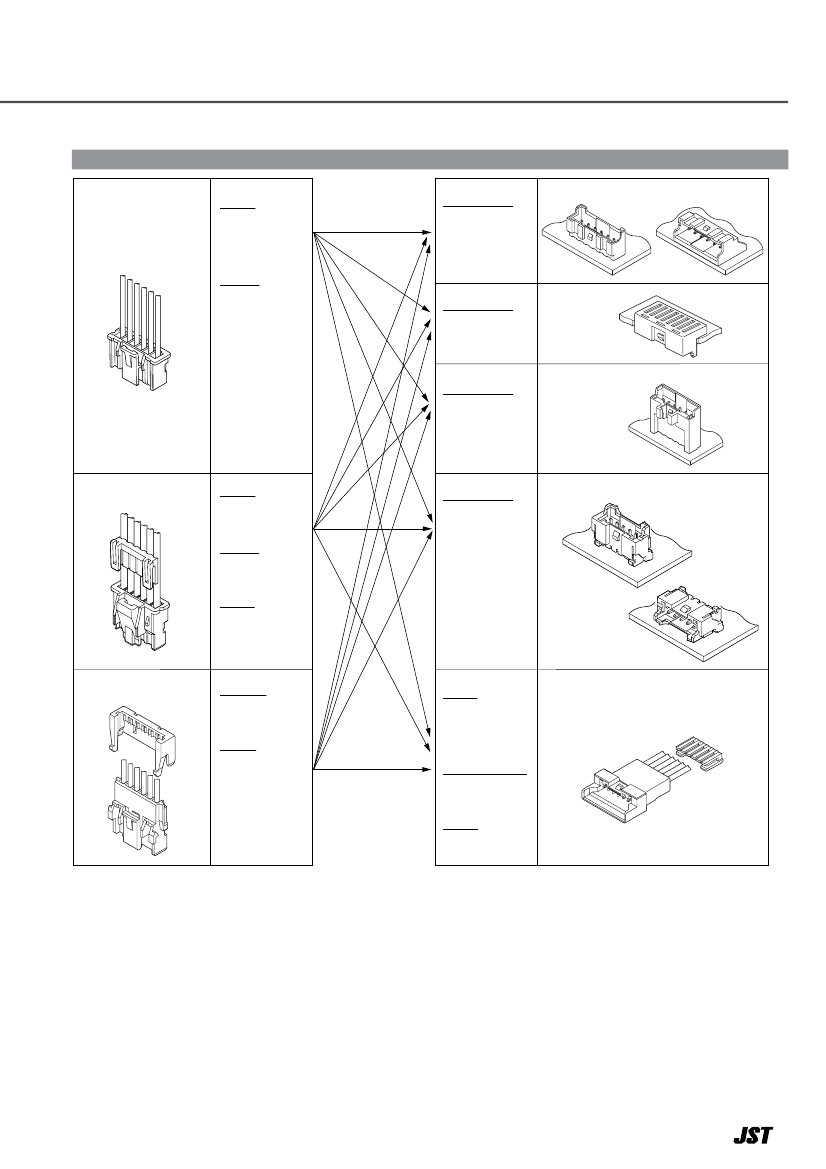

PA
Shorouded header
(Top entry type)
PAF Receptacle
(IDC style)
PAL
(Crimp style Wire-to-wire)
Retainer
ラジアル
2.0mm pitch/Wire-to-board (Crimp style/IDC) / Wire-to-wire (Crimp style/IDC)
FAMILY SERIES/PA•PAF•PAL CONNECTOR
0
Standards ––––––––––––––––––––––
Retainer
PA Receptacle
(Crimp style
Standard type)
PA Receptacle
(Crimp style
Retainer
mountable type)
1
Certified LR20812
Recognized E60389
Specifications –––––––––––––––––––
PA Connector (Standard type)
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 250 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: Initial/ 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: Conductor size/ AWG #28 to #22
Insulation O.D./ 0.76 to 1.5 mm
• Applicable PC board thickness: 1.6 mm
PA
Shorouded header
(Side entry type)
PA
Shorouded header
(Top entry type)

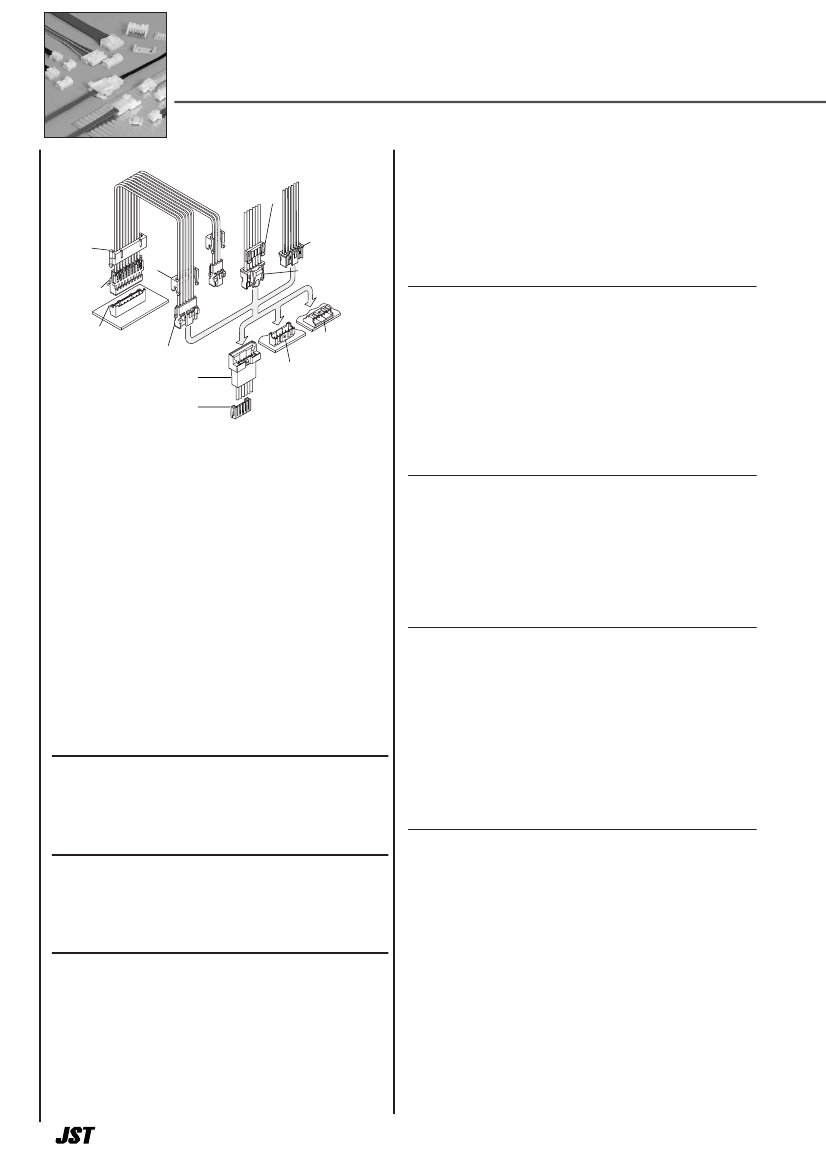

Based upon wire-to-board crimp style PA
connectors, the PA series family of
connector have been expanded to meet the
requirement of complex wire harness of 2.0 mm
pitch connectors with secure locking
mechanism thanks to the additional line up
of wire-to-board IDC style PAF connectors
and wire-to-wire crimp style PAL connectors.
• Secure locking device
• Interchangeable between crimp and
IDC socket
• Secondary retainers
• Harness variation
PA connector
(Standard type, Retainer mountable type)
• Highly reliable contact
• Insertion guide mechanism
• Flanged press pin
PAF connector
• The industry's first secure lock ID connectors
• Metallic strain relief
• Retainer with four locking points
PAL connector
• The industry's first wire to wire 2.0 mm pitch
retainer mountable type connector.
• Either with or without panel lock can be
selected according to application.
PA Connector (Retainer mountable type)
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 100 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 15 mΩ max.
After environmental tests/ 25 mΩ max.
• Insulation resistance: Initial/ 1,000 MΩ min.
• Withstanding voltage: 800 V AC/minute
• Applicable wire: AWG #26 to #22
PAF Connector
• Current rating: 1.0 A AC, DC (AWG #26)
• Voltage rating: 100 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 15 mΩ max.
After environmental tests/ 25 mΩ max.
• Insulation resistance: Initial/ 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: UL1061(Contact JST for details regarding other UL wires.)
AWG #26
Conductor/ 7 strands, tin-coated annealed copper
Insulation O.D./ 0.9 to 1.0 mm
PAL Connector
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 100 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 15 mΩ max.
After environmental tests/ 25 mΩ max.
• Insulation resistance: Initial/ 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: AWG #28 to #22
• Applicable panel thickness : 0.5 to 2.0 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
1
PA
FAMILY SERIES /PA•PAF•PAL CONNECTOR

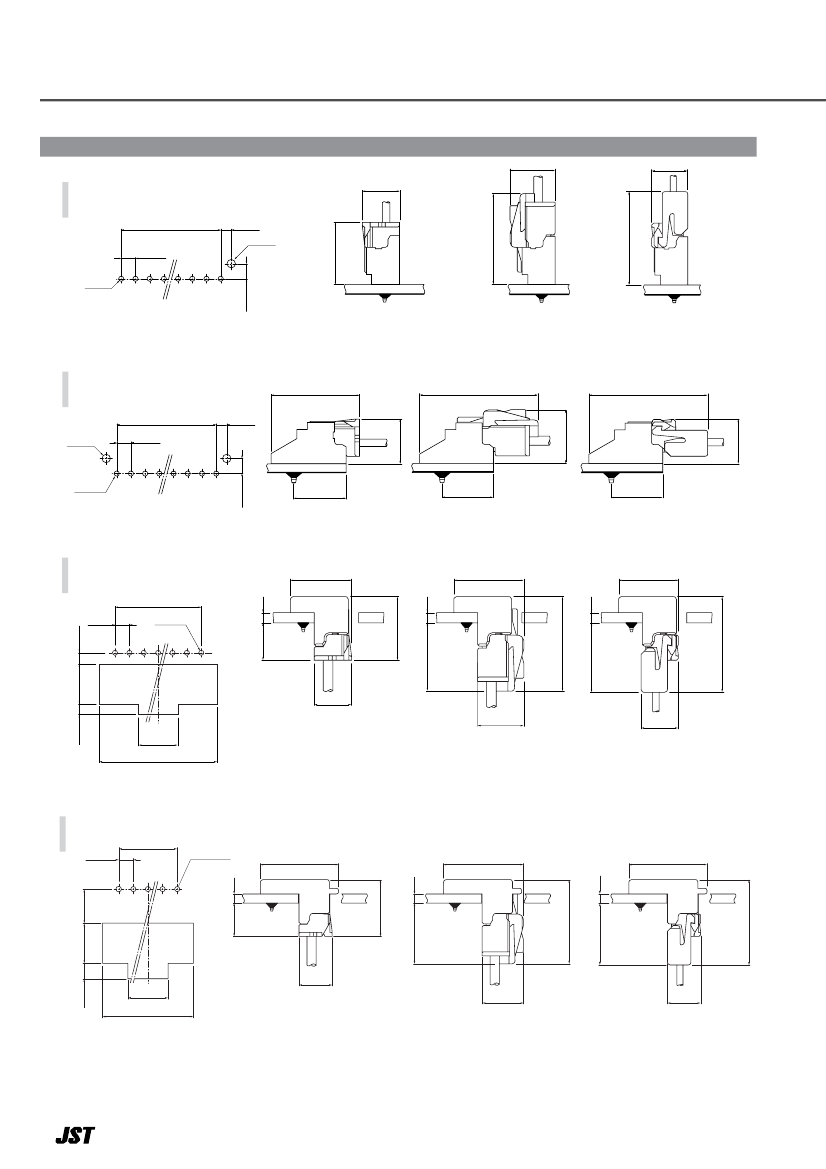

PC board layout and Assembly layout
<Through-hole type>
Top entry type
A
±0.05
1.5
±0.05
φ1.1
＋0.1
0
2
±0.05
9.9
7.2
5.8
（14.7）
retainer included
（5.8）
1.7
±0.05
φ0.7
＋0.1
0
（14.9）
PA Receptacle
(Standard type)
+
PA Header
PA Receptacle
(Retainer mountable type)
+
PA Header
PAF Receptacle
+
PA Header
Side entry type
13.8
（18.8）
retainer included
（18.9）
（8.4）
A
±0.05
φ1.1
＋0.1
0
2
±0.05
1.5
±0.05
7
φ0.7
＋0.1
0
2.1
±0.05
8.2
8.2
8.2
PA Receptacle
(Standard type)
+
PA side entry type header
PA Receptacle
(Retainer mountable type)
+
PA side entry type header
（10.9）
PAF Receptacle
+
PA side entry type header
Bottom type
（9.5）
（9.3）
1.6
1.6
2
±0.05
1.6
0
-0.1
φ0.7
＋0.1
0
（5.8）
（14.7）
retainer included
（9.9）
1.6
A
±0.05
（10.6）
5.5
＋0.1
0
（5.8）
1.5
＋0.1
0
（7.2）
D
＋0.1
0
（10.8）
（5.8）
C
＋0.1
0
Note: Dimensions C and D; Refer to
the header bottom type.
PA Receptacle
(Standard type)
+
PA bottom type header
(Extended lenght type)
PA Receptacle
(Retainer mountable type)
+
PA bottom type header
(Extended lenght type)
PAF Receptacle
+
PA bottom type header
(Extended lenght type)
Bottom type with extended length
A
±0.05
2
±0.05
φ0.75
＋0.1
0
13.65
1.6
(13.95)
1.6
13.65
1.6
（14.7）
retainer included
4.65
-0.1
（5.8）
（9.9）
0
（14.9）
（7）
(10.8)
(5.8)
5.5
＋0.1
0
（5.8）
5.5
C
＋0.1
0
2.1
（10.6）
＋0.1
0
（7.2）
＋0.1
0
Note: Dimensions C; Refer to the
header bottom type.
PA Receptacle
(Standard type)
+
PA bottom type header
(Extended lenght type)
PA Receptacle
(Retainer mountable type)
+
PA bottom type header
(Extended lenght type)
PAF Receptacle
+
PA bottom type header
(Extended lenght type)
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative: ±0.05 mm for all centers.
3. Hole dimensions differ according to the type of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
3
(14.9)
PA
High box type
7.1
FAMILY SERIES /PA•PAF•PAL CONNECTOR

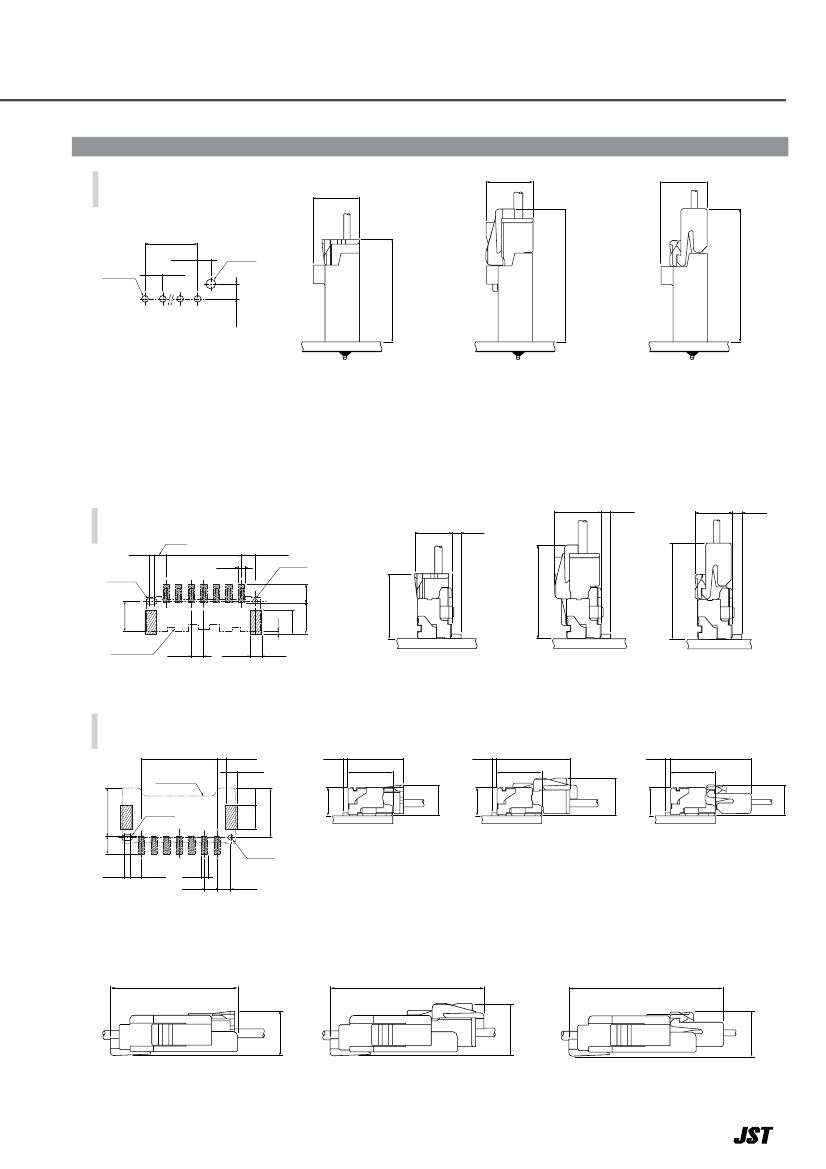

PC board layout and Assembly layout
7.2
7.1
A
±0.05
1.5
±0.05
φ0.7
＋0.1
0
2
±0.05
φ1.1
＋0.1
0
（20.7）
retainer included
1.7
±0.05
15.9
PA Receptacle
(Standard type)
+
PA high box type header
PA Receptacle
(Retainer mountable type)
+
PA high box type header
PAF Receptacle
+
PA high box type header
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative: ±0.05 mm for all centers.
3. Hole dimensions differ according to the type of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
<SMT type>
Top entry type
（6.2）
1.7
±0.1
MIN
（7.6）
（1.4）
（1.4）
（6.2）
20.9
（1.4）
（16.2）
1
＋0.1
R0.4
0
Connector
outline
2
±0.05
1.45
±0.1
1.8
±0.1
3.6
±0.1
（16.0）
retainer included
1
±0.1
A
±0.1
2.2
±0.05
φ0.8
＋0.1
0
2.9
MIN
4.9
±0.1
0.3
5
±0.1
11.1
PA Receptacle
(Standard type)
+
PA Header
PA Receptacle
(Retainer mountable type)
+
PA Header
PAF Receptacle
+
PA Header
Side entry type
A
±0.1
Connector
outline
1.45
±0.1
1.8
±0.1
3.8
±0.1
2.8
（1.1）
11.1
8.9
（6.2）
（1.1） （16）
retainer included
8.9
（7.6）
（1.1）
（16.2）
8.9
（6.2）
5.7
5.7
7.8
±0.1
＋0.1
R0.4
0
2.7
MIN
7.95
±0.1
φ0.8
＋0.1
0
1
±0.1
1.7
±0.1
MIN
1
2.2
±0.05
2
±0.05
PA Receptacle
(Standard type)
+
PA side entry type header
5.7
PA Receptacle
(Retainer mountable type)
+
PA side entry type header
PAF Receptacle
+
PA side entry type header
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances for the centers of pattern on PCB is
±
0.05, and shall be not cumulative more than
±
0.1.
3. The dimensions above should serve as a guideline. Contact JST for details.
<Wire-to-wire>
（21.5）
retainer included
（25.8）
retainer included
retainer included
（26）
retainer included
retainer included
PA Receptacle
(Standard type)
+
PAL Receptacle
PA Receptacle
(Retainer mountable type)
+
PAL Receptacle
PAF Receptacle
+
PAL Receptacle
retainer included
（8.4）
（8.9）
（7.6）
4
PA
FAMILY SERIES /PA CONNECTOR (Crimp style Standard type)
Contact
Model No.
SPHD-001T-P0.5
SPHD-002T-P0.5
1.5
Applicable wire
mm
2
0.13∼0.33
0.08∼0.21
AWG #
26∼22
28∼24
Insulation O.D.
(mm)
1.0∼1.5
0.76∼1.5
Q'ty/
reel
8,000
8,000
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
6.5
2.85
1.3
RoHS compliance
Contact
SPHD-002T-P0.5
Crimping
machine Crimp applicator
MKS-L-10
AP-K2N
*MKS-SC-10
MKS-L-10
*MKS-SC-10
Applicator
Dies
Crimp applicator with dies
MK/SPHD-002-05 APLMK SPHD002-05
SC/SPHD-002-05 APLSC SPHD002-05
MK/SPHD-001-05 APLMK SPHD001-05
SC/SPHD-001-05 APLSC SPHD001-05
SPHD-001T-P0.5
Note *Strip-crimp
applicator
：
Housing
<2 to 9 circuits>
B
A
2
（2）
5.8
4.6
Circuits
2
3
4
5
6
7.3
8
7
8
Circuit No.1
9
10
11
B
A
2
（2）
5.8
4.6
12
13
14
15
16
7.3
8
Model No.
PAP-02V-S
PAP-03V-S
PAP-04V-S
PAP-05V-S
PAP-06V-S
PAP-07V-S
PAP-08V-S
PAP-09V-S
PAP-10V-S
PAP-11V-S
PAP-12V-S
PAP-13V-S
PAP-14V-S
PAP-15V-S
PAP-16V-S
Material
Dimensions (mm)
A
B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
Q’ty/
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
<10 to 15 circuits>
PA 66, UL94V-0, natural (white)
Circuit No.1
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
<16 circuits>
B
A
2
（2）
5.8
4.6
ex.
PAP-02V-S-
S…natural (white)
K…black R…red E…blue M…green O…orange N…brown
P…purple PK…pink Y…yellow L…lemon yellow FY…vivid yellow
LE…light blue H…gray TR…tomato red
7.3
Circuit No.1
5
8
