0759001421 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0759001421

0759001421: Descriptionconn header 4pos DL R/A 3.05mm; CategoryThe connector The connector; File Size228KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0759001421 Overview

conn header 4pos DL R/A 3.05mm

0759001421 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Objectid	1496916259
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
compound_id	160991080
Other features	MX150
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	3.5 mm
Termination type	SOLDER
Total number of contacts	4

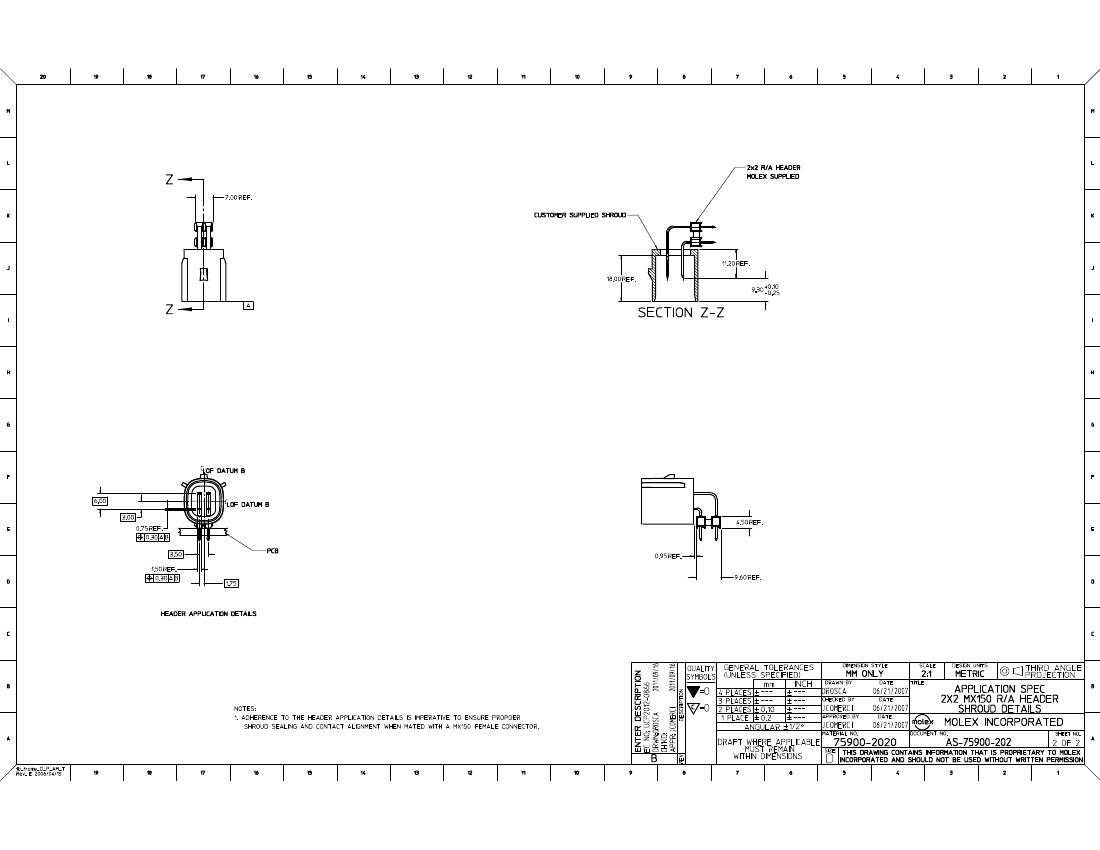

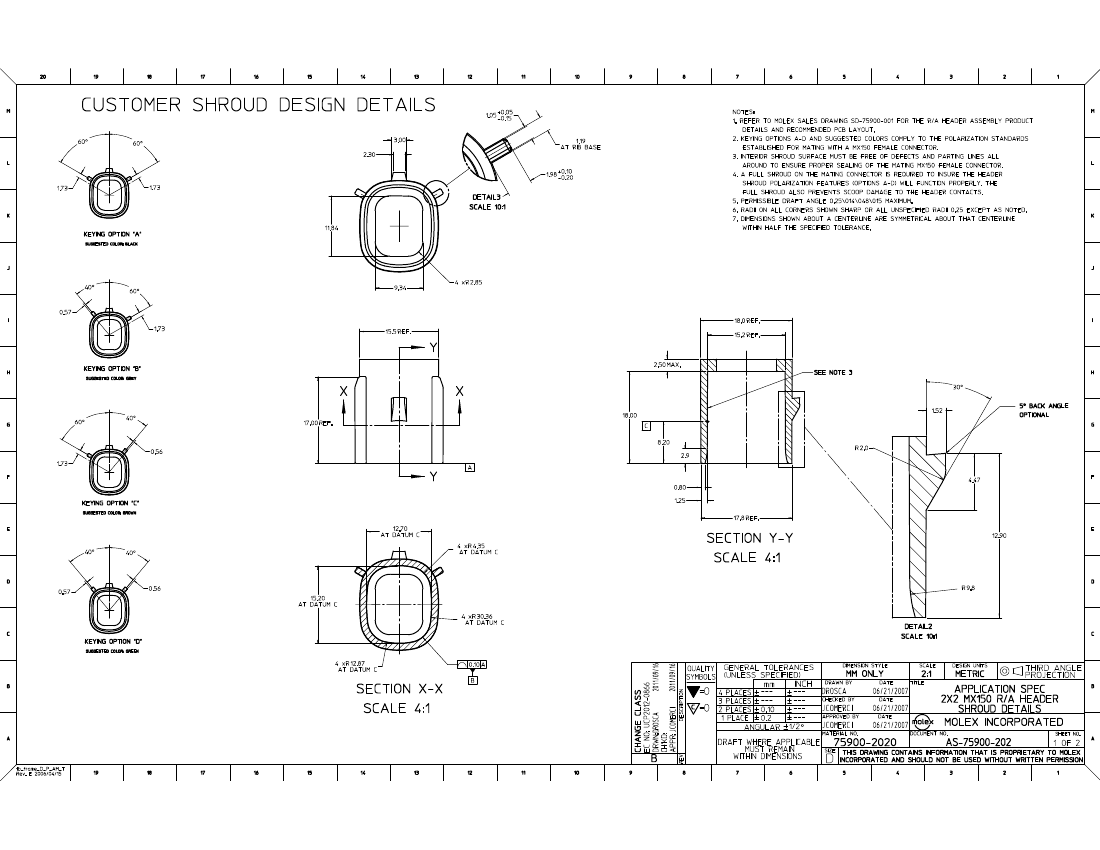

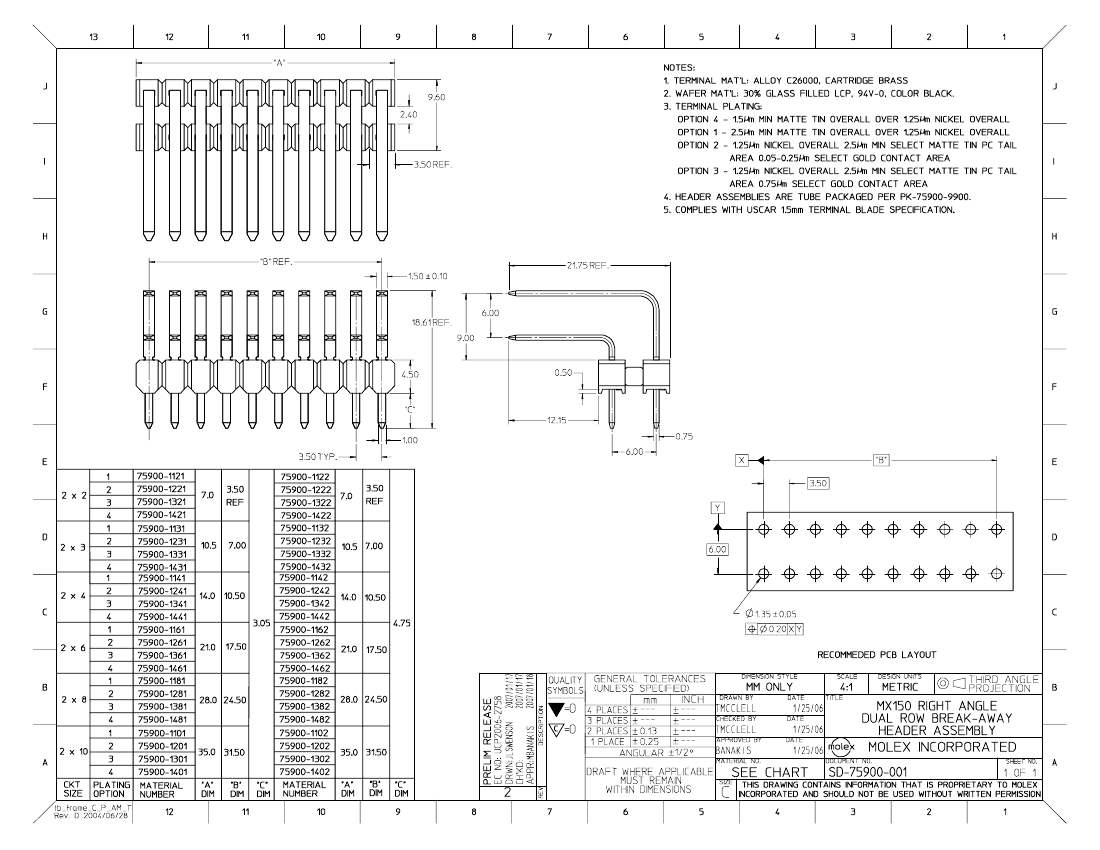

Preview

Download Datasheet

View All

0759001421 Related Products

	0759001421	0759001222	0759001321	0759001322	0759001121	0759001122	0759001422	0759001221
Description	conn header 4pos DL R/A 3.05mm	conn header 4pos DL R/A 4.75mm	conn header 4pos DL R/A 3.05mm	conn header 4pos DL R/A 4.75mm	conn header 4pos DL R/A 3.05mm	conn header 4pos DL R/A 4.75mm	conn header 4pos DL R/A 4.75mm	conn header 4pos DL R/A 3.05mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compli	compli	compli	compliant	compliant	compliant	compliant
Factory Lead Time	9 weeks	25 weeks 5 days	25 weeks 5 days	25 weeks 5 days	9 weeks	25 weeks 5 days	25 weeks 5 days	25 weeks 5 days
Other features	MX150	MX150	MX150	MX150	MX150	MX150	MX150	MX150
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4	4	4	4	4
