High Value / High Voltage Resistors
Type HB Series
Key Features
I
Up to 15kV Element
Voltage
•
Unique specification
for the most deman-
ding applications
High Ratio of Size
to Power
•
The solution to your
PCB population
problems
1kW to 1GW
•
Coupled with 1%
tolerance gives
ultimate design
flexibility
Established Product
with Proven Reliability
Low Inductance
•
For the fastest
switching speeds

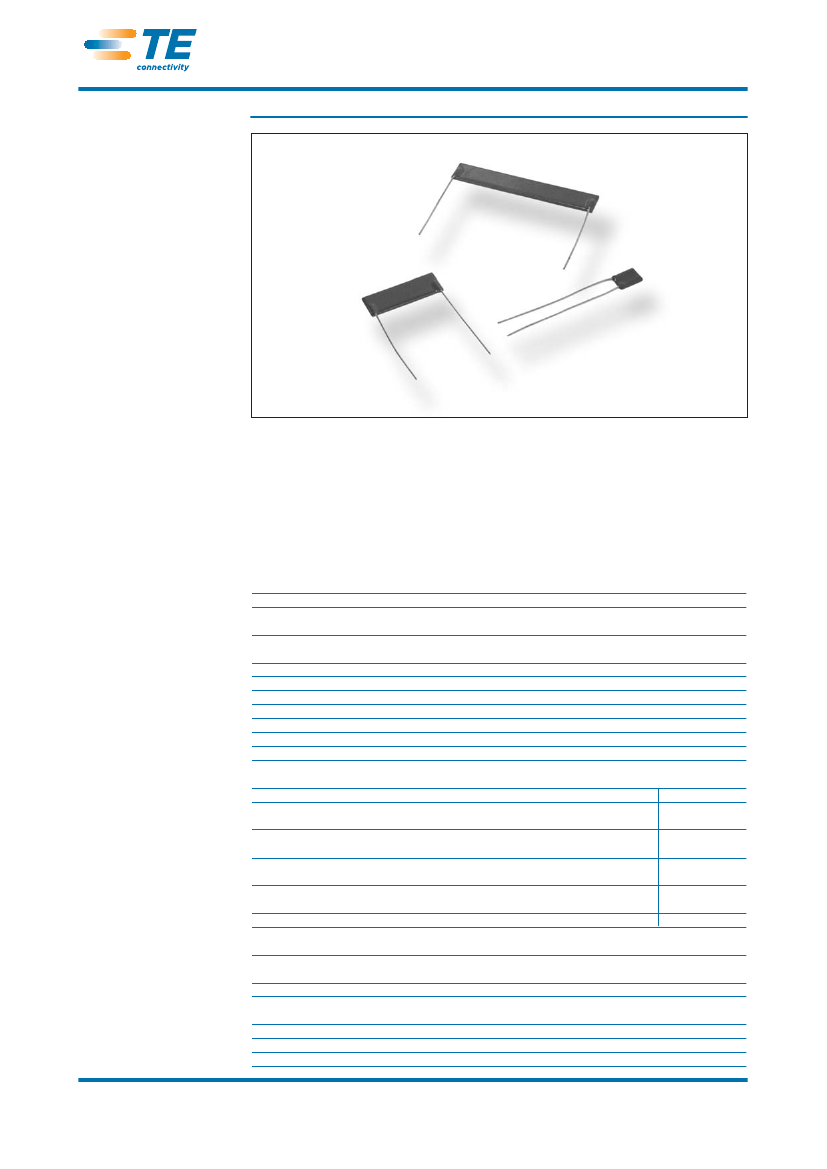

TE Connectivity (TE) is a leading supplier of standard and custom designed high
value/high voltage resistors for high voltage, industrial, control, medical and
general-purpose use. The HB is a tough epoxy coated high voltage resistor, with axial or
radial leads, values up to 1G Ohm and an operational voltage to 20kV as standard and
30kV to order. The resistors are made from quality materials for optimum reliability and
stability. TE can test resistors to conform to relevant international, MIL or customer
specifications. TE is happy to advise on the use of resistors for high frequency
applications and to supply information for high voltage use.
I
I
I
I
Applications
I
I
I
I
I
I
High Voltage
Voltage Divider
Surge
Filter
Balancing
Inrush Limiting
Characteristics - Electrical
Power Dissipation - Power @ 20°C (W):
@ 70°C:
Ohmic Value - Min (Ohms):
Max:
Resistance Tolerance (%) (Tighter By Request):
Maximum Working Voltage - DC or ACrms (Volts):
Insulation Resistance - Epoxy Coated, @500V dc (Ohms):
Load Stability - 1000hr’s @ 70°C (%):
Temp. Rapid Change - -55°C to 125°C for 5 cycles (ΔR):
Endurance - 1000 Hours @ 200°C (ΔR):
Resistance to Soldering Heat - 350°C for 3.5seconds (ΔR):
Temperature Coefficient (ppm/°C):
(±20ppm/°C available to special order)
Voltage Coefficient:
HBA
0.8
0.4
1K
120M
1%, 2%, 5%
1kV
>10
6
MΩ
±0.5%
±0.1%
<=2%
0.05%
±100ppm/°C
HB1
2.0
1.0
10K
1G
1%, 2%, 5%
7.5kV
>10
6
MΩ
±0.5%
±0.1%
<=2%
0.05%
±100ppm/°C
HB3
4.0
2.0
10K
1G
1%, 2%, 5%
15kV
>10
6
MΩ
±0.5%
±0.1%
<=2%
0.05%
±100ppm/°C
Negligible up to 100K
Increasing to 0.02ppm/Volt at 800K
Increasing to 1.0ppm/Volt at 5M0
Increasing to 2.0ppm/Volt at 50M
Increasing to 8.0ppm/Volt at 1000M
Ambient Temperature Range (°C):
Long Term Damp Heat (%):
(Steady state 56 Days 95% RH at 40°C)
Noise (Quantech) Dependent
on Resistor Type and Value:
Encapsulation:
Solvent Resistance:
Lead Material:
Lead Length:
Lead Diameter:
-55 to 125
0.25%
-55 to 125
0.25%
Negligible up to 200K
Increasing to
0.01ppm/Volt at 1M0
Increasing to
1.0ppm/Volt at 10M
Increasing to
2.0ppm/Volt at 100M
Increasing to
8.0ppm/Volt at 1000M
-55 to 125
0.25%
-20dB (0.1μ V/V) at lower values
+10dB (3.3μ V/V) at higher values
Epoxy coating (Optional)
Print will withstand the action of all
commonly used industrial solvents.
Tinned copper wire
Minimum 20mm
Nominal 0.6 ± 0.05mm
1773310 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
High Value / High Voltage Resistors
Type HB Series
Dimensions -
Type HBA, HB1 & HB3 (Radial)
B
C
F
Type HB1 & HB3 (Axial)
A
D
G
H
E
Type
HBA
HB1
HB3
Uncoated
Epoxy Coated
Uncoated
Epoxy Coated
Uncoated
Epoxy Coated
A
10.2
12.5
8.4
10.4
8.4
10.4
B
7
8
26
26.5
51.1
52
C
1.75
2.6
1.5
3.0
1.5
3.0
D
60.2
60.5
33.8
35.8
33.8
35.8
E
5.0
5.0
22.9
22.9
48.3
48.3
F
–
–
26
26.3
51.1
53.5
G
–
–
66
66
91.1
91.1
H
–
–
1.5
3
1.5
3
I
–
–
8.4
9.2
8.4
9.6
Derating Curve
4.5
HB3
Surface Temperature Rise
100
90
Surface Temp. Rise (°C)
80
70
60
50
40
30
20
10
0
HBA
HB1
HB3
4
3.5
Power (W)
3
2.5
2
1.5
HBA
HB1
1
0.5
0
0
20
40
60
80
100
Ambient Temperature (degC)
120
140
0
0.5
1
1.5
2
2.5
3
Power Dissipation (Watts)
3.5
4
How to Order
HB
Common Part
HB- High Value /
High Voltage
Resistor
3
1K0
J
Tolerance
F - 1%
G - 2%
J - 5%
Z
Temp. Coefficient
of Resistance
Z - 100ppm
R
Lead Style
R - Radial Leads
A - Axial Leads
(HB1, HB3 only for
Axial Leads)
E
Coating Styles
Power Rating Resistance Value
@ 70°C
1Kohm
A - 0.4W
1 - 1.0W
3 - 2.0W
(1000Ω)
1K0
1Mohm
(1000000Ω)
1M0
E - Epoxy
Blue Coating
