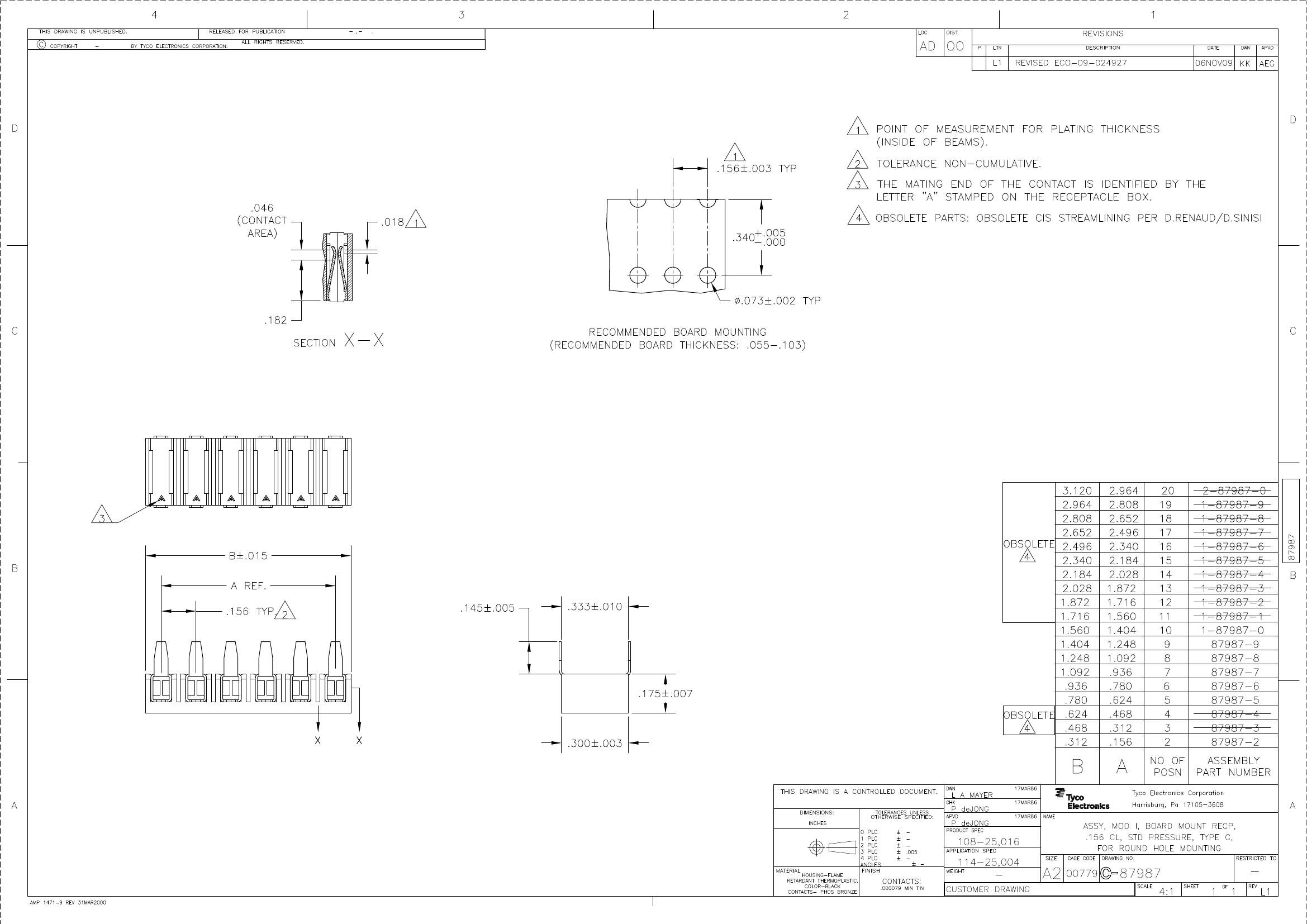

87987-9 |
87987-8 |
87987-7 |
1-87987-0 |
| Description |
09 MODI BDMNT RCPT SR .156CL |
08 MODI BDMNT RCPT SR .156CL |
07 MODI BDMNT RCPT SR .156CL |
10 MODI BDMNT RCPT SR .156CL |
| Brand Name |
AMP |
AMP |
AMP |
AMP |
| Is it lead-free? |
Lead free |
Lead free |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
conform to |
conform to |
| Reach Compliance Code |
not_compliant |
_compli |
compli |
compliant |
| ECCN code |
EAR99 |
EAR99 |
EAR99 |
EAR99 |
| Factory Lead Time |
15 weeks |
15 weeks |
15 weeks |
23 weeks |
| Other features |
ROUND PCB HOLE SHAPE |
AMPMODU |
AMPMODU |
AMPMODU |
| body width |
0.175 inch |
0.175 inch |
0.175 inch |
0.175 inch |
| subject depth |
0.3 inch |
0.3 inch |
0.3 inch |
0.3 inch |
| body length |
1.404 inch |
1.248 inch |
1.092 inch |
1.56 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
TIN (79) |
NOT SPECIFIED |
| Contact point gender |
FEMALE |
FEMALE |
FEMALE |
FEMALE |
| Contact material |
PHOSPHOR BRONZE |
PHOSPHOR BRONZE |
PHOSPHOR BRONZE |
NOT SPECIFIED |
| contact mode |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
12 mΩ |
12 mΩ |
12 mΩ |
12 mΩ |
| Contact style |
BELLOWED TYPE |
BELLOWED TYPE |
BELLOWED TYPE |
BELLOWED TYPE |
| DIN compliance |
NO |
NO |
NO |
NO |
| Durability |
75 Cycles |
75 Cycles |
75 Cycles |
75 Cycles |
| Filter function |
NO |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
NO |
| maximum insertion force |
4.448 N |
4.448 N |
4.448 N |
4.448 N |
| Insulation resistance |
5000000000 Ω |
5000000000 Ω |
5000000000 Ω |
5000000000 Ω |
| Insulator color |
BLACK |
BLACK |
BLACK |
BLACK |
| insulator material |
THERMOPLASTIC |
THERMOPLASTIC |
THERMOPLASTIC |
POLYAMIDE66 |
| MIL compliance |
NO |
NO |
NO |
NO |
| Plug contact pitch |
0.156 inch |
0.156 inch |
0.156 inch |
0.156 inch |
| Mixed contacts |
NO |
NO |
NO |
NO |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
RIGHT ANGLE |
| Installation type |
BOARD |
BOARD |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
ONE |
ONE |
| PCB row number |
2 |
2 |
2 |
2 |
| Number of rows loaded |
1 |
1 |
1 |
1 |
| Maximum operating temperature |
60 °C |
60 °C |
60 °C |
105 °C |
| Minimum operating temperature |
-65 °C |
-65 °C |
-65 °C |
-65 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
8.636 mm |
8.636 mm |
8.636 mm |
8.636 mm |
| Plating thickness |
79u inch |
79u inch |
79u inch |
79u inch |
| Rated current (signal) |
5 A |
5 A |
5 A |
5 A |
| Guideline |
UL, CSA |
UL, CSA |
UL, CSA |
CSA, LR, U |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.145 inch |
0.145 inch |
0.145 inch |
0.112 inch |
| Terminal pitch |
3.96 mm |
3.96 mm |
3.96 mm |
3.96 mm |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
9 |
8 |
7 |
10 |
| Evacuation force-minimum value |
.278 N |
.278 N |
.278 N |
.278 N |
| Maker |
TE Connectivity |
TE Connectivity |
TE Connectivity |
- |
| Dielectric withstand voltage |
1200VAC V |
1200VAC V |
1200VAC V |
- |
| Base Number Matches |
1 |
1 |
1 |
- |
| Plug information |
- |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| UL Flammability Code |
- |
94V-0 |
94V-0 |
94V-2 |
