316-43-127-41-008000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 316-43-127-41-008000

316-43-127-41-008000: Descriptionconn sckt strip 27pin .100 L.472; CategoryThe connector socket; File Size485KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

316-43-127-41-008000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	316-43-127-41-008000	-	-	View	Buy Now

316-43-127-41-008000 Overview

conn sckt strip 27pin .100 L.472

316-43-127-41-008000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP27
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	27
Base Number Matches	1

Preview

Download Datasheet

View All

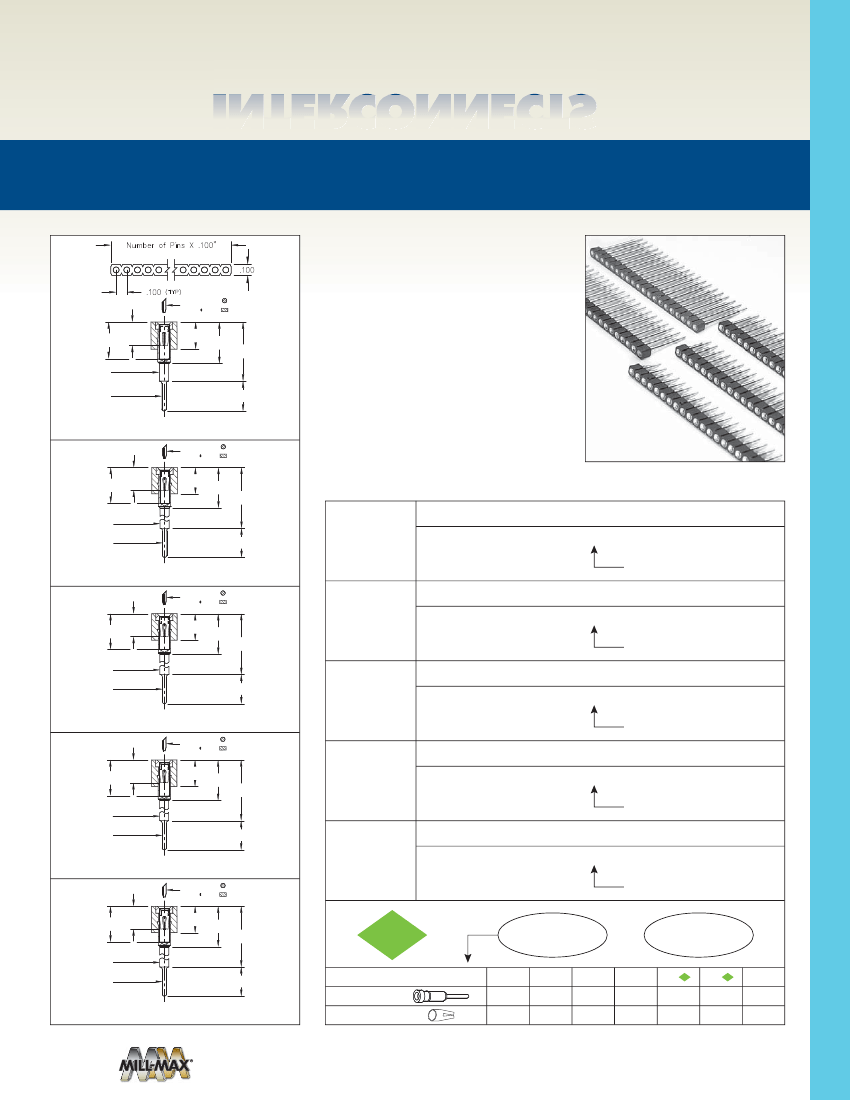

INTERCONNECTS

SERIES 316 • .100” GRID ELEVATED •

SINGLE ROW STRIPS

•

Elevated socket strips are available in 5

different heights:

316...006 uses pin # 0153-1

316...003 uses pin # 0153-2

316...007 uses pin # 0153-3

316...008 uses pin # 0153-4

316...001 uses pin # 0153-5

See page 167 for details

.015-.025

.010 .018

.146

.095

.110

.166

.236

.038 DIA.

.018 DIA.

.118

•

Hi-Rel, 4-finger BeCu #30 contact is rated at

3 amps. See page 253 for details

FIG. 1

.015-.025

.010 .018

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.146

.095

.110

.166

.315

ORDERING INFORMATION

Series 316...006

Standoff Height = .236

316-XX-1_ _-41-006000

Specify number of pins

01-64

.038 DIA.

.018 DIA.

.118

FIG. 1

Series 316...003

FIG. 2

.015-.025

.010 .018

Standoff Height = .315

316-XX-1_ _-41-003000

.146

.095

.110

FIG. 2

.166

.402

Specify number of pins

01-64

.038 DIA.

.018 DIA.

.118

Series 316...007

Standoff Height = .402

316-XX-1_ _-41-007000

FIG. 3

.015-.025

.010 .018

Specify number of pins

01-64

Series 316...008

.472

Standoff Height = .472

316-XX-1_ _-41-008000

.146

.095

.110

.166

FIG. 4

Series 316...001

.038 DIA.

.018 DIA.

.118

Specify number of pins

01-64

Standoff Height = .594

PAGE 67 | INTERCONNECTS

316-XX-1_ _-41-001000

FIG. 4

.015-.025

.010 .018

FIG. 5

Specify number of pins

01-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.146

.095

.110

.166

.594

RoHS - 2

2011/65/EU

XX=Plating Code

See Below

”

.038 DIA.

.018 DIA.

.118

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

”

200

”

200

”

200

”

Sn/Pb 200

”

Sn/Pb

FIG. 5

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

316-43-127-41-008000 Related Products

	316-43-127-41-008000	316-93-145-41-008000	316-43-121-41-003000	316-93-130-41-006000
Description	conn sckt strip 27pin .100 L.472	conn strip skt 45pos .100 L.472	conn sckt strip 21pin .100 L.315	conn strip skt 30pos .100 L.236
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible	conform to	incompatible
Reach Compliance Code	compliant	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	SIP	SIP	SIP	SIP
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)	Tin/Lead (Sn/Pb)	Tin (Sn)	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SIP27	SIP45	SIP21	SIP30
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC
JESD-609 code	e3	e0	e3	e0
Number of contacts	27	45	21	30
Base Number Matches	1	1	1	1
Maker	Mill-Max	Mill-Max	-	Mill-Max
