P0603Y2740CNE2

Description
Fixed Resistor, Thin Film, 0.125W, 274ohm, 75V, 0.25% +/-Tol, -10,10ppm/Cel, 0603,
CategoryPassive components    The resistor
File Size140KB，10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

P0603Y2740CNE2 Overview

Fixed Resistor, Thin Film, 0.125W, 274ohm, 75V, 0.25% +/-Tol, -10,10ppm/Cel, 0603,

P0603Y2740CNE2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid824499496
Reach Compliance Codecompliant
Country Of OriginFrance
ECCN codeEAR99
YTEOL8.45
structureChip
JESD-609 codee2
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.5 mm
Package length1.52 mm
Package formSMT
Package width0.85 mm
method of packingWaffle Pack
Rated power dissipation(P)0.125 W
GuidelineMIL-PRF-55342G
resistance274 Ω
Resistor typeFIXED RESISTOR
seriesP0603
size code0603
technologyTHIN FILM
Temperature Coefficient10 ppm/°C
Terminal surfaceTin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Tolerance0.25%
Operating Voltage75 V

P0603Y2740CNE2 Preview

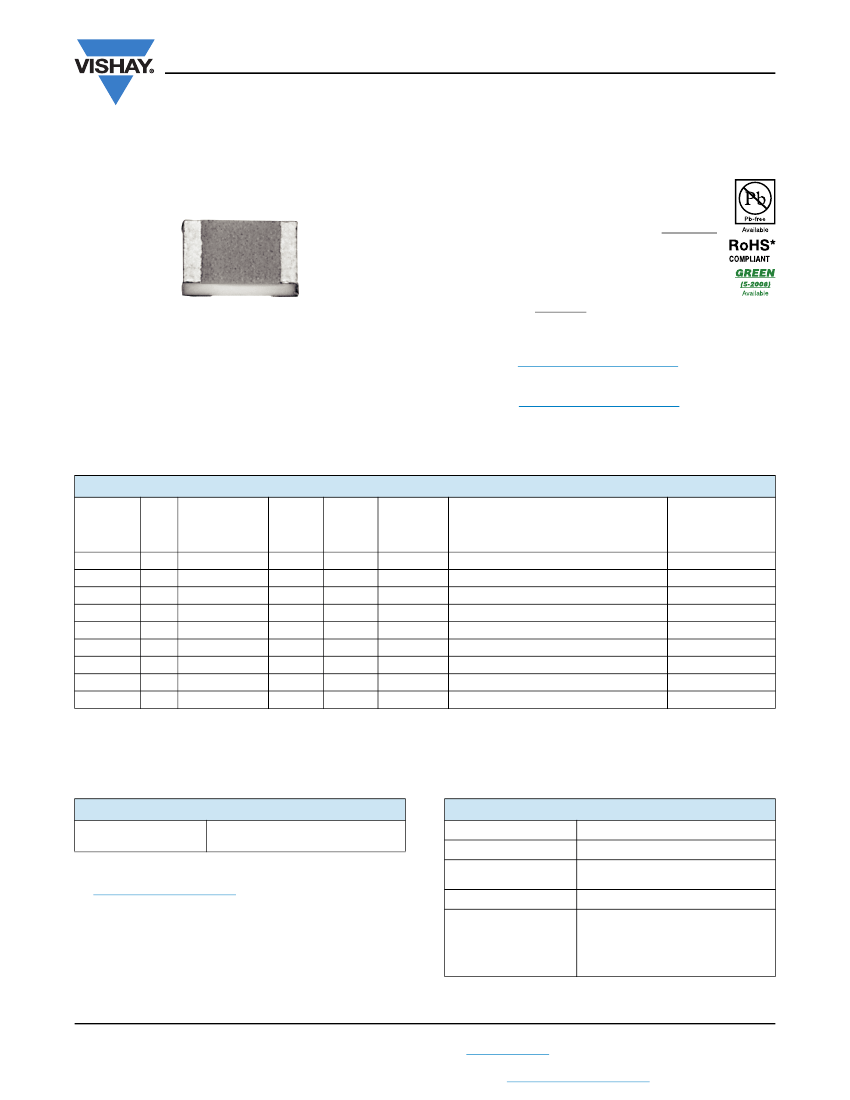

P
www.vishay.com
Vishay Sfernice
High Precision Wraparound - Wide Ohmic Value Range
Thin Film Chip Resistors
FEATURES
• Load life stability at ± 70 °C for 2000 h:
0.1 % under Pn/0.05 % under Pd
• Low temperature coefficient down to
5 ppm/°C
(- 55 °C; + 155 °C)
• Very low noise < - 35 dB and voltage coefficient
< 0.01 ppm/V
• Wide resistance range: 10
to 76 M
depending on size
• Tolerances to
± 0.01 %
• In lot tracking
5 ppm/°C
• Termination: Thin film technology
• Short circuits (jumpers) r < 50 mR, I < 2 A, see PZR
datasheet (www.vishay.com/doc?53053)
• Withstand moisture resistance test of AEC-Q200
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
Lead (Pb)-containing terminations are not RoHS-compliant.
Exemptions may apply.
For low noise and precision applications, superior stability,
low temperature coefficient of resistance, and low voltage
coefficient, Vishay Sfernice’s proven precision thin film
wraparound
resistors
exceed
requirements
of
MIL-PRF-55342G characteristics Y ± 10 ppm/°C (- 55 °C;
+ 155 °C) down to ± 5 ppm/°C (- 55 °C; + 155 °C).
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
P0302
P0402
P0505
P0603
P0805
P1005
P1206
P1505
P2010
(3)
SIZE
0302
0402
0505
0603
0805
1005
1206
1505
2010
RESISTANCE
RANGE
(2)
()
10 to 750K
10 to 1.5M
10 to 4M
10 to 3.2M
10 to 10M
10 to 8.1M
10 to 35M
10 to 15M
10 to 76M
RATED
POWER
W
Pn
(1)
0.040
0.063
0.125
0.125
0.200
0.250
0.330
0.350
1
RATED
POWER
W
Pd
(1)
0.030
0.040
0.050
0.100
0.125
0.125
0.250
0.175
0.500
LIMITING
ELEMENT
VOLTAGE
V
25
50
50
75
150
75
200
75
300
TOLERANCE
±%
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
TEMPERATURE
COEFFICIENT
± ppm/°C
5, 10, 25, 50, 100
5, 10, 25, 50, 100
5, 10, 25, 50, 100
5, 10, 25, 50, 100
5, 10, 25, 50, 100
5, 10, 25, 50, 100
5, 10, 25, 50, 100
5, 10, 25, 50, 100
5, 10, 25, 50, 100
Notes
• Case size 2512 under development. Please consult Vishay Sfernice.
(1)
Pn = Nominal power - Pd = Derated power intended to improve stability.
(2)
For ohmic range versus tolerance and TCR see detailed table on next page.
(3)
Model P0805 being same size than case 0705 with same performances, only codification of P0805 remains.
CLIMATIC SPECIFICATIONS
Operating temperature
range
Note
• For temperature up to 230
(www.vishay.com/doc?53050)
- 55 °C; + 155 °C
MECHANICAL SPECIFICATIONS
Substrate
Technology
Alumina
Thin film
Nickel chromium
with mineral
passivation or
CrSi
Silicone
B type:
SnPb over nickel barrier for
°C,
see
PHT
datasheet
Film
Protection
solder reflow
Terminations
N type:
SnAg over nickel barrier
G type:
gold over nickel barrierfor
other applications
Revision: 02-Mar-12
Document Number: 53017
1
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P
www.vishay.com
Vishay Sfernice
DIMENSIONS
in millimeters (inches)
A
D
D
C
B
E
E
A
CASE SIZE
MAX. TOL.
+ 0.152 (+ 0.006)
MIN. TOL.
- 0.152 (- 0.006)
NOMINAL
0302
0402
0505
0603
0805
1005
1206
1505
2010
0.75 (0.029)
1.00 (0.039)
1.27 (0.005)
1.52 (0.060)
1.91 (0.075)
2.54 (0.100)
3.06 (0.120)
3.81 (0.150)
5.08 (0.200)
B
MAX. TOL.
+ 0.127 (+ 0.005)
MIN. TOL.
- 0.127 (- 0.005)
NOMINAL
0.60 (0.024)
0.60 (0.024)
1.27 (0.050)
0.85 (0.033)
1.27 (0.050)
1.27 (0.050)
1.60 (0.063)
1.32 (0.052)
2.54 (0.100)
0.40 (0.016)
0.48 (0.019)
0.5 (0.02)
± 0.127 (0.005)
0.38 (0.015)
0.13 (0.005)
C
NOMINAL
0.15 (0.006)
0.25 (0.010)
D/E
TOLERANCE
0.08 (0.003)
0.1 (0.004)
Notes
• Case size 2512 under development. Please consult Vishay Sfernice.
• Case 0805 being same than case 0705, only codification of 0805 remains.
SUGGESTED LAND PATTERN
(to IPC-7351A)
G
min.
X
max.
Z
max.
DIMENSIONS
(in millimeter)
CHIP SIZE
Z
max.
0302
0402
0505
0603
0805
1005
1206
1505
2010
1.30
1.55
1.82
2.37
2.76
3.39
3.91
4.66
5.93
G
min.
0.14
0.15
0.10
0.35
0.74
1.37
1.85
2.44
3.71
X
max.
0.73
0.73
1.40
0.98
1.40
1.40
1.73
1.45
2.67
Note
• Case size 2512 under development. Please consult Vishay Sfernice.
Revision: 02-Mar-12
Document Number: 53017
2
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P
www.vishay.com
POWER DERATING CURVE
FILM
NiCr
NiCr
NiCr
NiCr
NiCr or CrSi
NiCr or CrSi
Vishay Sfernice
Rated Power (%)
TEMPERATURE COEFFICIENT
TCR
± 5 ppm/°C
± 5 ppm/°C
± 10 ppm/°C
± 25 ppm/°C
± 50 ppm/°C
± 100 ppm/°C
CODE
C (- 55 °C; + 155 °C)
Z (0 °C; + 70 °C)
Y
E
H
K
100
80
60
40
20
0
0
20
40
60 70 80
100
120
140 155
Ambient Temperature in °C
BEST TOLERANCE AND TCR VS. OHMIC VALUE
STYLE
RANGE
()
10 to < 100
100 to 35K
0302
> 35K to 50K
> 50K to 75K
> 75K to 750K
10 to < 100
100 to 67K
0402
> 67K to 100K
> 100K to 150K
> 150K to 1M5
10 to < 100
100 to 187K
0505
> 187K to 260K
> 260K to 400K
> 400K to 4M
10 to < 100
100 to 160K
0603
> 160K to 332K
> 332K to 500K
> 500K to 3M2
10 to < 100
100 to 360K
0805
> 360K to 511K
> 511K to 750K
> 750K to 10M
Revision: 02-Mar-12
TOLERANCE
(± %)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
(1)
0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
TCR CODE
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
Document Number: 53017
3
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P
www.vishay.com
Vishay Sfernice
RANGE
()
10 to < 100
100 to 400K
TOLERANCE
(± %)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.1; 0.25; 0.5; 1; 2; 5
(1)
BEST TOLERANCE AND TCR VS. OHMIC VALUE
STYLE
TCR CODE
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
C; Z; Y; E; H; K
C; Z; Y; E; H; K
Z; Y; E; H; K
E; H; K
H; K
1005
> 400K to 550K
> 550K to 810K
> 810K to 8M1
10 to < 100
100 to 1M3
1206
> 1M3 to 2M
> 2M to 3M5
> 3M5 to 35M
10 to < 100
100 to 720K
1505
> 720K to 1M
> 1M to 1M5
> 1M5 to 15M
10 to < 100
100 to 3M8
2010
> 3M8 to 5M
> 5M to 7M5
> 7M5 to 76M
Note
• Tolerance 0.05 % on request
Revision: 02-Mar-12
Document Number: 53017
4
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P
www.vishay.com
POPULAR OPTIONS
For any option it is recommended to consult Vishay Sfernice for availability first.
Option: Enlarged Terminations
For stringent and special power dissipation requirements, the thermal resistance between the resistive layer and the solder joint
can be reduced using enlarged terminations chip resistors which are soldered on large and thick copper pads acting as heatsink
(see application note: 53048 Power Dissipation in High Precision Vishay Sfernice Chip Resistors and Arrays (P Thin Film, PRA
Arrays, CHP Thick Film)
www.vishay.com/doc?53048.
Option to order 0063: (applies to size 1206/1505/2010).
Vishay Sfernice
DIMENSIONS
(Option 0063) in millimeters
Bottom view for mounting
A
Uncoatted
ceramic
Enlarged
termination
B
F
D
E
A
MAX. TOL.
+ 0.152
MIN. TOL.
- 0.152
NOMINAL
1206
1505
2010
3.06
3.81
5.08
B
MAX. TOL.
+ 0.127
MIN. TOL.
- 0.127
NOMINAL
1.60
1.32
2.54
E
MAX. TOL.
+ 0.13
MIN. TOL.
- 0.13
NOMINAL
0.40
0.48
D
MAX. TOL.
+ 0.13
MIN. TOL.
- 0.13
NOMINAL
1.215
1.59
2.25
0.63
0.50
0.76
NOMINAL
F
CASE SIZE
MIN.
MAX.
Note
• Case size 2512 under development. Please consult Vishay Sfernice.
SUGGESTED LAND PATTERN
(Option 0063)
G
min.
X
max.
Z
max.
CHIP SIZE
1206
1505
2010
DIMENSIONS (IN MILLIMETER)
Z
max.
3.91
4.66
5.93
0.50
G
min.
X
max.
1.73
1.45
2.67
Note
• Case size 2512 under development. Please consult Vishay Sfernice.
Revision: 02-Mar-12
Document Number: 53017
5
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Dual limit detector circuit diagram

Decorative lantern control circuit

Photoelectric coupling high-power zero-crossing switching circuit

Practical One Belt Two Telephone Expansion Adapter Circuit Diagram

Remote control multi-point control switch circuit diagram

Computer motherboard circuit diagram 820 1_33

【CN0180】Precision Single-Supply Differential ADC Driver for Industrial-Grade Signals (CN0180)
Circuit Function and BenefitsStandard single-ended industrial signal levels (±5 V, ±10 V, or 0 V to +10 V) are not directly compatible with the differential input range of modern high-performance 16-b...
EEWORLD社区 ADI Reference Circuit
Spartan6 FPGA MIG driver DDR3 error
Problem description: 1. When I was debugging DDR3, I used a MT41JM16JT-15E DDR3. This FLASH is different from the SP605 development board MT41JM16JT-187E (I wanted to order this model, but this model ...
zhangyibing1986 FPGA/CPLD
Received the board, can't wait.
Finally received the board, thanks again EEWORLD.:congratulate: I'm already behind, so I quickly unpacked it and started studying it.:loveliness:One layer::) Two layers::L Three layers:;P Four layers:...
gumuchixin NXP MCU
How to use the wince version of winpcap?
How do I use the wince version of winpcap? I need to compile it myself, and then what? Does anyone have experience? . . . Please help me. . ....
wellge Embedded System
What are the differences between SS14 SS24 SS34 Schottky diodes and ordinary diodes and how to distinguish the positive and negative poles?
[b][b][color=rgb(51, 51, 51)][font=微软雅黑][size=18pt]What is the difference between SS14 SS24 SS34? [/size][/font][/color][/b][b][color=rgb(51, 51, 51)][/color][/b][/b][align=left][color=rgb(51, 51, 51)...
bqgup Creative Market
Proteus Chinese Tutorial
Proteus Chinese Tutorial...
fengxin Electronics Design Contest
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. AH375S-PLA
  2. FFB36J0117KJC
  3. Z204336R00DB
  4. FREQ292SMX/10/150/-20+70/32PF
  5. MTZJ4.3B
  6. 702-299-20B-LC-L
  7. FP65-8251-DTQ
  8. SMP3B240MELMB00
  9. AME8819AEHT250Z
  10. ZM2C62
  11. 3.0SMCJ13_R2_10001
  12. D2541HB-22P-BL-G15

Popular Articles

  1. How to use the dust concentration detector
  2. How to use the ground resistance tester
  3. A portfolio of innovative solutions for industrial automation, energy infrastructure, electric vehicles and railways
  4. Zhongjing Technology: Plans to invest 1 billion yuan to build silicon diffusion wafer and other production projects
  5. Domestic companies have mass-produced 5G radio frequency chips: can be used in mobile phones
  6. Intel Demonstrates Major Advances in Autonomous Driving, PCs, and Graphics
  7. What is a power analyzer
  8. What is an oscilloscope? How to use an oscilloscope
  9. [Primary Tutorial] Building an arm-linux bare metal development environment
  10. Standalone Active EMI Filter IC How to Reduce Common Mode Filter Size

Technical ResourceMore

  1. Basic electronic teaching plan of motor and drag
  2. USB Function IP Core
  3. Android System Overview
  4. Cadence 16.6 Harmony Method _ Revised Edition
  5. Construction and application of satellite telemedicine information website
  6. MPT530 Intelligent Pressure Transmitter
  7. Synchronizing Multiple 1 GSPS AD9910 Direct Digital Synthesizers
  8. 3G mobile phone video monitoring and management background design solution
  9. NXP Semiconductors Controllers
  10. Fault Analysis of Lightning Arrester for Reactor Protection

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1068  599  2886  15  1180  22  13  59  1  24
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
