Part Number

Search

70247-2602

Description
conn header 26pos .100 R/A gold
CategoryThe connector    The connector
File Size133KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

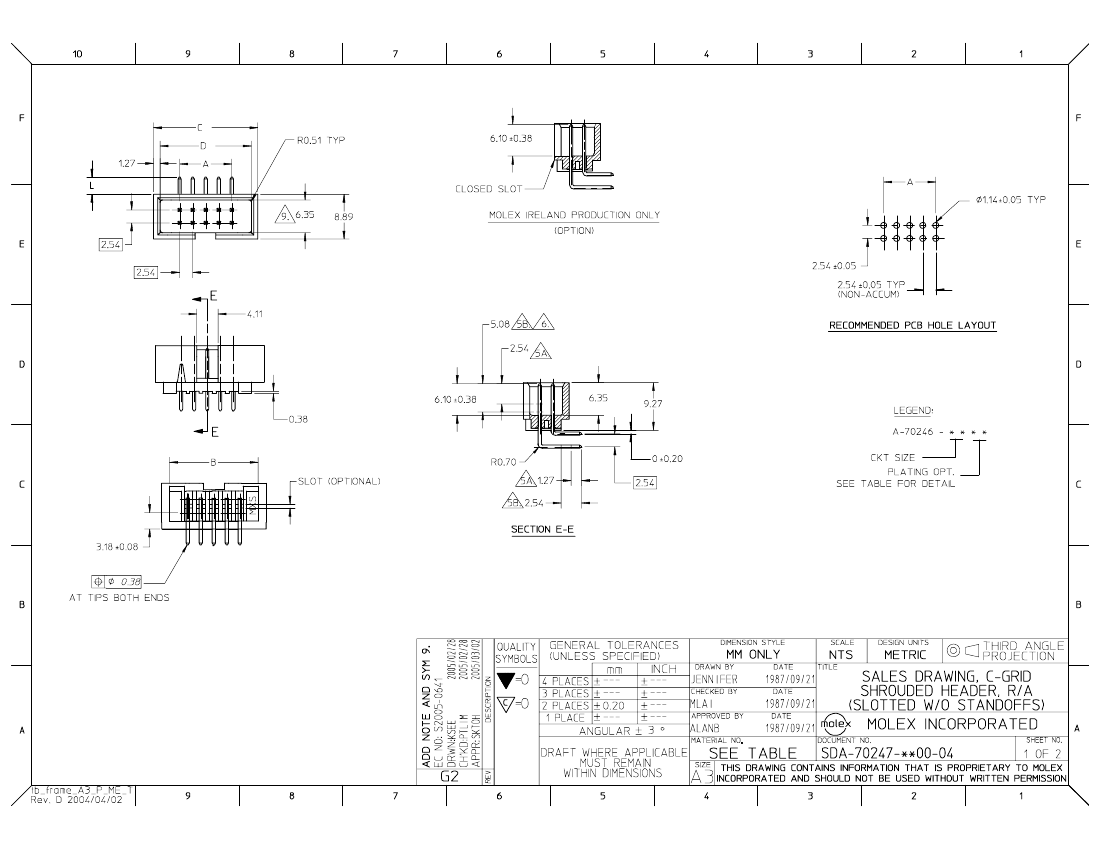

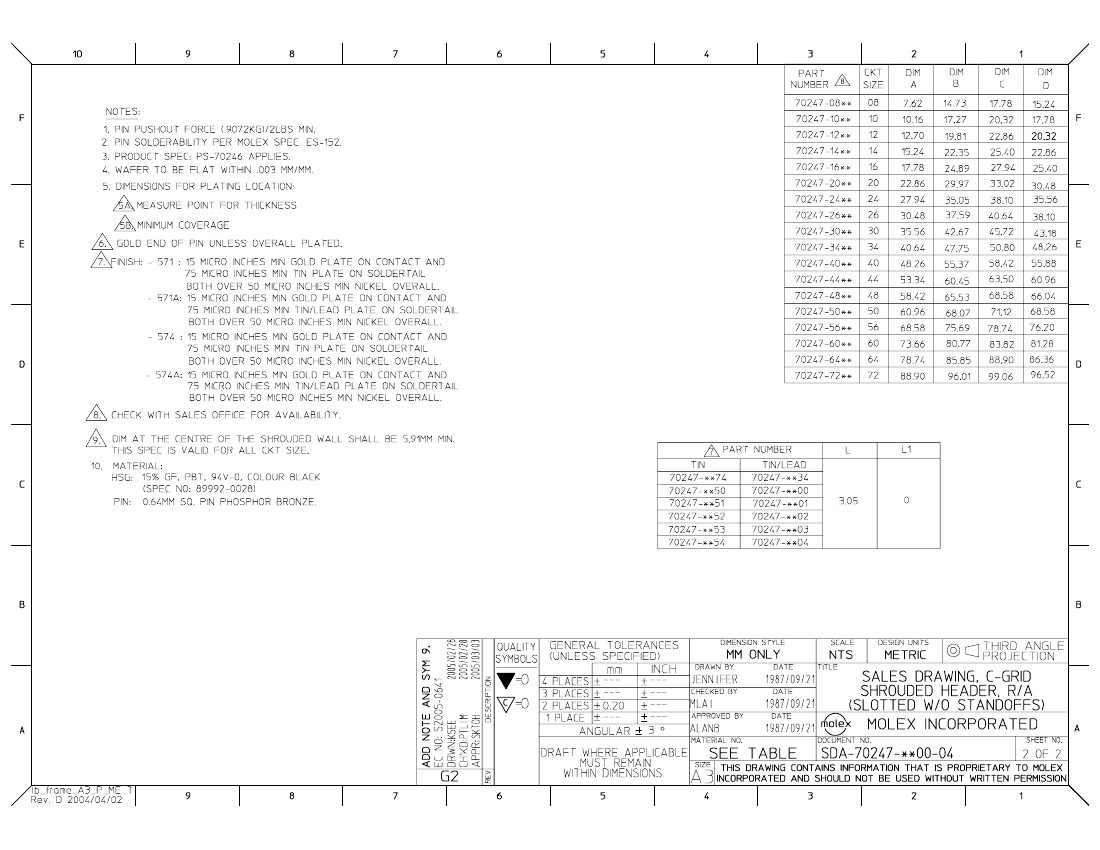

70247-2602 Overview

conn header 26pos .100 R/A gold

70247-2602 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSHROUDED
body width0.35 inch
subject depth0.465 inch
body length1.6 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage600VAC V
Durability50 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number70247
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyCENTER
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.12 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts26
UL Flammability Code94V-0

70247-2602 Related Products

70247-2602
Description conn header 26pos .100 R/A gold
Is it Rohs certified? incompatible
Maker Molex
Reach Compliance Code unknown
ECCN code EAR99
Other features SHROUDED
body width 0.35 inch
subject depth 0.465 inch
body length 1.6 inch
Body/casing type RECEPTACLE
Connector type BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED
Contact point gender MALE
Contact material NOT SPECIFIED
contact mode RECTANGULAR
Contact resistance 15 mΩ
Contact style SQ PIN-SKT
DIN compliance NO
Dielectric withstand voltage 600VAC V
Durability 50 Cycles
Filter function NO
IEC compliance NO
Insulation resistance 1000000000 Ω
insulator material GLASS FILLED POLYESTER
MIL compliance NO
Manufacturer's serial number 70247
Plug contact pitch 0.1 inch
Match contact row spacing 0.1 inch
Plug information MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO
Installation method RIGHT ANGLE
Installation type BOARD
Number of connectors ONE
PCB row number 2
Number of rows loaded 2
Maximum operating temperature 105 °C
Minimum operating temperature -40 °C
Options GENERAL PURPOSE
PCB contact pattern RECTANGULAR
PCB contact row spacing 2.54 mm
Plating thickness 30u inch
polarization key CENTER
Rated current (signal) 3 A
Guideline UL, CSA
reliability COMMERCIAL
Terminal length 0.12 inch
Terminal pitch 2.54 mm
Termination type SOLDER
Total number of contacts 26
UL Flammability Code 94V-0
