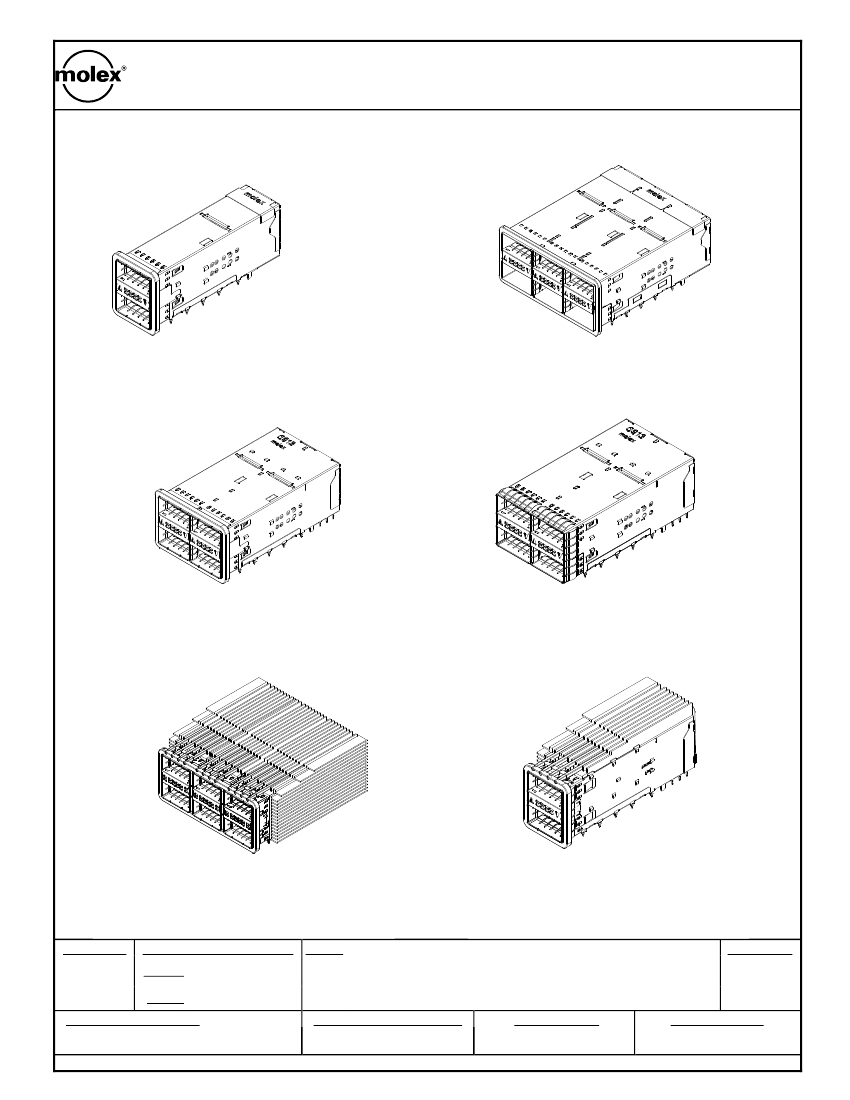

PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
CONNECTOR SERIES:
171208 - 2X1 CONNECTOR
WITH ELASTOMERIC EMI GASKET
171262 – 2X3 CONNECTOR
WITH ELASTOMERIC EMI GASKET
171565 – 2X1, 2X2 & 2X3 CONNECTORS
WITH ELASTOMERIC EMI GASKET &
ENHANCED EMI CAGE CONSTRUCTION
171722 – 2X1, 2X2 & 2X3 CONNECTORS
WITH METAL EMI GASKET &
ENHANCED EMI CAGE CONSTRUCTION
171233 – 2X3 CONNECTOR
WITH THERMAL MANAGEMENT
COMPONENTS
REVISION:
ECR/ECN INFORMATION:
EC No:
UCP2013-2209
DATE:
02/05/2013
TITLE:
170879 – 2X1 CONNECTOR
WITH THERMAL MANAGEMENT
COMPONENTS
2
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
CHECKED BY:
SHEET No.
1
of
13
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
PS-171565-0001
ARIZVI 11/07/12
JKACHLIC 11/08/12
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
TABLE OF CONTENTS
1.0
2.0
2.1
2.2
2.3
2.4
3.0
SCOPE ...................................................................................................................................................................... 3
PRODUCT DESCRIPTION ................................................................................................................................... 3
PRODUCT NAME AND SERIES NUMBER
(
S
) ............................................................................................................... 3
DIMENSION
,
MATERIALS
,
PLATING AND MARKINGS
............................................................................................... 3
SAFETY AGENCY APPROVALS
................................................................................................................................. 3
PIN ASSIGNMENTS
.................................................................................................................................................. 3
APPLICABLE DOCUMENTS AND SPECIFICATIONS .................................................................................. 3
3.1
MOLEX DOCUMENTS
..................................................................................................................................................... 3
3.2
INDUSTRY DOCUMENTS
................................................................................................................................................ 4
4.0
5.0
5.1
5.2
5.3
5.4
6.0
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
7.0
8.0
9.0
QUALIFICATION .................................................................................................................................................. 4
RATINGS ................................................................................................................................................................. 4
VOLTAGE
................................................................................................................................................................ 4
CURRENT
................................................................................................................................................................ 4
TEMPERATURE
....................................................................................................................................................... 4
DURABILITY
......................................................................................................................................................... 4
PERFORMANCE (MECHANICAL & ENVIRONMENTAL) .......................................................................... 5
TEST GROUP
1 ......................................................................................................................................................... 5
TEST GROUP
2 ......................................................................................................................................................... 6
TEST GROUP
3 ......................................................................................................................................................... 7
TEST GROUP
4 ......................................................................................................................................................... 8
TEST GROUP
5 ........................................................................................................................................................ 9
MECHANICAL TEST GROUP
1 ................................................................................................................................ 10
MECHANICAL TEST GROUP
2 ................................................................................................................................ 10
MECHANICAL TEST GROUP
3 ................................................................................................................................ 11
MECHANICAL TEST GROUP
4 ................................................................................................................................ 11
PACKAGING ........................................................................................................................................................ 12
GAGES AND FIXTURES .................................................................................................................................... 12
PCB REQUIREMENTS ....................................................................................................................................... 13
REVISION:
ECR/ECN INFORMATION:
EC No:
UCP2013-2209
DATE:
02/05/2013
TITLE:
2
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
CHECKED BY:
SHEET No.
2
of
13
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
PS-171565-0001
ARIZVI 11/07/12
JKACHLIC 11/08/12
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
1.0 SCOPE
This Product Specification covers the Stacked zQSFP Connector Series
2.0 PRODUCT DESCRIPTION
2.1 PRODUCT NAME AND SERIES NUMBER(S)
Product Name:
Connector Series:
Stacked zQSFP Connector Family
171208 – 2X1 w/Elastomeric EMI Gasket
171262 – 2X3 w/Elastomeric EMI Gasket
171565 – 2X1, 2X2 & 2X3 w/Elastomeric EMI Gasket
& Enhanced EMI Cage Construction
171722 - 2X1, 2X2 & 2X3 w/Metal EMI Gasket
& Enhanced EMI Cage Construction
171233 – 2X3 Thermal Management Components
170879 – 2X1 Thermal Management Components
2.2 DIMENSION, MATERIALS, PLATING AND MARKINGS
See the appropriate sales drawing for information on dimensions, materials, plating, marking,
and footprint patterns.
2.3 SAFETY AGENCY APPROVALS
UL file: E29179
2.4 PIN ASSIGNMENTS
Refer to appropriate sales drawing of the specific part number for the correct pin assignment.
2.5 MATING CONNECTORS
Plug & Cable Series: 74763
3.0 APPLICABLE DOCUMENTS AND SPECIFICATIONS
3.1 MOLEX DOCUMENTS
AS-171208-0001
AS-171565-0001
PK-171565-001
PS-45499-002
Board Routing Recommendations
Application Specification
Packaging Specification
Cosmetic Specification
REVISION:
ECR/ECN INFORMATION:
EC No:
UCP2013-2209
DATE:
02/05/2013
TITLE:
2
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
CHECKED BY:
SHEET No.
3
of
13
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
PS-171565-0001
ARIZVI 11/07/12
JKACHLIC 11/08/12
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
3.2 INDUSTRY DOCUMENTS
EIA 364 - 1000
TS-1000 Environmental Test Methodology for Assessing the Performance of
Electrical Connectors and Sockets Used in Controlled Environment
Applications
4.0 QUALIFICATION
Laboratory condition and sample selection are in accordance with EIA 364
5.0 RATINGS
5.1 VOLTAGE
30 Volts AC (RMS)/DC Max.
5.2 CURRENT
0.5 Amps Max.
5.3 TEMPERATURE
Operating:
Non-operating:
5.4 DURABILITY
100 Cycles
-40ºC to +85ºC
-55°C to +105°C
REVISION:
ECR/ECN INFORMATION:
EC No:
UCP2013-2209
DATE:
02/05/2013
TITLE:
2
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
CHECKED BY:
SHEET No.
4
of
13
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
PS-171565-0001
ARIZVI 11/07/12
JKACHLIC 11/08/12
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
6.0 PERFORMANCE (MECHANICAL & ENVIRONMENTAL)
6.1 TEST GROUP 1
ITEM
1
TEST
Low Level
Contact
Resistance
Durability
(precondition)
TEST PROCEDURE
EIA-364-23; apply a
maximum voltage of
20
mV
and a current of
100
mA.
EIA-364-09; perform plug &
unplug cycles: 20
EIA-364-17, method A, Test
Condition 3 at 105°±2°C:
240 hours
EIA-364-23; apply a
maximum voltage of
20
mV
and a current of
100
mA.
Manually unplug & plug the
connector, 3 cycles
EIA-364-23; apply a
maximum voltage of
20
mV
and a current of
100
mA.
Mated
CONDITION
Mated
REQUIREMENT
baseline
ACTUAL
2
No evidence of physical
damage
3
Temperature
Life
Low Level
Contact
Resistance
Reseating
Low Level
Contact
Resistance
Mated
None
4
Mated
<10
mΩ
∆
max
No evidence of physical
damage
<10
mΩ
∆
max
5
6
REVISION:
ECR/ECN INFORMATION:
EC No:
UCP2013-2209
DATE:
02/05/2013
TITLE:
2
PRODUCT SPECIFICATION
STACKED ZQSFP+ CONNECTORS
CHECKED BY:
SHEET No.
5
of
13
DOCUMENT NUMBER:
CREATED / REVISED BY:
APPROVED BY:
PS-171565-0001
ARIZVI 11/07/12
JKACHLIC 11/08/12
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A](V.1).DOC
