WOSF5(C) THRU WOSF170(C)
Surface Mount TVS Diodes
P b
Lead(Pb)-Free
FEATURES
* For Surface Mounted Applications in order to Optimize Board Space
* Excellent Clamping Capability
* IEC61000-4-2 ESD 15Kv Air, 8Kv Contact Compliance
* Protects One I/O Line
TRANSIENT
VOLTAGE
SUPPRESSORS
200 WATTS
5-170 VOLTS
1
2
APPLICATIONS
* Personal Digital Assistants (PDA)
* Cellular Handsets & Accessories
* Portable Devices
* Portable Instrumentation
* Handhelds and Notebooks
* Digital Cameras
SOD-123S
Mechanical Data
* Epoxy : UL94-V0 Rated Flame Retardant
* Case : Molded Plastic, SOD-123S
* Terminals : Plated Terminals, Solderable Per MIL-STD-750, Method 2026
* Polarity : Indicated By Cathode Band
* Mounting Position : Any
* Weight : Approximated 0.0155 gram
SOD-123S Outline Dimensions
A
D
C
J
H
K
B
E
Unit:mm
3.5
3.9
1.6
2.0
2.6
3.0
0.75
0.95
0.45(Typ.)
0.90
1.00
0.18
0.22
0.80(Typ.)
WEITRON
http://www.weitron.com.tw
1/4
11-Apr-2013
WOSF5(C) THRU WOSF170(C)
Maximum Ratings(T
A
=25˚C Unless Otherwise Noted)
Peak Power Dissipation
Peak Pulse Power Dissipation at TA=25°C
By 10x1000 us (Note1)
Peak Power Dissipation
Peak Pulse Power Dissipation at TA=25°C
By 8x20 us (Note2)
Thermal Resistance
Junction to Ambient
Thermal Resistance
Junction to Lead
Operating Temperature Range
Storage Temperature Range
P
PK
200
W
P
PK
1000
W
R
θJA
R
θJL
T
J
T
STG
325
26
-55 to +150
-65 to +175
°C/W
°C/W
°C
°C
Note : 1. Non-Repetitive Current Pulse, Per Fig. 2 and Derated Above TA=25°C Per Fig. 1
2. Non-Repetitive Current Pulse, Per Fig. 3 and Derated Above TA=25°C Per Fig. 1
Eqivalent Circuit Diagram
Item
WOSF5 THRU WOSF170
WOSF5C THRU WOSF170C
1
2
http://www.weitron.com.tw
WEITRON
2/4
11-Apr-2013
WOSF5(C) THRU WOSF170(C)
Electrical characteristics
Part No.
(Uni)
Part No.
(Bi)
(at T
A
=25
o
C unless otherwise noted)
Breakdown Voltage
V
BR
@ I
T
V
BR Min
Volts
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100.0
111.0
122.0
133.0
144.0
167.0
178.0
189.0
V
BR Max
Volts
7.00
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104.0
111.0
123.0
135.0
147.0
159.0
185.0
197.0
209.0
Test
Current
I
T
mA
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Maximum Clamping
Voltage @I
PP
V
C
Volts
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
I
PP
A
21.7
19.4
17.9
16.7
15.5
14.7
13.9
13.0
11.8
11.0
10.1
9.3
8.6
8.2
7.7
7.2
6.8
6.2
5.6
5.1
4.8
4.4
4.1
3.8
3.4
3.1
2.9
2.8
2.6
2.4
2.3
2.2
2.1
2.0
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0.8
0.8
0.8
Maximum
Leakage
Current
I
R
@V
RWM
uA
400
400
250
100
50
25
10
5.0
2.5
2.5
2.5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Uni
KE
KG
KK
KM
KP
KR
KT
KV
KX
KZ
LE
LG
LK
LM
LP
LR
LT
LV
LX
LZ
ME
MG
MK
MM
MP
MR
MT
MV
MX
MZ
NE
NG
NK
NM
NP
NR
NT
NV
NX
NZ
PE
PG
PK
PM
PP
PR
Bi
AE
AG
AK
AM
AP
AR
AT
AV
AX
AZ
BE
BG
BK
BM
BP
BR
BT
BV
BX
BZ
CE
CG
CK
CM
CP
CR
CT
CV
CX
CZ
DE
DG
DK
DM
DP
DR
DT
DV
DX
DZ
EE
EG
EK
EM
EP
ER
Marking
Code
Reverse
Stand-off
Voltage
V
RWM
Volts
WOSF5
WOSF6
WOSF6.5
WOSF7
WOSF7.5
WOSF8
WOSF8.5
WOSF9
WOSF10
WOSF11
WOSF12
WOSF13
WOSF14
WOSF15
WOSF16
WOSF17
WOSF18
WOSF20
WOSF22
WOSF24
WOSF26
WOSF28
WOSF30
WOSF33
WOSF36
WOSF40
WOSF43
WOSF45
WOSF48
WOSF51
WOSF54
WOSF58
WOSF60
WOSF64
WOSF70
WOSF75
WOSF78
WOSF85
WOSF90
WOSF100
WOSF110
WOSF120
WOSF130
WOSF150
WOSF160
WOSF170
WOSF5C
WOSF6C
WOSF6.5C
WOSF7C
WOSF7.5C
WOSF8C
WOSF8.5C
WOSF9C
WOSF10C
WOSF11C
WOSF12C
WOSF13C
WOSF14C
WOSF15C
WOSF16C
WOSF17C
WOSF18C
WOSF20C
WOSF22C
WOSF24C
WOSF26C
WOSF28C
WOSF30C
WOSF33C
WOSF36C
WOSF40C
WOSF43C
WOSF45C
WOSF48C
WOSF51C
WOSF54C
WOSF58C
WOSF60C
WOSF64C
WOSF70C
WOSF75C
WOSF78C
WOSF85C
WOSF90C
WOSF100C
WOSF110C
WOSF120C
WOSF130C
WOSF150C
WOSF160C
WOSF170C
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
Notes:
1. VBR measured after IT applied for 300us, IT= sequare wave pulse or equivalent.
2. Surge current waveform per 10 x 1000us exponential wave and derated per Fig.2.
3. All terms and symbols are consistent with ANSI/IEEE C62.35.
4. For bi-directional types having V
RWM
of 10 volts and less, the I
R
limit is doubled
http://www.weitron.com.tw
WEITRON
3/4
11-Apr-2013
WOSF5(C) THRU WOSF170(C)

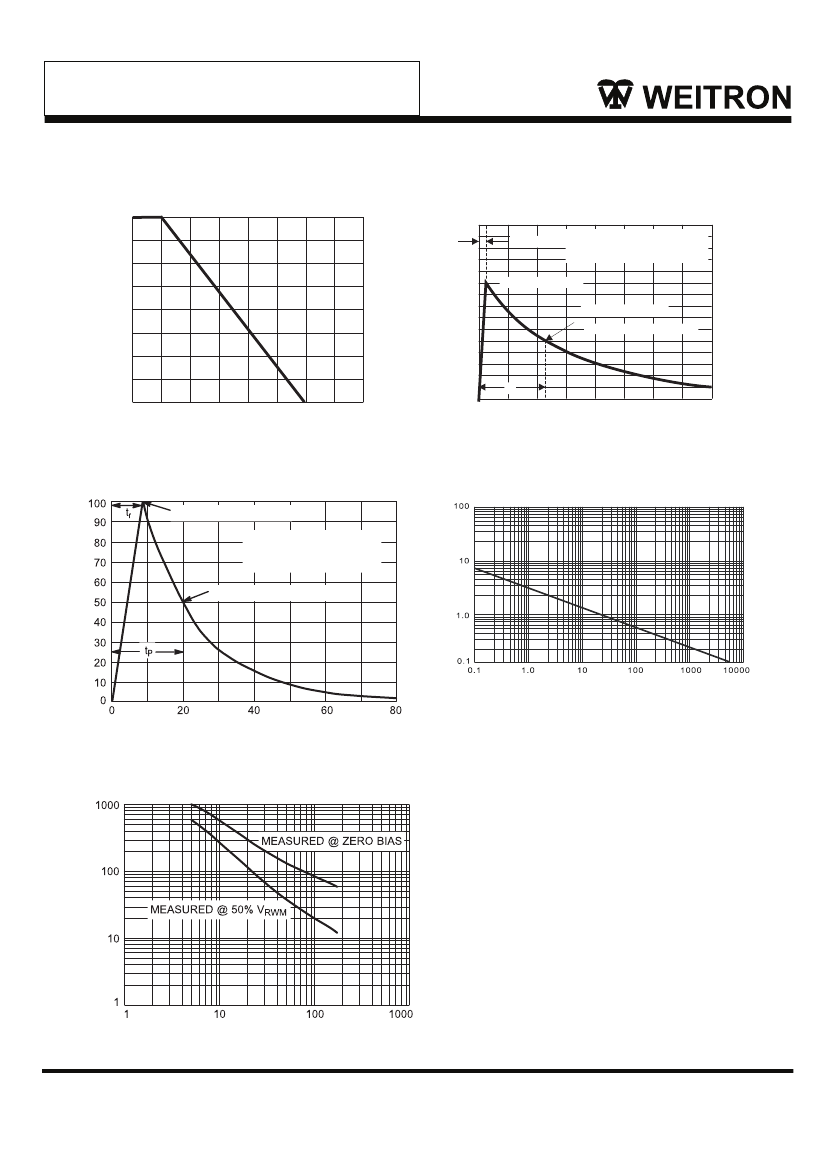

Rating and characteristic curves
100
FIG.1 - PULSE DERATING CURVE
150
FIG.2 - 10X1000us PULSE WAVEFORM
Tr<=10us
pulse width (td) is defined
as the point where the peak
current decays to 50%
Peak Pulse Power or Current
Derating in Percentage, %
75
Peak Pulse Current, I
PPM
(%)
100
peak value I
PPM
half value I
PPM
/2
50
50
10/1000 us waveform
25
0
0
25
50
75 100 125 150 175 200
0
td
0
1.0
2.0
3.0
4.0
Ambient Temperature, TA (°C)
time, t (ms)
FIG.3 - 8X20us PULSE WAVEFORM
Peak Pulse Power, P
PPM
(kW)
PEAK VALUE IRSM@8us
PULSE WIDTH(t
P
)IS
DEFINED
AS THAT POINT WHERE THE
PEAK CURRENT DECAY=8us
FIG.4 - PEALK PULSE POWER RATING CURVE
%
of Peak Pulse Current
HALF VALUE IRSM/2@20us
Pulse Width, tp ( us)
time, t (us)
FIG.5 - TYPICAL JUNCTION CAPACITANCE
Junction Capacitance, CJ (pF)
Reverse Stand-Off Voltage,V
RWM
(V)
http://www.weitron.com.tw
WEITRON
4/4
11-Apr-2013
