Part Number

Search

Z8420CM

Description
Parallel I/O Port, 16 I/O, MOS, CDIP40, CERAMIC, DIP-40
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size930KB,15 Pages
ManufacturerZilog, Inc.
Websitehttps://www.zilog.com/
Download Datasheet Parametric View All

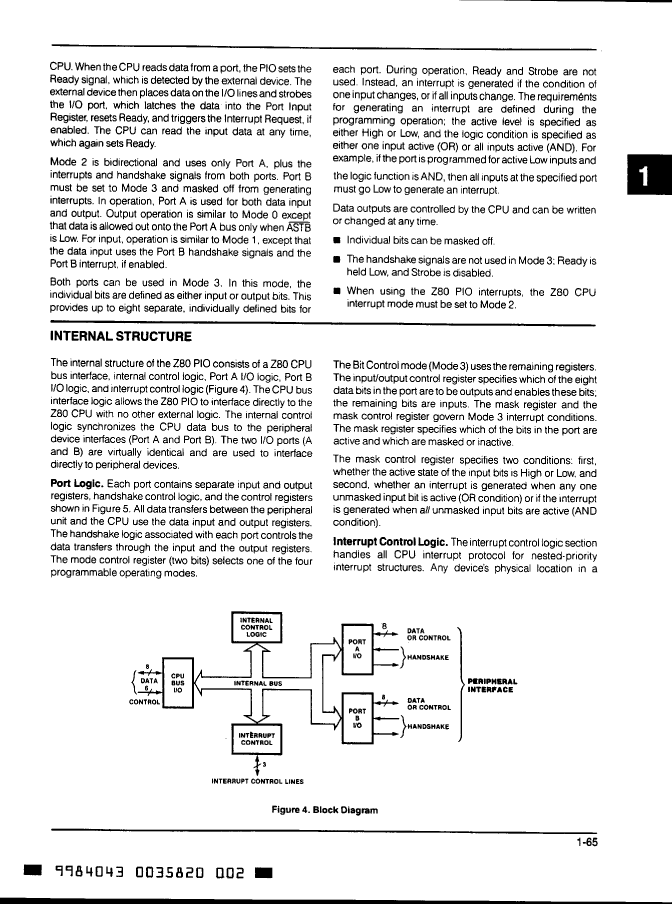

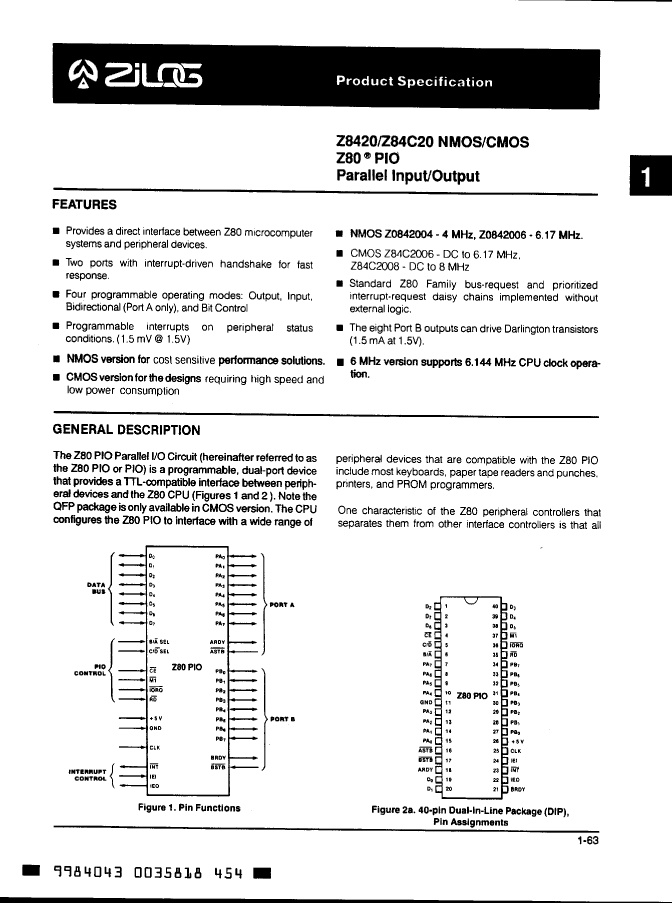

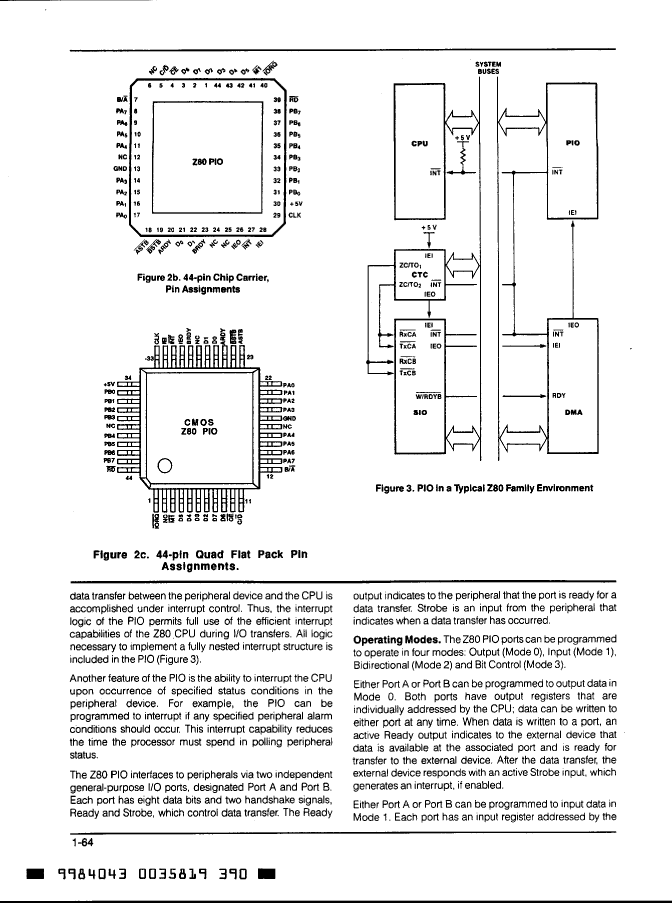

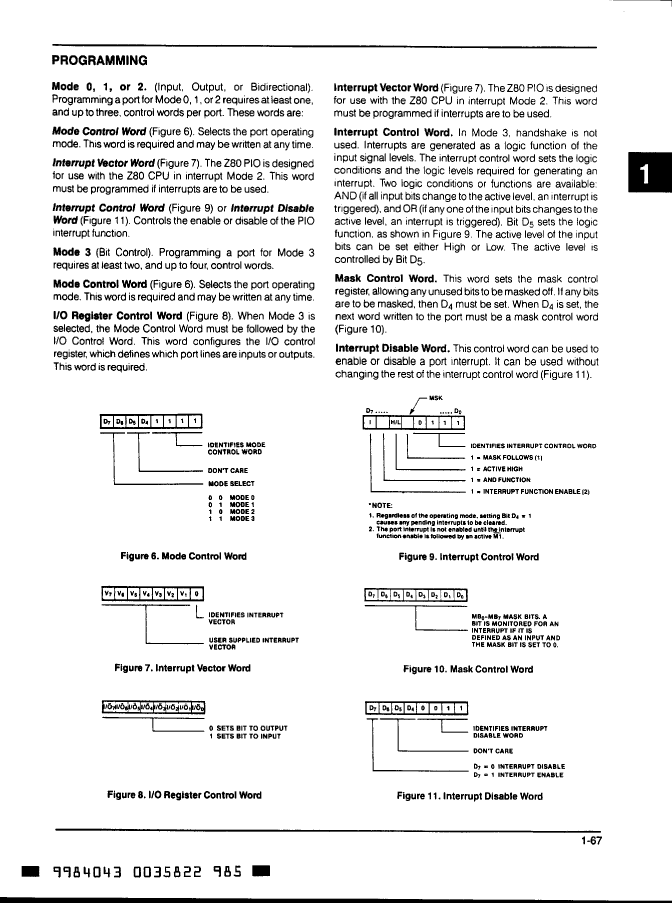

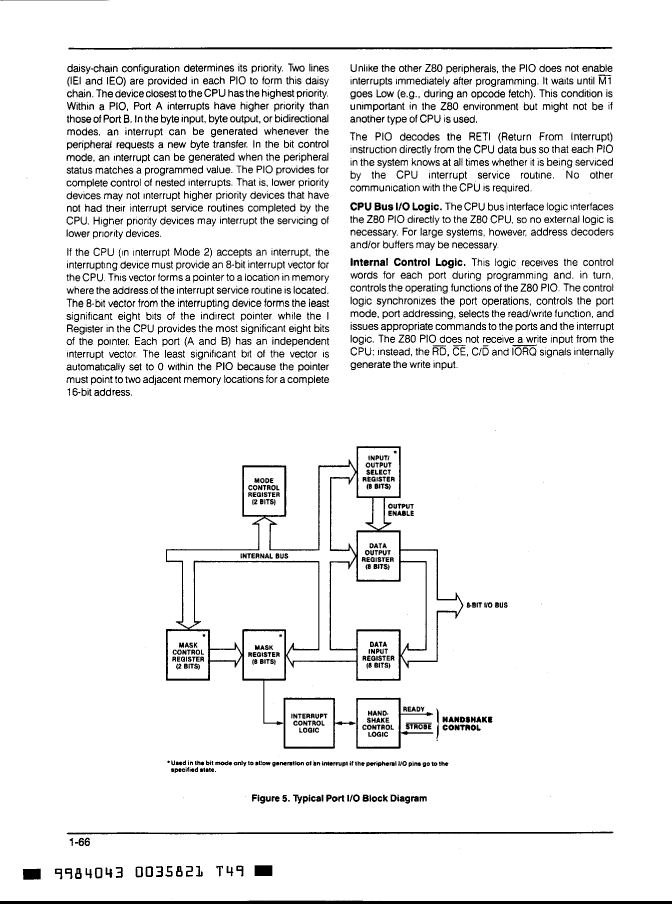

Z8420CM Overview

Parallel I/O Port, 16 I/O, MOS, CDIP40, CERAMIC, DIP-40

Z8420CM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1409999512
Parts packaging codeDIP
package instructionCERAMIC, DIP-40
Contacts40
Reach Compliance Codeunknown
ECCN codeEAR99
maximum clock frequency2.5 MHz
External data bus width8
JESD-30 codeR-CDIP-T40
JESD-609 codee0
Number of I/O lines16
Number of ports2
Number of terminals40
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP40,.6
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Maximum seat height4.699 mm
Maximum slew rate100 mA
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountNO
technologyMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width15.24 mm
uPs/uCs/peripheral integrated circuit typePARALLEL IO PORT, GENERAL PURPOSE
