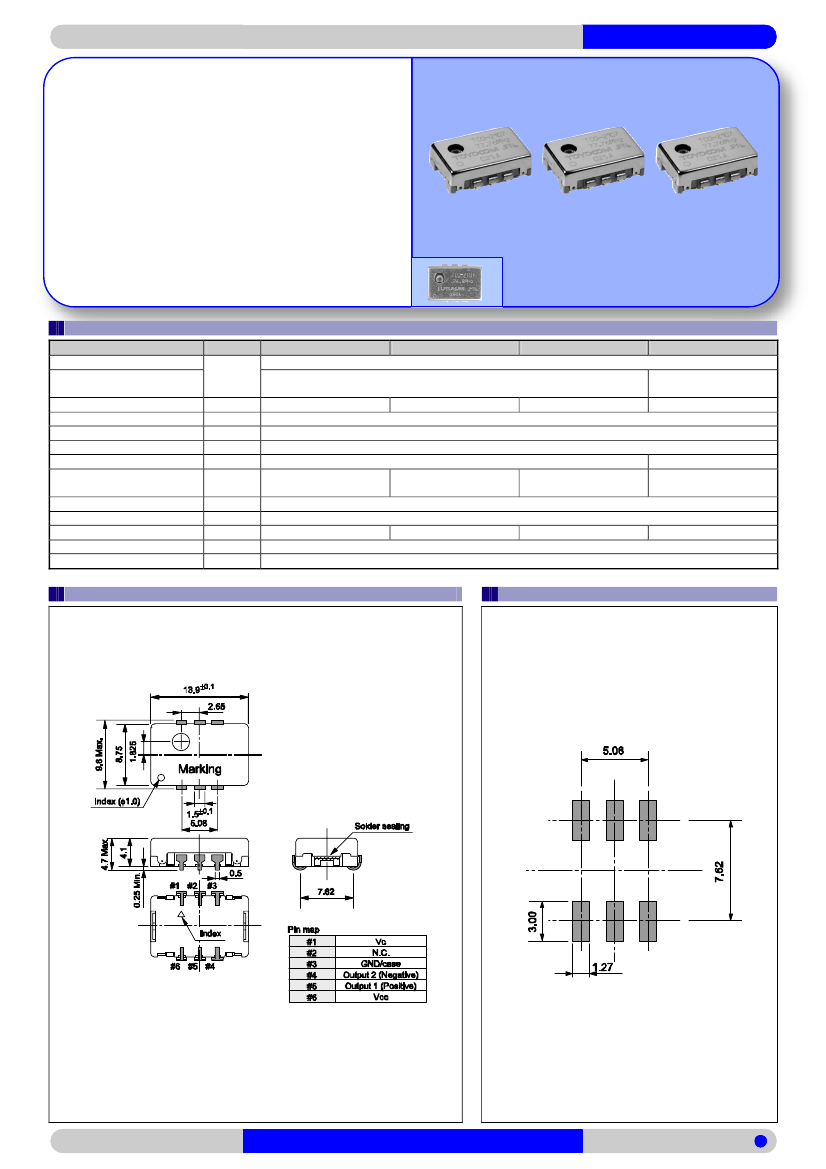

Crystal oscillator
VOLTAGE -CONTROLLED CRYSTAL OSCILLATOR (VCXO)
TCO-2110
Series
•
Frequency range
:
60 MHz to 800 MHz
•
Supply voltage
:
3.3 V, 5.0 V, -5.2V
•
Frequency control range:
±100 ×
10
-6
•
Features
:
Wide frequency control range
:
With HFF-XTAL technology
Fundamental oscillation (60MHz to 230MHz)
Actual size
Multiplier oscillation (230MHz to 800MHz)
•
Lead(Pb)-free
:
Contains Pb in this product exempted by
RoHS directive.
Specifications (characteristics)
Item
Output frequency range
Standard frequency
Symbol
f
O
TCO-2112
TCO-2113
60.000 MHz to 800.000 MHz
77.7600 MHz, 155.52 MHz, 156.2500 MHz,
166.6286 MHz, 622.08 MHz, 666.5143 MHz,
3.3 V
±0.165
V
5.0 V
±0.25
V
-5.2 V
±0.26
V
-40 °C to +85 °C
-40 °C to +85 °C
±35 ×
10
-6
Max. / -40 °C to +85 °C
65 mA Max.
-6
±100 ×
10 Min.
±100 ×
10
-6
Min.
±100 ×
10
-6
Min.
V
C
= 1.65 V
±1.65
V
V
C
= 2.5 V
±2
V
V
C
= 2.5 V
±2
V
100 kΩ Min.(DC level)
Positive slope
LV-PECL
PECL
ECL
10 ms Max.
*1
±5 ×
10
-6
/ year Max. (+25 °C, First year)
(Unit:mm)
TCO-2111
TCO-2114
155.520 MHz
3.3 V
±0.165
V
Supply voltage
V
CC
Storage temperature range
T_stg
Operating temperature range
T_use
Frequency tolerance
F_tol(osc)
Current consumption
I
CC
Frequency control range
Fcont
Input resistance
Rin
Frequency change polarity
―
Output level
―
Oscillation start up time
t
OSC
Frequency aging
F_aging
*1
Time at minimum supply voltage to be 0 s.
40 mA Max.
±100 ×
10
-6
Min.
V
C
= 1.65 V
±1.65
V
LV-DS
External dimensions
Footprint (Recommended)
(Unit:mm)
