PV2-12RX-T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> PV2-12RX-T

Preview

PV2-12RX-T: Descriptionterm ring exp vyl 2awg 1/2; CategoryThe connector; File Size108KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

PV2-12RX-T Overview

term ring exp vyl 2awg 1/2

PV2-12RX-T Parametric

Parameter Name	Attribute value
Maker	Panduit
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	PV
Terminal and terminal strip types	RING TERMINAL
Wire gauge	2 AWG

Preview

Download Datasheet

View All

2

PANDUIT

PART NUMBER

PV2-10RX

PV2-14RX

PV2-56RX

PV2-38RX

STUD

SIZE

DIMENSIONS -

W

C

.010

.015

.68

.58

(17.27) (14.73)

.68

.58

(17.27) (14.73)

.68

.58

(17.27) (14.73)

.68

.58

(17.27) (14.73)

.86

.58

(21.84) (14.73)

in.

M

1

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

B

PV2-12RX

A

.020

1.94

#10

(49.28)

1.94

1/4"

(49.28)

1.94

5/16"

(49.28)

1.94

3/8"

(49.28)

2.03

1/2"

(51.56)

.020

1.60

(40.64)

1.60

(40.64)

1.60

(40.64)

1.60

(40.64)

1.60

(40.64)

TOOLS

H

.010

.20

(5.08)

.27

CT-720

(6.86) (CD-720PV8-2)

.33

(8.38)

CT-2600

.39

(CD-2600-PV2)

(9.91)

.52

(13.21)

W

H DIA

TERMINAL

B

NOTES:

1. cULus LISTED FOR:

A. 600V MAX VOLTAGE RATING

B. 221 F (105 C) MAX TEMP RATING

C. #2 AWG STRANDED COPPER WIRE

2. SEE WWW.PANDUIT.COM FOR PACKAGE QUANTITIES

3. MATERIAL:

A. STAMPING - .060" (1.52) THK, COPPER

TIN PLATED

B. HOUSING - VINYL, RED

4. DIMENSIONS IN BRACKETS ARE IN MILLIMETERS

5. WIRE STRIP LENGTH: 1/2 + 1/32 [12.7 + .8]

- 0

LISTED

587H

E52164

C RAD

A

M

BRAZED

SEAM

HOUSING

.632 (16.05)

MAX WIRE

INSUL DIA

TITLE

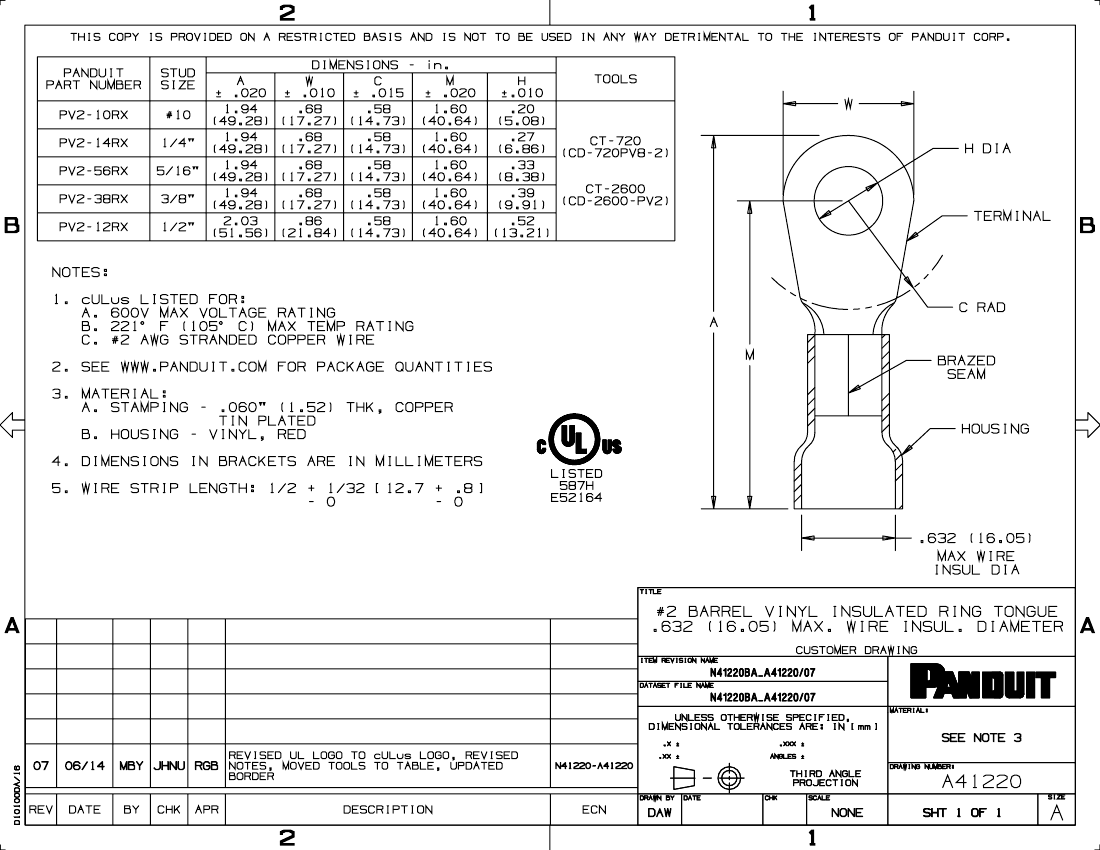

A

#2 BARREL VINYL INSULATED RING TONGUE

.632 (16.05) MAX. WIRE INSUL. DIAMETER

CUSTOMER DRAWING

ITEM REVISION NAME

A

N41220BA_A41220/07

DATASET FILE NAME

N41220BA_A41220/07

MATERIAL:

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.X

.XXX

ANGLES

DRAWING NUMBER:

SEE NOTE 3

REVISED UL LOGO TO cULus LOGO, REVISED

D10100DA/16

.XX

07

06/14

MBY

JHNU

RGB

NOTES, MOVED TOOLS TO TABLE, UPDATED

BORDER

N41220-A41220

THIRD ANGLE

PROJECTION

DRAWN BY

DATE

CHK

SCALE

A41220

SIZE

REV

DATE

BY

CHK

APR

DESCRIPTION

ECN

DAW

NONE

SHT 1 OF 1

A

2

1

PV2-12RX-T Related Products

	PV2-12RX-T	PV2-10RX-X	PV2-12RX-X	PV2-14RX-T	PV2-38RX-T	PV2-38RX-X	PV2-56RX-T	PV2-56RX-X	PV2-10RX-T
Description	term ring exp vyl 2awg 1/2	term ring exp vyl 2awg #10	term ring exp vyl 2awg 1/2	term ring exp vyl 2awg 1/4	term ring exp vyl 2awg 3/8	term ring exp vyl 2awg 3/8	term ring exp vyl 2awg 5/16	term ring exp vyl 2awg 5/16	term ring exp vyl 2awg #10
Maker	Panduit	-	Panduit	-	Panduit	-	Panduit	Panduit	Panduit
Reach Compliance Code	compliant	-	compliant	compliant	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Terminal and terminal strip types	RING TERMINAL	-	RING TERMINAL	RING TERMINAL	RING TERMINAL	-	RING TERMINAL	RING TERMINAL	RING TERMINAL
Wire gauge	2 AWG	-	2 AWG	2 AWG	2 AWG	-	2 AWG	2 AWG	2 AWG
