BA020-20-A-240-1-B datasheet, PDF

Datasheet> All Categories > The connector> The connector> BA020-20-A-240-1-B

BA020-20-A-240-1-B: DescriptionBoard Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, White Insulator, Plug; CategoryThe connector The connector; File Size294KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BA020-20-A-240-1-B Overview

Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, White Insulator, Plug

BA020-20-A-240-1-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1947388718
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.157 inch
body length	0.303 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	100VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Plug contact pitch	0.02 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3942 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	20

Preview

Download Datasheet

View All

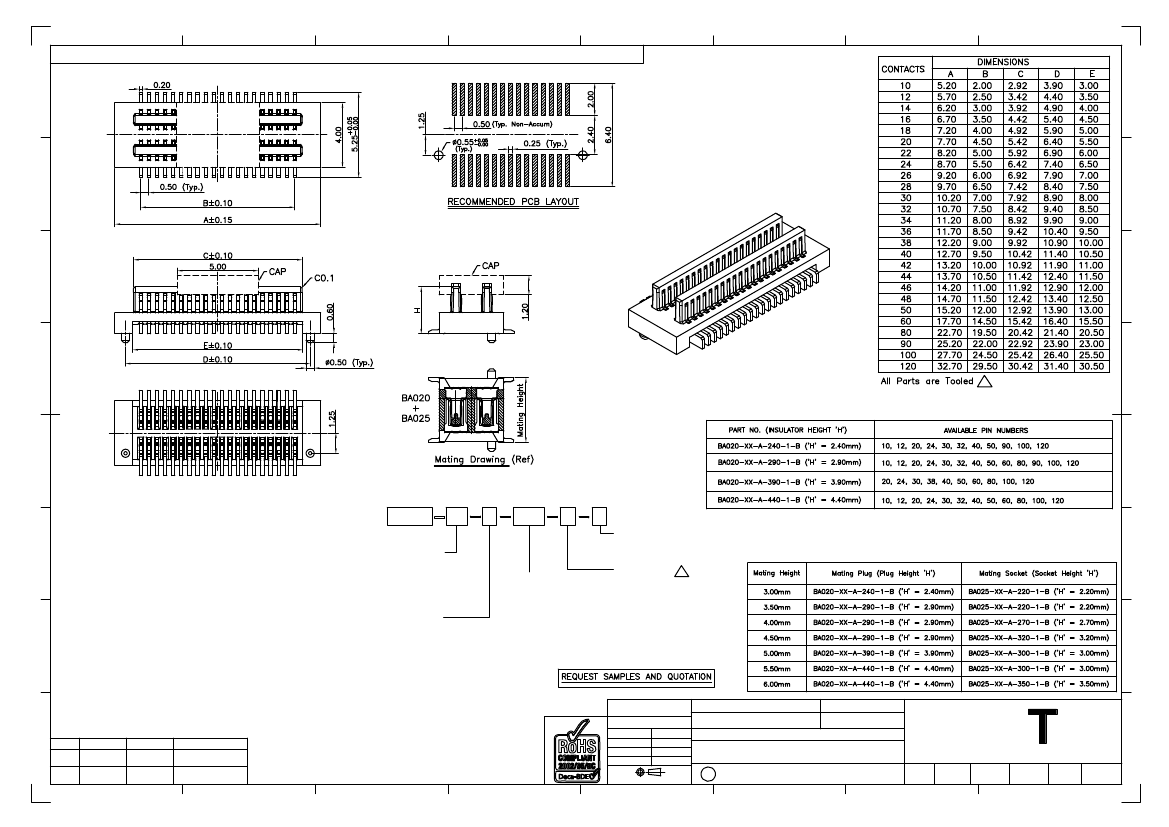

Global Connector Technology Ltd. - BA020: 0.5mm PITCH BOARD TO BOARD PLUG, DUAL ROW, SURFACE MOUNT, VERTICAL

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 0.5 AMP AC/DC

VOLTAGE RATING

电压额定值

: 50V AC/DC

INSULATOR RESISTANCE

绝缘电阻值

: 1000 M



MIN. (100V DC)

DIELECTRIC WITHSTANDING

耐电压

: AC 100 V (1 MIN.)

CONTACT RESISTANCE

接触电阻值

: 30m



Max.

OPERATING TEMPERATURE

工½温度

: -20°C TO +105°C

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

PLATING

电镀

: GOLD FLASH OVER 30 - 50u" NICKEL

底层

30 - 50u"

镍,其上镀金箔

INSULATOR MATERIAL

绝缘½物料

POLYAMIDE

聚醯胺

, NYLON 46, UL 94-V0 HI-TEMP PLASTIC, WHITE

SOLDERING PROCESS

可焊性

: 260°C FOR 5 - 10 SECONDS

DURABILITY

耐久力

: 500 MATING CYCLES MIN.

插拨最少

500

次

MATES WITH

配套之母座

BA025

DETAIL

REV

DATE

DRAWING

RELEASE

30/04/08

ASE

PEG OPTION TOOLED CONTACTS

REMOVED

UPDATED

12/01/10

11/08/10

E S

B N

A IG

I S

U E

S D

T W

O E

N N

Ordering Grid

BA020

XXX

No. of Contacts

10 to 50, 60, 80,

90, 100, 120

(00 = 100

A0 = 120)

Packing Options

B = Tape and Reel with Cap

Locating Peg

1 = With Peg

Contact Plating

A = Gold Flash

Insulator

Height "H"

240 = 2.40mm

290 = 2.90mm

390 = 3.90mm

440 = 4.40mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

BA020

30 APR 08

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

Description:-

0.5mm PITCH BOARD TO BOARD PLUG,

DUAL ROW, SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Material

Drawn by

See Note

E & OE

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Scale

NTS

Revision

Sheet No.

1/1
