0190100222006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0190100222006

0190100222006: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

0190100222006 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

0190100222006 Parametric

Parameter Name	Attribute value
Objectid	304375624
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.22 inch
subject depth	0.261 inch
body length	0.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	019
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	197u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

Ratioplast-Electronics

Serie

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.: +49 (0) 5741 / 23 661-0 / Fax: +49 (0) 5741 / 23 661-20

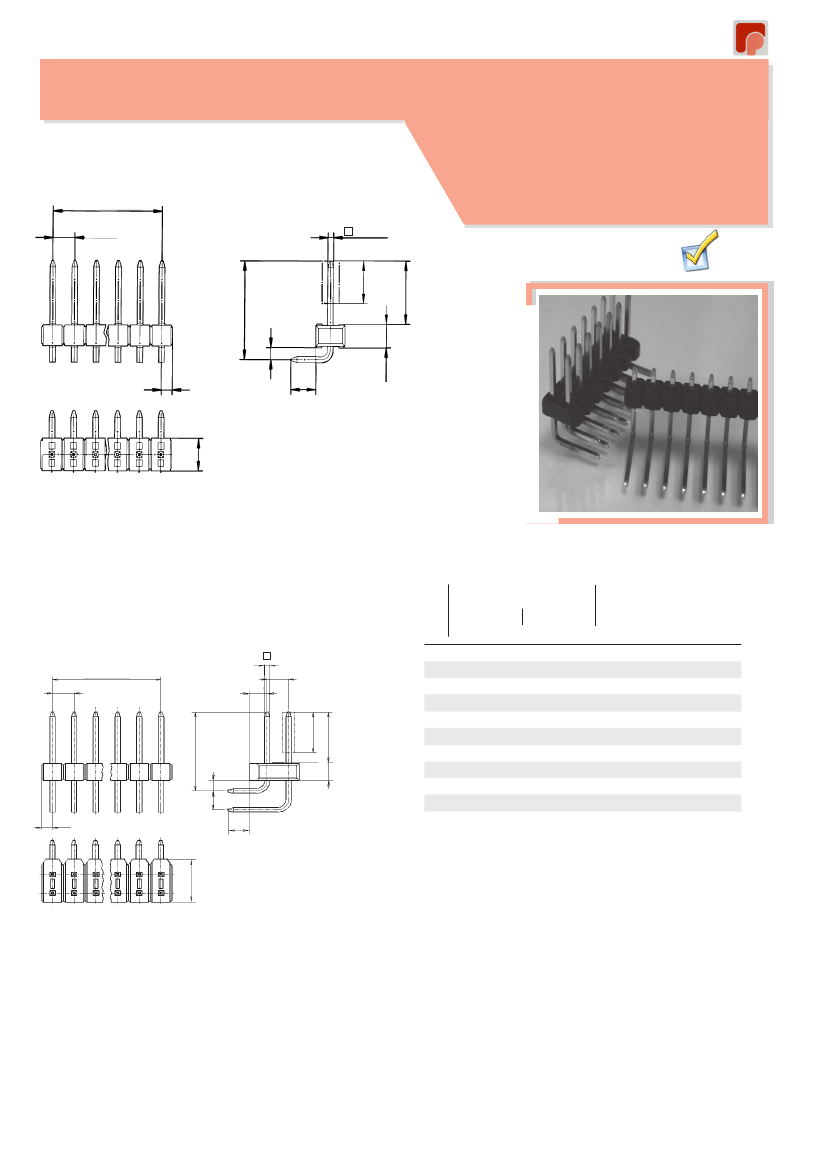

019

2,54

STIFTLEISTEN

PIN HEADERS

1-, 2-REIHIG, GEWINKELT, Raster 2,54 mm

1-, 2-ROW, RIGHT ANGLED, Pitch 2,54 mm

Stiftleiste mit symetrischen (1reihig) und

asymmetrischem Isolierkörper

und Vierkantstiften 0,635 mm

Pin header with symmetrical (1row) and

asymmetrical insulator, square contacts 0,635 mm

(n-1)x2,54

0,635

RoHs

D = Länge der selektiven Veredelung min. 4,5 mm (Standard)

Length of selective plating min. 4,5 mm (Standard)

E = 1,27 ± 0,2 mm

F = 1,27 ± 0,2 mm

3,4

2,54

Abmessung / Dimensions

Codierte Stiftlänge/

Länge Lötbereich/

Encoded pin length

Length solder area

Länge Steckbereich/

Length contact area

0,635

(n-1)x2,54

2,54

1,9

2,54

2,54 F

3,29

4,59

6,69

8,49

9,59

11,79

13,59

14,79

16,89

18,69

2,90

±0,3

2,90

±0,3

2,90

±0,3

2,90

±0,3

2,90

±0,3

2,90

±0,3

2,90

±0,3

2,90

±0,3

2,90

±0,3

2,90

±0,3

7,06

8,36

10,46

12,26

13,36

15,56

17,36

18,56

20,66

22,46

2,5

Andere Maße auf Anfrage.

Other dimensions on request.

5,6

D = Länge der selektiven Veredelung min. 4,5 mm (Standard)

Length of selective plating min. 4,5 mm (Standard)

E = 1,27 ± 0,2 mm

F = 1,27 ± 0,2 mm

162

Ratioplast-Electronics,

H.Wiedemann GmbH 2006 Sonderanfertigungen und andere Veredelungen auf Anfrage / Customer Designs and special platings on request

Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist nur mit ausdrücklicher Genehmigung des Herausgebers gestattet.

Zuwiderhandlung verplichtet zu Schadensersatz. Design und technische Änderung vorbehalten.
