HM56-11123R0LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> HM56-11123R0LF

HM56-11123R0LF: Descriptioninductor low loss 3.0uh 18a T/H; CategoryPassive components inductor; File Size242KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

HM56-11123R0LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM56-11123R0LF	-	-	View	Buy Now

HM56-11123R0LF Overview

inductor low loss 3.0uh 18a T/H

HM56-11123R0LF Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.0075 Ω
Nominal inductance(L)	3 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	HM56
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	DCR MEASURED AT 5% TOLERANCE
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	15%

Preview

Download Datasheet

View All

Electrical / Environmental

•

Operating Temperature Range

• DCR Tolerance

• Operating Frequency

-40°C to +125°C

±5 %

Up to 3 MHz

HM56

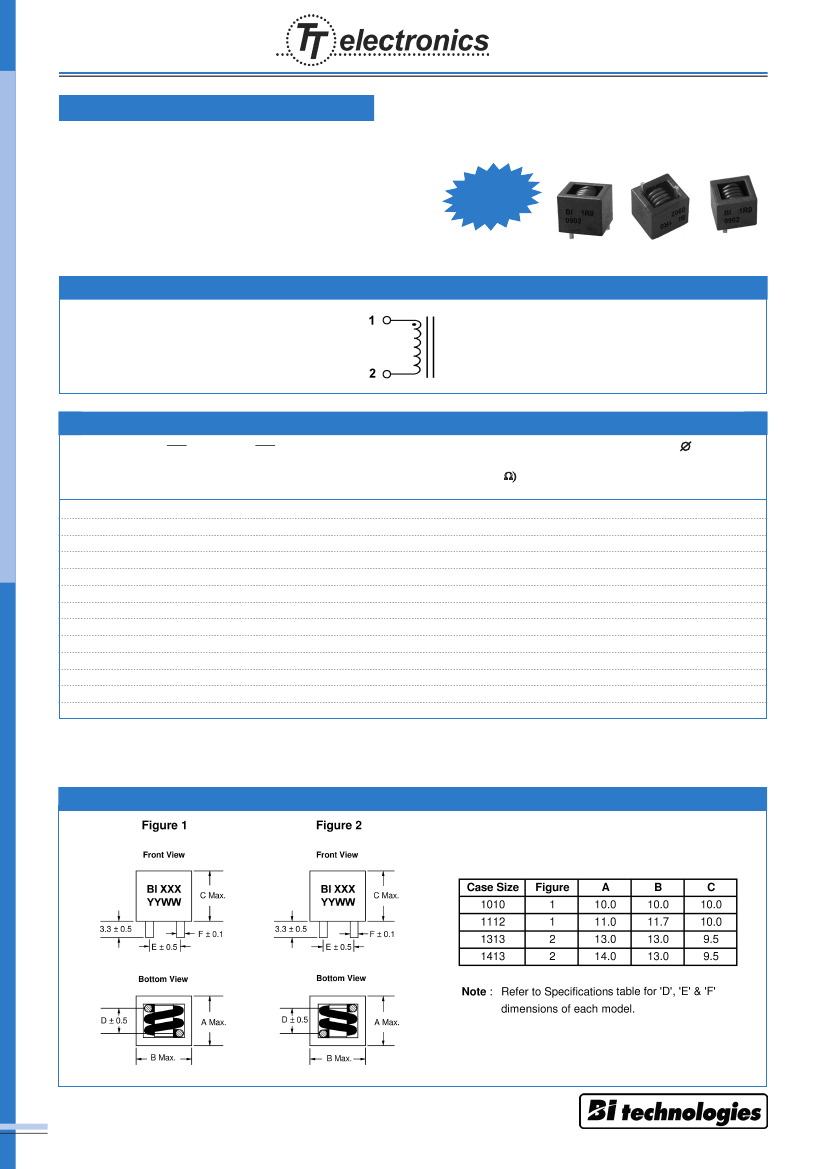

High Current Low Loss Ferrite Cube Inductors

RoH

liant

Schematic

Specifications @ 25°C

Part

Number

HM56-10100R15LF

HM56-11120R19LF

HM56-11120R22LF

HM56-11120R36LF

HM56-11120R4LF

HM56-11120R6LF

HM56-11121R0LF

HM56-11121R3LF

HM56-11121R5LF

HM56-11122R0LF

HM56-11123R0LF

HM56-13131R2LF

HM56-14138R0LF

Inductance

100 kHz, 0.1 V

@ 0 Adc

@ I

rated

µH

15%

µH Typ.

0.15

0.19

0.22

0.37

0.40

0.60

1.00

1.30

1.50

2.00

3.00

1.20

8.00

0.14

0.18

0.20

0.36

0.39

0.54

0.90

1.25

1.45

1.90

2.80

1.00

7.00

rated (1)

(Adc)

3.5

Heating

(2)

Current

(Adc)

sat (3)

(Adc)

100

DCR

±5%

0.60

0.55

0.80

2.00

3.65

7.50

1.30

6.30

Dim. D

(mm)

5.5

5.0

5.4

6.0

5.7

6.0

7.5

9.0

Dim. E

(mm)

5.0

6.0

6.6

7.0

6.9

7.0

7.5

8.0

Leads

Dim. F

(mm Typ.)

1.40

1.45

1.20

0.90

0.72

1.45

0.90

Fig.

Notes: (1) The rated current, I

rated

, is the approximate DC current at which inductance will be decreased by 5% typical from its initial (zero DC) value.

(2) The heating current is the DC current which causes the component temperature to increase by approximately 40°C.

(3) I

sat

is the saturation current at which inductance rolls off approximately 30% from its initial (zero DC) value.

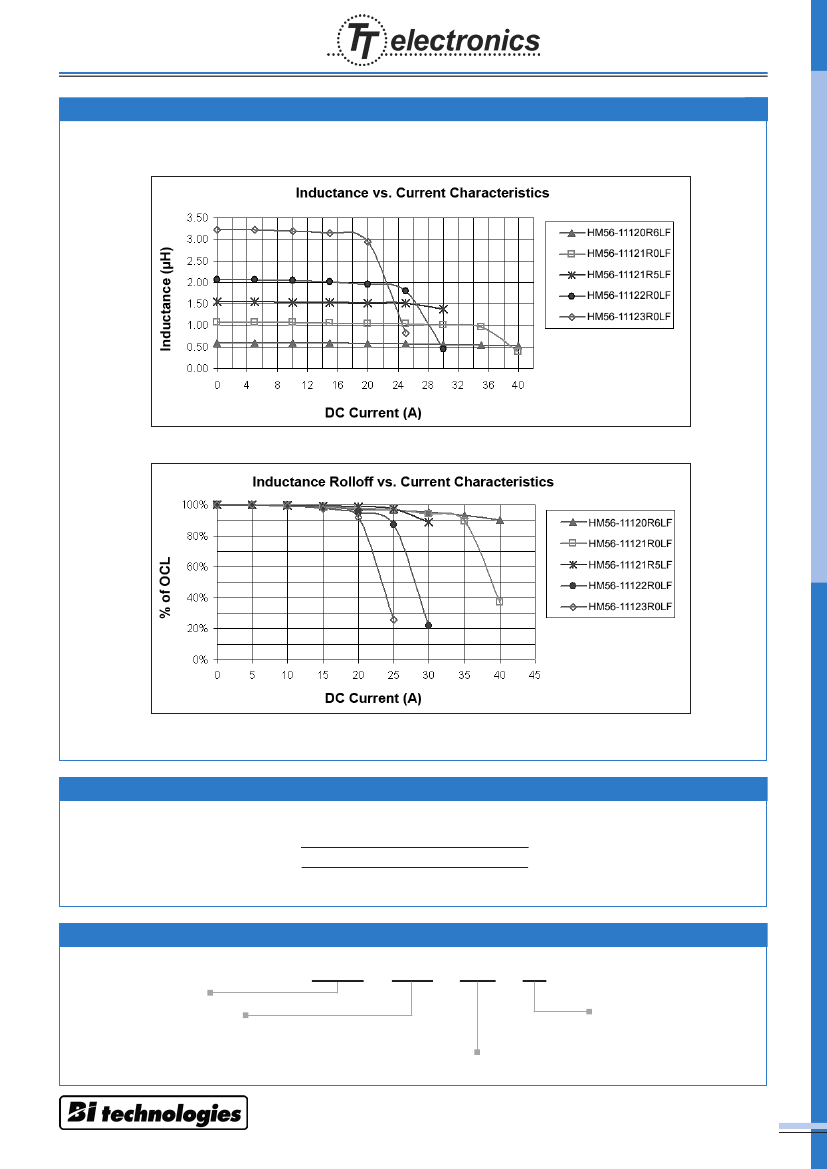

Outline Dimensions (mm)

MAGNETIC COMPONENTS SELECTOR GUIDE 2009/10 EDITION

We reserve the right to change specifications without prior notice.

www.bitechnologies.com
