ECX-53BQZ
SMD CRYSTAL
The ultra-minature rugged ECX-53BQZ compact SMD Crystal.
The 5.0 x 3.2 x 0.9 mm ceramic package is ideal for harsh
environments such as TPMS applications.
ECX-53BQZ SMD CRYSTAL
Request a Sample
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency
Frequency Tolerance
Frequency Stability
Equivalent Series
Resistance (ESR)
@ +25°C
(Standard)
CONDITIONS
MIN
ECX-53BQZ
TYP
MAX
UNITS
26.000
± 15
± 50
100
90
5
MHz
ppm
ppm
Ω
Ω
pF
pF
100
+125
+125
±3
μW
°C
°C
ppm
13.000
-40 ~ +125°C
(Standard)
13 ~ 19.999 MHz
20 ~ 26.000 MHz
•
•
•
•
•
Low Profile
5.0 x 3.2 mm Footprint
Extended Temp. Range
AEC-Q200 Qualified
Automotive/TPMS Applications
Shunt Capacitance
Load Capacitance
Drive Level
Operating Temperature
Storage Temperature
Aging (First Year)
Co
Specify in P/N
D
L
T
opr
T
stg
@ +25°C ±3°C
-40
-40
10
10

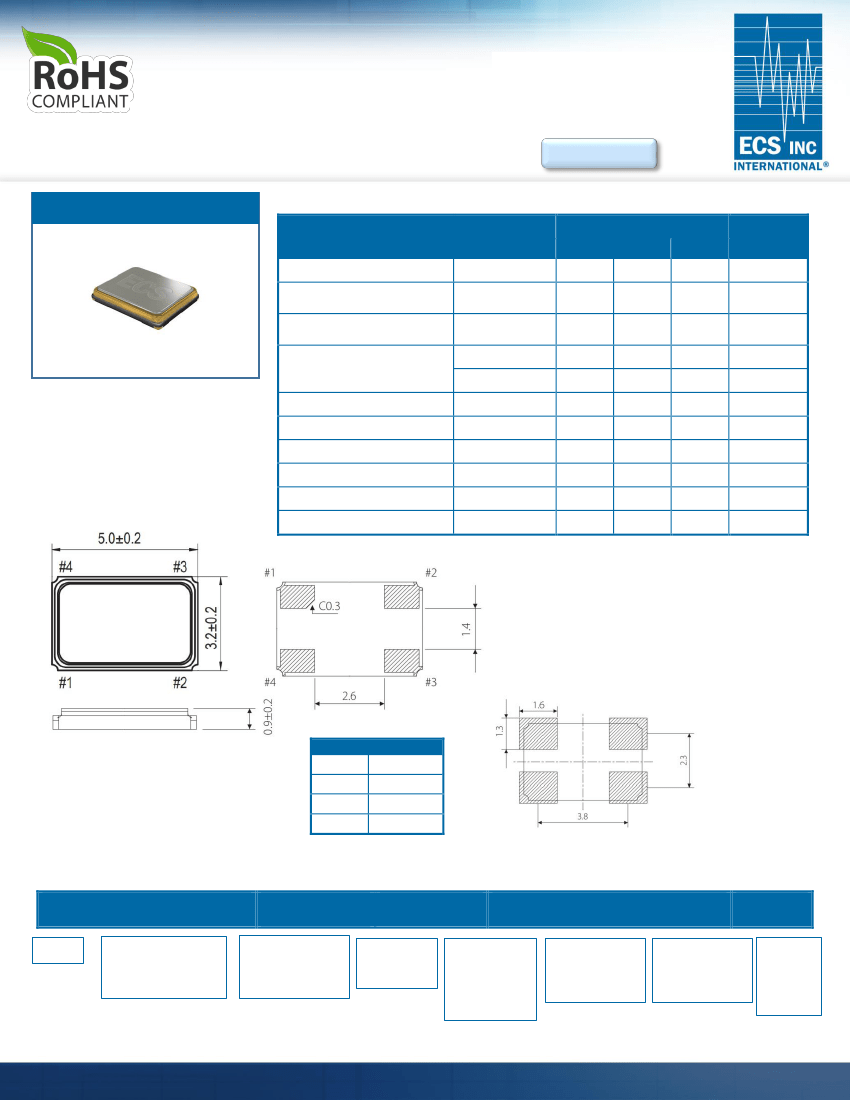

DIMENSIONS (mm)
PAD CONNECTIONS
Figure 1)
Top, Side, and Bottom
Crystal is symmetrical, pad 1 & 3 are interchangeable.
Chamfer on the bottom pad has no electrical
significance.
1
2
3
4
In/Out
Gnd
Out/In
Gnd
Figure 2)
Suggested Land Pattern
PART NUMBERING GUIDE: Example ECS-260-10-30BQZ-TR
ECS - FREQUENCY ABBREVIATION
LOAD
CAPACITANCE
10 = 10 pF
12 = 12 pF
16 = 16 pF
PACKAGE
Tolerance
30BQZ =
ECX-53BQZ
Blank=Standard
AVAILABLE OPTIONS
Stability
Blank=Standard
D = ± 100 ppm
E = ± 50 ppm
G = ±30 ppm
PACKAGING
Temp Range
Blank=Standard
N = -40 ~ +85°C
P = -40 ~ +105°C
S = -40 ~ +125°C

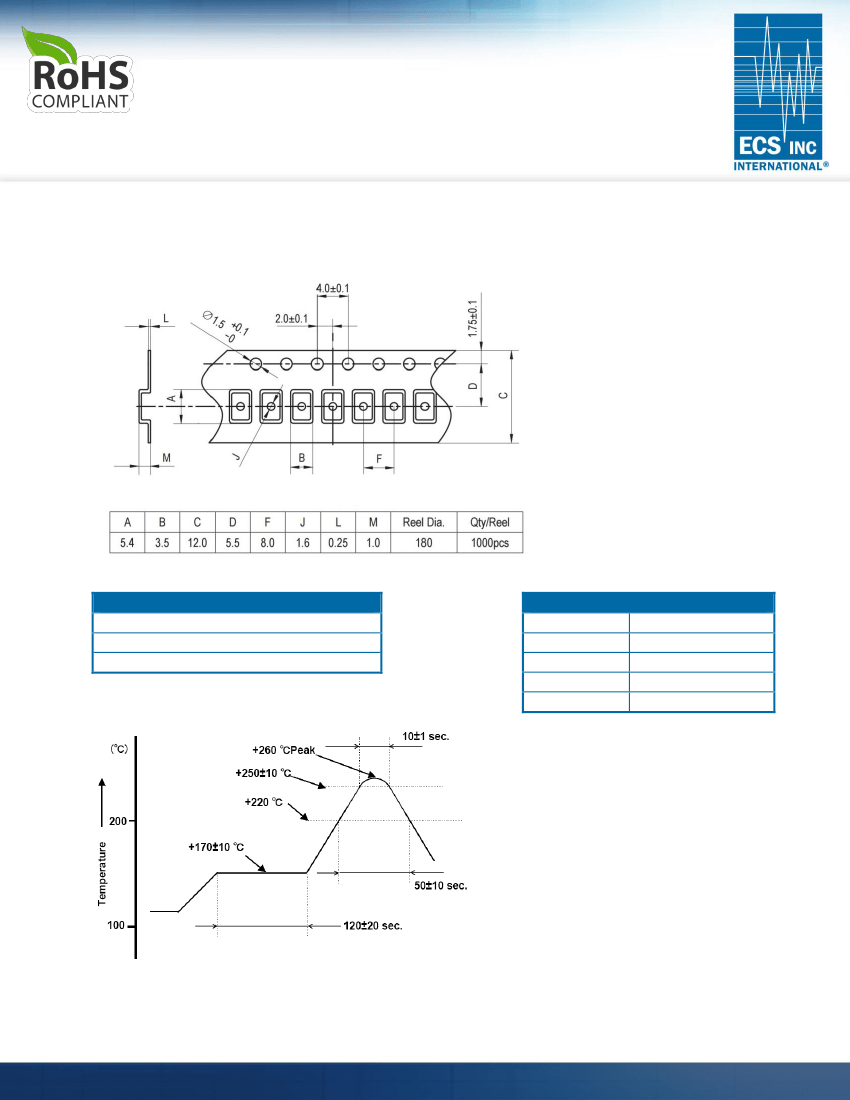

TR =
Tape
& Reel
1K/Reel
ECS
260 = 26.000 MHz
*See Developed
Frequencies Pg. 2
A = ± 25 ppm
J = ± 20 ppm
R = ± 15 ppm
C = ± 10 ppm
*Contact ECS for availability of non-developed or available options.
