THIN-PAC
GENERAL
TM

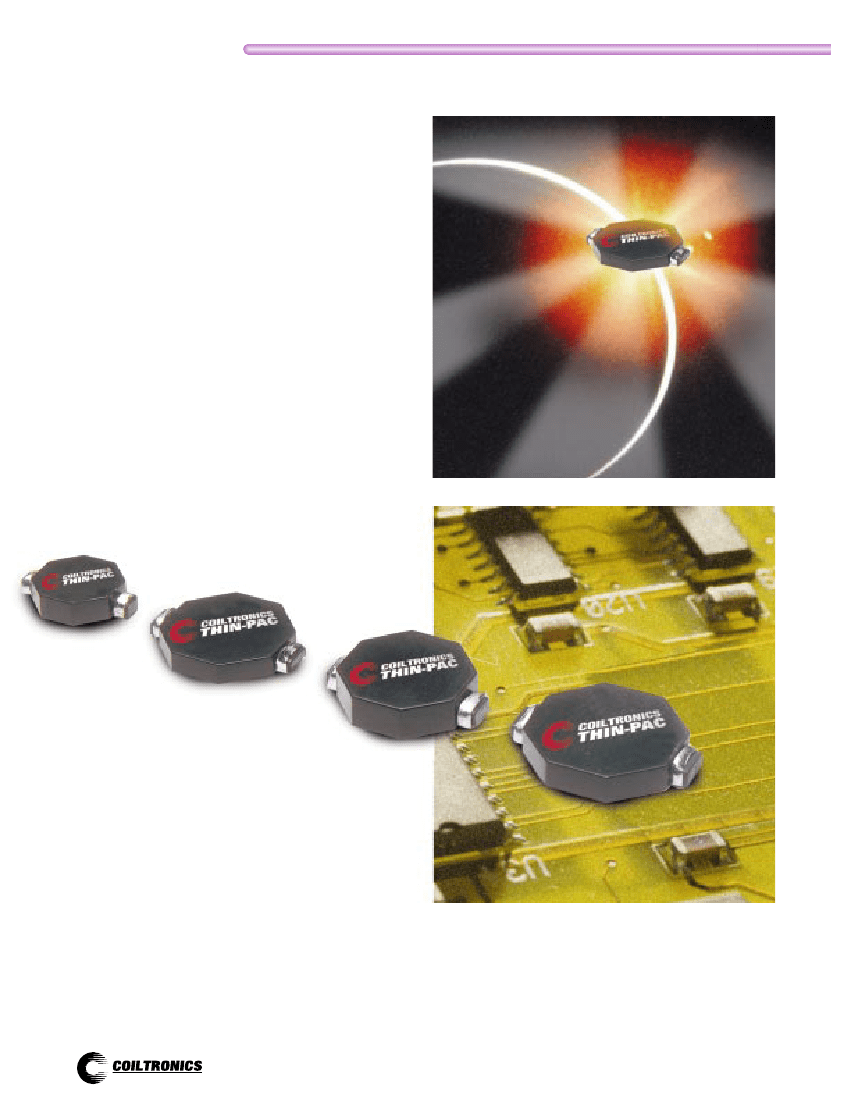

THIN-PACs are extremely thin, highly efficient
surface mount inductors specifically designed for
applications where physical size, especially component
height, is critical. With heights as low as 1.8 mm,
THIN-PACs offer circuit design engineers a choice of
very powerful inductors in very small and thin packages.
THIN-PACs deliver inductance values from 0.47 to
47.0 µH with current ranges from 0.59 to 2.8 Amps.
They are manufactured using toroidal cores for low EMI,
high Q, and high efficiency. The devices incorporate
advanced technology materials and processes resulting
in the highest possible power density in the thinnest
possible case.
THIN-PACs provide circuit design engineers the
highest performance to height ratio of any SMT
inductors. Their ideal applications include DC-DC
converters, PC cards, disk drives, and small-scale
power supplies.
THIN-PACs are packaged on standard 13” reels to
facilitate pick-and-place assembly. Their rugged
construction permits normal exposure to infrared reflow
soldering to +240°C.
In addition to the standard inductance values shown,
modified THIN-PAC inductors are available to meet your
high volume requirements.
FEATURE - BENEFITS
• Ultrathin Product Profile - as Thin as 1.8 mm
• Highest Performance to Height Ratio of Any
SMT Inductors
• Inductance Range from 0.47 to 47.0
µH
• Current Range from 0.59 to 2.8 Amps
• Toroidal Cores provide Low EMI
• High Efficiency and High Q
• Supplied in Tape-and-Reel Packaging
for Pick-and-Place Assembly
• Modified Standard Products Available
Coiltronics designs and manufactures standard and
custom electromagnetic components. Contact the factory
or your Coiltronics representative with your transformer
and inductor requirements.
1
INCORPORATED
6000 PARK OF COMMERCE BOULEVARD • BOCA RATON, FL 33487 • Phone 561-241-7876 • Fax 561-241-9339

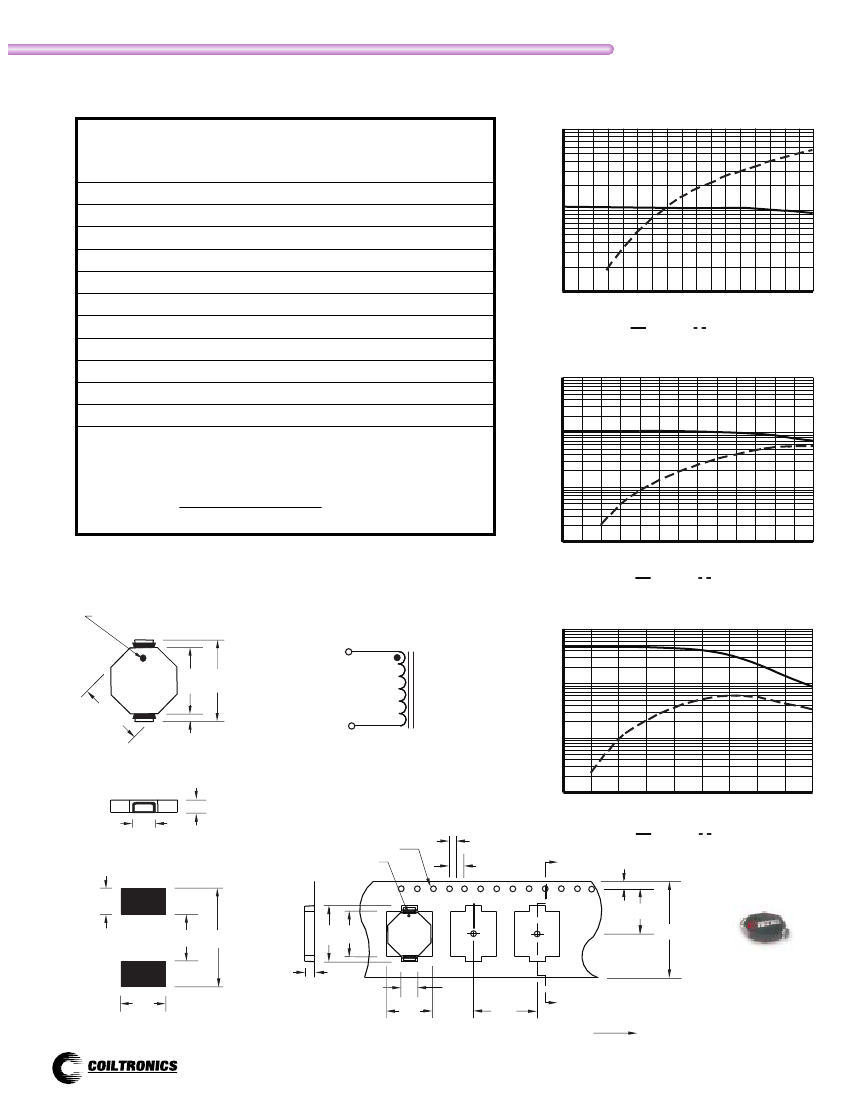

THIN-PAC
THIN-PAC 1 FAMILY TABLE
Part
Number
TP1-R47
*TP1-1R0
TP1-1R5
*TP1-2R2
TP1-3R3
*TP1-4R7
TP1-6R8
*TP1-100
*TP1-150
*TP1-220
*TP1-330
*TP1-470
Notes:
TM
Inductance
µH (rated)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
OCL
µH +/-20%
0.544
1.17
1.57
2.55
3.73
5.10
7.45
10.31
16.57
24.25
38.56
49.49
I
RMS
Amperes
1.7
1.5
1.4
1.3
1.2
1.1
0.96
0.90
0.81
0.74
0.66
0.62
I
SAT
DCR
Amperes Ohms max.
3.0
2.6
2.2
1.8
1.5
1.3
1.1
0.92
0.73
0.60
0.47
0.43
0.1085
0.1401
0.1560
0.1876
0.2246
0.2647
0.3240
0.3739
0.4612
0.5483
0.6847
0.7699
m
Henries or
m
Watt-Seconds
(1)
(2)
(3)
(4)
10.0
Typical Inductance & Energy vs Saturation Current
TP1-1R0
1.0
0.1
0.01
0.0 0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6 1.8
2.0
2.2
2.4 2.6
Amperes (Peak)
Inductance
Energy
100.0
Typical Inductance & Energy vs Saturation Current
TP1-100
m
Henries or
m
Watt-Seconds
10.0
(1) Open Circuit Inductance Test Parameters: 100 KHz, 0.250 Vrms, 0.0 Adc.
(2) RMS current for an approximate
∆T
of 40°C. at an ambient temperature of 85°C.
(3) Peak current for approximately 30% rolloff.
(4) Values @ 20°C.
1.0
*
BOLD are available from stock
Coiltronics Incorporated reserves the right to change component specifications without notice.
0.1
0.0
0.1
0.2
0.3
0.4
0.5
0.6
Energy
0.7
0.8
0.9
1.0
Amperes (Peak)
MECHANICAL DIAGRAM
TOP VIEW
1
Pin # 1 Indicator.
m
Henries or
m
Watt-Seconds
Inductance
CONNECTION DIAGRAM
1
9.40 12.20
max.
100.0
Typical Inductance & Energy vs Saturation Current
TP1-470
10.0
9.40
2
1.27
2
1.0
SIDE VIEW
0.1
3.18 max.
1.8
max.
PACKAGING INFORMATION
Parts are packaged on 13” reels. 2250 parts per reel.
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Amperes (Peak)
Inductance
Energy
PCB PAD LAYOUT
1
4.19
1.5 Dia.
2.0
4.0
Pin #1 Indicator.
A
1.75
11.5
Component View 6.48
14.86
12.6
9.9
2.4
24.0
ACTUAL SIZE
THIN PAC 1
2
6.35
SECTION A-A
3.9
9.9
12.0
A
Direction of feed
INCORPORATED
6000 PARK OF COMMERCE BOULEVARD • BOCA RATON, FL 33487 • Phone 561-241-7876 • Fax 561-241-9339
2

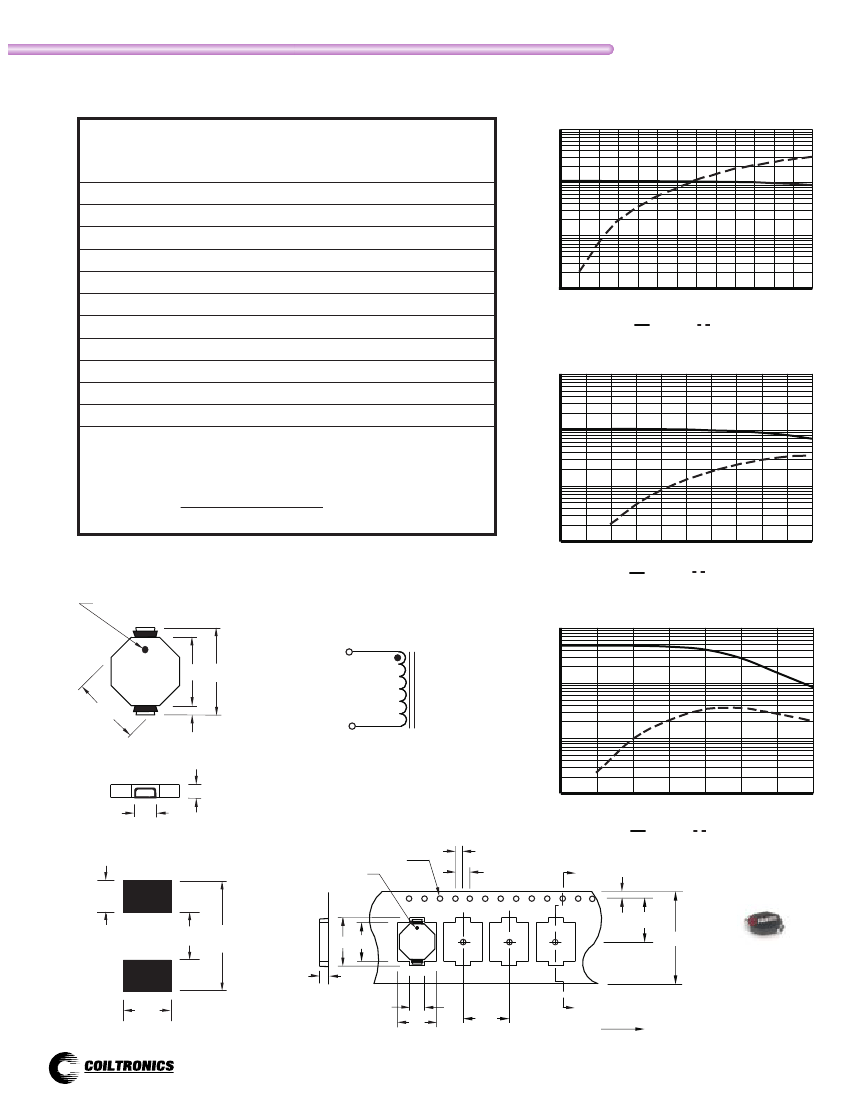

THIN-PAC
Part
Number
TP2-R47
*TP2-1R0
TP2-1R5
*TP2-2R2
TP2-3R3
*TP2-4R7
TP2-6R8
*TP2-100
*TP2-150
*TP2-220
*TP2-330
*TP2-470
Notes:
TM
THIN-PAC 2 FAMILY TABLE
Inductance
µH (rated)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
OCL
µH +/-20%
0.399
1.00
1.53
2.15
3.45
4.56
6.84
9.53
14.83
23.11
32.34
47.68
(1)
TP2-1R0
I
RMS
Amperes
2.2
1.8
1.7
1.5
1.4
1.3
1.2
1.1
1.0
0.88
0.67
0.60
(2)
I
SAT
DCR
Amperes Ohms max.
3.2
2.1
1.7
1.4
1.1
0.97
0.80
0.68
0.54
0.44
0.37
0.30
0.0537
0.0805
0.0910
0.1110
0.1328
0.1472
0.1797
0.2151
0.2512
0.3269
0.5677
0.6962
(3)
(4)
m
Henries or
m
Watt-Seconds
10.0
Typical Inductance & Energy vs Saturation Current
1.0
0.1
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
Amperes (Peak)
Inductance
Energy
TP2-100
100.0
Typical Inductance & Energy vs Saturation Current
m
Henries or
m
Watt-Seconds
10.0
(1) Open Circuit Inductance Test Parameters: 100 KHz, 0.250 Vrms, 0.0 Adc.
(2) RMS current for an approximate
∆T
of 40°C. at an ambient temperature of 85°C.
(3) Peak current for approximately 30% rolloff.
(4) Values @ 20°C.
1.0
*
BOLD are available from stock
Coiltronics Incorporated reserves the right to change component specifications without notice.
0.1
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
MECHANICAL DIAGRAM
TOP VIEW
Pin # 1 Indicator.
Amperes (Peak)
Inductance
Energy
CONNECTION DIAGRAM
1
9.40
6.60 max.
m
Henries or
m
Watt-Seconds
1
100.0
Typical Inductance & Energy vs Saturation Current
TP2-470
10.0
6.60
2
2
1.27
1.0
SIDE VIEW
0.1
0.0
0.1
0.2
0.3
0.4
0.5
0.6
PACKAGING INFORMATION
2.51 max.
Parts are packaged on 13” reels. 2000 parts per reel.
Amperes (Peak)
Inductance
Energy
PCB PAD LAYOUT
1
4.06
2.2
max.
1.5 Dia.
Pin #1 Indicator.
2.0
4.0
A
1.75
11.5
Component View
3.81
11.93
9.8 7.1
2.5
SECTION A-A
2.9
7.1
12.0
24.0
ACTUAL SIZE
THIN PAC 2
2
5.08
A
Direction of feed
3
INCORPORATED
6000 PARK OF COMMERCE BOULEVARD • BOCA RATON, FL 33487 • Phone 561-241-7876 • Fax 561-241-9339

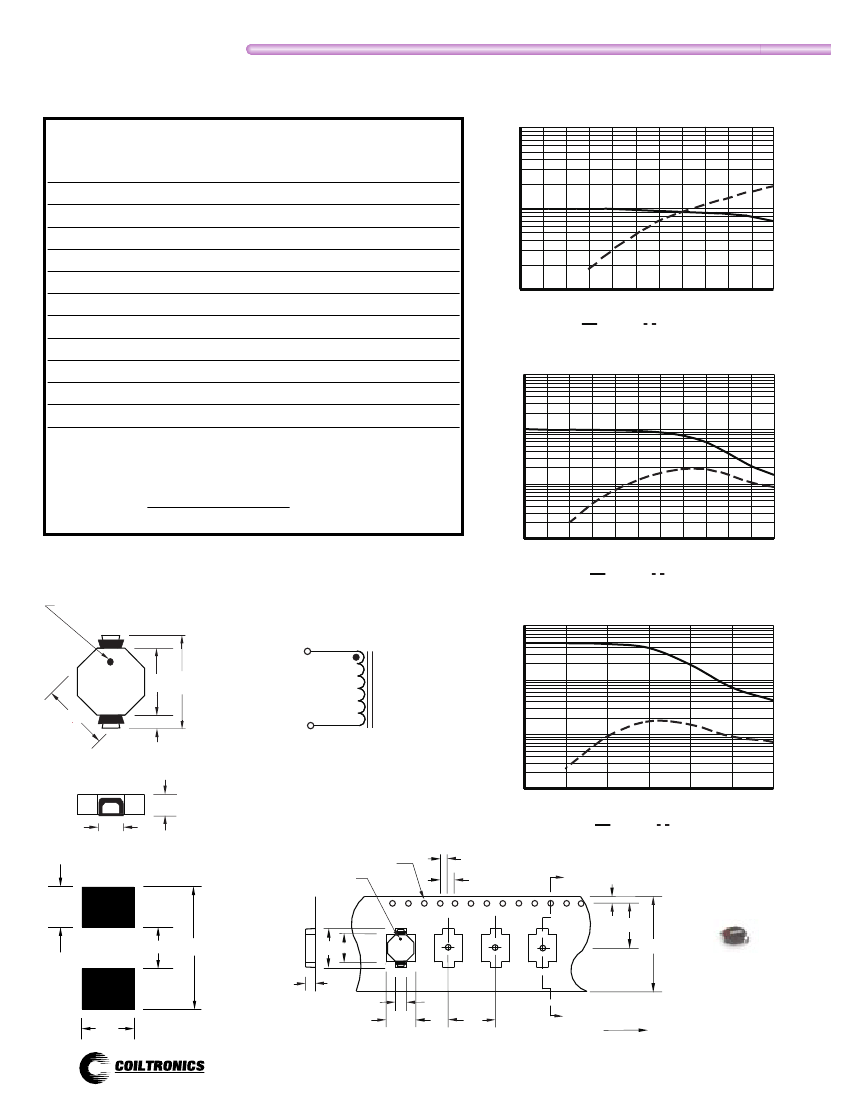

THIN-PAC
THIN-PAC 3 FAMILY TABLE
m
Henries or
m
Watt-Seconds
TM
Part
Number
TP3-R47
*TP3-1R0
TP3-1R5
*TP3-2R2
TP3-3R3
*TP3-4R7
TP3-6R8
*TP3-100
*TP3-150
*TP3-220
*TP3-330
*TP3-470
Notes:
Inductance
µH (rated)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
OCL
µH +/-20%
0.417
1.15
1.65
2.24
3.68
5.45
7.47
11.09
15.17
23.99
35.08
47.71
(1)
I
RMS
Amperes
2.6
2.1
2.0
1.8
1.7
1.5
1.4
1.3
1.2
1.1
0.96
0.90
(2)
I
SAT
DCR
Amperes Ohms max.
4.2
3.4
2.8
2.4
1.9
1.6
1.3
1.1
0.97
0.78
0.64
0.55
0.0644
0.0949
0.1064
0.1241
0.1471
0.1806
0.2051
0.2550
0.2966
(3)
(4)
10.0
Typical Inductance & Energy vs Saturation Current
TP3-1R0
1.0
0.1
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4
Amperes (Peak)
Inductance
Energy
0.4433
0.5122
m
Henries or
m
Watt-Seconds
0.3700
100.0
Typical Inductance & Energy vs Saturation Current
TP3-100
10.0
(1) Open Circuit Inductance Test Parameters: 100 KHz, 0.250 Vrms, 0.0 Adc.
(2) RMS current for an approximate
∆T
of 40°C. at an ambient temperature of 85°C.
(3) Peak current for approximately 30% rolloff.
(4) Values @ 20°C.
1.0
*
BOLD are available from stock
Coiltronics Incorporated reserves the right to change component specifications without notice.
0.1
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
MECHANICAL DIAGRAM
TOP VIEW
Pin #1 Indicator.
Amperes (Peak)
Inductance
Energy
1
10.80 13.59
max.
10.80
2
m
Henries or
m
Watt-Seconds
1
CONNECTION DIAGRAM
100.0
Typical Inductance & Energy vs Saturation Current
TP3-470
10.0
1.27
2
1.0
SIDE VIEW
0.1
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
3.68 max.
PACKAGING INFORMATION
2.2
max.
Parts are packaged on 13” reels. 1500 parts per reel.
Amperes (Peak)
Inductance
Energy
PCB PAD LAYOUT
1
4.19
1.5 Dia.
Pin # 1 Indicator.
2.0
4.0
A
1.75
11.5
16.25
Component View 7.87
14.0 11.3
2.5
SECTION A-A
11.3
24.0
ACTUAL SIZE
THIN PAC 3
2
7.40
4.1
16.0
A
Direction of feed
INCORPORATED
6000 PARK OF COMMERCE BOULEVARD • BOCA RATON, FL 33487 • Phone 561-241-7876 • Fax 561-241-9339
4
