NMC0201Y5V103Z6.3TRP datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> NMC0201Y5V103Z6.3TRP

Preview

NMC0201Y5V103Z6.3TRP: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 6.3V, Y5V, 0.01uF, SURFACE MOUNT, 0201, CHIP; CategoryPassive components capacitor; File Size164KB，3 Pages; ManufacturerNIC Components Corp

Download Datasheet Parametric View All

NMC0201Y5V103Z6.3TRP Overview

CAPACITOR, CERAMIC, MULTILAYER, 6.3V, Y5V, 0.01uF, SURFACE MOUNT, 0201, CHIP

NMC0201Y5V103Z6.3TRP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1969002863
package instruction	, 0201
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.01 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e0
Manufacturer's serial number	NMC
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER
positive tolerance	80%
Rated (DC) voltage (URdc)	6.3 V
size code	0201
surface mount	YES
Temperature characteristic code	Y5V
Temperature Coefficient	-82/+22% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

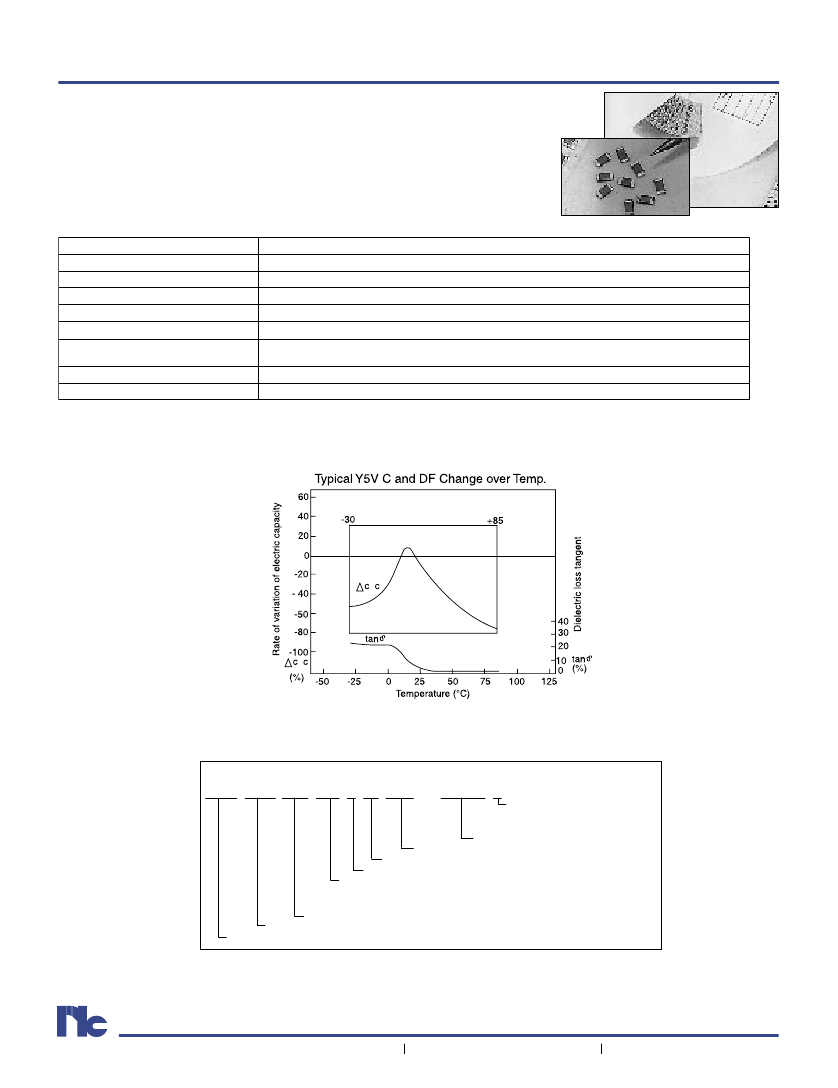

Multilayer Ceramic Chip Capacitors

FEATURES

• HIGH K DIELECTRIC

• HIGH CAPACITANCE DENSITY

• HIGH CV VALUES AVAILABLE

• EXCELLENT MECHANICAL STRENGTH

• NICKEL BARRIER TERMINATIONS

NMC Series Y5V

Capacitance Range

Capacitance Tolerances

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

Insulation Resistance (+25

O

C, Rated

Voltage)

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

1000pF to 100

µF

+80% -20%(Z)

-30

o

C to +85

o

C

+22% to -82% max. over temperature range

6.3Vdc, 10Vdc, 16Vdc, 25Vdc, 50Vdc

See Size Chart

10,000 Megohms or 100 ohm/F, whichever is less

150% of Rated Voltage for 1 to 5 seconds

1khz, 1.0V ±0.2Vrms

PART NUMBERING SYSTEM

NMC 0805 Y5V 103 Z 50 TRP or TRPLP F

Lead Free Terminations

(100% Sn optional)

Series

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Paper carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

®

10

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com
