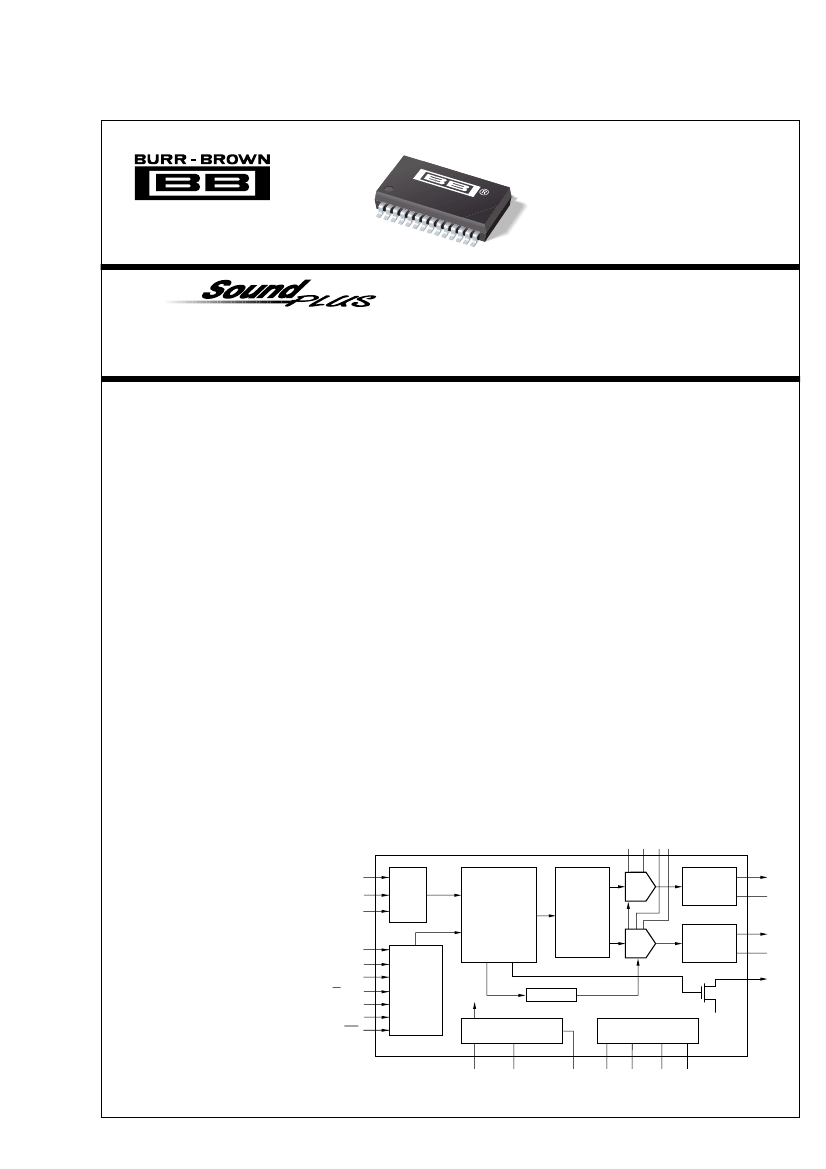

Digital Audio applications which achieve 96kHz sam-
pling rates with 24-bit audio data. PCM1716 uses a
newly developed, enhanced multi-level delta-sigma
modulator architecture that improves audio dynamic
performance and reduces jitter sensitivity in actual
applications.
The internal digital filter operates at 8x over sampling
at a 96kHz sampling rate, with two kinds of roll-off
performances that can be selected: sharp roll-off, or
slow roll-off, as required for specific applications.
PCM1716 is suitable for Mid to High grade audio
applications such as CD, DVD-Audio, and Music
Instruments, since the device has superior audio
dynamic performance, 24-bit resolution and 96kHz
sampling.
AGND2L
V
CC2
L
V
CC2
R
AGND2L
DAC
8X Oversampling
Digital Filter with
Function
Controller
Enhanced
Multi-level
Delta-Sigma
Modulator
DAC
Low-pass
Filter
V
OUT
L
EXTL
ML/IIS
MC/DM1
MD/DM0
CS/IWO
MODE
MUTE
RST
Crystal/OSC
Mode
Control
I/F
Low-pass
Filter
V
OUT
R
EXTR
ZERO
SCK
BPZ-Cont.
Open Drain
Power Supply
XTI
XTO
CLKO
V
CC1
AGND1
V
DD
DGND
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
NOTES: (1) Refer section of system clock. (2) External buffer is recommended. (3) Dynamic performance specs are tested with 20kHz low pass filter and THD+N
specs are tested with 30kHz LPF, 400Hz HPF, Average Mode. (4) SNR is tested at internally infinity zero detection off.
®
PCM1716
2
PIN CONFIGURATION
PIN ASSIGNMENTS
PIN
1
NAME
LRCIN
DIN
BCKIN
CLKO
XTI
XTO
DGND
V
DD
V
CC
2R
AGND2R
EXTR
NC
V
OUT
R
AGND1
V
CC
1
V
OUT
L
NC
EXTL
AGND2L
V
CC
2L
ZERO
RST
CS/IWO
MODE
MUTE
MD/DM0
MC/DM1
ML/I
2
S
I/O
IN
IN
IN
OUT
IN
OUT
—
—
—
—
OUT
—
OUT
—
—
OUT
—
OUT
—
—
OUT
IN
IN
IN
IN
IN
IN
IN
DESCRIPTION
Left and Right Clock Input. This clock is equal to
the sampling rate - f
S
.
(1)
Serial Audio Data Input
(1)
Bit Clock Input for Serial Audio Data.
(1)
Buffered Output of Oscillator. Equivalent to
System Clock.
Oscillator Input (External Clock Input)
Oscillator Output
Digital Ground
Digital Power +5V
Analog Power +5V
Analog Ground
Rch, Common Pin of Analog Output Amp
No Connection
Rch, Analog Voltage Output of Audio Signal
Analog Ground
Analog Power +5V
Lch, Analog Voltage Output of Audio Signal
No Connection
Lch, Common Pin of Analog Output Amp
Analog Ground
Analog Power +5V
Zero Data Flag
Reset. When this pin is low, the DF and
modulators are held in reset.
(2)
Chip Select/Input Format Selection. When this
pin is low, the Mode Control is effective.
(3)
Mode Control Select. (H: Software, L: Hardware)
(2)
Mute Control
Mode Control, DATA/De-emphasis Selection 1
(2)
Mode Control, BCK/De-emphasis Selection 2
(2)
Mode Control, WDCK/Input Format Selection
(2)
LRCIN
DIN
BCKIN
CLKO
XTI
XTO
DGND
V
DD
V
CC
2R
1
2
3
4
5
6
7
PCM1716E
8
9
28 ML/IIS
27 MC/DM1
26 MD/DM0
25 MUTE
24 MODE
23 CS/IWO
22 RST
21 ZERO
20 V
CC
2L
19
18
17
16
15
AGND2L
EXTL
NC
V
OUT
L
V
CC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
AGND2R 10
EXTR 11
NC 12
V
OUT
R 13
AGND1 14
PACKAGE INFORMATION
PRODUCT
PCM1716E
PACKAGE
28-Pin SSOP
PACKAGE DRAWING
NUMBER
(1)
324
24
25
26
27
28
NOTE: (1) For detailed drawing and dimension table, please see end of data
Input Logic Voltage .................................................. –0.3V to (V
DD
+ 0.3V)
Input Current (except power supply) ...............................................
±10mA
Power Dissipation .......................................................................... 400mW
Operating Temperature Range ......................................... –25°C to +85°C
Storage Temperature ...................................................... –55°C to +125°C
Lead Temperature (soldering, 5s) ................................................. +260°C
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
