Self-Locking or Non-Self-Locking
CONNECTOR DESIGNATOR:
Dash No.
Table I
Page 62-26
Finish
Table II
Page 62-26
AS85049/120

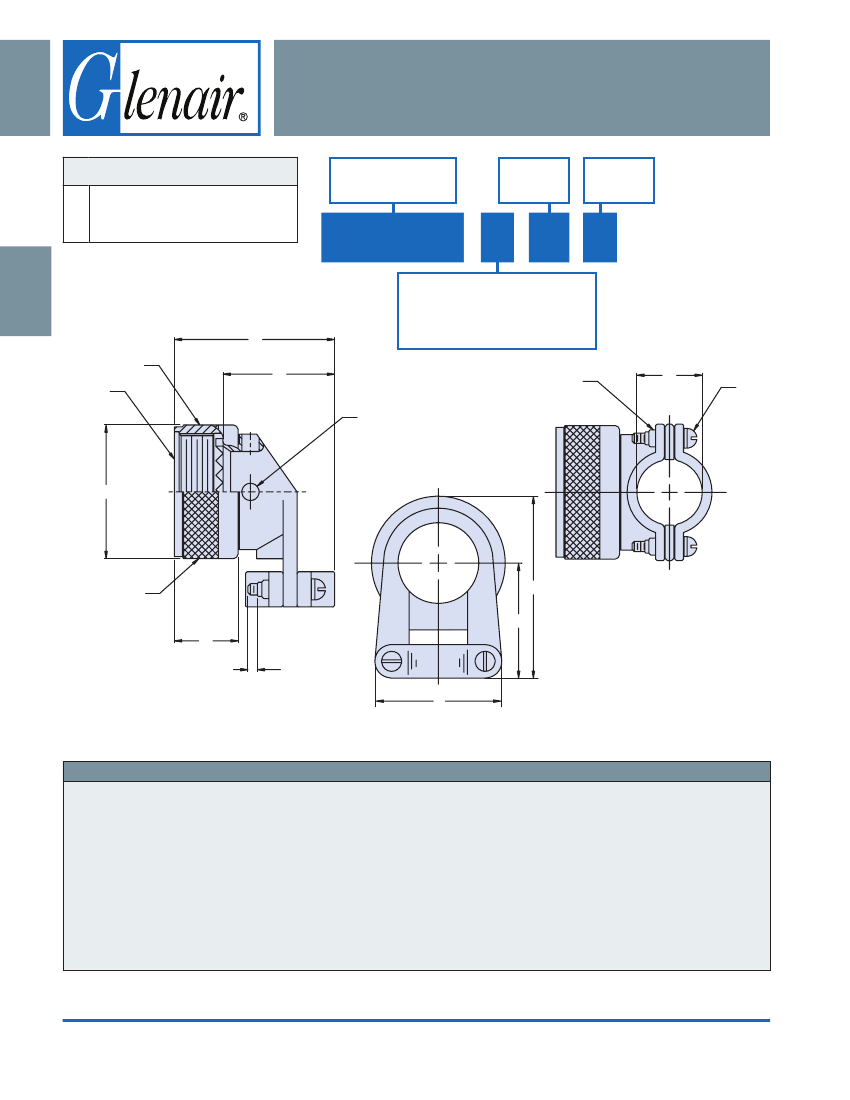

90° Strain Relief
B
E
Coupling Nut
A Thread
D
AS85049
A
AS5015 Series AS34001 Crimp,
MIL-DTL-26482 Series II,
SAE-AS1703 Crimp Series III,
MIL-DTL-83723 Series I & III
Product Series and
Basic Part Number
M85049/120
S
08
W
S
=
Detented Self-Locking
N
= Non-Detented Self-Locking
Use Dash (–) for Non-Self-Locking
(See Note 5)
.125 (3.2)
Drain Holes
3 Min, Equally
Spaced
Captive
Self-locking Nut
Typ
C
Screw
B
Knurl Style
Optional
F
J
.060/.380
(1.52/9.65)
Screw
Extension
G
H
APPLICATION NOTES
1.
2.
3.
4.
5.
6.
Assembly to be identified with manufacturer’s name and part number, space permitting.
Glenair Series 600 Backshell Assembly Tools are recommended for assembly and installation.
Metric equivalents in parentheses (mm) are given for general information only and are based on 1.000 inch = 25.4 mm.
Cable entry is measured with saddle bars closed and bottomed on clamp ears.
Detented self-locking has a positive audible detented coupling.
Material/Finish:
Clamp body, coupling nut, saddles - Al alloy or 300 Series SST/See Table II.
Clamp screws and lock nuts - CRES/Passivated, Silver plate optional.
Anti-rotation device - Corrosion resistant material
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
© 2013 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-126
E-Mail: sales@glenair.com
Self-Locking or Non-Self-Locking
TABLE I: Dash Number, Shell Size, Thread and Dimensions (Continued Below)
Dash Screw
No.
Size
03
08
10
12
14
16
18
20
22
24
28
32
36
40
44
48
61
4-40
4-40
4-40
4-40
4-40
4-40
6-32
6-32
6-32
8-32
8-32
8-32
8-32
8-32
8-32
8-32
8-32
MIL-DTL-83723
Series III
––
8
10
12
14
16
18
20
22
24
––
––
––
––
––
––
––
MIL-DTL-5015
MS3400 Series
––
8S
10S, 10SL
12, 12S
14.14S
16, 16S
18
20
22
24
28
32
36
40
44
48
––
AS81703
Series III
3
––
––
7
12
19
27
37
––
––
––
––
––
––
––
––
61
MIL-DTL-26482
Series II
––
8
10
12
14
16
18
20
24
––
––
––
––
––
––
––
––
A Thread
Class 2B
9/16-24 UNEF
1/2-20 UNF
5/8-20 UNEF
3/4-20 UNEF
7/8-20 UNEF
1-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
1 3/4-18 UNS
2-18 UNS
2 1/4-16 UN
2 1/2-16 UN
2 3/4-16 UN
3-16 UN
1 1/2-18 UNEF
B Dia
Max
.95 (24.1)
.89 (22.6)
1.01 (25.7)
1.14 (29.0)
1.26 (32.0)
1.39 (35.3)
1.51 (38.4)
1.64 (41.7)
1.176 (44.7)
1.89 (48.0)
2.14 (54.4)
2.40 (61.0)
2.64 (67.1)
2.89 (73.4)
3.14 (79.8)
3.39 (86.1)
1.95 (49.5)
C Dim
± .031 (0.8)
.219 (5.6)
.219 (5.6)
.264 (6.7)
.344 (8.7)
.460 (11.7)
.545 (13.8)
.615 (15.6)
.698 (17.7)
.780 (19.8)
.850 (21.6)
.950 (24.1)
1.015 (25.8)
1.187 (30.1)
1.220 (31.0)
1.500 (38.1)
1.625 (41.3)
.850 (21.6)
D
Max
.93 (23.6)
.93 (23.6)
1.02 (25.9)
1.21 (30.7)
1.27 (32.3)
1.42 (36.1)
1.53 (38.9)
1.65 (41.9)
1.78 (45.2)
1.90 (48.3)
2.20 (55.9)
2.27 (57.7)
2.39 (60.7)
2.52 (64.0)
2.77 (70.4)
2.89 (73.4)
1.90 (48.3)
E Max
Length
1.29 (32.8)
1.29 (32.8)
1.38 (35.1)
1.57 (39.9)
1.63 (41.4)
1.78 (45.2)
1.89 (48.0)
2.01 (51.1)
2.14 (54.4)
2.26 (57.4)
2.72 (69.1)
2.79 (70.9)
3.91 (73.9)
3.04 (77.2)
3.29 (83.6)
3.41 (86.6)
2.26 (57.4)
B
TABLE I: (Continued from Above)
Dash
No.
03
08
10
12
14
16
18
20
22
24
28
32
36
40
44
48
61
Screw
Size
4-40
4-40
4-40
4-40
4-40
4-40
6-32
6-32
6-32
8-32
8-32
8-32
8-32
8-32
8-32
8-32
8-32
MIL-DTL-83723
Series III
––
8
10
12
14
16
18
20
22
24
––
––
––
––
––
––
––
MIL-DTL-5015
MS3400 Series
––
8S
10S, 10SL
12, 12S
14.14S
16, 16S
18
20
22
24
28
32
36
40
44
48
––
AS81703
Series III
3
––
––
7
12
19
27
37
––
––
––
––
––
––
––
––
61
MIL-DTL-26482
Series II
––
8
10
12
14
16
18
20
24
––
––
––
––
––
––
––
––
F Dim
Max
G Dim
Max
H Dim
Max
.88 (22.4)
.88 (22.4)
.94 (23.9)
1.12 (28.4)
1.19 (30.2)
1.44 (36.6)
1.56 (39.6)
1.69 (42.9)
1.75 (44.5)
1.88 (47.8)
2.12 (53.8)
2.50 (63.5)
2.62 (66.5)
2.68 (68.1)
3.00 (76.2)
3.50 (88.9)
1.88 (47.8)
J Dim
Max
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.890 (22.6)
.890 (22.6)
.890 (22.6)
.890 (22.6)
.890 (22.6)
.890 (22.6)
.710 (18.0)
.84 (21.3) 1.32 (33.5)`
.81 (20.6) 1.26 (32.0)
.87 (22.1) 1.38 (35.1)
.93 (23.6) 1.50 (38.1)
1.00 (25.4) 1.62 (41.4)
1.06 (26.9) 1.75 (44.5)
1.23 (31.2) 1.99 (50.5)
1.30 (33.0) 2.07 (52.6)
1.36 (34.5) 2.25 (57.2)
1.42 (36.1) 2.37 (60.2)
1.63 (41.4) 2.70 (68.6)
1.86 (47.2) 3.05 (77.5)
1.98 (50.3) 3.30 (83.8)
2.10 (53.3) 3.55 (90.2)
2.36 (59.9) 3.93 (99.8)
2.48 (63.0) 4.18 (106.2)
1.45 (36.8) 2.43 (61.7)
TABLE II: Material and Finish
Symbol
A
N
W
X
Y
Z
S
300 Series SST
Material
Finish
Black Anodize
Electroless Nickel
Cadmium, Olive Drab
Nickel Fluorocarbon Polymer
Pure Dense Electrodeposited
Aluminum
Zinc Nickel
Passivated
Aluminum Alloy
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-127
E-Mail: sales@glenair.com
