FND2-3.5LS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> FND2-3.5LS

FND2-3.5LS: Descriptionspade tongue terminal; CategoryThe connector terminals; File Size90KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

FND2-3.5LS Overview

spade tongue terminal

FND2-3.5LS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	FND2-3.5LS
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Conductor cross section	2.63 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

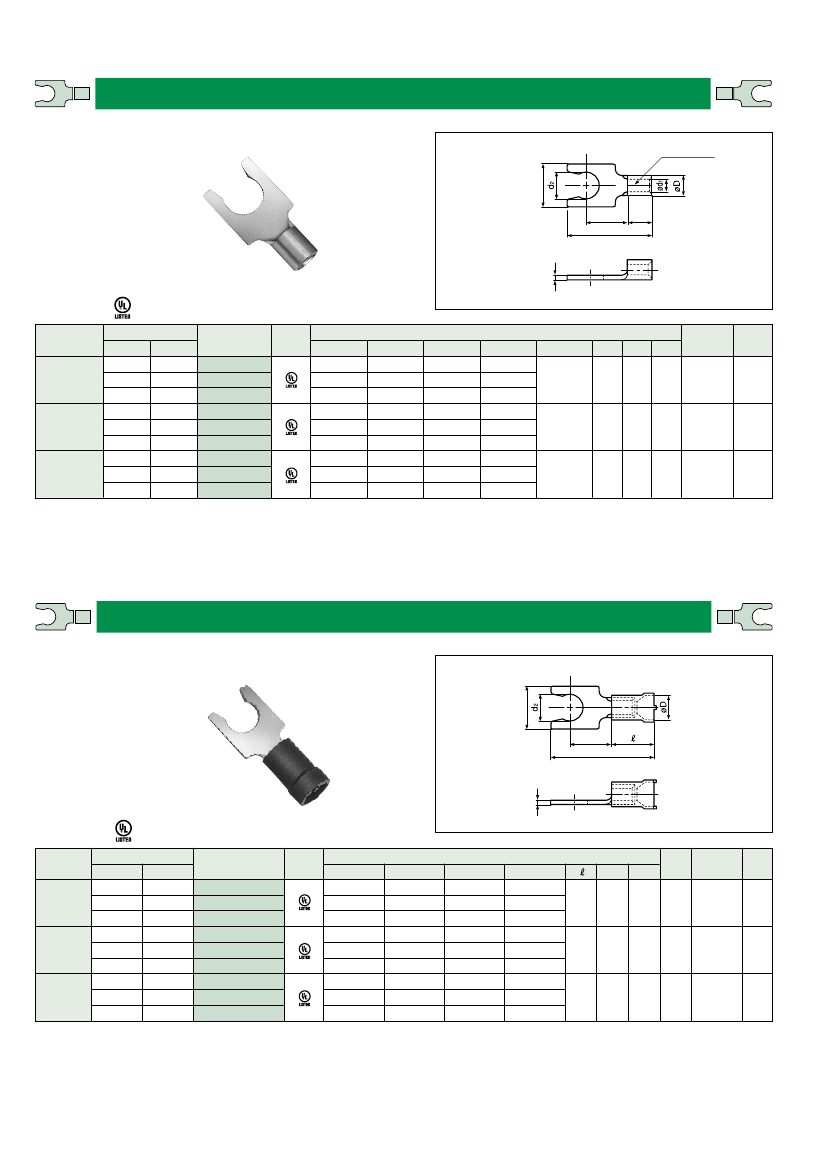

Solderless terminals

LOCKING SPADE TONGUE (LS type)

Non-insulated

Brazed seam

Certificate No.:

E42024

Part No.

1.25-3.5LS

1.25-4LS

1.25-5LS

2-3.5LS

2-4LS

2-5LS

5.5-3.5LS

5.5-4LS

5.5-5LS

Standard

Dimensions mm (in.)

13.6 (.535)

16.0 (.630)

17.0 (.669)

14.0 (.551)

16.0 (.630)

17.0 (.669)

18.2 (.717)

5.9 (.232)

7.2 (.283)

8.2 (.323)

6.3 (.248)

7.4 (.291)

8.4 (.331)

7.1 (.280)

6.8 (.268)

5.5

3.6

0.9

(.217) (.142) (.035)

4.8 (.189)

Tool No.

YHT-2210

YA-1

YA-2

YA-4

BCT-0514

YHT-2210

YA-1

YA-2

YA-4

BCT-0514

YHT-2210

YA-1

YA-2

YA-4

BCT-0514

Stud size

Applicable Wire

AWG#(mm

) American Metric

22 to 16

(0.25 to 1.65)

16 to 14

(1.04 to 2.63)

12 to 10

(2.63 to 6.64)

3.5

3.7 (.146)

4.3 (.169)

5.3 (.209)

3.7 (.146)

4.3 (.169)

5.3 (.209)

3.7 (.146)

4.3 (.169)

5.3 (.209)

6.4 (.252)

7.1 (.280)

8.4 (.331)

6.4 (.252)

7.1 (.280)

8.4 (.331)

7.9 (.311)

8.4 (.331)

øD

ø d

Qty/box

3.3

1.9

0.7

(.130) (.075) (.028)

4.0

2.3

0.8

(.157) (.091) (.031)

1,000

500

Note:1) The part numbers indicated in the above table are for products with a brazed seam.

Delivery lead times may vary depending on the product. Contact JST for details.

Solderless terminals

LOCKING SPADE TONGUE (LS type)

Vinyl-insulated (funnel-entry)

Certificate No.:

Applicable Wire

AWG#(mm

)

22 to 16

*(0.25 to

1.65)

16 to 14

(1.04 to

2.63)

12 to 10

(2.63 to

6.64)

E42024

Stud size

Part No.

FVL1.25-3.5LS

FVL1.25-4LS

FVL1.25-5LS

FVL2-3.5LS

FVL2-4LS

FVL2-5LS

FVL5.5-3.5LS

FVL5.5-4LS

FVL5.5-5LS

Standard

Dimensions mm (in.)

3.7 (.146)

4.3 (.169)

5.3 (.209)

3.7 (.146)

4.3 (.169)

5.3 (.209)

3.7 (.146)

4.3 (.169)

5.3 (.209)

6.4 (.252)

7.1 (.280)

8.4 (.331)

6.4 (.252)

7.1 (.280)

8.4 (.331)

7.9 (.311)

8.4 (.331)

18.2 (.717)

20.6 (.811)

21.6 (.850)

18.6 (.732)

20.6 (.811)

21.6 (.850)

25.2 (.992)

5.9 (.232)

7.2 (.283)

8.2 (.323)

6.3 (.248)

7.4 (.291)

8.4 (.331)

7.1 (.280)

øD

Color

Tool No. Qty/box

YNT-2216

YA-1

YA-2

YA-4

BCT-0514

YNT-1614

YA-1

YA-2

YA-4

BCT-0514

American

Metric

3.5

4.0

9.4

0.7

(.157) (.028)

(.370)

4.5

0.8

9.4

(.370) (.177) (.031)

Red

1,000

Blue

1,000

0.9

13.8

6.8

Yellow

(.543) (.268) (.035)

YNT-1210S

YA-4

BCT-0514

500

Note:1) The part numbers indicated in the above table are for products with a brazed seam.

2) *The crimping will be more secure if the total cross-sectional area of the wire is at least 0.5 mm

Examples: If the cross-sectional area of the wire is 0.3mm

, fold the wire in two when crimping the terminal.

If the cross-sectional area of the wire is 0.5mm

, crimp the terminal onto the wire as it is.

Delivery lead times may vary depending on the product. Contact JST for details.
