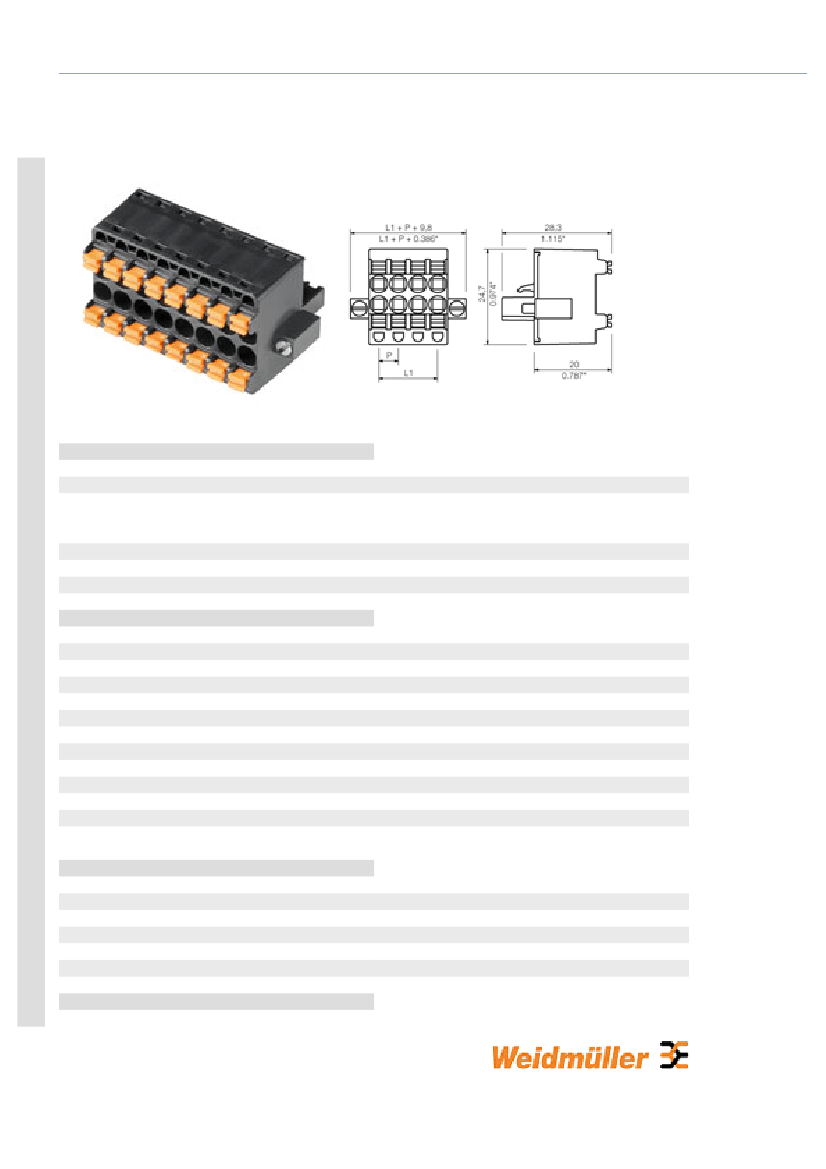

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLDF 5.08/180 | BLDF 5.08/180F SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Packaging
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch in mm
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 57 106
Material data
Insulating material
Colour
colour chart
Flammability class UL 94
Contact material
Contact surface
Connectable conductors
Clamping range, min.
1065120000
BLDF 5.08/08/180F SN OR BX
PCB plug-in connector, PUSH IN, Clamping
range, max.: 3.31 mm², Pitch in mm: 5.08 mm, No.
of poles: 8, 180°, Box
4032248817658
50 pc(s).
Box
PUSH IN
180°
5.08 mm
0.2 inch
8
1
0.6 x 3.5
DIN 5264
10 mm
35.56 mm
1.4 inch
IP 20
Safe from finger touch
PBT
Orange
Similar to RAL 2000
V-0
CuSn
tinned
0.13 mm²
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLDF 5.08/180 | BLDF 5.08/180F SN
Connectable conductors
Clamping range, max.
Conductor connection cross-section AWG, min.
Conductor connection cross-section AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Stranded, max. H07V-R
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
w. wire end ferrule, DIN 46228 pt 1, min
with wire end ferrule, DIN 46228 pt 1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
with plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. of poles (Tu=20°C)
Rated current, max. No. of poles (Tu=20°C)
Rated current, no. of poles (Tu=40°C), min.
Rated current, no. of poles (Tu=40°C), max.
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage at overvoltage category/pollution
degree III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
Approvals
Approvals institutes
Classifications
eClass 6.0
Notes
Notes
3.31 mm²
AWG 26
AWG 12
0.2 mm²
2.5 mm²
2 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
2.4 mm x 1.5 mm
18.5 A
6A
12.5 A
6A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
27-26-07-04
Similar products
Order No.
1000930000
1001220000
Part designation
BLDF 5.08/02/180F SN BK BX
BLDF 5.08/02/180F SN OR BX
Version
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 2, 180°, Box
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLDF 5.08/180 | BLDF 5.08/180F SN
1000950000
1000960000
1059420000
1000970000
1065080000
1000980000
1065090000
1000990000
1001000000
BLDF 5.08/03/180F SN BK BX
BLDF 5.08/04/180F SN BK BX
BLDF 5.08/04/180F SN OR BX
BLDF 5.08/05/180F SN BK BX
BLDF 5.08/05/180F SN OR BX
BLDF 5.08/06/180F SN BK BX
BLDF 5.08/06/180F SN OR BX
BLDF 5.08/07/180F SN BK BX
BLDF 5.08/08/180F SN BK BX
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 8, 180°, Box
-3-
