UPT2P101MHT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPT2P101MHT

UPT2P101MHT: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 220V, 100uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size79KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UPT2P101MHT Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 220V, 100uF, THROUGH HOLE MOUNT, RADIAL LEADED

UPT2P101MHT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1986815270
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	1.33 mA
Manufacturer's serial number	PT
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	220 V
ripple current	430 mA
surface mount	NO
Delta tangent	0.12
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

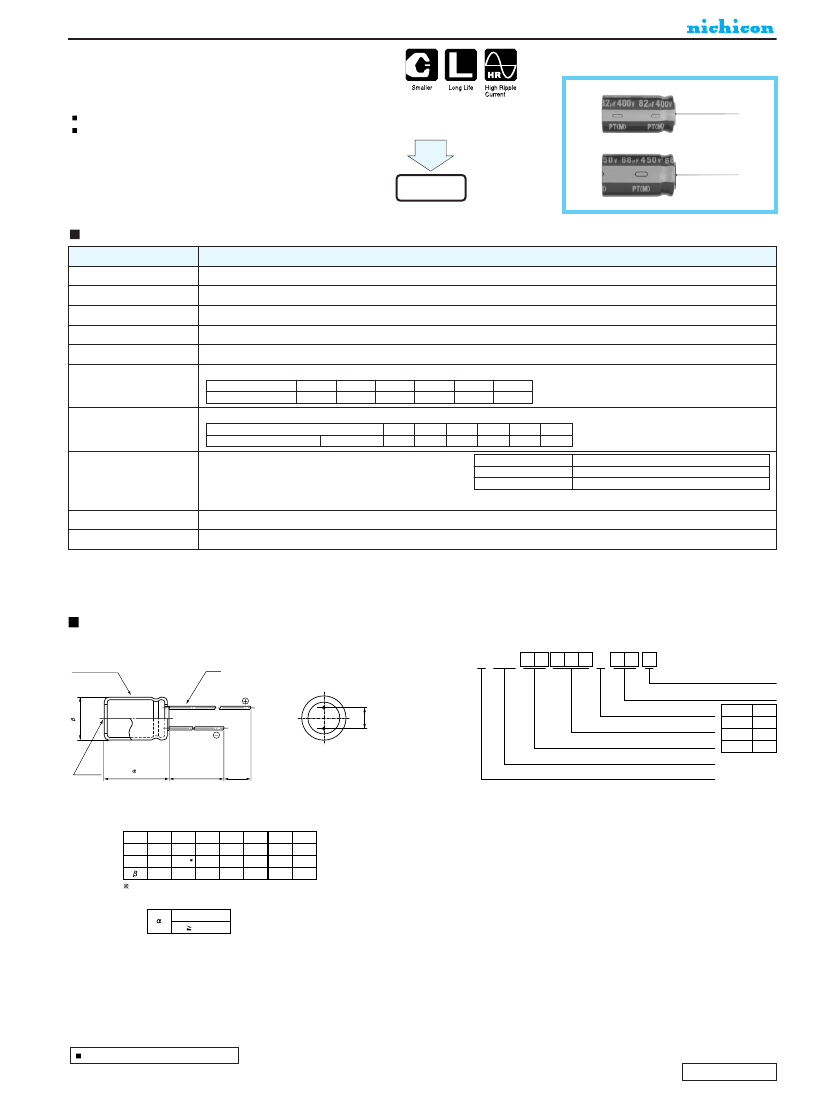

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, High Ripple Current, Long Life

series

High ripple current.

Suited for ballast application.

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Performance Characteristics

– 25 ~ +105°C

200 ~ 450V

15 ~ 820µF

± 20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.06CV+10 (µA) , whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

(MAX.)

200

0.12

220

0.12

250

0.12

400

0.15

420

0.20

450

0.20

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Impedance ratio ZT / Z20 (MAX.) Z–25°C / Z+20°C

200

220

250

400

420

450

Within ± 20% of initial value

200% or less of initial specified value

Initial specified value or less

Endurance

After an application of D.C. bias voltage plus the rated ripple

current for 5000 hours at 105°C the peak voltage shall not

exceed the rated D.C. voltage, capacitors meet the

characteristic requirements listed at right.

Capacitance change

tan

Leakage current

Shelf Life

Marking

After leaving capacitors under no load at 105°C for 1000 hours, they meet the specified value for endurance characteritics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Type numbering system (Example : 250V 220µF)

10 11

Sleeve (P.E.T.)

U P T 2 E 2 2 1 M H T

Case Size Code

Configuration

MAX

0.5

Capacitance tolerance (± 20%)

Rated Capacitance (220µF)

Rated voltage (250V)

Series name

12.5 ~ 18

20 ~ 25

Code

φD

Pressure

relief vent

L+

MAX

MIN

Type

φD

φd

5.0

0.6

0.5

12.5

5.0

0.6

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

0.5

10.0

1.0

12.5

1.0

In case L > 25 for the

φ12.5

dia. unit, lead dia.

d = 0.8mm.

φD

< 2 0 : 1 .5

φD

2 0 : 2 .0

Please refer to page 18, 19, 20 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.
