300HBT2V20 datasheet, PDF - EEWORLD Datasheet

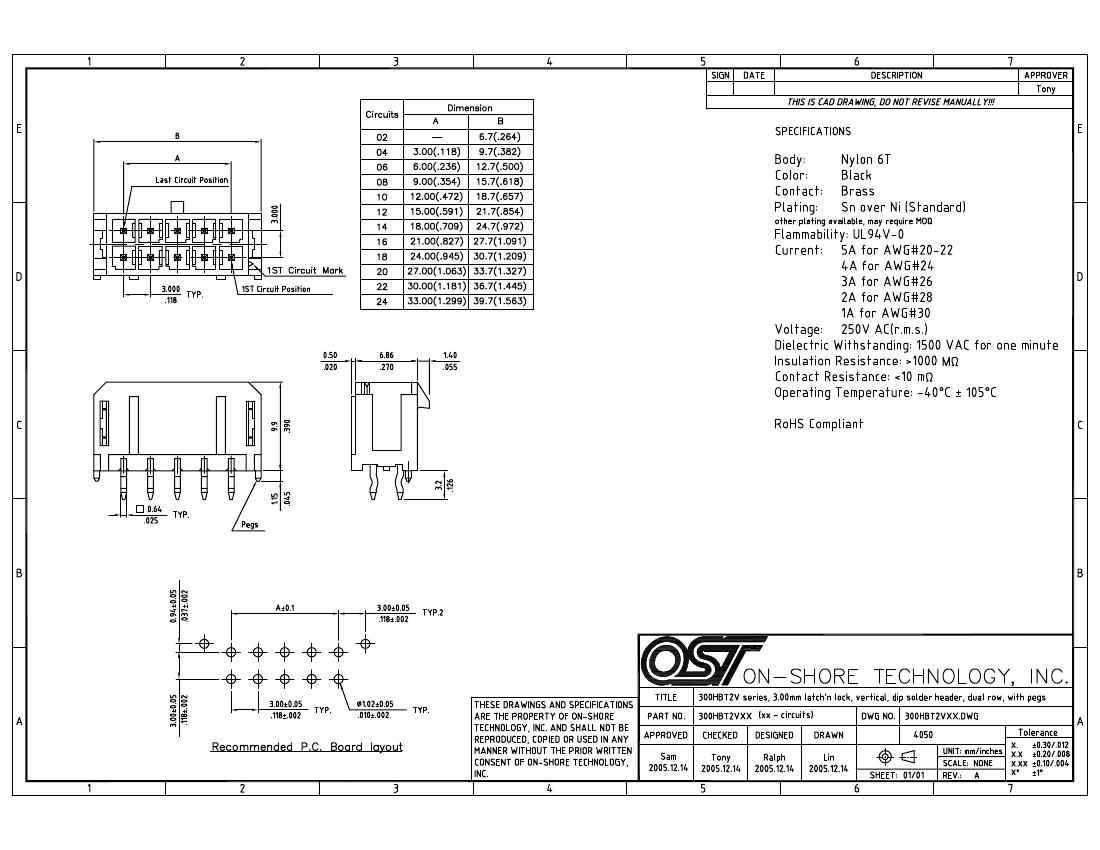

300HBT2V20: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Solder Kinked Leads Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerOn-Shore Technology ( OST ); Websitehttp://www.on-shore.com

Download Datasheet Parametric View All

300HBT2V20 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Solder Kinked Leads Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Objectid	304410898
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.45
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.345 inch
subject depth	0.39 inch
body length	1.327 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
Manufacturer's serial number	300HBT2V
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	20
