490-28.0M-5F-TCO datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 490-28.0M-5F-TCO

490-28.0M-5F-TCO: DescriptionPECL Output Clock Oscillator, 28MHz Nom, ROHS COMPLIANT, J-LEADED, SMD, 4 PIN; CategoryPassive components oscillator; File Size136KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric View All

490-28.0M-5F-TCO Overview

PECL Output Clock Oscillator, 28MHz Nom, ROHS COMPLIANT, J-LEADED, SMD, 4 PIN

490-28.0M-5F-TCO Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1352317583
Reach Compliance Code	compliant
Other features	COMPLIMENTARY OUTPUT
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	492
Installation features	SURFACE MOUNT
Nominal operating frequency	28 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	PECL
Output load	50 OHM
physical size	14.8mm x 9.8mm x 6.4mm
longest rise time	2 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

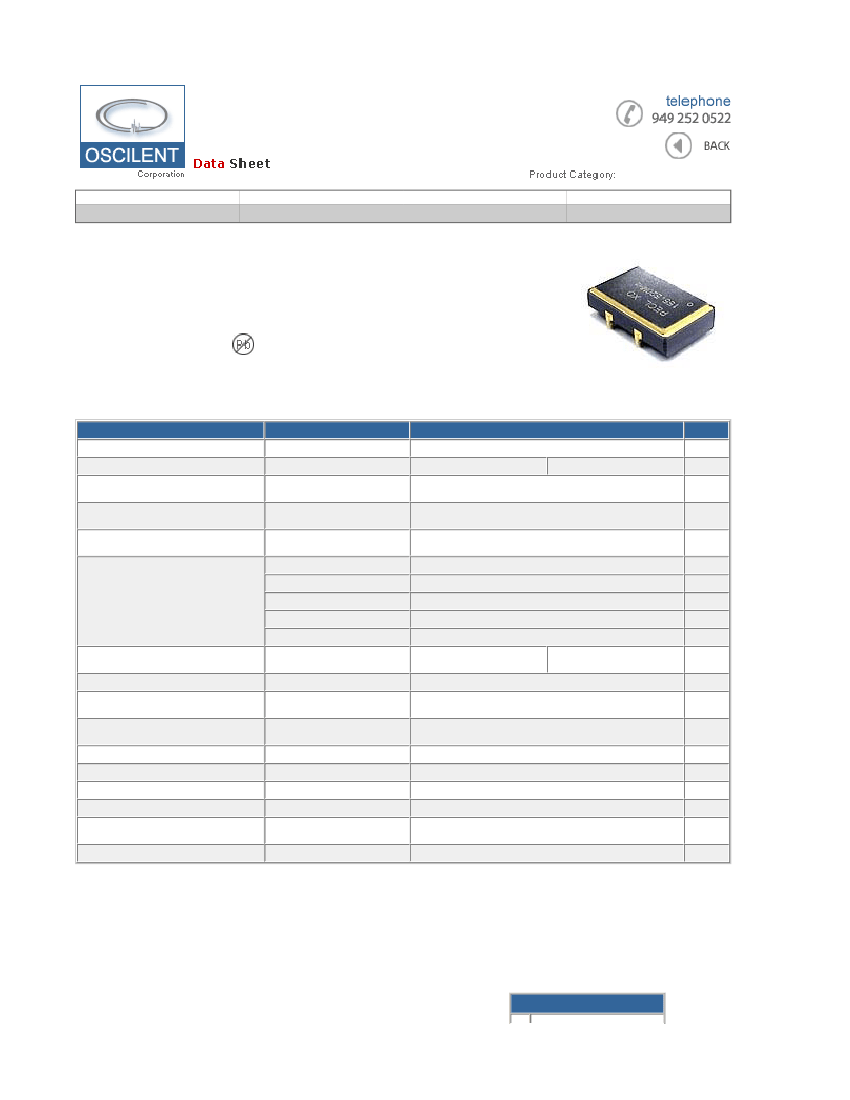

Oscilent Corporation | 490 Series Surface Mount Crystal Oscillator

Page 1 of 2

SMD Oscillators

Series Number

Package

Description

Last Modified

490

4 Pad J-Lead Ceramic

PECL Output

Jan. 01 2002

FEATURES

- Wave form symmetry of 40/60%

- PECL output

- Industry standard J-Lead SMD Package

- RoHs / Lead Free compliant

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Output Logic

Input Voltage (VDD)

Frequency Range (f

)

Operating Temperature (T

OPR

)

Storage Temperature (T

STG

)

Overall Frequency Stability

CONDITIONS

(a) Frequency Tolerance

(b) Temperature Stability

(d) Load Stability

Input Current (I

)

Aging

Rise Time (T

)

Fall Time (T

)

Output Voltage High "1" VOH

Output Voltage Low "0" VOL

Load

Duty Cycle

Start-Up Time (T

)

Jitter

@ 25°C

20% to 80% of Waveform

PECL

50% of Waveform

RMS

CHARACTERISTICS

Positive ECL Square Wave (PECL)

3.3 ±10%

5.0 ±10%

UNITS

VDC

MHz

°C

PPM

PPM/Y

VDC

Ohms

19.440 ~ 180.0 (Fund, Third, Fifth / UM-1)

0 ~ +70 (Std.) / -40 ~ 85 (Option)

-55 ~ +125

±20 (0 ~ +70°C Only), ±25, ±50, ±100 max.

Inclusive of Overall Stability

Inclusive of Overall Stability (Operating Temperature)

Inclusive of Overall Stability (VDD ±5%)

Inclusive of Overall Stability (RL ±5%)

80 max.

±1 max.

2 max.

VDD - 1.025 min.

VDD - 1.620 max.

50 ±10 (Std.) / 50 ±5 (Option)

10 max.

3.5 max.

120 max.

PIN CONNECTIONS
