CHR04027.32KOHMS1%50PPM datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CHR04027.32KOHMS1%50PPM

CHR04027.32KOHMS1%50PPM: DescriptionFixed Resistor, 0.05W, 7320ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP; CategoryPassive components The resistor; File Size277KB，2 Pages; ManufacturerRiedon Inc.; Websitehttps://riedon.com/; Environmental Compliance

Download Datasheet Parametric View All

CHR04027.32KOHMS1%50PPM Overview

Fixed Resistor, 0.05W, 7320ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP

CHR04027.32KOHMS1%50PPM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145071824052
package instruction	CHIP
Reach Compliance Code	compliant
Other features	RATED AC VOLTAGE (V): 30
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.28 mm
Package length	0.95 mm
Package form	SMT
Package width	0.48 mm
method of packing	TR, BLISTER, 7/13 INCH
Rated power dissipation(P)	0.05 W
resistance	7320 Ω
Resistor type	FIXED RESISTOR
size code	0402
surface mount	YES
Temperature Coefficient	50 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	1%

CHR04027.32KOHMS1%50PPM Preview

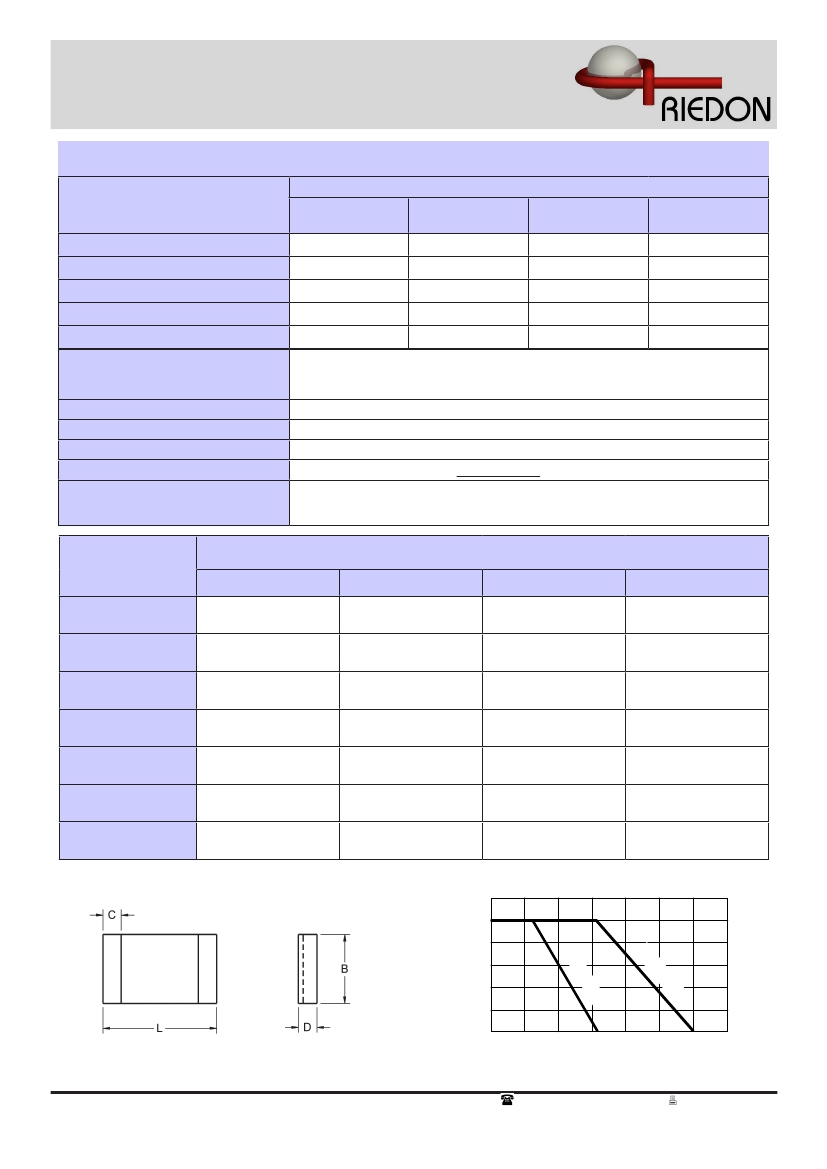

CHR Series

Non-magnetic Chip Resistors

•

Resistances from 1 Ohm to 10M Ohms

Power Rating 0.05 to 2Watt

Resistance Tolerances to ± 0.5%

TCR’s to ± 50 ppm/°C

Non-Magnetic (contact PtAg)

Suitable for Gluing or Soldering

Sizes: 0402 / 0603 / 0805 / 1206 / 2010 / 2512 / 4020

Special High Temperature Version to 300°C (H)

(See ordering Information below)

SPECIFICATIONS

Type

Power Rating ( W )

Working

Voltage

( VAC )

Trimmed

Untrimmed

(≥ 5% tol.)

0402

0.05

0603

0.10

150

0805

0.125

100

200

1206

0.25

200

400

2010

0.50

250

900

2512

1.0

300

1200

4020

2.0

500

1200

Resistance Range

(

)

10% to 20%

250

5% to 10%

100

1% to 10%

50 / 100

5% to 20%

50 / 100

Tolerances Available ( % )

Temperature Coefficients Available ( ± ppm/°C )

(others upon request)

1W - <10W

5% to 20%

100 / 250

2% to 10%

50 / 100

1% to 10%

50 / 100

1% to 10%

50 / 100

5% to 20%

100 / 250

1% to 10%

50 / 100

0.5% to

10%

50 / 100

1% to 10%

50 / 100

5% to 20%

100 / 250

1% to 10%

50 / 100

0.5% to

10%

50 / 100

1% to 10%

50 / 100

5% to 20%

100 / 250

1% to 10%

50 / 100

0.5% to

10%

50 / 100

1% to 10%

50 / 100

5% to 20%

100 / 250

1% to 10%

50 / 100

0.5% to

10%

50 / 100

1% to 10%

50 / 100

5% to 20%

100 / 250

1% to 10%

50 / 100

0.5% to

10%

50 / 100

1% to 10%

50 / 100

10W - <100W

100W - 1M

>1M - 10M

1) TCR: in ppm/C; +25°C...+125°C; TCR below standard TCR (highest value): +25°C...+85°C

2) Continuous operating voltage (V_, Veff): V ≤ √ (P*R) or max. working voltage (the lower value)

3) Solder pads must be sufficiently large to keep resistors’s peak temperature below rating

4) Best tolerance for HIgh Temp version is 2%

Ordering Information

Standard Part Description: Part Type - Resistance - Tolerance - TCR

Example: CHR0603 10 kOhms 5% 50ppm

High Temperature Example: CHR0805H 50 kOhms 10% 50ppm

(Note: if no TCR is specified, the highest value will be supplied)

Riedon, Inc

Riedon Inc.

300 Cypress Avenue

Alhambra CA 91801

(626) 284-9901

www.riedon.com

sales@riedon.com

Revised: 201904_002

(626) 284-1704

CHR Series

Non-magnetic Chip Resistors

SPECIFICATIONS

Long Term Stability

Storage 125°C / 1000h

Storage 155°C / 1000h

Load Life / P=70% / 70°C / 1000h

Short term overload

Humidity / 96%RH / 40°C / 56 days

Temperature Range

Climactic Cetegory

Solderability

Max. Soldering Temperature

RoHS Compliant Exemption

Packaging

Max

<10W

±1%

±2%

±1%

±0.5%

±1%

<10W

high temp

±1%

±2%

±1%

10W - 10M

±0.5%

±1%

±0.5%

±0.25%

±0.5%

10W - 10M

high temp

±1%

-55°C to +155°C (Standard)

-55°C to +125°C (50ppm/°C Parts)

-55°C to +300°C (High Temperature Version, TCR valid +25°C to +125°C )

55 / 155 / 56

250°C / 3s (up to 6 months after shipment or 12 monts at storage in Nitrogen)

260°C / 10s

This part is RoHS complian

with exemption 7(c)-I, as authorized by 2011/b5/EU.

Bulk or Blistertape to IEC 60286-3, Tape width 8mm / Reel Diameter 180 or 330mm

Minimum quantity Bulk / 100 pieces per value

Tape & Reel Minimum / 500 pieces per value, Except size 0402 / 1000 pieces per value)

Type

CHR0402 /

CHR0402H

CHR0603 /

CHR0603H

CHR0805 /

CHR0805H

CHR1206 /

CHR1206H

CHR2010 /

CHR2010H

CHR2512 /

CHR2512H

CHR4020 /

CHR4020H

Dimensions

0.95 +0.10 / 0.05

1.5 +0.15 / -0.05

2.0 +0.15 / -0.05

3.2 +0.15 / -0.05

5.1 +0.15 / -0.05

6.3 +0.15 / -0.05

10.2 +0.15 / -0.05

0.48 +0.10 / -0.05

0.8 +0.15 / -0.05

1.25 +0.15 / -0.05

1.5 +0.2 / -0.05

2.5 +0.2 / -0.05

3.5 +0.2 / -0.05

5.1 +0.2 / -0.05

0.28 +0.1 / -0.05

0.4 +0.15 / -0.05

0.6 +0.20 / -0.1

0.6 +0.15 / -0.05

0.1 +0.1 / -0.05

0.2 +0.2 / -0.1

0.3 +0.2 / -0.1

1.2 ±0.2

0.9 ±0.2

Power Derating Curve

120

100

Power ( % )

)

Sta

ard

100

150

200

250

300

350

Ambient Temperature (°C)

Riedon, Inc

Riedon Inc.

300 Cypress Avenue

Alhambra CA 91801

(626) 284-9901

www.riedon.com

sales@riedon.com

Revised: 201904_002

(626) 284-1704
