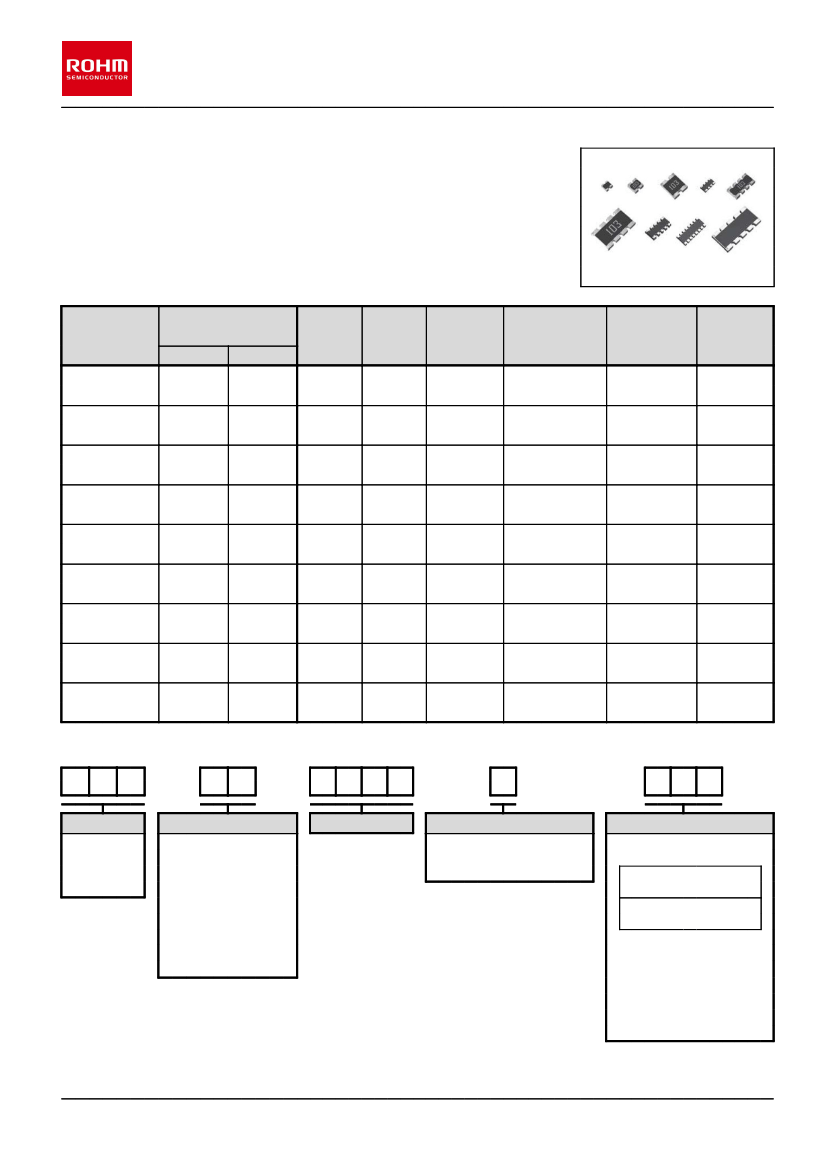

Chip resistor networks
MNR series
●
Datasheet
Features
1)Can be mounted even more densely than chip resistors.
2)Mounting cost can be reduced by less frequency of mounting times.
3)Convex electrodes secures visual inspection of fillets after soldering.
4)ROHM resistors have obtained ISO9001 / ISO / TS16949 certification.
Part No.
(mm)
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MNR32
MNR34
MNR35
Size
(inch)
0402 × 2
0402 × 4
0603 × 2
0603 × 4
0603 × 5
0602 × 8
1206 × 2
1206 × 4
1206 × 5
No. of
No. of
terminals elements
4
8
4
8
10
16
4
8
10
2
4
2
4
8
8
2
4
8
Type code
M0AP
M0AP
E0AP
E0AP
E0RP
E0AP
J0AB
J5AB
J5R
Packaging
specifications
Paper tape
(2mm pitch)
Paper tape
(2mm pitch)
Paper tape
(4mm pitch)
Paper tape
(4mm pitch)
Paper tape
(4mm pitch)
Paper tape
(4mm pitch)
Embossed tape
(4mm pitch)
Embossed tape
(4mm pitch)
Embossed tape
(4mm pitch)
Quantity / Reel
10,000
10,000
5,000
5,000
5,000
5,000
4,000
4,000
4,000
Automotive
grade
available
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1005 × 2
1005 × 4
1608 × 2
1608 × 4
1608 × 5
1605 × 8
3216 × 2
3216 × 4
3216 × 5
●
Part number description
M N R
Part No.
0 2
Size
(mm [inch])
02(1005 × 2 [0402 × 2])
04(1005 × 4 [0402 × 4])
12(1608 × 2 [0603 × 2])
14(1608 × 4 [0603 × 4])
15(1608 × 5 [0603 × 5])
18(1605 × 8 [0602 × 8])
32(3216 × 2 [1206 × 2])
34(3216 × 4 [1206 × 4])
35(3216 × 5 [1206 × 5])
M 0 A P
Type code
J
Resistance tolerance
F (±1%)
J (±5%) (Including jumper type)
1 0 5
Nominal resistance
Resistance code, 3 or 4 digits.
000 denotes jumper type.
Resistance Resistance
tolerance
code
F
J
：
：
MNR
(Chip resistors
networks)
4 digits
3 digits
EX.)
1Ω = 1R0
9.1Ω = 9R1
10Ω = 10R0
100
1MΩ = 1004
105
( ±5% )
( ±5% )
( ±1% )
( ±5% )
( ±1% )
( ±5% )
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
1/6
2017.03 - Rev.H
MNR series
●
Products list
Datasheet
Part No.
Type
code
Rated
power
(70
℃
)
(W)
Limiting
emperature Resistance
element T
tolerance
voltage coefficient
(V)
25
(ppm /
℃
)
±200
(%)
J ( ±5% )
Resistance range
(Ω)
10
≦
R
≦
1M
(E24 series)
Operating
temperature
range
(
℃
)
-55
½
+155
MNR02
M0AP
0.063/ Element
Jumper type : Rmax = 50mΩ Max., Imax = 1A(Element)
+500 / -250
MNR04
M0AP
0.063/ Element
25
±200
J ( ±5% )
10
≦
R
≦
1M
(E24 series)
Jumper type : Rmax = 50mΩ Max., Imax = 1A(Element)
±100
MNR12
E0AP
0.063/ Element
50
±200
J ( ±5% )
10
≦
R
≦
1M
(E24 series)
F ( ±1% )
10
≦
R
≦
1M
(E24 series)
-55
½
+155
J ( ±5% )
1
≦
R<10
(E24 series)
-55
½
+155
MNR14
E0AP
Jumper type : Rmax = 50mΩ Max., Imax = 1A(Element)
±100
F ( ±1% )
10
≦
R
≦
1M (E24 series)
0.063/ Element
50
±500
J ( ±5% )
2.2
≦
R<10
(E6 series)
±200
J ( ±5% )
10
≦
R
≦
1M (E24 series)
Jumper type : Rmax = 50mΩ Max., Imax = 1A(Element)
0.031/ Element
0.063/ Element
12.5
25
±200
±200
J ( ±5% )
J ( ±5% )
56
≦Ｒ≦
100k
10
≦
R
≦
1M
(E96 series)
(E24 series)
-55
½
+155
MNR15
MNR18
E0RP
E0AP
-55
½
+125
-55
½
+125
Jumper type : Rmax = 50mΩ Max., Imax = 1A(Element)
MNR32
J0AB
0.125/ Element
200
±200
J ( ±5% )
10
≦
R
≦
1M
(E24 series)
-55
½
+125
Jumper type : Rmax = 50mΩ Max., Imax = 2A(Element)
MNR34
J5AB
0.125/ Element
200
±200
J ( ±5% )
10
≦
R
≦
1M
(E24 series)
-55
½
+125
Jumper type : Rmax = 50mΩ Max., Imax = 2A(Element)
MNR35
J5R
0.063/ Element
50
±200
J ( ±5% )
56
≦
R
≦
100K (E12 series)
-55
½
+125
* Design and specifications are subject to change without notice.Carefully check the specification sheet supplied with the product
before using or ordering it.
●

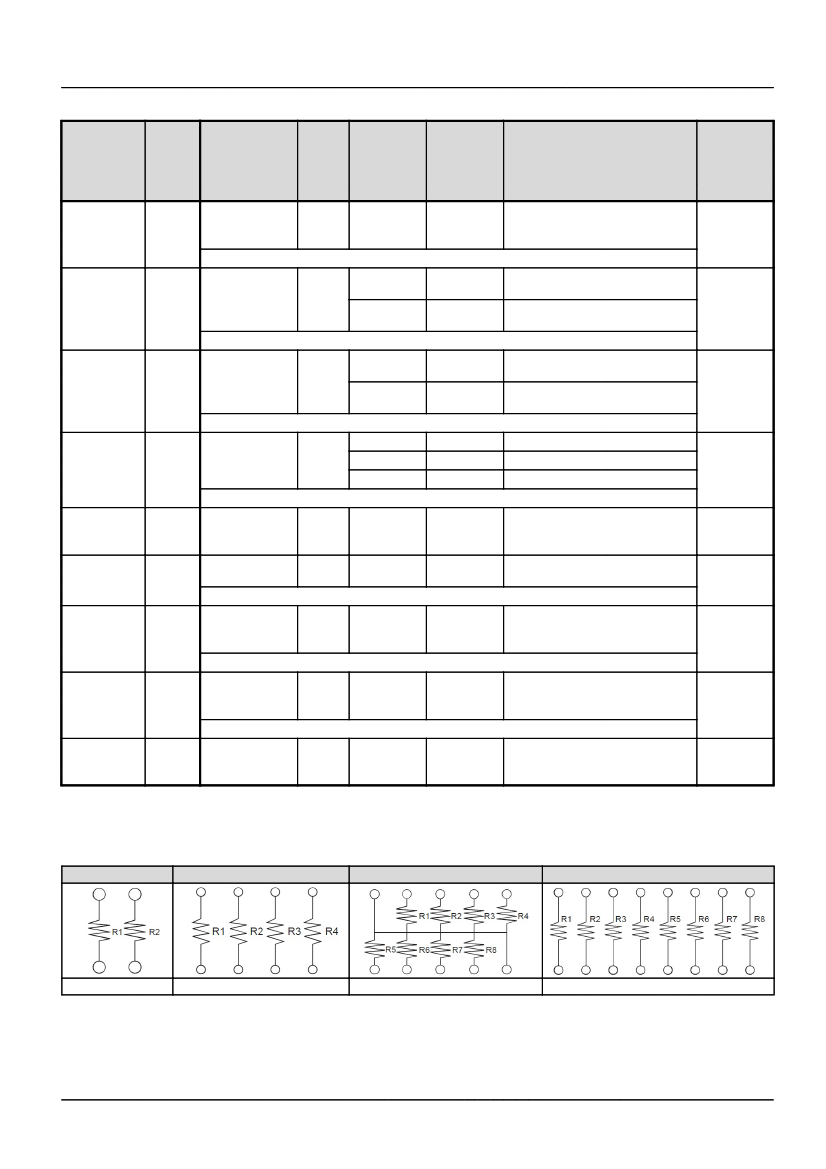

Circuit construction
MNR 02/12/32
MNR 04/14/34
MNR 15/35
MNR18
R1=R2
R1=R2=R3=R4
R1=R2=R3=R4=R5=R6=R7=R8
R1=R2=R3=R4=R5=R6=R7=R8
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
2/6
2017.03 - Rev.H
MNR series
●

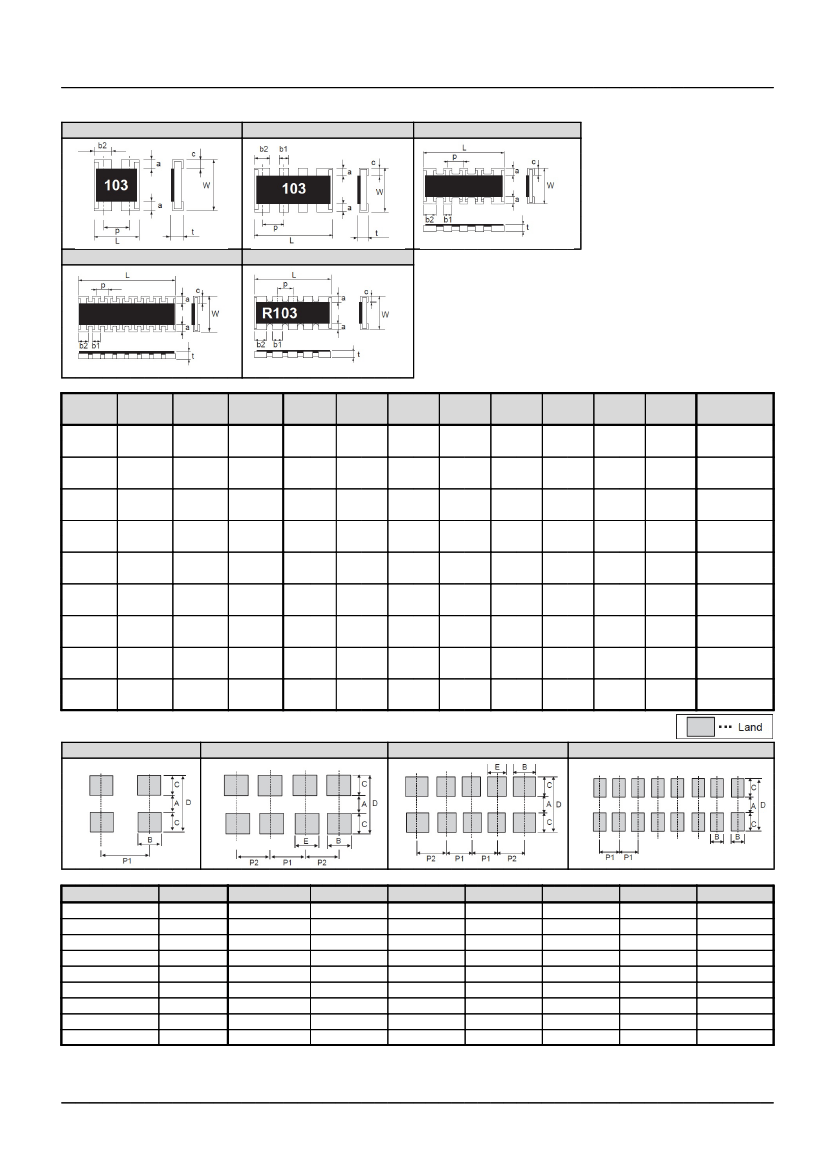

Chip resistor dimensions and markings
Datasheet
MNR04/14/34
MNR15
MNR02/12/32
MNR18
MNR35
<Marking method>
There are three or four digits used for the calculation number
according to IEC code and "R"is used for the decimal point.
MNR35 is
「
R
」
+ three digits used for the calculation number
according to IEC code.
(Unit:mm)
Part No.
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MNR32
MNR34
MNR35
Type
code
M0AP
M0AP
E0AP
E0AP
E0RP
E0AP
J0AB
J5AB
J5R
(mm)
1005 × 2
1005 × 4
1608 × 2
1608 × 4
1608 × 5
1605 × 8
3216 × 2
3216 × 4
3216 × 5
(inch)
0402 × 2
0402 × 4
0603 × 2
0603 × 4
0603 × 5
0602 × 8
1206 × 2
1206 × 4
1206 × 5
L
W
t
a
b1
―
b2
c
p
0.68
0.5
0.8
0.8
0.64
0.5
1.27
1.27
1.27
Marking exis tenc e
*Inc luding jum per type
1.00±0.10 1.00±0.10 0.35±0.10 0.20±0.10
0.33 +0.10 0.25±0.10
-0.05
No
No
Yes
Yes
No
No
Yes
Yes
Yes
2.00±0.10 1.00±0.10 0.35±0.10 0.20±0.10 0.30±0.10 0.40 ±0.10 0.25±0.10
1.60±0.10 1.60±0.10 0.50±0.10
0.3±0.20
―
0.60 ±0.15 0.25±0.15
3.20±0.10 1.60±0.10 0.50±0.10 0.30±0.20 0.40±0.15 0.60 ±0.15 0.25±0.15
3.20±0.10 1.60±0.10 0.50±0.10 0.30±0.10 0.32±0.15 0.48 ±0.15 0.30±0.10
3.80±0.10 1.60±0.10 0.45±0.10 0.30±0.20 0.30±0.10 0.30 ±0.10 0.30±0.20
2.60±0.20 3.10±0.20 0.55±0.10 0.50±0.30
―
1.00 ±0.20
0.5MAX
0.5MAX
5.20±0.40 3.10±0.20 0.55±0.10 0.50±0.30 0.80±0.20 1.00 ±0.20
6.4±0.40 3.10±0.20 0.55±0.10 0.50±0.30 0.80±0.20 1.00 ±0.20 0.50MAX
●
Land pattern example
MNR02/12/32
MNR04/14/34
MNR15/35
MNR18
Part No.
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MNR32
MNR34
MNR35
Type code
M0AP
M0AP
E0AP
E0AP
E0RP
E0AP
J0AB
J5AB
J5R
A
0.5
0.5
1.0
1.0
1.0
1.0
2.1
2.1
2.1
B
0.35
½
0.4
0.4
0.4
½
0.6
0.4
½
0.6
0.48
0.3
0.8
½
1.0
0.8
½
1.0
0.8
½
1.0
C
0.5
0.5
0.7
½
0.8
0.7
½
0.8
0.7
½
0.8
0.7
½
0.8
0.8
½
1.0
0.8
½
1.0
0.8
½
1.0
D
1.5
1.5
2.4
½
2.6
2.4
½
2.6
2.4
½
2.6
2.4
½
2.6
3.7
½
4.1
3.7
½
4.1
3.7
½
4.1
E
―
0.3
―
0.4
0.32
―
―
0.7
½
0.8
0.7
½
0.8
P1
0.65
½
0.7
0.5
0.8
½
1.0
0.8
0.64
0.5
1.27
½
1.6
1.27
½
1.35
1.27
½
1.3
(Unit:mm)
P2
―
0.5
½
0.55
―
0.8
½
0.9
0.72
―
―
1.27
½
1.45
1.27
½
1.4
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
3/6
2017.03 - Rev.H
MNR series
●
Datasheet

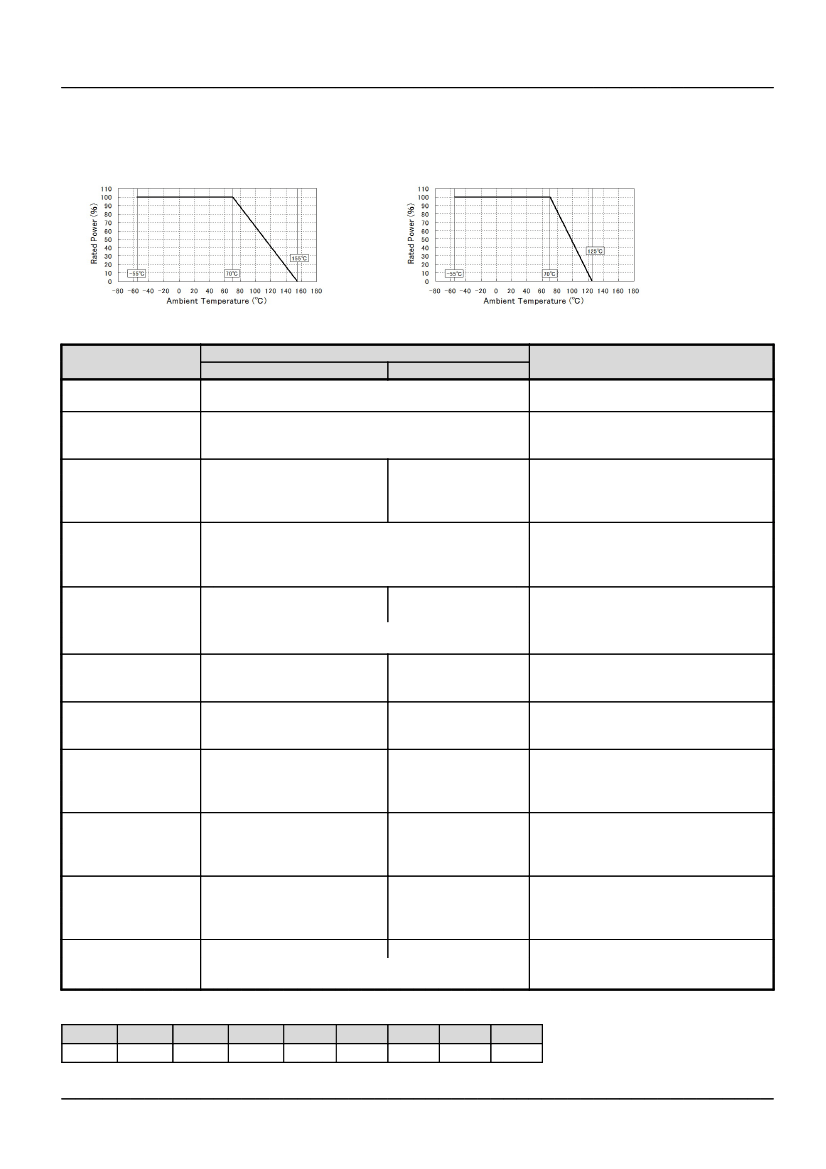

Derating curve
When the ambient temperature exceeds 70°C, power dissipation must be adjusted according to the derating curves below.
■MN R 02/04/12/14
MN
■MN R 15/18/32/34/35
MN
●
Characteristics
T items
est
G
½½½½½½½½½
value
Resistor type
Jumper type
See "Products list"
See "Products list"
20
℃
Measurement
：
+25/-55, +25/+125
℃
T voltage is the smaller one of
①
or
②
est
①
Rated voltage(current)×2.5
，
2s
②
Maximum overload voltage
※
Rosin-ethanol solution(25% weight)
Soldering condition
：
245±5
℃
Duration of immersion
：
2.0±0.5s
Soldering condition
：
260±5
℃
Duration of immersion
：
10±1s
T temp : -55
℃½
+125
℃
5cycle
est
40
℃，
93
％
(Relative humidity)
T time
：
1,000h
est
Rated voltage(current),70
℃
1.5h:ON
－
0.5h:OFF
T time
：
1,000h
est
155
℃
(MNR02/04/12/14)
125
℃
(MNR15/18/32/34/35)
T time
：
1,000h
est
23±5
℃
, Immersion cleaning, 5±0.5min
Solvent: 2-propanol
-
Compliance Standard(s) : IEC60115-8
JISC 5201-8
T conditions
est
Resistance
Variation of resistance
with temperature
Overload
±(2.0
％＋
0.1Ω)
MAX. 50mΩ
Solderability
Anew uniform coating of minimum of 95% of the
surface being immersed and no soldering damage.
±(1.0
％＋
0.05Ω)
±(1.0
％＋
0.1Ω)
※
MNR35
Resistance to
soldering heat
Rapid change of
temperature
Damp heat, steady state
MAX. 50mΩ
No remarkable abnormality on the appearance.
±(1.0
％＋
0.05Ω)
±(1.0
％＋
0.1Ω)
※
MNR35
±(3.0
％＋
0.1Ω)
MAX. 100mΩ
±(3.0
％＋
0.1Ω)
MAX. 50mΩ
Endurance at 70
℃
±(3.0
％＋
0.1Ω)
Endurance
±(1.0
％＋
0.05Ω)
±(1.0
％＋
0.1Ω)
※
MNR35
±(1.0
％＋
0.05Ω)
MAX. 100mΩ
MAX. 100mΩ
Resistance to solvent
Bend strength of
the end face plating
MAX. 50mΩ
MAX. 50mΩ
Without mechanical damage such as breaks.
※
Maximum overload voltage (T voltage)
est
MNR02 MNR04 MNR12 MNR14 MNR15 MNR18 MNR32 MNR34 MNR35
50V
50V
100V
100V
25V
50V
400V 400V 100V
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
4/6
2017.03 - Rev.H
MNR series
●
Datasheet

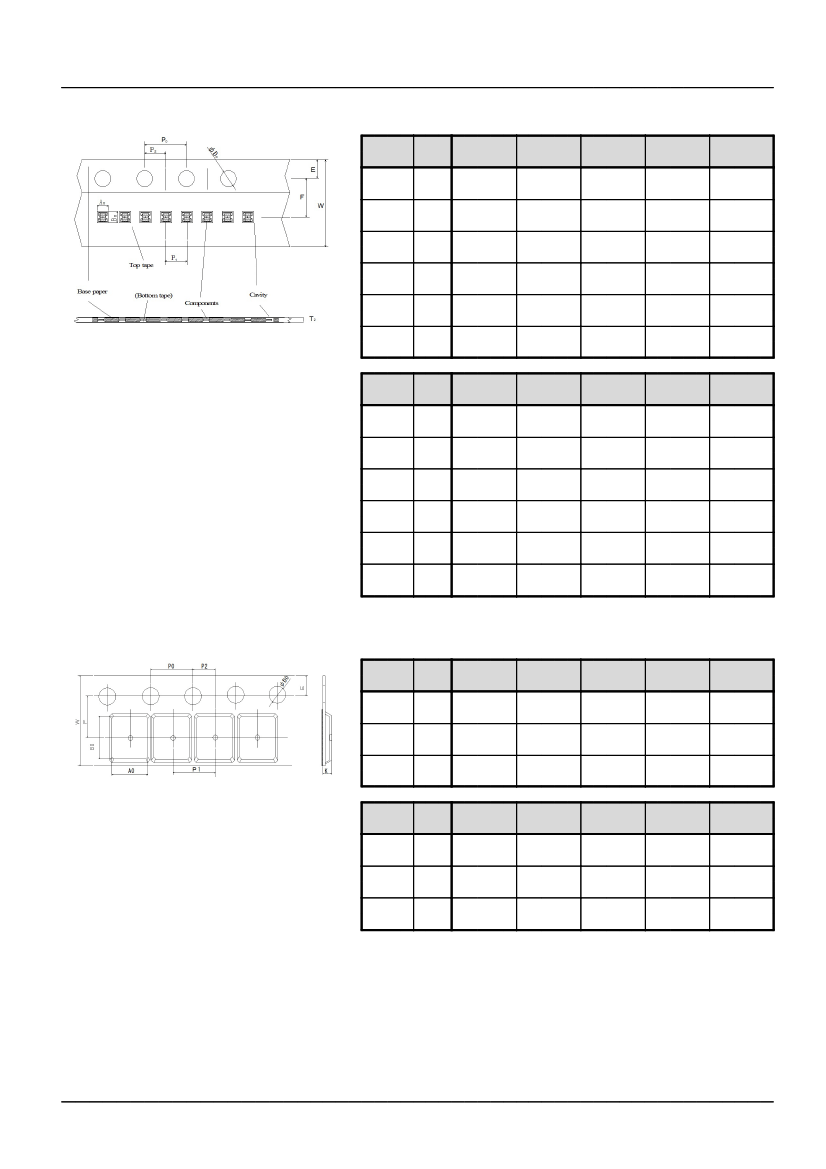

(Unit : mm)
Type
Part No. code
W
F
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
3.5±0.05
E
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
1.75±0.1
A0
1.17±0.1
1.2±0.1
1.8±0.1
1.8±0.1
1.8±0.1
1.95±0.15
B0
1.17±0.1
2.2±0.1
1.8±0.1
3.4±0.1
3.4±0.1
4.1±0.15
Tape cimensions
■
Paper tape
MNR02
M0AP 8.0±0.3
MNR04
M0AP 8.0±0.3
MNR12
E0AP
MNR14
E0AP
MNR15
E0RP
8.0±0.3
8.0±0.3
8.0±0.3
8.0±0.3
MNR18
E0AP
Type
Part No. code
W
+0.1
0
+0.1
Φ1.5
0
+0.1
Φ1.5
0
+0.1
Φ1.5
0
Φ1.5 +0.1
0
Φ1.5 +0.1
0
F
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
E
2.0±0.1
2.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
A0
B0
MNR02
M0AP Φ1.5
MNR04
M0AP
MNR12
E0AP
MNR14
E0AP
MNR15
E0RP
2.0±0.05 MAX0.5
2.0±0.05 MAX1.1
2.0±0.05 MAX1.1
2.0±0.05 MAX1.1
2.0±0.05 MAX1.1
2.0±0.05 MAX1.1
MNR18
E0AP
■
Embossed tape
(Unit : mm)
Type
Part No. code
MNR32
J0AB
W
8.0±0.3
F
3.5±0.05
5.5±0.05
5.5±0.05
E
1.75±0.1
1.75±0.1
1.75±0.1
A0
3.0±0.1
3.4±0.1
3.4±0.1
B0
3.5±0.1
5.6±0.1
6.6±0.1
MNR34
J5AB 12.0±0.3
MNR35
J5R 12.0±0.3
Type
Part No. code
W
F
4.0±0.1
4.0±0.1
4.0±0.1
E
4.0±0.1
4.0±0.1
4.0±0.1
A0
2.0±0.05
2.0±0.05
2.0±0.05
B0
0.9±0.1
1.0±0.15
1.0±0.15
MNR32
J0AB Φ1.5 +0.1
0
MNR34
J5AB Φ1.5 +0.1
0
MNR35
J5R Φ1.5 +0.1
0
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
5/6
2017.03 - Rev.H
京公网安备 11010802033920号
EEWORLD
