REVISION BH
NOTES
:
DO NOT
SCALE FROM
THIS PRINT
1. MAXIMUM ALLOWABLE BOW: .003[0.08] IN/IN AFTER ASSEMBLY.
2. MINIMUM PUSHOUT FORCE SHALL BE .5 LB ON BOARD STYLE
.070[1.78]-.198[5.03] AND 1 LB ON BOARD STYLE .199[5.05]-.690[17.53].
3. GOLD AREA TO APPEAR ON POST.
4. TAILS SHEARED TO DIMENSIONS SHOWN.
5. LAYER PACKAGE ALL -S. LAYER PACKAGE -D
POSITIONS 2-10. TUBE PACKAGE -D POSITIONS 11-50.
6. AVAILABLE ONLY W/BOARD SPACE .215[5.46] TO .610[15.49].
7. "B" = POST DIMENSION + BOARD SPACE.
8. MAXIMUM CUT FLASH: .010 [0.25].
9. FILL BODY SO THAT THE LEAD IN OF THE CORE IS ON THE TAIL SIDE.
10.
REPRESENTS A CRITICAL DIMENSION.
11. FOR ADDED MECHANICAL STABILITY, SAMTEC RECOMMENDS
MECHANICAL BOARD SPACERS BE USED IN APPLICATIONS WITH
GOLD OR SELECTIVE GOLD PLATED CONNECTORS. CONTACT
IPG@SAMTEC.COM FOR MORE INFORMATION.
FW-XX-XX-XX-X-XXX-XXX-XX
POSITION SPEC
No OF POS PER ROW
-02 THRU -50
TAIL STYLE
(SEE TABLE 1)
(SEE TABLE 2 FOR
TERMINAL PIN)
PLATING
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-G: 10µ" GOLD IN CONTACT AREA
3µ" ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA
3µ" ON TAIL
-LM: 10µ"LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA
MATTE TIN TAIL
OPTION
-ES: END SHROUDS (SEE FIG 4, SHT 2)
(9 POS PER ROW MIN)
(MAX POST: .075[1.91])
(SEE NOTE 6)
-EP: GUIDE POST (FIG 3, SHT 2)
(9 POS PER ROW MIN)
(MAX POST: .075[1.91])
(USE ONLY WHEN MATING WITH CLP)
(SEE NOTE 6)
POST LENGTH
-XXX±.005 [0.13]
.065 [1.65] MIN
BOARD SPACE
-XXX±.005 [0.13]
(.070 [1.78] MIN) SEE TABLE 1 FOR MAX
ROW OPTION
-D: DOUBLE (SEE TABLE 3 )
-S: SINGLE (USE 2 FTS-50-SV)
*DO NOT DESIGN -S: SINGLE ROW IN
SAMTEC WILL ONLY SUPPORT EXISTING
BUSINESS AS OF 10/17/97
.085 2.16
REF
C
L
-S
No OF POSITIONS X .050[1.27]±.010 [0.25]
No OF POSITIONS X .050[1.27]±.010 [0.25]
TABLE 1
"A"
.045 [1.14]
.075 [1.91]
.090 [2.29]
.135 3.43
REF
C
L
TAIL STYLE
-01
-02
-04
"B" MAX
.755 [19.18]
.725 [18.42]
.710 [18.03]
-XXX±.005[0.13]
POST LENGTH
(.065[1.65] MIN
-D
2 MAX SWAY
(EITHER DIRECTION)
.050 1.27
REF
.070 1.78 REF
(CONTACT AREA)
.034 0.86 REF
"C"
(SEE TABLE 2)
FTS-XX-SV
-XXX±.005 [0.13]
BOARD SPACE
(.070 [1.79] MIN)
FTS-XX-DV
-XXX±.005 [0.13]
BOARD SPACE
(.070-.198)
[1.78-5.03]
'B'
.016 0.41 SQ
REF (TYP)
TERMINAL
T-1S15-10-XX
T-1S15-03-XX
T-1S15-04-XX
T-1S15-05-XX
TABLE 2
"C"
.401 [10.19] - .750 [19.05]
.401 [10.19] - .750 [19.05]
.170 [4.32] - .400 [10.16]
.751 [19.08] - .800 [20.32]
TABLE 3 *
BODY STYLE
FTS-XX-DV
FTSH-XX-D
ROW OPTION
D
S
D,S
D,S
C
L
C
L
C
L
-S
(SEE -D FOR DIMENSIONING)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS

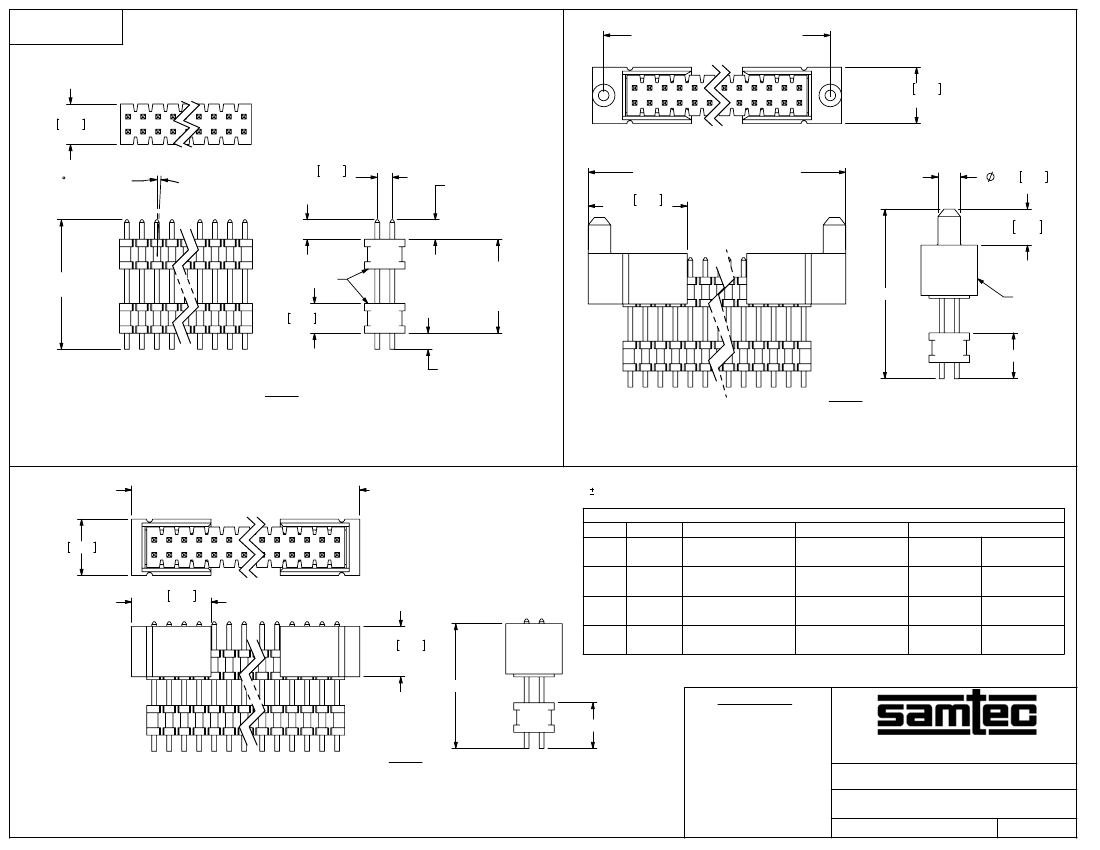

FTS-XX-DV BODY STYLE
FW-50-01-XX-D-198-045
(BOARD SPACE .070-.198[1.78-5.03])
PROPRIETARY NOTE
FIG 1
"A"
(SEE NOTE 4)
BOARD SPACE
.070 [1.78]- .198[5.03]
.199 [5.05]- .690 [17.53]
FIG
1
2 (SEE SHEET 2)
.XX: .01 [.3]
5
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
FTS-XX-XX & FTSH-50-D: LCP,UL 94 VO, COLOR BLACK
TERMINAL: PHOS BRONZE
.050 x .050 SURFACE MOUNT BOARD SPACERS
*THIS TABLE APPLIES TO DOUBLE ROW ASSEMBLIES ONLY
ALL SINGLE ROW ASSEMBLIES USE
FTS-XX-SV
FW-XX-XX-XX-X-XXX-XXX-XX
BY:
BRATCHER 4/8/94
F:\DWG\MISC\MKTG\FW-XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
SHEET
1
OF
3
REVISION BH
(No OF POSITIONS X .050 [1.27]
+.156 [3.96]) ±.008[0.20]
.188 4.78
REF
.135 3.43 REF
2 MAX SWAY
(EITHER DIRECTION)
.050 1.27
REF
-XXX±.005[0.13]
POST LENGTH
(.065[1.65] MIN]
(No OF POSITIONS X .050[1.27]
+.231[5.87])±.008[0.20]
.330 8.38
REF (TYP)
.075 1.91 REF
CONTACT AREA
-XXX±.005[0.13]
BOARD SPACE
(.199-.690)
[5.05-17.53]
.120 3.05 REF
"C"
(SEE TABLE 2, SHT 1)
FTSH-XX-D
.099 2.51 REF(TYP)
"D"
FTSH-EP
"A" (SEE NOTE 4)
"F"
FTSH-XX-D BODY STYLE
FW-50-02-XX-D-690-075
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(BOARD SPACE .199[5.05]-.690[17.53])
FIG 2
-EP:GUIDE POST OPTION
FW-50-02-XX-D-610-075-EP
(USE ONLY WHEN MATING WITH CLP)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(BOARD SPACE .215[5.46]-.610[15.49])
FIG 3
(No OF POSITIONS X .050[1.27]+.101[2.57]) .008[0.20]
TABLE 5
.188 4.78 REF
LEAD
STYLE
.265 6.73
REF (TYP)
.168 4.27
REF
"E"
PROPRIETARY NOTE
BODY STYLE
UPPER BODY
FTSH-XX-D
FTSH-XX-D
FTSH-XX-D
LOWER BODY
FTSH-XX-D
FTSH-XX-D
FTSH-XX-D
"F"
"D" RANGE
"E" RANGE
-01
-02
-04
.144[3.66] .471-.866[11.96-22.00] .351-.746[8.92-18.95]
.174[4.42] .501-.896[12.73-22.76] .381-.776[9.68-19.71]
.189[4.80] .516-.911[13.11-23.14] .396-.79[10.06-20.09]
"F"
-ES OPTION
FW-50-02-XX-D-610-075-ES
(DIFFERENT AS SHOWN, OTHERWISE AS FIG 1)
(BOARD SPACE .215-.610[5.46-15.49])
F:\DWG\MISC\MKTG\FW-XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
FIG 4
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 x .050 SURFACE MOUNT BOARD SPACERS
DWG. NO.
DESCRIPTION:
FW-XX-XX-XX-X-XXX-XXX-XX
BY:
BRATCHER 4/8/94
SHEET
2
OF
3
REVISION BH
TABLE 4
LEAD STYLE
OPTIONS
BOARD STYLE/HEIGHT
BOARD SPACE
.070-.198
[1.78-5.03]
.070-.198
[1.78-5.03]
.199-.235
[5.05-5.97]
.236-.690
[6.00-17.53]
* "C" DIMENSION
FOR DOUBLE ROW OPTIONS
ONLY PACKAGING TUBE
PT-FW001-D-.070-.198
PT-FW007-D-.070-.198
PT-FW002-D-.199-.253
PT-FW003-D-.254-690
PT-FW004-0X-D-EX
PT-FW008-.199-.253
PLUG
-01,-02,-04
-01,-02,-04
-01,-02,-04
-01,-02,-04
-01,-02,-04
-01,-02,-04
NONE
NONE
NONE
NONE
EP,ES
NONE
FTS
FTS
FTSH (.199-.253) [5.05-6.43]
FTSH(.236-.690) [6.00-17.53]
.199-.690 [5.05-17.53]
FTSH
0-.350 [0-8.89]
.351-.800 [8.92-20.32]
0-.415 [0-10.54]
.416-.800 [10.57-20.32]
.800 MAX [20.32 MAX]
TP-24
TP-24
TP-24
TP-24
TP-24
TP-24
.199-.235
[5.05-5.97]
.416-.800 [10.57-20.32]
PLEASE CHECK BOARD SPACE AND "C" DIMENSION WHEN SETTING UP BOMS".
*"C" DIMENSION"=POST LENGTH + BOARD SPACE +"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 x .050 SURFACE MOUNT BOARD SPACERS
F:\DWG\MISC\MKTG\FW-XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
BY:
BRATCHER 4/8/94
FW-XX-XX-XX-X-XXX-XXX-XX
SHEET
3
OF
3
